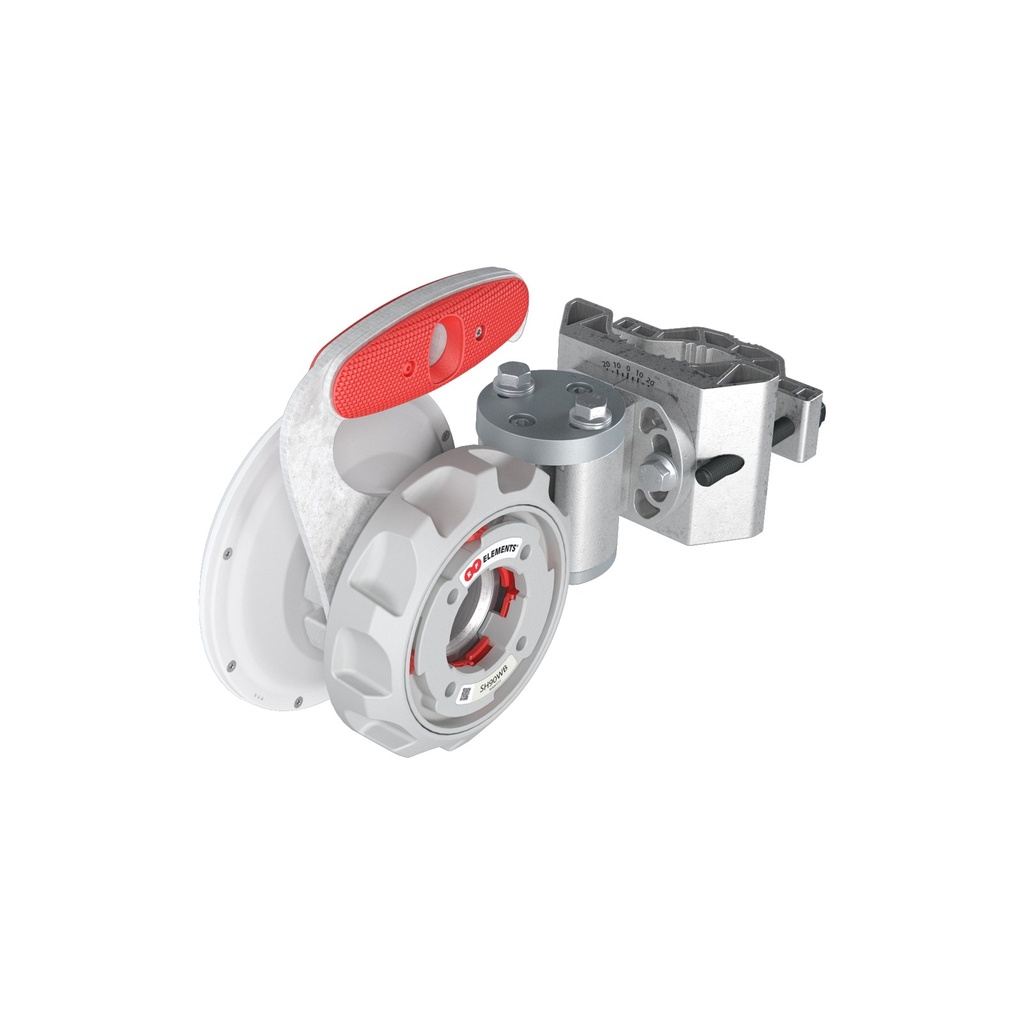

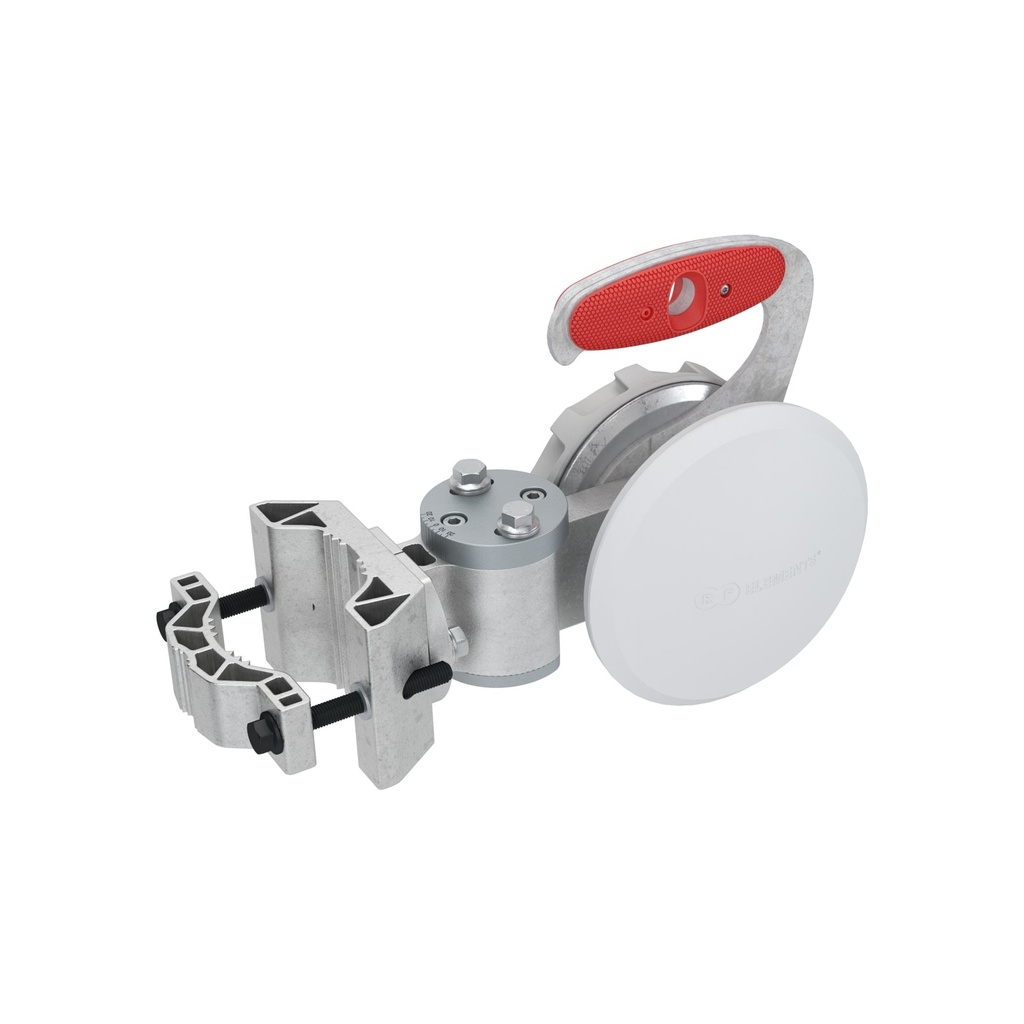

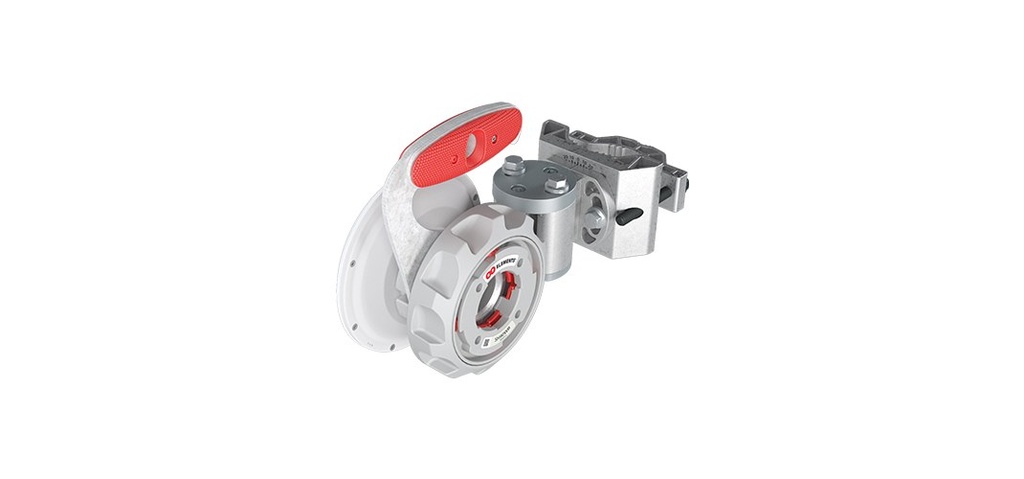

RF Elements SH90WB Symmetrical Horn WB 86° 11 dBi 5/6 GHz Wideband TwistPort Antenna

https://arcip.com.au/web/image/product.template/11507/image_1920?unique=874d354

RF Elements SH90WB is a 5 + 6 GHz wideband symmetrical horn sector antenna with 11 dBi gain across 4900 - 7200 MHz, H 86°, V 85° azimuth at −6 dB and a 30 dB front-to-back ratio. It uses the TwistPort quick-lock waveguide connector and is rated IP65.

$ 434.86 434.86 AUD $ 434.86 incl. GST

Not Available For Sale


This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SH90WB

RF Elements SH90WB at a glance

The RF Elements SH90WB is a 5 + 6 GHz wideband symmetrical horn sector antenna: 11 dBi across 4900 - 7200 MHz with 86° azimuth coverage at −6 dB and a 30 dB front-to-back ratio. Horn antennas have very low side lobes, which cuts the noise a sector hears and lets more sectors share a tower. It uses RF Elements' TwistPort quick-lock connector, so radios click on directly or through a TwistPort adaptor.

ARC IP Networks is an authorised RF Elements reseller in Australia. We supply the genuine RF Elements SH90WB at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

Gain11 dBi
Frequency4900 - 7200 MHz
Azimuth −6 dBH 86°, V 85°
Elevation −6 dBH 85°, V 85°
Front-to-back30 dB
ConnectorTwistPort quick-lock
Weight1.7 kg
RatingIP65

Best for

  • Short-range, high-density 90° sectors
  • Clusters of co-located sectors on 5 and 6 GHz
  • Urban networks with heavy interference

Consider instead

Key features

11 dBi gain, 4900 - 7200 MHz

H 86°, V 85° azimuth and H 85°, V 85° elevation at −6 dB

30 dB front-to-back ratio, very low side lobes

TwistPort quick-lock waveguide: no RF cables

IP65 rated, 160 km/h wind survival

Pole mount 40-80 mm, ± 20° Elevation, ± 20° Azimuth (datasheet); product page lists Mechanical Tilt ± 25°

What's in the box

  • 1 x SH WB Body
  • 1 x Bracket Base UBR
  • 1 x Bracket Ring UBR
  • 1 x Pole Mount Bracket
  • 2 x M8 x 80 mm DIN 912 Screw
  • 2 x M6 x 20 mm DIN 6921 Screw
  • 1 x 3 x 16 mm Lock Screw

TwistPort adaptors for third-party radios are sold separately.

RF Elements SH90WB specifications

Performance

Frequency Range4900 - 7200 MHz (datasheet Rev 04-2026)
Gain11 dBi (datasheet Rev 04-2026)
Azimuth Beam Width -3 dBH 64°, V 61°
Azimuth Beam Width -6 dBH 86°, V 85°
Elevation Beam Width -3 dBH 61°, V 63°
Elevation Beam Width -6 dBH 85°, V 85°
Beam Efficiency (defined up to first null)93%
Front-to-Back Ratio30 dB
VSWR<1.8
PolarizationDual Linear H + V
Impedance50 Ohm

Technical Data

Radio ConnectionTwistPort™ Waveguide Connector
Antenna TypeHorn
MaterialsUV Resistant ABS plastic, Aluminium, Stainless Steel
EnvironmentalIP65
Pole Mounting Diameter40-80 mm (1.5-3.1 inch); recommended as close to 80 mm (3.1 inch) as possible
Temperature-35°C to +60°C (-31°F to +140°F)
Wind Survival160 km/h (100 mph)
Wind Load22/11 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area183/90 cm² - Front/Side (32.8/12.5 in²)
Mechanical Adjustment± 20° Elevation, ± 20° Azimuth (datasheet); product page lists Mechanical Tilt ± 25°

Physical

Weight1.7 kg / 3.7 lbs – single unit
Weight incl. package2.8 kg / 6 lbs
Wholesale box weight15.3 kg / 34 lbs (5 units)
Single Unit Retail Box290 × 230 × 240 mm (11 x 9 x 9 inch)
Wholesale Box (5 units)1000 × 305 × 270 mm (47 x 12 x 10 inch)

Features (product page)

BracketReversible clamp for thinner tubes; easy right/left pole-side flip; can mount on horizontal tube
Slant polarisationCan be switched from H+V to ±45° dual slant by mechanically rotating the antenna in its bracket

Specifications from RF Elements' official product documentation for the SH90WB, checked October 2026.

The RF Elements SH90WB in depth

What it is

The Symmetrical Horn WB is RF Elements' wideband symmetrical horn, covering 4900–7200 MHz per the April 2026 datasheet. Its symmetrical beam is equally wide in azimuth and elevation, ideal for short-range, dense sectors close to the tower.

Why horns reduce noise

Conventional sector antennas have large side lobes that pick up interference from neighbouring sectors and towers. RF Elements horns have a symmetrical beam with very low side lobes, so each sector hears mainly its own clients. That keeps signal-to-noise and modulation higher and makes it practical to reuse frequencies on one tower.

Connection

TwistPort is RF Elements' quick-locking waveguide connector. Radios with a TwistPort interface click straight on; other radios use a TwistPort adaptor (TPA-R5AC for Rocket 5AC Lite, TPA-PAF for Prism/LTU/AF-5X, TPA-ePMP and TP-ADAP-e2K for Cambium, or the universal TPA-SMA). No coax jumpers means lower loss and faster radio swaps.

Frequently asked questions

Straight answers about the RF Elements SH90WB from the ARC IP Networks team. Last reviewed October 2026.

It is a 5 + 6 GHz wideband symmetrical horn sector antenna from RF Elements: 11 dBi, 4900 - 7200 MHz, H 86°, V 85° azimuth at −6 dB, 30 dB front-to-back, TwistPort quick-lock connector.

Horn antennas have a clean, symmetrical beam with very low side lobes and back lobes. That rejects interference from other sectors and towers, keeps modulation higher and makes frequency reuse on one tower practical.

Any radio with a TwistPort interface, and supported Ubiquiti, Cambium, MikroTik and Mimosa radios through RF Elements TwistPort adaptors such as the TPA-R5AC, TPA-PAF, TPA-ePMP and TPA-SMA.

On a pole of 40-80 mm with the supplied bracket, with ± 20° Elevation, ± 20° Azimuth (datasheet); product page lists Mechanical Tilt ± 25° adjustment.

Yes. The WB range covers 5 GHz and 6 GHz. Check your radio and local licensing before using 6 GHz in Australia.

ARC IP Networks is an authorised RF Elements reseller and supplies the genuine RF Elements SH90WB at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.

Buy the RF Elements SH90WB in Australia

ARC IP Networks is an authorised RF Elements reseller, supplying genuine RF Elements horn, dish and sector antennas and TwistPort adaptors at competitive prices to ISPs, integrators and businesses across Australia.

  • Genuine RF Elements products, never grey import.
  • Australian stock with Australia-wide delivery.
  • Full manufacturer's warranty and local pre-sales help with antenna selection.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a horn-based sector?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right RF Elements antenna for your network.
