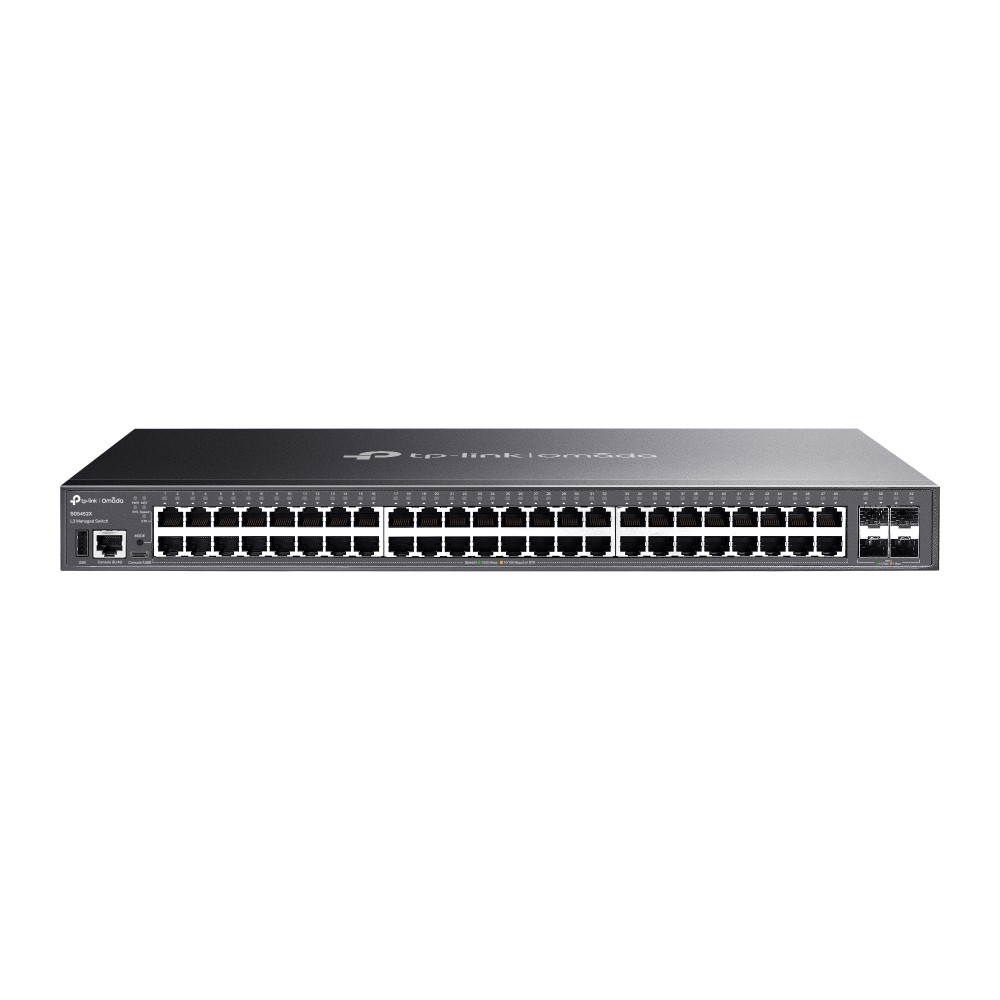

TP-Link SG5452X Omada 48-Port Gigabit Stackable Lite L3 Managed Switch with 4 x 10G Slots

https://arcip.com.au/web/image/product.template/8176/image_1920?unique=3c3b158

The TP-Link SG5452X is an Omada 48-port Gigabit stackable lite L3 managed switch with 4 x 1/10 Gbps SFP+ slots. It delivers 176 Gbps switching per unit, stacks up to four switches over its SFP+ ports with up to 40 Gbps stacking bandwidth, and supports static routing, RIP, OSPF v2/v3, DHCP server, ERPS, ACL, 802.1X and Dynamic ARP Inspection, in a fanless 440 mm rackmount chassis. It is a non-PoE switch. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,915.14 1915.14 AUD $ 1,915.14 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

Switch Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SG5452X
Barcode
8885020626469
Tags

The TP-Link SG5452X is an Omada 48-port Gigabit stackable lite L3 managed switch with 4 x 10G SFP+ slots (hardware V1). It is a non-PoE, fanless 19-inch rackmount switch with 176 Gbps switching per unit, physical stacking of up to four switches, static routing, RIP, OSPF, DHCP server and relay, ERPS and strong security, managed standalone or through an Omada controller.

SG5452X overview

The SG5452X is TP-Link's Omada 48-port Gigabit stackable lite L3 managed switch with 4 x 10G slots, listed on TP-Link Australia as hardware version V1 in the Omada campus switch range. TP-Link describes it as a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds and stacking options, and positions it as a reliable networking solution for SMEs and ISPs. It has 48 x 10/100/1000 Mbps RJ45 ports, 4 x 1/10 Gbps SFP+ slots, one USB 2.0 port, one RJ45 console port and one USB Type-C console port (a console cable is included). It does not supply PoE, so it is aimed at desktop, server and uplink connections rather than powering access points or cameras.

Stacking is the headline. Up to four switches can be physically stacked, and TP-Link says this gives the network built-in redundancy and performance. The stacking ports are the 10G SFP+ slots themselves (the uplink ports can be used as stacking ports), with stacking bandwidth of up to 40 Gbps using a maximum of two stacking ports. Each unit has 176 Gbps switching capacity, 88 Gbps forwarding bandwidth and a 130.94 Mpps forwarding rate, with a 16K MAC table, 12 Mbit packet buffer and 9 KB jumbo frames. The datasheet lists a dual-core ARM 1.2 GHz CPU, 2 GB DDR4 DRAM and 4 MB NOR plus 512 MB NAND flash. Only one 10G RJ45 SFP+ module (SM5310-T) can be inserted at a time.

Layer 3 capability goes well beyond the static routing of TP-Link's L2+ switches: up to 128 IPv4 and 128 IPv6 interfaces, up to 512 IPv4 and 128 IPv6 static routes, a 1,024-entry host route table, RIP v1/v2 and RIPng, OSPF v2 and v3, 512 static and 2,000 dynamic ARP entries, proxy ARP, and a DHCP server with up to 64 IP pools and 1,000 manual bindings plus DHCP relay and DHCPv6 relay. Layer 2 covers link aggregation, spanning tree, port and VLAN-based loopback detection, flow control, ERPS for rapid protection and recovery in ring topologies, mirroring and RSPAN, IGMP and MLD snooping with a 2,000-entry multicast table, MVR, 4K VLANs including QinQ (256 entries), MAC, protocol, voice and private VLANs, and ISP features 802.3ah OAM, L2PT, DLDP, DDM and sFlow.

Security features include IPv4 and IPv6 ACLs, Dynamic ARP Inspection, CPU-Defend, DoS defend, 1,024-entry IP-MAC-Port and IPv6-MAC-Port binding, DHCP and DHCPv6 snooping, ND detection and snooping, IPv4 and IPv6 Source Guard, port security up to 64 MAC addresses per port, storm control, 802.1X with VLAN assignment, MAB, guest VLAN, RADIUS and AAA including TACACS+, port isolation, HTTPS and SSHv2. Standalone management is via web GUI, CLI through console port or telnet, SNMP v1/v2c/v3 and RMON, with DHCP auto install, dual image and EEE. Centralised management uses the Omada cloud-based controller (version 5.15.22 or later) or a hardware or software controller (5.15.20 or later), with cloud access, the Omada app and Zero-Touch Provisioning through the cloud-based controller. The fanless 440 x 220 x 44 mm rackmount chassis draws at most 34.1 W at 220 V, runs at -5 to 45 C and is CE, FCC and RoHS certified per the datasheet.

Key features

48 Gigabit + 4 x 10G SFP+

48 x 10/100/1000 Mbps RJ45 ports and 4 x 1/10 Gbps SFP+ slots.

Stack up to four switches

Physical stacking over the SFP+ ports with up to 40 Gbps stacking bandwidth.

176 Gbps per unit

130.94 Mpps forwarding, 16K MAC table and 12 Mbit buffer.

Lite L3 routing

Static routing, RIP, OSPF v2/v3, DHCP server and DHCP relay.

ERPS high availability

Rapid protection and recovery in ring topologies.

Enhanced security

IPv4/IPv6 ACL, Dynamic ARP Inspection, 802.1X, MAB, port security and SSH.

Fanless and efficient

Silent 1U chassis with 34.1 W maximum power consumption.

Omada SDN

Cloud management, Omada app and Zero-Touch Provisioning with an Omada controller.

SG5452X specifications

At a glance

48 x Gigabit RJ45
4 x 10G SFP+
Non-PoE
176 Gbps per unit
Stack up to four switches
OSPF and RIP
Fanless rackmount
Omada SDN
SG5452X full specifications
Hardware Features
Interface48× 10/100/1000 Mbps RJ45 Ports; 4× 1/10 Gbps SFP+ Slots; 1× USB 2.0 Port; 1× RJ45 Console Port; 1× USB Type-C Console Port
Fan QuantityFanless
Power Supply100-240 V~ 50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRackmountable
Max. Power Consumption34.1 W (220V/50Hz @ 25 °C); 34.3 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation116.42 BTU/hr (220V/50Hz @ 25 °C); 117.10 BTU/hr (110V/60Hz @ 25 °C)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
StackingStacking Number: 4; Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports); Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports)
Switching Capacity176 Gbps per Unit
Packet Forwarding Rate130.94 Mpps
MAC Address Table16 K
Software Features
Quality of ServiceClass of Service; 8 Queues of Priority; Port Priority; IEEE 802.1p Priority; DSCP Priority; Queue Min-Bandwidth; Schedule Mode (SP, WRR, SP+WRR); Bandwidth Control; Rate Limit; Storm Control; Voice VLAN; User-Defined OUI; Smoother Performance; Action for Flows; QoS remark (802.1P Remark, DSCP Remark)
L3 FeaturesIP Interfaces:; IPv4: Max 128, IPv6: Max 128; Static Routing; IPv4 Max 512, IPv6: Max 128; Host Route Table: Max 1,024 entries; RIP: Version v1/v2, Max 1,796; OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450; Static ARP: 512 static entries; Dynamic ARP: 2,000 dynamic entries; Proxy ARP; DHCP Server:; Max 64 IP Pools; Max 1,000 Manual Binding Entries; DHCP Relay:; Relayed Interface; Relayed VLAN
L2 and L2+ FeaturesLink Aggregation; Spanning Tree Protocol; Port-based and VLAN-based Loopback Detection; 802.3x Flow Control; ERPS; Mirroring; RSPAN; MAC Address Table; Multicast; IGMP Snooping; MLD Snooping; L2 Multicast Table: Max 2,000; Fast Leave; Multicast VLAN Registration (MVR); Static Multicast Groups; Multicast Filtering
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); DDM; sFlow
VLANMax 4K VLAN Group (802.1q VLAN); 802.1Q Tagged VLAN; MAC VLAN Entries: 60; Multicast VLAN; Management VLAN; VLAN VPN (QinQ): Max 256 entries; GVRP; Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries; Voice VLAN; Private VLAN
SecurityPort Isolation; CPU-Defend; ARP Inspection (Dynamic ARP Inspection); DoS Defend; IP-MAC-Port Binding -1,024 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard; IPv6-MAC -Port Binding -1,024 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unknown-unicast Storm Control; kbps/ratio control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; RADIUS authentication and accountability support; AAA (including TACACS+); Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv2; IP/Port/MAC-based access control
Management Features
Omada AppYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud AccessYes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of the Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; Password Recovery; SNTP; System Log; IEEE 802.3az Energy Efficient Ethernet (EEE)
Others
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5 °C to 45 °C (23 °F to 113 °F); Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG5452X Switch
  • Power Cord
  • Console Cable
  • Rackmount Kits
  • Rubber Feet
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the SG5452X is for

Growing SME access layers

  • Stack up to four switches
  • Up to 40 Gbps stacking bandwidth
  • Built-in redundancy

Routed networks

  • OSPF v2/v3 and RIP
  • Up to 512 IPv4 static routes
  • DHCP server with 64 pools

Omada campus deployments

  • Omada controller 5.15.20 or later
  • ERPS ring protection
  • Zero-Touch Provisioning with cloud controller

Buy the SG5452X from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG5452X from the ARC IP Networks team.

Last reviewed October 2026.

48 x 10/100/1000 Mbps RJ45 ports, 4 x 1/10 Gbps SFP+ slots, one USB 2.0 port, one RJ45 console port and one USB Type-C console port.

No. It is a non-PoE switch.

Up to four. The SFP+ uplink ports are used as stacking ports, with up to 40 Gbps stacking bandwidth using a maximum of two stacking ports.

Static routing, RIP v1/v2 and RIPng, OSPF v2/v3, proxy ARP, DHCP server and DHCP relay, with up to 128 IPv4 and 128 IPv6 interfaces.

It is TP-Link's description of this switch: an entry-level L3 access switch with physical stacking and routing protocols such as RIP and OSPF.

Yes. It is fanless, with maximum power consumption of 34.1 W at 220 V/50 Hz.

For centralised management TP-Link lists the Omada cloud-based controller version 5.15.22 or later, and hardware or software controllers version 5.15.20 or later. Zero-Touch Provisioning requires the cloud-based controller.

Yes, but TP-Link notes that only one 10G RJ45 SFP+ module (SM5310-T) can be inserted at a time.

-5 to 45 C, at 10 to 90% non-condensing humidity.

The SG5452X switch, a power cord, a console cable, rackmount kits, rubber feet and a quick installation guide.

Need more than one SG5452X for a stacked access layer?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 176 Gbps per Unit
RAM 12 Mbit
