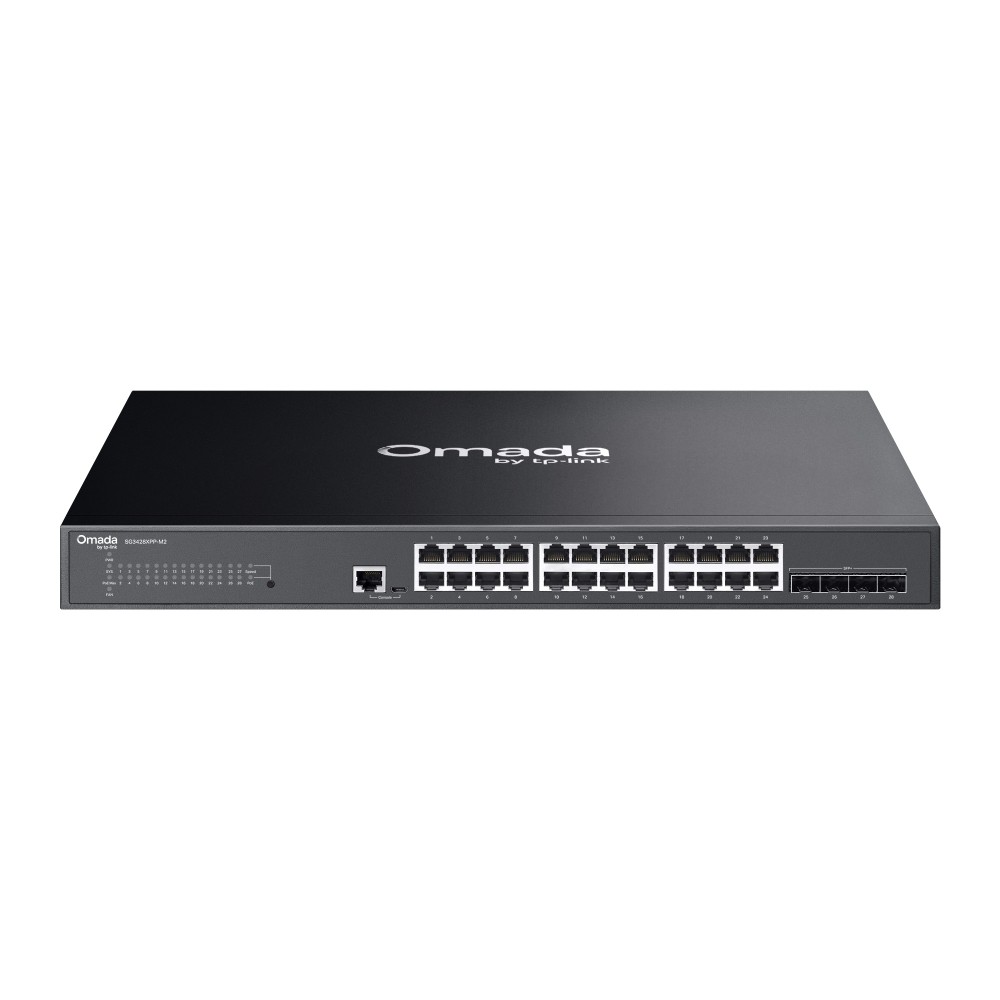

TP-Link SG3428XPP-M2 Omada Access Pro 24-Port 2.5G and 4-Port 10GE SFP+ Switch with 24-Port PoE++

https://arcip.com.au/web/image/product.template/8173/image_1920?unique=874d354

The TP-Link SG3428XPP-M2 is TP-Link's high-power multi-gigabit PoE switch in the Omada Access Pro range. All 24 RJ45 ports run at up to 2.5 Gbps and supply 802.3bt/at/af PoE++ at up to 90 W per port, from a 770 W total PoE budget with Fast PoE, Perpetual PoE and PoE Extend Mode. Four 10G SFP+ slots provide uplinks, for 200 Gbps switching capacity. L2+ features include 48 static routes, DHCP server and relay, VLAN mapping, IGMP and MLD snooping, 802.1X and IPv6, plus ERPS, L2PT and 802.3ah OAM. Manage it via web, console CLI and SNMP or an Omada controller. Rackmount kit included.

$ 1,616.86 1616.86 AUD $ 1,616.86 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SG3428XPP-M2
Barcode
4897098689738
Tags

The TP-Link SG3428XPP-M2 is an Omada Access Pro 24-port 2.5G and 4-port 10GE SFP+ L2+ managed switch with 24-port PoE++, hardware V2 on the AU page. Every 2.5 Gbps RJ45 port is 802.3bt/at/af PoE++ with up to 90 W, from a 770 W total budget. It has 200 Gbps switching, static routing, ERPS and ISP features, console ports and Omada controller management.

SG3428XPP-M2 overview

The SG3428XPP-M2 is TP-Link's Omada Access Pro 24-port 2.5G and 4-port 10GE SFP+ switch with 24-port PoE++. TP-Link's Australian page lists hardware V2, with V1 and V1.20 pages also available, and the V2.0 datasheet matches. It has 24 x 2.5 Gbps RJ45 ports, every one of them 802.3af/at/bt PoE++, four 10 Gbps SFP+ slots, an RJ45 console port and a Micro-USB console port. It is built for networks where every access point, camera or device needs both multi-gigabit speed and high PoE power, such as Wi-Fi 7 access points on 2.5G uplinks, PTZ cameras and other 802.3bt devices.

PoE is its defining feature. Each of the 24 ports can deliver up to 90 W, and the total PoE budget is 770 W. TP-Link notes that budget figures are based on laboratory testing and are not guaranteed. Fast PoE and Perpetual PoE are supported, and the datasheet lists a PoE Extend Mode. The internal power supply runs from 100-240 V AC 50/60 Hz. The datasheet lists a maximum power consumption of 900.2 W at 110 V/60 Hz (946.8 W at 220 V/50 Hz) with 770 W of PDs connected, and standby consumption of 37.0 W; the AU product page shows a lower 629.1 W figure marked as still to be tested, so treat the datasheet as the reference. Three fans cool the 440 x 330 x 44 mm rackmount chassis; the datasheet lists a typical noise level of 44.6 dBA at 1 m with a 616 W PoE load at 25 degrees C. The net weight is 5.20 kg and MTBF is 474,958 hours at 25 degrees C.

Switching capacity is 200 Gbps and the forwarding rate is 148.80 Mpps, with a 32K MAC table, 16 Mbit packet buffer and 9 KB jumbo frames. L2+ functions include 32 IPv4/IPv6 interfaces, 48 static routes, 128 static and 512 dynamic ARP entries, proxy and gratuitous ARP, DHCP server, DHCP interface and VLAN relay and DHCP L2 relay, link aggregation, spanning tree, loopback detection and mirroring. VLAN support covers 4K groups, MAC VLAN with 256 entries, protocol VLAN, GVRP, VLAN mapping, VLAN replace and voice VLAN, and multicast covers 511 IGMP groups, IGMP authentication, MVR and MLD snooping. ISP features include L2PT, DLDP, PPPoE ID insertion, ERPS, 802.3ah OAM and DDM. Operating temperature is -5 to 45 degrees C.

Management is flexible. Standalone, it offers a web GUI, CLI through the console port or Telnet, SNMP v1/v2c/v3 with RMON, LLDP-MED, DHCP AutoInstall, dual image and configuration, cable diagnostics and password recovery. Through an Omada hardware, software or cloud-based controller it gains centralised cloud management via the web or the Omada app, automatic device discovery, batch configuration and firmware upgrades, intelligent network monitoring and abnormal event warnings; Zero-Touch Provisioning requires the Omada cloud-based controller. Security features include IP-MAC-port binding, DHCP snooping, ARP inspection, IP source guard, DoS defend, port security and 802.1X with RADIUS. In the box are the switch, a power cord, an RJ45 console cable, an installation guide, a rackmount kit, rubber feet and screws. It carries CE and FCC certification.

Key features

24x 2.5G PoE++ ports

Every RJ45 port runs at up to 2.5 Gbps with 802.3bt PoE++.

Up to 90 W per port

Powers 802.3bt devices such as high-power access points and PTZ cameras.

770 W PoE budget

Shared across all 24 ports, with Fast PoE and Perpetual PoE.

4x 10G SFP+ uplinks

High-bandwidth uplinks with 200 Gbps switching capacity.

L2+ static routing

48 static routes, 32 IP interfaces, DHCP server and relay.

ERPS and ISP features

ERPS, L2PT, DLDP, PPPoE ID insertion and 802.3ah OAM.

Console ports

RJ45 and Micro-USB console ports; RJ45 console cable included.

Omada SDN management

Cloud access, Omada app and ZTP via an Omada controller.

SG3428XPP-M2 specifications

At a glance

24x 2.5G PoE++
Up to 90 W per port
770 W PoE budget
4x 10G SFP+
200 Gbps switching
Static routing
3 fans
Rack mountable
SG3428XPP-M2 full specifications
Hardware Features
Interface24× 2.5 Gbps PoE++ RJ45 Ports; 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity3
Physical Security Lock√
Power Supply100-240 V~ 50/60 Hz
PoE Ports (RJ45)Standard: 802.3bt/at/af compliant; PoE++ Ports (802.3af/at/bt PoE): 24 Ports, up to 90 W per port; Power Budget: 770 W; Fast PoE; Perpetual PoE
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Surge Protection6 kV
MountingRack Mountable
Max. Power Consumption629.1 W (110V/60Hz)(待测试)
Max. Heat Dissipation2153.45 BTU/h (110 V/60 Hz)(待测试)
Performance
Packet Buffer Memory16 Mbit
Jumbo Frame9 KB
Switching Capacity200 Gbps
Packet Forwarding Rate148.80 Mpps
MAC Address Table32 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features32 IP Interfaces: Support IPv4/IPv6 Interface; Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay; DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListTime-based ACL; MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5–45 ℃ (23–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG3428XPP-M2 Switch
  • Power Cord
  • RJ45 Console Cable
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
  • Screws

Source: TP-Link's published package contents.

Who the SG3428XPP-M2 is for

Wi-Fi 7 deployments

  • 2.5G PoE++ on all 24 ports
  • Up to 90 W per port
  • 10G SFP+ uplinks

High-power PoE devices

  • 802.3bt PoE++
  • 770 W total budget
  • Fast PoE and Perpetual PoE

Omada-managed sites

  • Omada hardware, software or cloud controller
  • Zero-Touch Provisioning via cloud controller
  • Abnormal event warnings

SG3428XPP-M2 compared

The SG3428XPP-M2 and SG3428X-M2 share 24 x 2.5G RJ45 ports, four 10G SFP+ slots and 200 Gbps switching. The SG3428XPP-M2 adds PoE++ on every port; the SG3428X-M2 has no PoE.

SpecificationSG3428XPP-M2SG3428X-M2
2.5G RJ45 ports24, all PoE++ (up to 90 W)24, no PoE
PoE budget770 WNone
10G SFP+ slots44
Switching capacity200 Gbps200 Gbps
Fans31
Dimensions440 x 330 x 44 mm440 x 180 x 44 mm
Net weight (datasheet)5.20 kg2.25 kg

Source: TP-Link Australia product pages for each model.

Buy the SG3428XPP-M2 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG3428XPP-M2 from the ARC IP Networks team.

Last reviewed October 2026.

All 24 RJ45 ports are 802.3bt/at/af PoE++ with up to 90 W per port, and the total budget is 770 W. TP-Link notes the budget is based on laboratory testing and is not guaranteed.

Yes. All 24 RJ45 ports run at up to 2.5 Gbps, and there are four 10G SFP+ slots for uplinks.

200 Gbps, with a 148.80 Mpps forwarding rate and a 32K MAC address table.

The V2.0 datasheet lists 900.2 W at 110 V/60 Hz and 946.8 W at 220 V/50 Hz with 770 W of PDs connected, and 37.0 W standby.

It has three fans. The datasheet lists a typical 44.6 dBA at 1 m with a 616 W PoE load at 25 degrees C, and 38.7 dBA with a PoE load under 450 W.

No for standalone use via web GUI, CLI and SNMP. Centralised cloud management and the Omada app need an Omada hardware, software or cloud-based controller, and Zero-Touch Provisioning needs the cloud-based controller.

Both have 24 x 2.5G ports and four 10G SFP+ slots. The SG3428XPP-M2 adds 90 W PoE++ on every port with a 770 W budget; the SG3428X-M2 has no PoE, one fan and a shallower chassis.

The Australian page lists the SG3428XPP-M2 V2, with V1 and V1.20 pages also available.

The switch, a power cord, an RJ45 console cable, an installation guide, a rackmount kit, rubber feet and screws.

Need more than one SG3428XPP-M2 for a Wi-Fi 7 or high-power PoE rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 200 Gbps
RAM 16 Mbit
