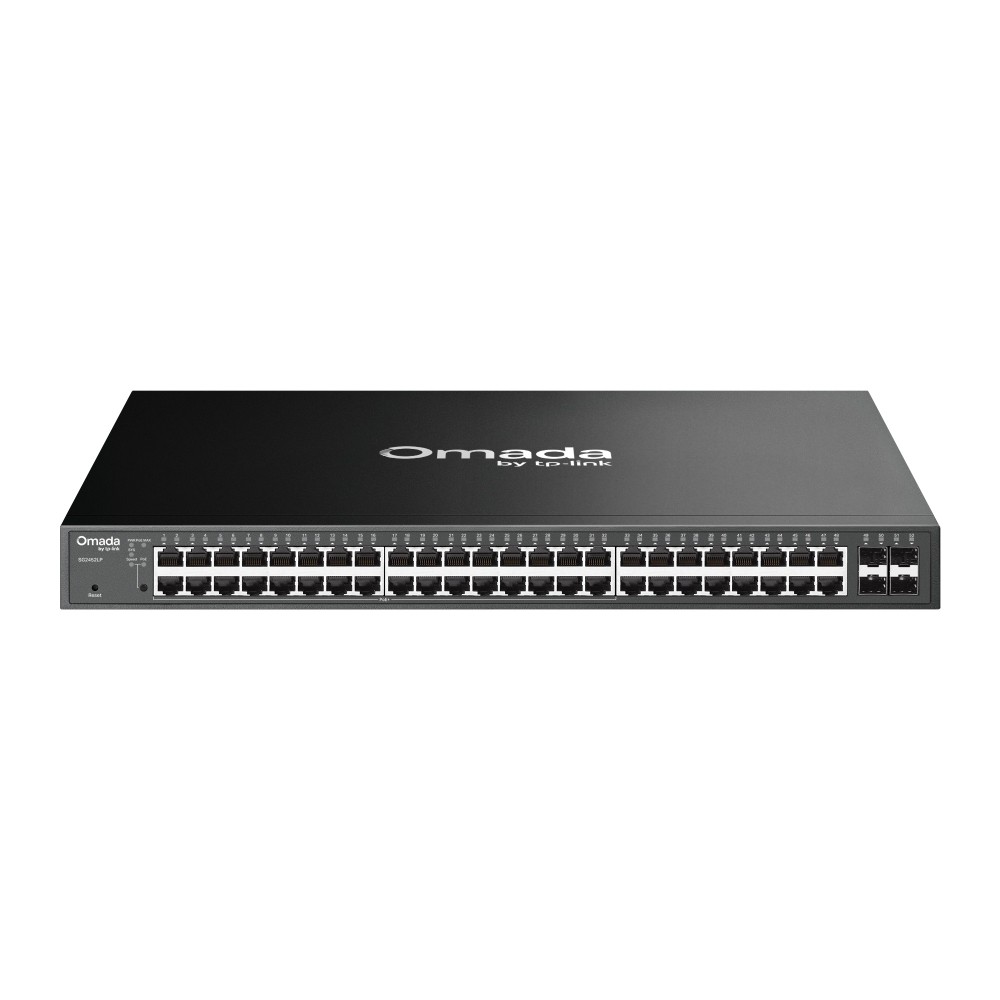

TP-Link SG2452LP Omada Access 52-Port Gigabit Switch with 32-Port PoE+

https://arcip.com.au/web/image/product.template/8164/image_1920?unique=7c0524e

The TP-Link SG2452LP is an Omada Access 52-port Gigabit switch with 32 PoE+ ports. It combines 32 x 802.3af/at PoE+ RJ45 ports (up to 30 W each, 230 W total), 16 x non-PoE Gigabit RJ45 ports and 4 x Gigabit SFP slots, with 104 Gbps switching, 32 static routes, DHCP server, VLAN, ACL, QoS, ONVIF and Dying Gasp support, in a fanless 440 mm rackmount chassis with internal AC power. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 847.59 847.59 AUD $ 1,090.16 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SG2452LP
Barcode
8885020620818
Tags

The TP-Link SG2452LP is an Omada Access 52-port Gigabit switch with 32-port PoE+ (AU hardware V1.20). It has 32 x 802.3af/at PoE+ RJ45 ports sharing a 230 W budget, 16 x non-PoE Gigabit RJ45 ports and 4 x Gigabit SFP slots, with 104 Gbps switching, static routing, VLAN, ACL and QoS in a fanless 19-inch rackmount chassis, managed standalone or by an Omada controller.

SG2452LP overview

The SG2452LP is TP-Link's Omada Access 52-port Gigabit switch with 32-port PoE+, and TP-Link Australia lists hardware version V1.20. The 52 ports break down as 32 x 10/100/1000 Mbps PoE+ RJ45 ports, 16 x 10/100/1000 Mbps non-PoE RJ45 ports and 4 x Gigabit SFP slots. That split is the point of this model: the first 32 ports power access points, IP cameras and IP phones over 802.3af/at PoE+, while the remaining 16 copper ports serve PCs, printers and other mains-powered devices, and the four SFP slots carry fibre uplinks. It sits above the SG2428LP (16 PoE+ ports, 150 W) in TP-Link's Omada Access L-series, and below the SG3452P L2+ managed switch, which has PoE+ on all 48 RJ45 ports.

PoE output is up to 30 W per port with a 230 W total budget, Alternative A pinout, and Fast PoE, Perpetual PoE and PoE Extend Mode listed in the datasheet. TP-Link notes the budget figure is a calculated maximum, so plan the mix of devices against it. Switching capacity is 104 Gbps and the forwarding rate is 77.37 Mpps, with a 16K MAC table, 12 Mbit packet buffer and 9 KB jumbo frames. Unusually for a switch of this size it is fanless, which makes it suitable for rooms where noise matters. The 440 x 330 x 44 mm chassis is 19-inch rack mountable with brackets, mounting feet and screws in the box, has an internal 100-240 V AC supply, a physical security lock slot and ±6 kV surge protection, and the datasheet lists a net weight of 5.3 kg and an MTBF of 300,692 hours at 25 C. Maximum consumption is 283.8 W at 220 V/50 Hz with 230 W of PDs connected and standby consumption is 14.0 W. It operates at -5 to 40 C and is CE and FCC certified.

Software features include static routing with 32 IPv4/IPv6 static routes and 32 IP interfaces, a DHCP server and DHCP relay, static, proxy and gratuitous ARP, 802.3ad LACP link aggregation, STP/RSTP/MSTP, loopback detection, mirroring, 4K VLAN groups with 802.1Q, MAC, protocol and voice VLANs and GVRP, IGMP snooping, ACLs and 802.1p/DSCP QoS. The management list also includes ONVIF for surveillance deployments, Dying Gasp, Digital Diagnostic Monitoring (DDM) for SFP modules, cable diagnostics, EEE and dual image and configuration. Standalone management is via web GUI, CLI through telnet, SNMP v1/v2c/v3 and RMON.

Centralised management uses the Omada cloud-based controller (built-in version 5.15.22 or later), an Omada hardware controller or the Omada software controller (version 5.15.20 or later); TP-Link's AU page states these minimum controller versions, so check existing controllers before adding this switch to a site. With a controller it gains cloud access, the Omada app, automatic device discovery, batch configuration and firmware upgrades, intelligent network monitoring, abnormal event warnings, unified configuration and reboot schedules. Zero-Touch Provisioning requires the Omada cloud-based controller. TP-Link's ordering information lists compatible Gigabit SFP modules including the SM311LS (single-mode, 20 km), SM311LM (multi-mode, 550 m) and SM321A/SM321B WDM bi-directional modules. The box contains the SG2452LP, a power cord, mounting brackets, mounting feet, screws and an installation guide.

Key features

32 x Gigabit PoE+

802.3af/at PoE+ ports with up to 30 W each for APs, cameras and phones.

230 W PoE budget

Total PoE power with Fast PoE and Perpetual PoE.

16 non-PoE Gigabit ports

Extra copper ports for PCs, printers and mains-powered devices.

4 x Gigabit SFP

Fibre uplinks with SM311LS, SM311LM or WDM SFP modules.

104 Gbps switching

77.37 Mpps forwarding, 16K MAC table and 12 Mbit buffer.

Fanless rackmount

Silent 440 x 330 x 44 mm 19-inch chassis with internal AC power.

Static routing and ACL

32 static routes, DHCP server, VLAN, ACL and QoS.

Omada SDN

Cloud management via the web or Omada app with an Omada controller.

SG2452LP specifications

At a glance

32 x Gigabit PoE+
16 x Gigabit non-PoE
4 x Gigabit SFP
230 W PoE budget
104 Gbps switching
Fanless
19-inch rackmount
Omada SDN
SG2452LP full specifications
Hardware Features
Interface32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX); 4× Gigabit SFP Slots
Fan QuantityFanless
Physical Security Lock√
Power Supply100-240V AC, 50/60 Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port); PoE Power Budget: 230 W; Fast PoE & Perpetual PoE
Dimensions ( W x D x H )17.3×13.0×1.7 in (440×330×44 mm)
Surge Protection±6 kV
MountingRack Mountable
Max. Power Consumption283.8 W (220 V/50 Hz @ 25 °C) (with 230 W PD connected); 294.1 W (110 V/60 Hz @ 25 °C) (with 230 W PD connected)
Max. Heat Dissipation964.82 BTU/hr (220 V/50 Hz @ 25 °C) (with 230 W PD connected); 1000.08 BTU/hr (110 V/60 Hz @ 25 °C) (with 230 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity104 Gbps
Packet Forwarding Rate77.37 Mpps
MAC Address Table16 K
Software Features
Quality of Service802.1p CoS/DSCP priority; 8 priority queues; Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control: Port/Flow-based Rating Limit; Smoother Performance; Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features32 IPv4/IPv6 Interfaces; Static Routing; 32 IPv4/IPv6 Static Routes; DHCP Server; DHCP Relay; DHCP Interface Relay; DHCP VLAN Relay; DHCP L2 Relay; Static ARP; Proxy ARP; Gratuitous ARP; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring; Device Link Detect Protocol (DLDP); 802.1ab LLDP/ LLDP-MED
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; Multicast VLAN Registration (MVR); Multicast Filtering; Multicast Listener Discovery (MLD) Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced FeaturesAutomatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
VLANVLAN Group: Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 12 Entries; Protocol VLAN; GVRP; Voice VLAN
Access Control ListSupport up to 230 entries; Time-Range; Time-based ACL; MAC ACL; IP ACL; IPv6 ACL; Combined ACL; Rule Operation: Permit/Deny; Policy Action; Mirroring; Redirect; Rate Limit; QoS Remark; ACL Rules Binding; Port Binding; VLAN Binding; Actions for flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
SecurityAAA; 802.1X; Port based authentication; MAC (Host) based authentication; Authentication Method includes PAP/EAP-MD5; MAB; Guest VLAN; Radius authentication and accountability support; IP/IPv6-MAC Binding; 512 Binding Entries; DHCP Snooping; DHCPv6 Snooping; ARP Inspection; ND Detection; ND Snooping; IP Source Guard; 253 Entries; Source IP+Source MAC; IPv6 Source Guard; 183 Entries; Source IPv6 Address+Source MAC; DoS Defend; DHCP Filter; Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode; Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Static Routing and ACL; IPv4/IPv6 Dual Stack; IPv6 Interface; Multicast Listener Discovery (MLD) Snooping; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIBs; RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 5.15.22 or later); Omada Hardware Controller (Requires built-in version 5.15.20 or later); Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud AccessYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through telnet; SNMPv1/v2c/v3; SNMP Trap/Inform; RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; SNTP; System Log; Dying Gasp; ONVIF; Digital Diagnostic Monitoring (DDM)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: -5 ̊C–40 ℃ (23 °F–104 ℉);; Storage Temperature: -40 °C–70 ℃ (-40 °F–158 ℉); Operating Humidity: 10%–90% RH non-condensing; Storage Humidity: 5%–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • SG2452LP
  • Power Cord
  • Mounting Brackets
  • Mounting Feet
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the SG2452LP is for

Mixed PoE and desktop floors

  • 32 PoE+ ports for APs and cameras
  • 16 non-PoE ports for PCs
  • 230 W PoE budget

Surveillance networks

  • ONVIF support
  • Perpetual PoE
  • IGMP snooping

Omada-managed sites

  • Cloud, hardware or software controller
  • Controller 5.15.20 or later
  • Zero-Touch Provisioning with cloud controller

SG2452LP compared

TP-Link's Omada switches with 48 copper ports and 4 SFP slots differ in how many ports carry PoE and in their PoE budget.

SpecificationSG2452LPSG2428LPSG3452P
PoE+ ports321648
Non-PoE RJ45168None
Gigabit SFP444
PoE budget230 W150 W384 W
ClassOmada Access smartOmada smartOmada L2+ managed

Source: TP-Link Australia product pages for each model.

Buy the SG2452LP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the SG2452LP from the ARC IP Networks team.

Last reviewed October 2026.

32 x Gigabit PoE+ RJ45 ports, 16 x Gigabit non-PoE RJ45 ports and 4 x Gigabit SFP slots, for 52 ports in total.

A 230 W total budget, with up to 30 W per PoE+ port across the 32 PoE+ ports.

No. 32 ports are PoE+ and 16 are non-PoE. TP-Link's SG3452P has PoE+ on all 48 RJ45 ports with a 384 W budget.

Yes. TP-Link lists it as fanless for quiet operation, despite its 230 W PoE budget.

TP-Link lists the Omada cloud-based controller version 5.15.22 or later, and hardware or software controllers version 5.15.20 or later.

No. It can be managed standalone through the web GUI, CLI, SNMP and RMON. A controller adds cloud access, the Omada app and batch management; Zero-Touch Provisioning requires the cloud-based controller.

Yes. ONVIF is listed among its management features, alongside Perpetual PoE, Fast PoE and IGMP snooping for multicast video.

TP-Link's datasheet lists a net weight of 5.3 kg.

-5 to 40 C, at 10 to 90% non-condensing humidity.

The SG2452LP, a power cord, mounting brackets, mounting feet, screws and an installation guide.
