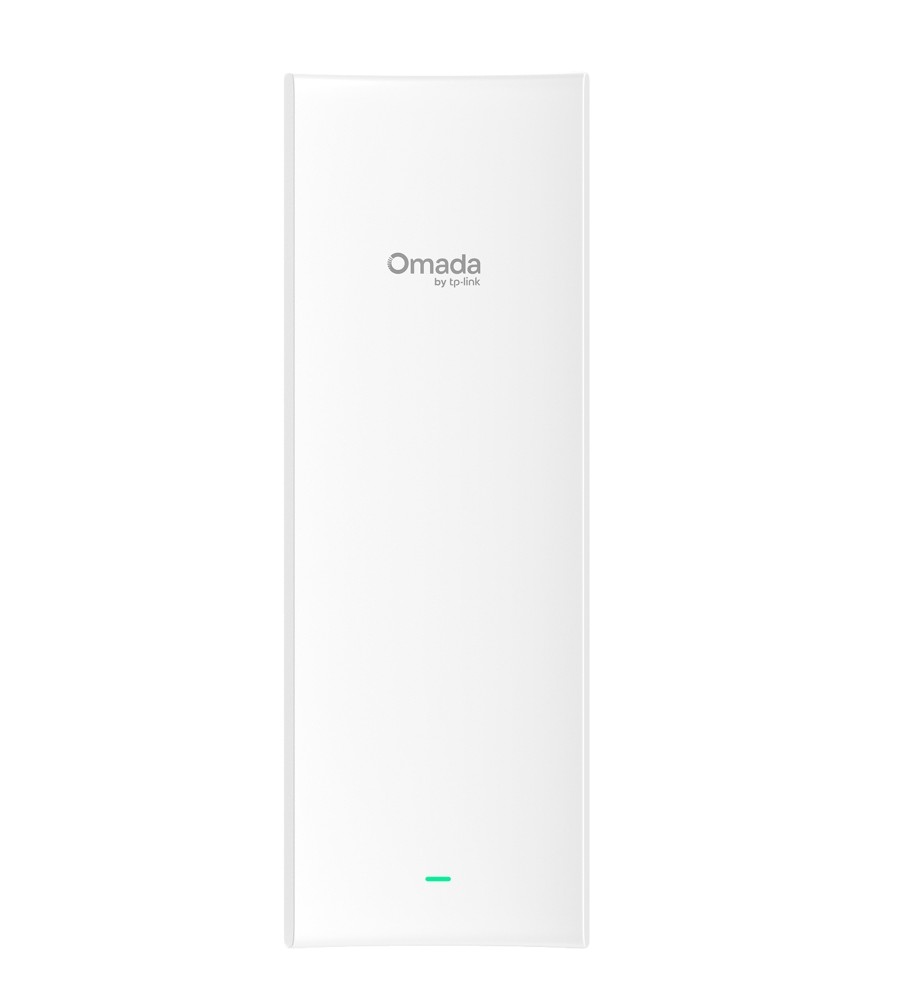

TP-Link Sector Bridge 5 Omada 5GHz 867Mbps Central Hub for Long-Range Wireless Bridging

https://arcip.com.au/web/image/product.template/11320/image_1920?unique=874d354

The TP-Link Sector Bridge 5 is an Omada 5 GHz 867 Mbps central hub for long-range indoor and outdoor point-to-multipoint wireless bridging. With Flex Bridge 5 units it supports up to 32 bridges via TDMA (a lab-tested figure), linking multiple buildings or remote sites. Two 16 dBi directional antennas with a 120° horizontal beamwidth give a rated transmission distance of 5,000 m. It has one Gigabit Ethernet port, DIP switches for simple pairing, a ball-joint mount for pole or wall installation and an IP66 weatherproof enclosure. Power is via 802.3af PoE, 24V passive PoE (adapter included) or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 352.98 352.98 AUD $ 352.98 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SECTOR-BRIDGE-5
Barcode
1210002618823

The TP-Link Omada Sector Bridge 5 is a 5 GHz central hub for point-to-multipoint wireless bridging: it connects up to 32 Flex Bridge 5 endpoints using TDMA, with a 120° beamwidth from two 16 dBi directional antennas, up to 867 Mbps and links of up to 5 km. It has an IP66 enclosure rated from -40 °C to 70 °C and DIP-switch pairing.

Sector Bridge 5 overview

Sector Bridge 5 is the hub of TP-Link's Omada long-range bridge range. TP-Link describes it as the core scalable hub for demanding point-to-multipoint bridge networks, designed to integrate with Flex Bridge 5 endpoints and to deliver robust point-to-multipoint connectivity in the toughest outdoor settings, such as remote mining sites or isolated islands. Its job is to connect many remote endpoints back to one point, enabling multipoint networks across multiple buildings or remote endpoints, and TP-Link describes it as ideal for extending networks across buildings and remote locations.

One Sector Bridge 5 connects up to 32 Flex Bridges. TP-Link states that this capacity is achievable only when used with Flex Bridge 5, is based on laboratory testing, and can vary with installation conditions, mounting location, network traffic and radio frequency interference. Built-in TDMA (time division multiple access) is designed for collision-free transmission, fair bandwidth allocation and high efficiency for every node. Two internal 16 dBi dual-polarised directional antennas give a broad 120° horizontal and 13° vertical beamwidth so one hub can cover endpoints spread across a wide area, at up to 867 Mbps on 5 GHz (802.11a/n/ac, 2x2) over distances of up to 5 km (3.1 mi). TP-Link notes these are physical rates and lab-based coverage figures that vary with antennas, environment and client limitations. A 2.4 GHz radio is for device management only.

Deployment is designed to be quick. As a dedicated main bridge, the Sector Bridge 5 pairs with Flex Bridge 5 devices by matching codes on a four-position DIP switch, which TP-Link says significantly reduces configuration time. It supports pole and wall mounting with the kits included, and has a built-in bubble level and ball joint for accurate angle adjustment. The Omada app shows real-time signal strength for alignment and can run an instant speed test to verify the link. Power comes from 802.3af PoE, 24 V passive PoE using the included adapter (for dry indoor use only), or a 12 V / 1 A DC input. Maximum power consumption is 9 W on DC and 10.5 W on PoE. There is one gigabit Ethernet port with PoE in, plus a grounding terminal.

The 358.5 x 124.6 x 70.5 mm, 0.69 kg unit has an IP66 weatherproof enclosure, 6 kV lightning protection on the Ethernet port and an operating range of -40 °C to 70 °C; TP-Link notes that lightning and ESD protection depends on proper setup, grounding and cable shielding. In standalone mode the Sector Bridge 5 can be set up on site through the Omada app with no internet required. Switching to Omada SDN mode, through Omada Central (cloud-based), an Omada hardware controller or the Omada software controller, enables cloud management and remote monitoring from anywhere, which require an Omada controller. SSH, SNMP, email alerts, reboot schedules and rogue AP detection are also supported. ARC IP Networks supplies the Sector Bridge 5 from Australian stock with the full manufacturer's warranty.

Key features

Hub for up to 32 Flex Bridges

Connects up to 32 Flex Bridge 5 endpoints (laboratory figure, only with Flex Bridge 5).

TDMA for multipoint links

Built-in TDMA for collision-free transmission and fair bandwidth allocation across every node.

120° wide beamwidth

Two 16 dBi dual-polarised directional antennas with a 120° horizontal and 13° vertical beam.

Up to 867 Mbps, up to 5 km

5 GHz 802.11a/n/ac 2x2 bridging at up to 867 Mbps (physical rate) over up to 5 km.

DIP-switch pairing

Pairs with Flex Bridge 5 by matching codes on a four-position DIP switch.

Bubble level and ball joint

Pole and wall mounting kits with a built-in bubble level and ball joint for accurate aiming.

App-guided alignment

Real-time signal strength visualisation and instant speed testing in the Omada app.

IP66 outdoor design

IP66 enclosure, 6 kV lightning protection and -40 °C to 70 °C operation.

Flexible power

802.3af PoE, 24 V passive PoE (adapter included) or 12 V DC; 10.5 W maximum on PoE.

Sector Bridge 5 specifications

At a glance

5 GHz, up to 867 Mbps
Up to 32 Flex Bridges
120° beamwidth
2 x 16 dBi antennas
Up to 5 km
TDMA
IP66
-40 to 70 °C
Sector Bridge 5 full specifications
Hardware Features
Interface1× Gigabit Ethernet Port
ButtonReset
DIP SwitchPairing Code Switch
Power Supply12V DC/1A; 802.3af PoE; 24V Passive PoE (Passive PoE Adapter Included; For Dry Indoor Use Only)
Max. Power ConsumptionDC: 9W PoE: 10.5W
Dimensions ( W x D x H )14.1 × 4.9 × 2.8 in (358.5 × 124.6 × 70.5 mm)
Antenna2.4 GHz: 1 × 4 dBi (peak gain), internal omnidirectional antennas; 5 GHz: 2 × 16 dBi (peak gain), internal directional antennas; Beamwidth: Horizontal 120°, Vertical 13°
Weatherproof EnclosureIP66
MountingPole and wall mounting (Kits included)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada Controller.
Email AlertsYes
LED ON/OFF ControlYes
SNMPYes
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes
Wireless Features
PtPYes
PtMP32 Maximum
Transmission Distance3.1 mi (5,000 m)
Wireless StandardsIEEE 802.11a/b/g/n/ac
Frequency2.4 GHz (Device Management Only); 5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless FunctionsMU-MIMO: 5G 2x2 MU-MIMO DL; Wireless Statistics; Reboot Schedule; RADIUS Accounting; Static IP/Dynamic IP; Rate Limit; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast
Wireless SecurityVLAN; Rogue AP Detection; WPA/WPA2
Transmission PowerCE: 6-23 dBm (5 GHz, U-NII-1 & U-NII-2A, EIRP) 6-30 dBm (5 GHz, U-NII-2C, EIRP); FCC: 4-23 dBm (5 GHz, U-NII-1) 4-25 dBm (5 GHz, U-NII-3)
Others
CertificationCE, FCC
Lightning ProtectionAir discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV
EnvironmentOperating Temperature: -40 °C–70 °C (-40 °F–158 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Sector Bridge 5
  • Installation Guide
  • Mounting Kit
  • Passive PoE Adapter
  • Power Cord

Source: TP-Link's published package contents.

Who the Sector Bridge 5 is for

Point-to-multipoint networks

  • One hub for up to 32 Flex Bridge 5 endpoints
  • TDMA for fair bandwidth across nodes
  • 120° beam covers a wide area

Multiple buildings and remote locations

  • Extending networks across buildings
  • Remote mining sites and isolated islands
  • Links of up to 5 km

Sector Bridge 5 compared

Sector Bridge 5 and Flex Bridge 5 are designed to work together. The Sector Bridge 5 is the central hub with a wide 120° beam; the Flex Bridge 5 is the endpoint with narrower, higher-gain antennas and two PoE out ports.

FeatureSector Bridge 5Flex Bridge 5
RoleCentral hub (dedicated main bridge)Bridge point / endpoint (Main AP or Client AP)
5 GHz signal rateUp to 867 MbpsUp to 867 Mbps
Transmission distance5,000 m (3.1 mi)5,000 m (3.1 mi)
5 GHz antennas2 x 16 dBi, 120° H / 13° V2 x 17 dBi, 40° H / 18° V
Point-to-multipointUp to 32 Flex Bridges8 recommended; 32 with Sector Bridge 5
Ethernet1 x gigabit (PoE in)3 x gigabit (1 PoE in, 2 PoE out)
Included adapter24 V passive PoE54 V passive PoE
Max. power consumption9 W (DC); 10.5 W (PoE)12 W (DC); 26.06 W (PoE with PoE out)
Dimensions358.5 x 124.6 x 70.5 mm214.2 x 50.8 x 119.8 mm
WeatherproofingIP66, -40 °C to 70 °CIP66, -40 °C to 70 °C

Source: TP-Link Australia product pages for each model.

Buy the Sector Bridge 5 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Sector Bridge 5 from the ARC IP Networks team.

Last reviewed October 2026.

It is the central hub for point-to-multipoint wireless bridge networks, connecting up to 32 Flex Bridge 5 endpoints across multiple buildings or remote locations.

Up to 32. TP-Link states this is achievable only with Flex Bridge 5, is based on laboratory testing, and can vary with installation conditions, mounting location, traffic and RF interference.

TP-Link designs it for seamless integration with Flex Bridge 5 endpoints, which it pairs with by matching DIP switch codes.

TP-Link rates it for up to 5 km (3.1 mi) at up to 867 Mbps on 5 GHz. These are lab-based and physical-rate figures; actual range and throughput vary with the environment.

120° horizontal and 13° vertical, from two 16 dBi dual-polarised directional antennas.

Time division multiple access. TP-Link says the built-in TDMA gives collision-free transmission, fair bandwidth allocation and high efficiency for every node.

By 802.3af PoE, 24 V passive PoE (adapter included, for dry indoor use only) or 12 V / 1 A DC. Maximum consumption is 9 W on DC and 10.5 W on PoE.

Yes. It has an IP66 enclosure, 6 kV lightning protection and an operating range of -40 °C to 70 °C. TP-Link notes lightning protection depends on proper setup, grounding and cable shielding.

No. It can be set up in standalone mode through the Omada app with no internet required. Cloud management and remote monitoring through Omada SDN require an Omada controller.

The Sector Bridge 5, a passive PoE adapter, a power cord, a mounting kit and an installation guide.

Need more than one Sector Bridge 5 for a multipoint bridge network?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
