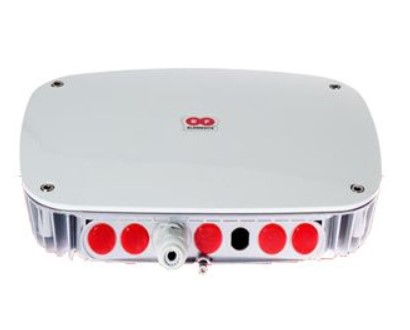

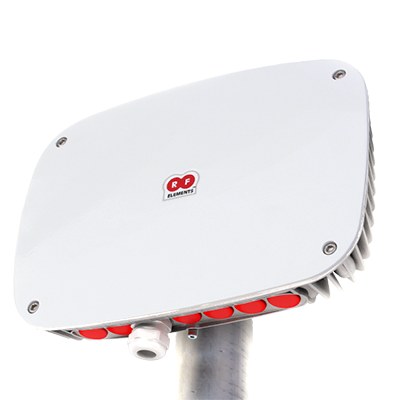

RF Elements SBX-ALU-6N-1E StationBox ALU Die-Cast Aluminium Outdoor Enclosure, IP55

https://arcip.com.au/web/image/product.template/3561/image_1920?unique=874d354

RF Elements StationBox ALU (SBX-ALU-6N-1E) is a die-cast aluminium IP55 outdoor enclosure for router boards such as MikroTik RouterBOARD and PC Engines Alix. It takes up to six 16 mm N-type connectors plus one included cable gland and pole-mounts on 50–70 mm poles.

$ 82.06 82.06 AUD $ 82.06 incl. GST

Not Available For Sale


  • Brand
  • IP Rating
  • Antenna Type

This combination does not exist.

Outdoor RF Elements Enclosure WISP Accessory StationBox IP67
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
SBX-ALU-6N-1E
Tags

RF Elements SBX-ALU-6N-1E at a glance

The RF Elements SBX-ALU-6N-1E is the StationBox ALU: a die-cast aluminium IP55 outdoor enclosure for embedded router boards. Its ABS mounting plate has pre-moulded holes for MikroTik RouterBOARD, PC Engines Alix and Ubiquiti RouterStation boards, it accepts up to six 16 mm N-type connectors plus one cable gland, and it pole-mounts on 50–70 mm poles.

ARC IP Networks is an authorised RF Elements reseller in Australia. We supply the genuine RF Elements StationBox ALU at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

BodyDie-cast aluminium
RatingIP55 (IP66 sealed)
PortsUp to 6 x N, 1 gland
Pole50–70 mm
Wind survival120 km/h
Temperature−30 to +60 °C
Size300 x 220 x 55 mm
BoardsRouterBOARD, Alix

Best for

  • Outdoor MikroTik RouterBOARD builds
  • Weatherproofing embedded radios and router boards
  • Mast-top installs needing N-type antenna ports

Key features

Die-cast aluminium body and cover for RF shielding and weather resistance

IP55, or IP66 with the drain hole sealed

Up to six 16 mm N-type connector holes plus one cable gland (included)

ABS mounting plate pre-drilled for RouterBOARD, Alix and RouterStation

Pole mount 50–70 mm with hose clamps, or wall mount

Stainless steel hardware

What's in the box

  • StationBox ALU enclosure
  • Mounting bracket
  • Base plate
  • Allen key
  • 2 x hose clamps
  • 4 x screws with wall plugs
  • Set of screws

N-type connectors and pigtails are not included.

RF Elements SBX-ALU-6N-1E specifications

Technical Data

Connectorsup to 6 16mm N connectors (connectors not included); 1 cable gland (cable gland included)
MaterialsBody and Cover - Die Cast Aluminium; Mounting plate - ABS plastic; Hardware - Stainless Steel
Operating Temp.-30 to +60 °C
Wind Survival120 km/h
Environment ResistanceIP55; IP66 can be achieved by sealing the drain hole
Mounting Diameter50-70 mm (with supplied hose clamps)
Weight1.8 kg / 4.0 lbs - single piece incl. package; 19 kg / 42 lbs - carton (10 pcs)
Single Unit Retail Package6.5 x 33 x 24 cm
10 Units Carton Box67 x 35 x 27 cm
Product Dimensions300 mm x 220 mm x 55 mm body; bracket adds 17 mm (rear) / 16 mm (bottom); 36.7 mm dimension marked on base section (inner depth)

Specifications from RF Elements' official product documentation for the SBX-ALU-6N-1E, checked October 2026.

The RF Elements StationBox ALU in depth

What it is

StationBox ALU is RF Elements' aluminium outdoor enclosure for wireless platforms and access points. The die-cast body gives weather resistance and better RF noise protection than plastic housings.

Compatible boards

RF Elements lists MikroTik RouterBOARD RB912, RB911, RB711, RB433 and RB411; Ubiquiti RouterStation and RouterStation Pro; PC Engines Alix2, Alix3 and Alix6; and Redwave RW2458N. Other boards can be fitted by drilling the plastic plate and using spacers.

Availability

RF Elements lists the StationBox ALU among its discontinued products. We sell remaining Australian stock while it lasts.

Frequently asked questions

Straight answers about the RF Elements StationBox ALU from the ARC IP Networks team. Last reviewed October 2026.

The RF Elements StationBox ALU, a die-cast aluminium IP55 outdoor enclosure for router boards with up to six N-type connector ports and one cable gland.

MikroTik RouterBOARD RB912, RB911, RB711, RB433, RB411; Ubiquiti RouterStation and RouterStation Pro; PC Engines Alix2/3/6; and Redwave RW2458N.

No. The enclosure has holes for up to six 16 mm N connectors, which are sold separately. One cable gland is included.

RF Elements lists the StationBox ALU among its discontinued products. We sell remaining Australian stock while it lasts; ask us about the current RF Elements replacement if you need more units.

ARC IP Networks is an authorised RF Elements reseller and supplies the genuine RF Elements SBX-ALU-6N-1E at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.
