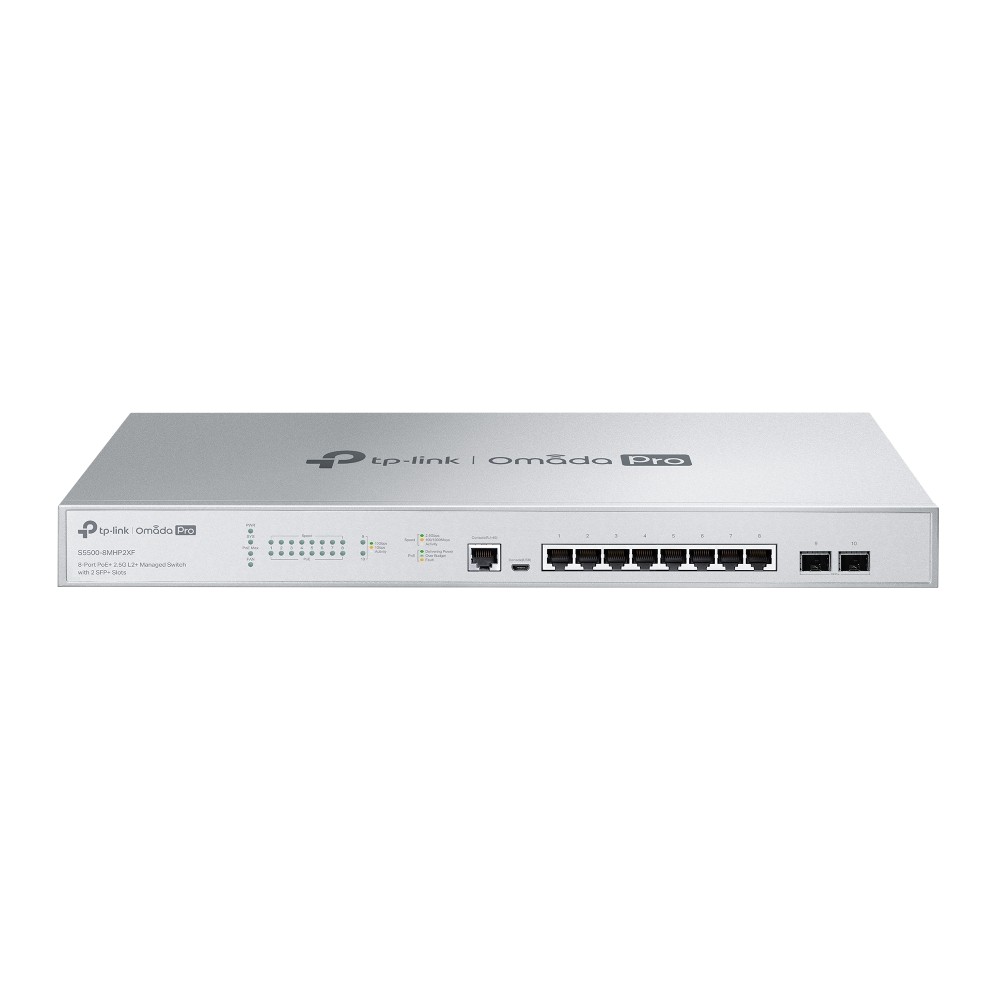

TP-Link S5500-8MHP2XF Omada Pro 8-Port PoE+ 2.5G L2+ Managed Switch with 2 SFP+ Slots

https://arcip.com.au/web/image/product.template/8155/image_1920?unique=e554b1c

The TP-Link S5500-8MHP2XF is an Omada Pro 8-port PoE+ 2.5G L2+ managed switch with 2 SFP+ slots. Its eight 100 Mbps/1 Gbps/2.5 Gbps RJ45 ports are all 802.3at/af PoE+ with up to 30 W per port and a 240 W total PoE budget, and two 10G SFP+ slots provide uplinks. It offers 80 Gbps switching, 59.52 Mpps forwarding, 48 static routes, DHCP server and relay, LACP, MSTP, ERPS, QinQ, sFlow, 802.1X and ACL, with management via Omada Pro controllers, the Omada app, web GUI, CLI and SNMP. 1U rack mountable, rackmount kit included.

$ 3,936.76 3936.76 AUD $ 3,936.76 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
S5500-8MHP2XF
Barcode
4895252505672
Tags

The TP-Link S5500-8MHP2XF is an Omada Pro 8-port PoE+ 2.5G L2+ managed switch with two 10G SFP+ slots. All eight 2.5 Gbps RJ45 ports supply 802.3at/af PoE+ at up to 30 W each from a 240 W budget, switching capacity is 80 Gbps, and it adds static routing, ERPS, QinQ and sFlow with Omada Pro cloud management in a compact 1U rackmount case.

S5500-8MHP2XF overview

The S5500-8MHP2XF is TP-Link's Omada Pro 8-port PoE+ 2.5G L2+ managed switch with two SFP+ slots, described by TP-Link as a full enterprise-level managed switch for building and expanding a fast network. It is a small port-count switch with a big PoE budget: all eight RJ45 ports run at 100 Mbps, 1 Gbps or 2.5 Gbps and all eight are IEEE 802.3at/af PoE+ ports with up to 30 W per port, sharing a 240 W total PoE budget. That is enough budget to run every port at the 30 W PoE+ maximum at once; TP-Link notes that PoE budget figures are calculated from laboratory testing. Two 10G SFP+ slots provide uplinks, and an RJ45 console port and a Micro-USB console port give local CLI access. TP-Link's product page for this model is on its global Omada site; an Australian product page was not found.

Performance figures are 80 Gbps switching capacity and a 59.52 Mpps packet forwarding rate, with a 12 Mbit packet buffer, a 16K MAC address table and 9 KB jumbo frames, and TP-Link describes the 10G SFP+ uplinks as delivering non-blocking performance and minimal latency to servers and other switches. Power is from an internal 100-240 V AC, 50/60 Hz supply; maximum power consumption is 285.9 W and maximum heat dissipation 975.54 BTU/h at 110 V/60 Hz with 240 W of powered devices connected. It has two fans, measures 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in), and is rack mountable with the rackmount kit in the box. The listed operating temperature range is 0 to 50 degrees C, and it carries CE and FCC certification.

For routing and switching, the S5500-8MHP2XF supports 32 IPv4/IPv6 interfaces, static routing with 48 static routes, 128 static ARP entries (512 ARP entries), proxy and gratuitous ARP, DHCP server, DHCP relay and DHCP L2 relay. Layer 2 features include static link aggregation and 802.3ad LACP (up to 8 groups with up to 8 ports per group), STP, RSTP and MSTP with STP security and loop protect, port and VLAN-based loopback detection, flow control and HOL blocking prevention. VLAN support covers 4K VLAN groups, 802.1Q, MAC VLAN (256 entries), protocol VLAN, GVRP, voice VLAN, OUI-based VLAN and QinQ with VLAN mapping and replace. Multicast handling includes 511 IGMP groups, IGMP v1/v2/v3 snooping with fast leave and querier, IGMP authentication, MVR, MLD v1/v2 snooping and multicast filtering with 256 profiles.

TP-Link lists service-provider features on this model: 802.3ah Ethernet link OAM, L2PT, DLDP, PPPoE ID insertion, DDM, ERPS and sFlow. Security covers IP-MAC-port and IPv6-MAC-port binding (512 entries each), DHCP and DHCPv6 snooping, ARP inspection, ND detection and snooping, IPv4 and IPv6 source guard (100 entries each), DoS defend, DHCP filter, port security with up to 64 MAC addresses per port and storm control. QoS offers 8 priority queues, 802.1p CoS/DSCP priority, SP, WRR and SP+WRR scheduling, port and flow-based rate limiting, and actions for flows including mirror, redirect, rate limit and QoS remark.

Management is through Omada Pro. Centralised management uses the Omada Pro Cloud-Based Controller or Omada Pro Software Controller, cloud access and the Omada app work through an Omada Pro controller, and Zero-Touch Provisioning requires the Omada Pro Cloud-Based Controller; Intelligent Anomaly Detection is also listed. Standalone management uses the web GUI, CLI over the console port or Telnet, SNMP v1/v2c/v3 with RMON, LLDP/LLDP-MED, DHCP AutoInstall, dual image and dual configuration, CPU monitoring, cable diagnostics, EEE, password recovery and remote packet capture. In the box are the switch, a power cord, an installation guide, a rackmount kit and rubber feet. Within the Omada Pro S5500 line, the S5500-24MPP4XF is the larger 2.5G sibling, with 24 x 2.5G PoE ports (eight of them PoE++), a 500 W budget and four SFP+ slots; the S5500-8MHP2XF suits a smaller closet with eight multi-gig PoE+ devices.

Key features

8 x 2.5G PoE+ ports

All eight 100 Mbps/1 Gbps/2.5 Gbps RJ45 ports are 802.3at/af PoE+, up to 30 W each.

240 W PoE budget

240 W total PoE power across the eight ports.

2 x 10G SFP+ uplinks

Two 10 Gbps SFP+ slots for non-blocking uplinks to servers and other switches.

80 Gbps switching

59.52 Mpps forwarding, 12 Mbit buffer and 16K MAC table.

L3 static routing

32 IPv4/IPv6 interfaces, 48 static routes, DHCP server and relay.

ISP and resilience features

ERPS, QinQ, L2PT, DLDP, 802.3ah OAM, DDM and sFlow.

Omada Pro integration

Zero-Touch Provisioning, Intelligent Anomaly Detection and cloud management with the Omada app.

Compact 1U rackmount

440 x 180 x 44 mm with a rackmount kit included.

S5500-8MHP2XF specifications

At a glance

8 x 2.5G PoE+ RJ45
30 W per port
240 W PoE budget
2 x 10G SFP+
80 Gbps switching
Static routing
Omada Pro managed
1U rackmount
S5500-8MHP2XF full specifications
Hardware Features
Interface8× 100 Mbps/1000 Mbps/ 2.5 Gbps RJ45 Ports (all support PoE+); 2× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity2
Power Supply100~240VAC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3at/af compliant; PoE+ Ports: 8 Ports, up to 30 W per port; PoE Power Budget: 240 W
Dimensions ( W x D x H )17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
MountingRackmountable
Max. Power Consumption285.9 W (110V/60Hz) (with 240 W PD connected)
Max Heat Dissipation975.54 BTU/hr (110 V/60 Hz) (with 240 W PD connected)
Performance
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
Switching Capacity80 Gbps
Packet Forwarding Rate59.52 Mpps
MAC Address Table16 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling; SP (Strict Priority); WRR (Weighted Round Robin); SP+WRR; Bandwidth Control; Port/Flow based Rating Limiting; Smoother Performance; Action for Flows; Mirror (to supported interface); Redirect (to supported interface); Rate Limit; QoS Remark
L3 Features32 IPv4/IPv6 Interfaces; Static Routing; 48 static routes; Static ARP; 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay; DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect; Loopback Detection; Port-based; VLAN based; Flow Control; 802.3x Flow Control; HOL Blocking Prevention; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave; IGMP Snooping Querier; IGMP Authentication; IGMP Authentication; MVR; MLD Snooping; MLD v1/v2 Snooping; Fast Leave; MLD Snooping Querier; Static Group Config; Limited IP Multicast; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesISP Features :; 802.3ah Ethernet Link OAM; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; DDM; ERPS; sFlow Intelligent Anomaly Detection
VLANVLAN Group; Max. 4K VLAN Groups; 802.1Q tag VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; GVRP; Voice VLAN; VLAN VPN (QinQ); VLAN Mapping; VLAN Replace; OUI-Based VLAN
Access Control ListMAC ACL; Source MAC; Destination MAC; VLAN ID; User Priority; Ether Type; IP ACL; Source IP; Destination IP; Fragment; IP Protocol; TCP Flag; TCP/UDP Port; DSCP/IP TOS; User Priority; Combined ACL; IPv6 ACL; Policy; Mirroring; Redirect; Rate Limit; QoS Remark; ACL apply to Port/VLAN; Time-based ACL
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security; Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control; kbps/ratio/pps control mode; 802.1X; Port base authentication; Mac base authentication; VLAN Assignment; MAB; Guest VLAN; Support RADIUS authentication and accountability; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications; DHCPv6 Client; Ping6; Tracert6; Telnet (v6); IPv6 SNMP; IPv6 SSH; IPv6 SSL; Http/Https; IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); RADIUS Accounting Client MIB (RFC2620); RADIUS Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link Private MIB
Management Features
Omada AppYes, through Omada Pro Controller
Centralised ManagementOmada Pro Cloud-Based Controller; Omada Pro Software Controller
Cloud AccessYes, through Omada Pro Controller
Zero-Touch ProvisioningYes. Requiring the use of Omada Pro Cloud-Based Controller
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through console port, telnet; SNMPv1/v2c/v3; Trap/Inform; RMON (1, 2, 3, 9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP Auto Install; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log; Remote Packet Capture
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–50 ℃ (32–122 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • S5500-8MHP2XF
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the S5500-8MHP2XF is for

Multi-gig access points

  • 2.5 Gbps PoE+ on every port
  • Budget for all eight ports at 30 W
  • 10G SFP+ uplinks

Small comms cabinets

  • Compact 440 x 180 mm 1U case
  • Two fans
  • 0 to 50 degrees C operating range

Omada Pro managed sites

  • Zero-Touch Provisioning
  • Intelligent Anomaly Detection
  • Omada app and cloud access

Buy the S5500-8MHP2XF from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the S5500-8MHP2XF from the ARC IP Networks team.

Last reviewed October 2026.

Yes. All eight RJ45 ports are 802.3at/af PoE+ ports with up to 30 W per port.

240 W total. TP-Link notes that PoE budget figures are calculated from laboratory testing.

No. TP-Link lists 802.3at/af PoE+ only. The S5500-24MPP4XF is the S5500 model with PoE++ ports.

100 Mbps, 1 Gbps and 2.5 Gbps.

Two 10G SFP+ slots.

It is an Omada Pro switch, managed by the Omada Pro Cloud-Based Controller or Omada Pro Software Controller. Zero-Touch Provisioning requires the Omada Pro Cloud-Based Controller.

Yes, via web GUI, CLI over the RJ45 or Micro-USB console port or Telnet, and SNMP v1/v2c/v3.

Yes. It is a 1U switch measuring 440 x 180 x 44 mm, and the rackmount kit is included.

Yes, two fans. The listed operating temperature is 0 to 50 degrees C.

The S5500-8MHP2XF, a power cord, an installation guide, a rackmount kit and rubber feet.

Need more than one S5500-8MHP2XF for a multi-gig PoE+ access point rollout?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
