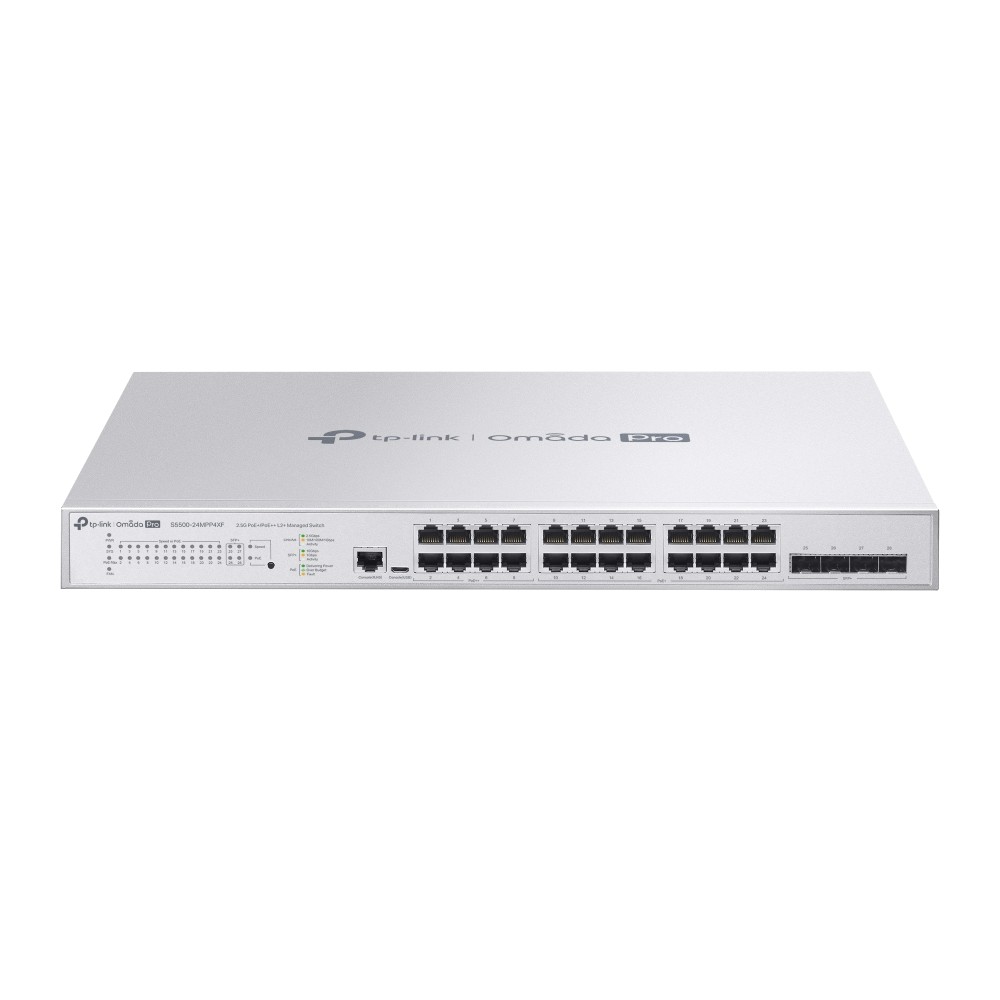

TP-Link S5500-24MPP4XF Omada Pro 24-Port PoE+ 2.5G L2+ Managed Switch with 4 SFP+ Slots

Price:

$ 6,999.82


Cambium Networks C600500D002A 60GHz cnWave V3000 Client Node Antenna Assembly 40.5dBi 4 Pack
Cambium Networks C600500D002A 60GHz cnWave V3000 Client Node Antenna Assembly 40.5dBi 4 Pack
$ 250.54
$ 250.54
TP-Link TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router
TP-Link TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router
$ 100.06
$ 100.06

TP-Link S5500-24MPP4XF Omada Pro 24-Port PoE+ 2.5G L2+ Managed Switch with 4 SFP+ Slots

https://arcip.com.au/web/image/product.template/8151/image_1920?unique=cdb3afc

The TP-Link S5500-24MPP4XF is an Omada Pro 24-port PoE+ 2.5G L2+ managed switch with 4 SFP+ slots. All 24 RJ45 ports run at 2.5 Gbps: ports with 802.3bt/at/af PoE++ (8, up to 60 W each) and 802.3at/af PoE+ (16, up to 30 W each) share a 500 W total budget. Four 10G SFP+ slots, 200 Gbps switching capacity and 148.80 Mpps forwarding support Wi-Fi 6/7 access point and camera networks. Features include 48 static routes, DHCP server and relay, LACP, MSTP, ERPS, QinQ, 802.1X and ACL, with management via Omada Pro controllers, web GUI, CLI and SNMP.

$ 6,999.82 6999.82 AUD $ 6,999.82 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
S5500-24MPP4XF
Barcode
4895252505696
Tags

The TP-Link S5500-24MPP4XF is an Omada Pro L2+ managed switch with 24 x 2.5 Gbps RJ45 ports, eight of them 802.3bt PoE++ (up to 60 W per port) and sixteen 802.3at/af PoE+ (up to 30 W per port), sharing a 500 W PoE budget. Four 10G SFP+ slots handle uplinks, switching capacity is 200 Gbps, and it adds static routing, ERPS, QinQ and Omada Pro cloud management in a 1U rackmount case.

S5500-24MPP4XF overview

The S5500-24MPP4XF is TP-Link's Omada Pro 24-port PoE+ 2.5G L2+ managed switch with four SFP+ slots, which TP-Link describes as a full enterprise-level managed switch for building and expanding a fast network. Every one of its 24 RJ45 ports runs at 2.5 Gbps, which suits multi-gig Wi-Fi 6 and Wi-Fi 7 access points that would be held back by gigabit edge ports. Of those ports, eight are IEEE 802.3bt/at/af PoE++ ports with up to 60 W per port and sixteen are IEEE 802.3at/af PoE+ ports with up to 30 W per port, and together they draw on a 500 W total PoE budget. TP-Link notes that PoE budget figures are calculated from laboratory testing. For uplinks it has four 10G SFP+ slots, and for management access an RJ45 console port and a Micro-USB console port.

Performance is listed as 200 Gbps switching capacity and a 148.80 Mpps packet forwarding rate, with a 16 Mbit packet buffer, a 32K MAC address table and 9 KB jumbo frames; TP-Link describes it as non-blocking with minimal latency for connections to servers and other switches. One sentence in TP-Link's AU overview mentions two SFP+ slots, but the specification table and highlights both list four 10G SFP+ slots, and this page follows the specification table. The switch runs from an internal 100-240 V AC, 50/60 Hz supply, with maximum power consumption of 629.1 W and maximum heat dissipation of 2153.45 BTU/h at 110 V/60 Hz with 500 W of powered devices connected. It has three fans and a physical security lock slot, measures 440 x 330 x 44 mm (17.3 x 13.0 x 1.7 in), and is rack mountable with the rackmount kit included.

The L3 feature set covers 32 IPv4/IPv6 interfaces, static routing with 48 static routes, 128 static ARP entries (512 ARP entries), proxy and gratuitous ARP, DHCP server, DHCP interface and VLAN relay and DHCP L2 relay. Layer 2 support includes static link aggregation and 802.3ad LACP (up to 8 groups with up to 8 ports each), 802.1d STP, 802.1w RSTP and 802.1s MSTP with STP security including loop protect, port and VLAN-based loopback detection, HOL blocking prevention and port and CPU mirroring. VLAN options extend to 4K VLAN groups, MAC VLAN (256 entries), protocol VLAN, private VLAN, GVRP, voice VLAN and VLAN VPN (QinQ) with VLAN mapping and replace. Multicast handling supports 511 IGMP groups with IGMP snooping and authentication, MVR, MLD snooping and multicast filtering. QoS offers 8 priority queues, 802.1p CoS/DSCP, SP, WRR and SP+WRR scheduling, rate limiting and QoS remarking.

TP-Link also lists ISP-oriented features on this model: L2PT, Device Link Detect Protocol (DLDP), PPPoE ID insertion, ERPS ring protection, 802.3ah Ethernet link OAM and DDM for optical modules. Security includes IP-MAC-port binding and IPv6-MAC-port binding (512 entries each), DHCP and DHCPv6 snooping, ARP inspection, ND detection and snooping, IPv4 and IPv6 source guard (100 entries each), DoS defend, DHCP filter, port security with up to 64 MAC addresses per port, storm control and 802.1X with port and MAC-based authentication, VLAN assignment and MAB. ACLs cover MAC, IP, combined, packet content and IPv6 rules, applied to ports or VLANs and time-based.

Management is through Omada Pro: centralised management by the Omada Pro Cloud-Based Controller or Omada Pro Software Controller, cloud access and the Omada app through an Omada Pro controller, and Zero-Touch Provisioning with the Omada Pro Cloud-Based Controller. Omada Pro adds Intelligent Anomaly Detection, automatic device discovery, batch configuration and firmware upgrades, network monitoring and abnormal event warnings. Standalone management uses the web GUI, CLI over console or Telnet, SNMP v1/v2c/v3 with RMON, LLDP/LLDP-MED, DHCP AutoInstall, dual image and dual configuration, cable diagnostics, EEE and remote packet capture. It is rated for 0 to 40 degrees C and certified CE and FCC. In the box are the switch, a power cord, a quick installation guide, a rackmount kit and rubber feet. Compared with the gigabit S5500-24GP4F, which TP-Link lists with 24 gigabit PoE+ ports, a 250 W budget and four gigabit SFP slots, the S5500-24MPP4XF moves every edge port to 2.5 Gbps, adds eight PoE++ ports, doubles the PoE budget to 500 W and upgrades the uplinks to 10G SFP+.

Key features

24 x 2.5 Gbps PoE ports

Every RJ45 port runs at 2.5 Gbps for multi-gig Wi-Fi 6/7 access points.

8 x PoE++ up to 60 W

Eight 802.3bt/at/af ports supply up to 60 W each; sixteen 802.3at/af ports up to 30 W.

500 W PoE budget

500 W total PoE power across all 24 PoE ports.

4 x 10G SFP+ uplinks

Four 10 Gbps SFP+ slots with 200 Gbps non-blocking switching capacity.

L3 static routing

32 IPv4/IPv6 interfaces, 48 static routes, DHCP server and relay.

ISP and resilience features

ERPS, QinQ, L2PT, DLDP, 802.3ah OAM and DDM.

Omada Pro integration

Zero-Touch Provisioning, Intelligent Anomaly Detection and cloud management with the Omada app.

Enterprise security

802.1X, IP/IPv6-MAC-port binding, DHCP snooping, ARP inspection, source guard and ACLs.

S5500-24MPP4XF specifications

At a glance

24 x 2.5G RJ45
8 x PoE++ (60 W)
16 x PoE+ (30 W)
500 W PoE budget
4 x 10G SFP+
200 Gbps switching
Omada Pro managed
1U rackmount
S5500-24MPP4XF full specifications
Hardware Features
Interface24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+); 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port
Fan Quantity3
Physical Security Lock√
Power Supply100-240 V AC~50/60 Hz
PoE Ports (RJ45)Standard: 802.3bt/at/af compliant; PoE++ Ports (802.3bt/at/af PoE): 8 Ports, up to 60 W per port; PoE+ Ports (802.3at/af PoE): 16 Ports, up to 30 W per port; Power Budget: 500 W
Dimensions ( W x D x H )17.3×13.0×1.7 in (440×330×44 mm)
MountingRack Mountable
Max. Power Consumption629.1 W (110V/60Hz) (with 500 W PD connected)
Max. Heat Dissipation2153.45 BTU/h (110 V/60 Hz) (with 500 W PD connected)
Performance
Packet Buffer Memory16 Mbit
Jumbo Frame9 KB
Switching Capacity200 Gbps
Packet Forwarding Rate148.80 Mpps
MAC Address Table32 K
Software Features
Quality of Service8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L3 Features32 IPv4/IPv6 Interfaces; Static Routing: 48 static routes; Static ARP: 128 static entries; 512 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay: DHCP interface relay, DHCP VLAN relay; DHCP L2 Relay
L2 and L2+ FeaturesLink Aggregation; Static link aggregation; 802.3ad LACP; Up to 8 aggregation groups and up to 8 ports per group; Spanning Tree Protocol; 802.1d STP; 802.1w RSTP; 802.1s MSTP; STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect; Loopback Detection; Port-based; VLAN based; Flow Control; 802.3x Flow Control; HOL Blocking Prevention; Mirroring; Port Mirroring; CPU Mirroring; One-to-One; Many-to-One; Tx/Rx/Both
L2 MulticastSupports 511 (IPv4, IPv6) IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles and 16 entries per profile
Advanced FeaturesIntelligent Anomaly Detection; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule ISP Features :; L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM
VLANVLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Protocol Template 16, Protocol VLAN 16; Private VLAN; GVRP; VLAN VPN (QinQ): VLAN Mapping, VLAN Replace; Voice VLAN
Access Control ListMAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policy: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN; Time-based ACL
SecurityIP-MAC-Port Binding; 512 Entries; DHCP Snooping; ARP Inspection; IPv4 Source Guard: 100 Entries; IPv6-MAC-Port Binding; 512 Entries; DHCPv6 Snooping; ND Detection; ND Snooping; IPv6 Source Guard: 100 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC addresses per port; Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode; 802.1X; Port-based authentication; Mac-base authentication; VLAN Assignment; MAB; Guest VLAN; Radius authentication and accountability support; AAA (including TACACS+); Port Isolation; Secure web management through HTTPS with SSLv3/TLS 1.2; Secure Command Line Interface (CLI) management with SSHv1/SSHv2; IP/Port/MAC-based access control
IPv6IPv6 Dual IPv4/IPv6; Multicast Listener Discovery (MLD) Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 neighbor discovery (ND); Path maximum transmission unit (MTU) discovery; Internet Control Message Protocol (ICMP) version 6; TCPv6/UDPv6; IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBsMIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting Client MIB (RFC2620); Radius Authentication Client MIB (RFC2618); Remote Ping, Traceroute MIB (RFC2925); Support TP-Link private MIB
Management Features
Omada AppYes, through Omada Pro Controller
Centralised ManagementOmada Pro Cloud-Based Controller; Omada Pro Software Controller
Cloud AccessYes, through Omada Pro Controller
Zero-Touch ProvisioningYes. Requiring the use of Omada Pro Cloud-Based Controller.
Management FeaturesWeb-based GUI; Command Line Interface (CLI) through the console port, telnet; SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log; Remote Packet Capture
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • S5500-24MPP4XF Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet

Source: TP-Link's published package contents.

Who the S5500-24MPP4XF is for

Wi-Fi 6/7 access point networks

  • 2.5 Gbps on every PoE port
  • PoE++ up to 60 W on eight ports
  • 10G SFP+ uplinks

Camera and PoE-heavy sites

  • 500 W total PoE budget
  • 24 powered ports
  • IGMP snooping and MVR

Enterprise and multi-site Omada Pro

  • Zero-Touch Provisioning
  • ERPS ring protection
  • Static routing and DHCP server

Buy the S5500-24MPP4XF from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the S5500-24MPP4XF from the ARC IP Networks team.

Last reviewed October 2026.

All 24 RJ45 ports supply PoE: eight are 802.3bt/at/af PoE++ ports and sixteen are 802.3at/af PoE+ ports.

Up to 60 W on each of the eight PoE++ ports and up to 30 W on each of the sixteen PoE+ ports, within a 500 W total budget.

2.5 Gbps on all 24 RJ45 ports.

Four 10G SFP+ slots, per TP-Link's specification table and highlights. One sentence of TP-Link's overview text mentions two; the specification table lists four.

200 Gbps, with a 148.80 Mpps packet forwarding rate and a 16 Mbit buffer.

It is an Omada Pro switch, managed by the Omada Pro Cloud-Based Controller or Omada Pro Software Controller. Zero-Touch Provisioning requires the Omada Pro Cloud-Based Controller.

Yes, through its web GUI, CLI over the RJ45 or Micro-USB console port or Telnet, and SNMP v1/v2c/v3.

It supports static routing with 48 static routes and 32 IPv4/IPv6 interfaces, plus DHCP server and relay.

Yes, three fans. It is a 1U rack-mountable switch, 440 x 330 x 44 mm, with a rackmount kit included.

The switch, a power cord, a quick installation guide, a rackmount kit and rubber feet.

Need more than one S5500-24MPP4XF for a multi-gig Wi-Fi 7 or camera rollout?
