Ruijie RG-NIS2100-4GT2SFP-HP 6-Port Cloud Managed Industrial PoE Switch, 1 x PoE++ and 3 x PoE+, 2 x SFP, DIN Rail

https://arcip.com.au/web/image/product.template/5617/image_1920?unique=1704e69

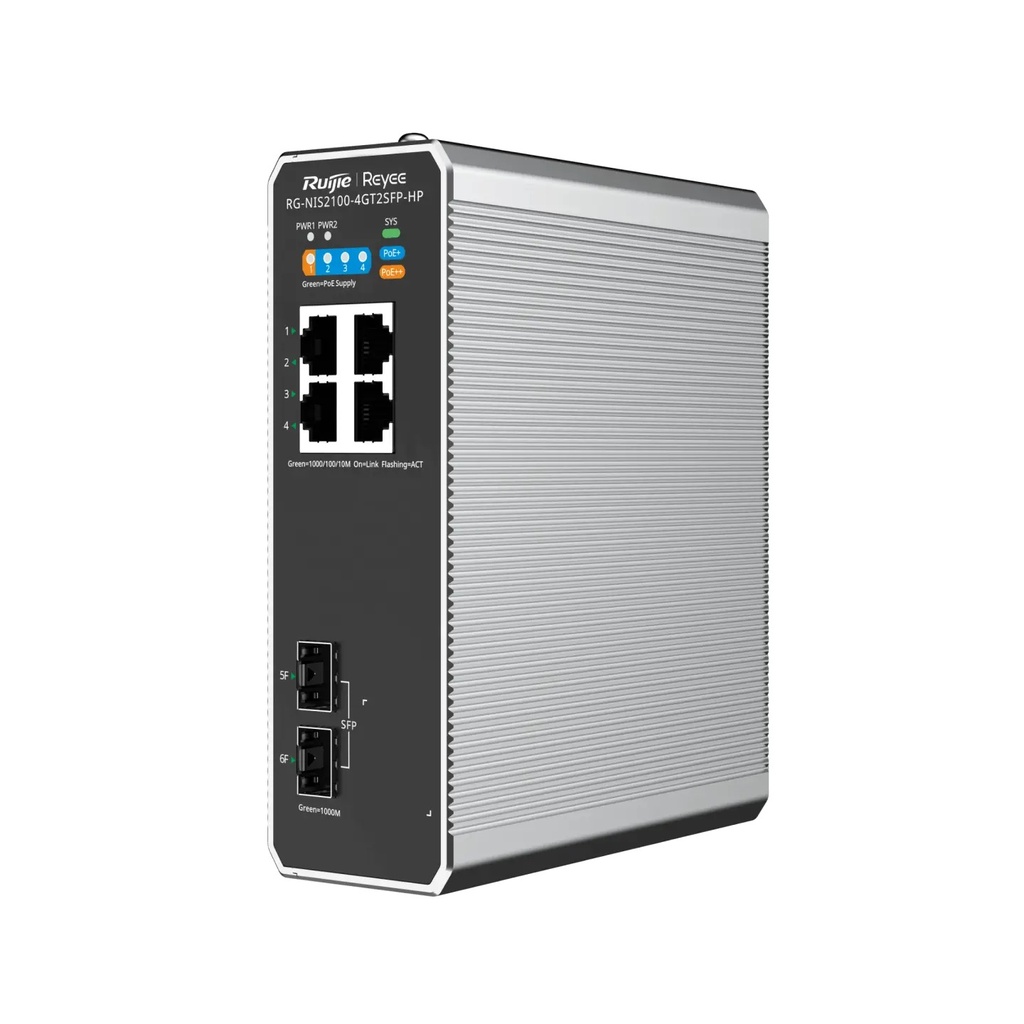

Ruijie RG-NIS2100-4GT2SFP-HP 6-port cloud managed Layer 2 industrial PoE switch. Four 10/100/1000 RJ45 ports (port 1 PoE++ up to 90W, ports 2-4 PoE/PoE+) and two 1GE SFP uplinks. PoE budget 108 W default, up to 180 W via web. Switching capacity 12 Gbps, 8.9 Mpps. Fanless aluminium casing, IP40, -40°C to +75°C, 6 kV surge protection, DIN rail or wall mount, 50 x 155 x 130 mm. DIP switch for ERPS ring, isolation, 200 m extend mode and alarm. 46-57 V DC input, power supply sold separately. Managed via Ruijie Cloud, Reyee App and eWeb. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 214.80 214.8 AUD $ 233.76 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch Ruijie Cloud Managed SFP Transceiver Industrial DIN Rail Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-NIS2100-4GT2SFP-HP
Barcode
6976915001491
Tags

Ruijie RG-NIS2100-4GT2SFP-HP at a glance

The Ruijie RG-NIS2100-4GT2SFP-HP is a 6-port cloud managed Layer 2 industrial switch with four Gigabit RJ45 ports (one 90W PoE++ and three PoE+) and two 1GE SFP uplinks. It runs from -40°C to +75°C in a fanless, IP40 metal case for DIN rail or wall mounting, with a default 108 W PoE budget and a DIP switch for instant ERPS ring setup. A power supply is not included.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-NIS2100-4GT2SFP-HP from Australian stock, with a GST tax invoice on every order.

PoE budget108 W default, 180 W max
PoE ports1 x PoE++, 3 x PoE+
Operating temp-40°C to +75°C
ManagementRuijie Cloud, App, eWeb

Best for

  • CCTV in roadside or outdoor waterproof cabinets
  • Factories, coastal areas and dusty environments
  • Powering a high-power PTZ camera or other 90W device

Key features

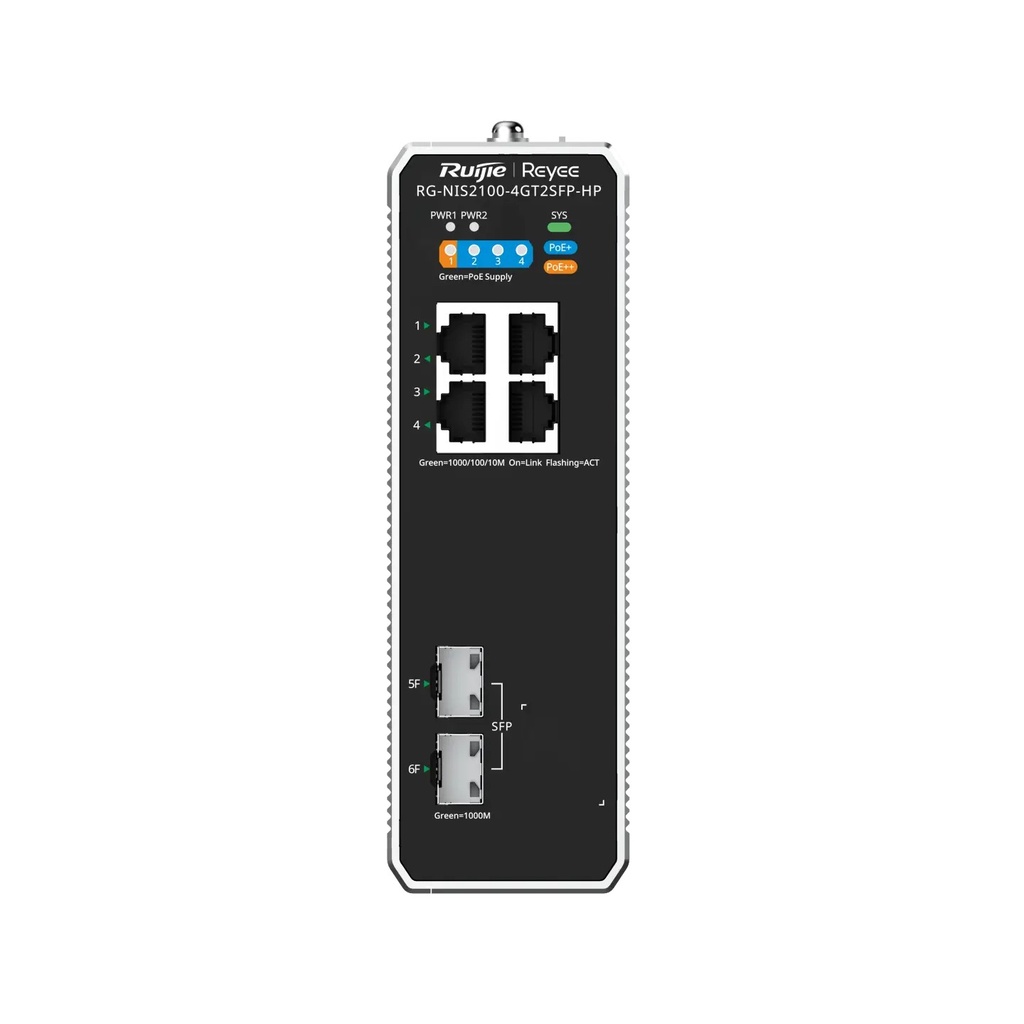

Four 10/100/1000BASE-T RJ45 ports plus two 1GE SFP uplink ports.

Port 1 supports PoE++ (IEEE 802.3bt) up to 90W; ports 2 to 4 support PoE/PoE+.

PoE budget of 108 W by default, adjustable to a maximum of 180 W through the web interface.

Industrial operating range of -40°C to +75°C, IP40 protection and a fanless full-aluminium casing.

6 kV surge protection on service ports and EMC Level 4 against electromagnetic interference.

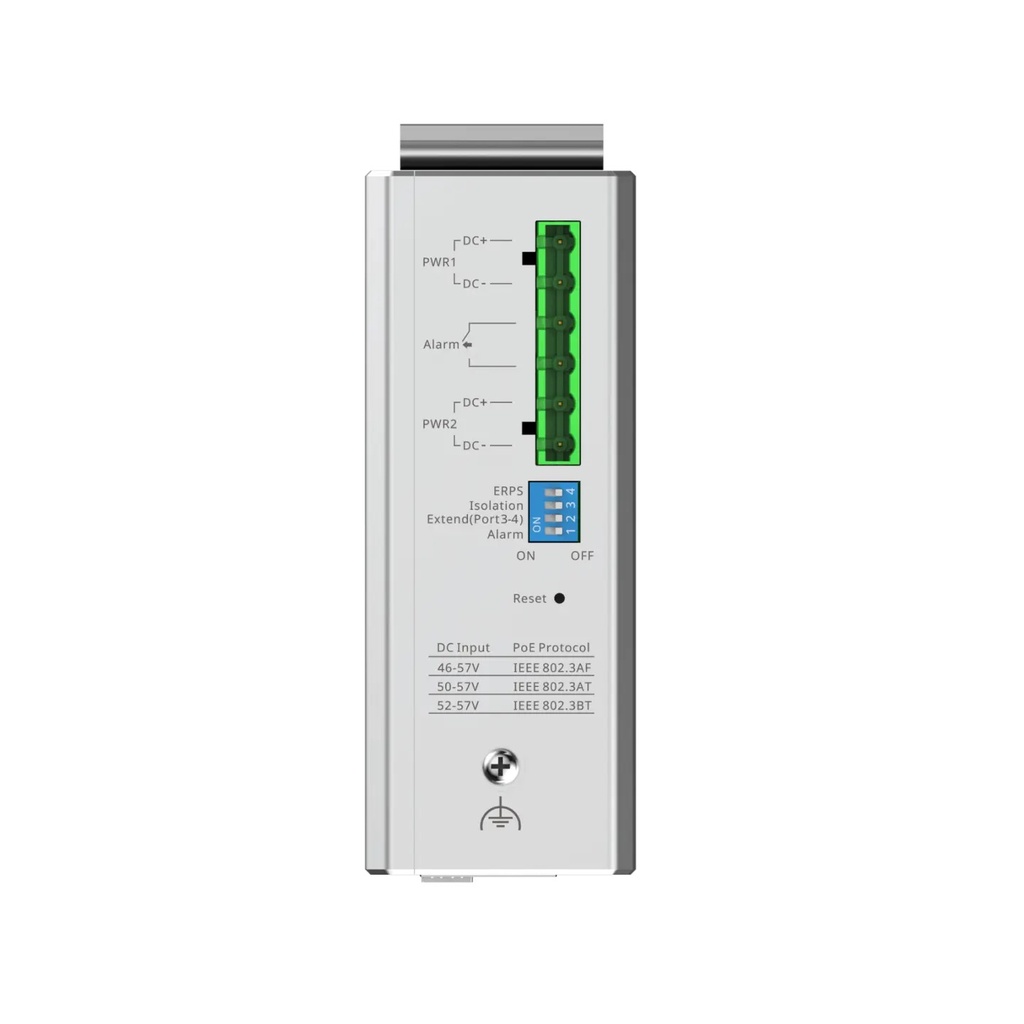

DIP switch for ERPS ring mode, port isolation, extend mode (ports 3 to 4 at 10 Mbps up to 200 m over Cat5e) and power alarm mode.

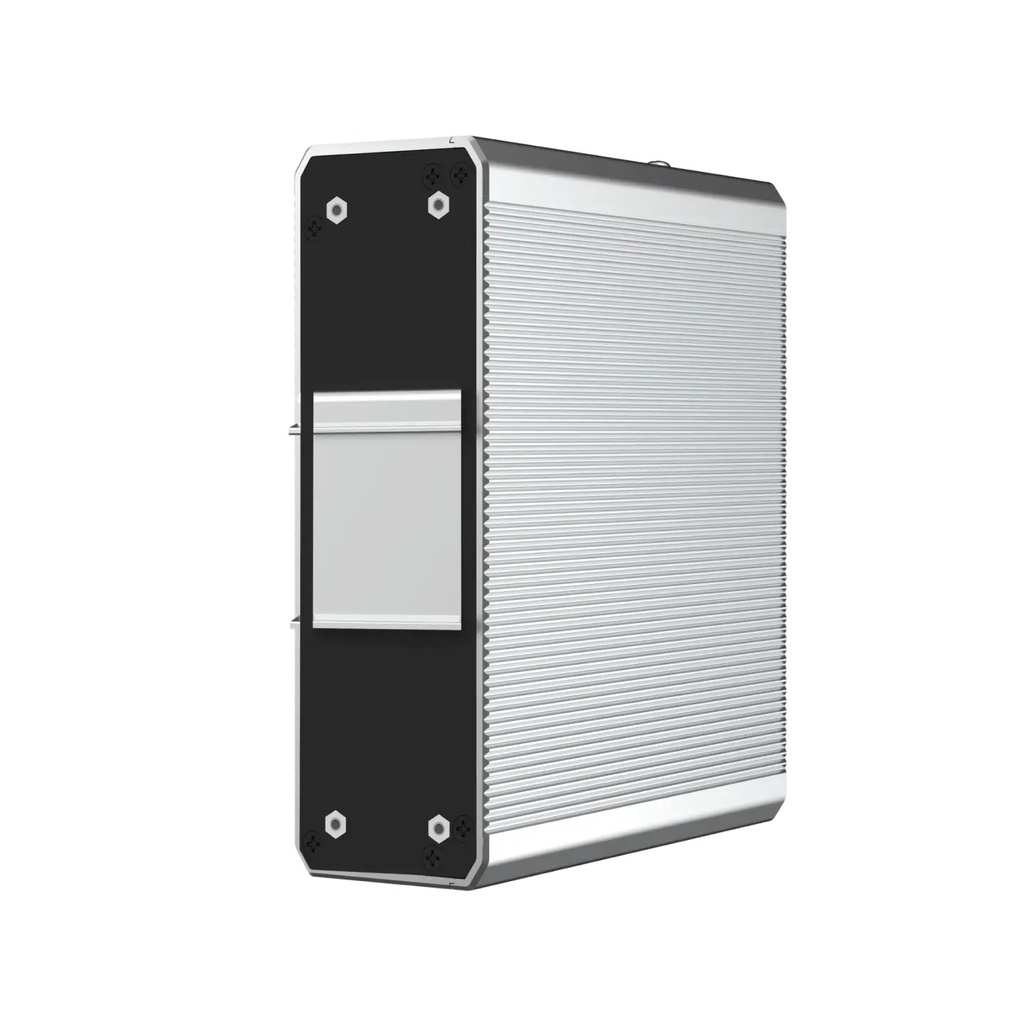

Compact 50 x 155 x 130 mm body for DIN rail or wall mounting and small outdoor boxes.

Managed through Ruijie Cloud, the Ruijie Reyee App and eWeb, with SON and camera detection.

PoE watchdog, DHCP snooping, storm control and port isolation.

Ruijie RG-NIS2100-4GT2SFP-HP specifications

Ruijie RG-NIS2100-4GT2SFP-HP technical specifications
SpecificationValue
Ports
RJ45 ports4 x 10/100/1000BASE-T
SFP ports2 x 1GE SFP
Ultra-long-haul transmissionYes (ports 3–4, up to 200 m at 10 Mbps over Cat5e in extend mode)
Reset button1
DIP switch modesERPS, isolation, extend, alarm
PoE and power
PoE standardIEEE 802.3af/at/bt (PoE/PoE+/PoE++)
PoE ports4 (port 1 PoE++, ports 2–4 PoE/PoE+)
PoE budgetDefault 108 W; max 180 W (adjustable via web)
DC input46 V DC to 57 V DC
Compatible power units (per datasheet)RG-NIS-PA240-48, RG-NIS-PA120-48
Maximum power consumption12 W with no PoE load; 192 W with full PoE load
Power supply includedNo, purchased separately
Performance
Switching capacity12 Gbps
Forwarding rate8.9 Mpps
MAC address table8000 entries
VLANs16 (IEEE 802.1Q)
Jumbo frame10000 bytes
Software
ManagementRuijie Cloud, Ruijie Reyee App, eWeb (HTTP)
Network featuresSON, camera detection, ERPS, mirroring, cable test, EEE, rate limiting
SecurityPort isolation, DHCP snooping, broadcast/multicast/unknown unicast storm control, CPU protection
Not supportedSNMP, LACP, IGMP snooping, ACLs, 802.1X
Physical and environmental
Dimensions (W x D x H)50 x 155 x 130 mm
CasingMetal, fanless, natural cooling
MountingDIN rail or wall
Operating temperature-40°C to +75°C
Operating humidity10% to 90% RH, non-condensing
Surge protectionService ports ±6 kV common mode; power ±4 kV common / ±2 kV differential
MTBF200,000 hours
CertificationCE, FCC
Package contents
In the boxSwitch, 2 x mounting brackets, 4 x screws, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-NIS2100-4GT2SFP-HP in depth

Industrial PoE in a compact case

The RG-NIS2100-4GT2SFP-HP packs four Gigabit PoE ports and two SFP uplinks into a 50 mm wide fanless aluminium case that fits a DIN rail, wall or small outdoor enclosure. It is rated from -40°C to +75°C with IP40 protection, 6 kV surge protection and EMC Level 4.

Power for demanding devices

Port 1 delivers up to 90W PoE++ for high-power devices, while ports 2 to 4 provide PoE/PoE+. The PoE budget is 108 W by default and can be raised to 180 W in the web interface, depending on the 46 to 57 V DC supply used.

Simple ring resilience and cloud control

A DIP switch enables ERPS ring networking without configuration, or switches ports 3 and 4 to extend mode for runs up to 200 m. The switch joins Ruijie's SON and can be managed from Ruijie Cloud, the Reyee App or eWeb.

Frequently asked questions

Straight answers about the Ruijie RG-NIS2100-4GT2SFP-HP from the ARC IP Networks team. Last reviewed October 2026.

It has a default PoE budget of 108 W, adjustable up to 180 W via the web interface. Port 1 supports PoE++ up to 90W and ports 2 to 4 support PoE/PoE+.

No. Ruijie states a power adapter is not included; the switch takes 46 V DC to 57 V DC input and the datasheet lists the RG-NIS-PA240-48 and RG-NIS-PA120-48 power units.

It operates from -40°C to +75°C in a fanless metal casing with IP40 protection.

It supports DIN rail or wall mounting and its 50 x 155 x 130 mm size suits small outdoor boxes.

Yes. In DIP switch extend mode, ports 3 to 4 run at 10 Mbps for up to 200 m over Cat5e cable.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-NIS2100-4GT2SFP-HP from Australian stock with a GST tax invoice.
