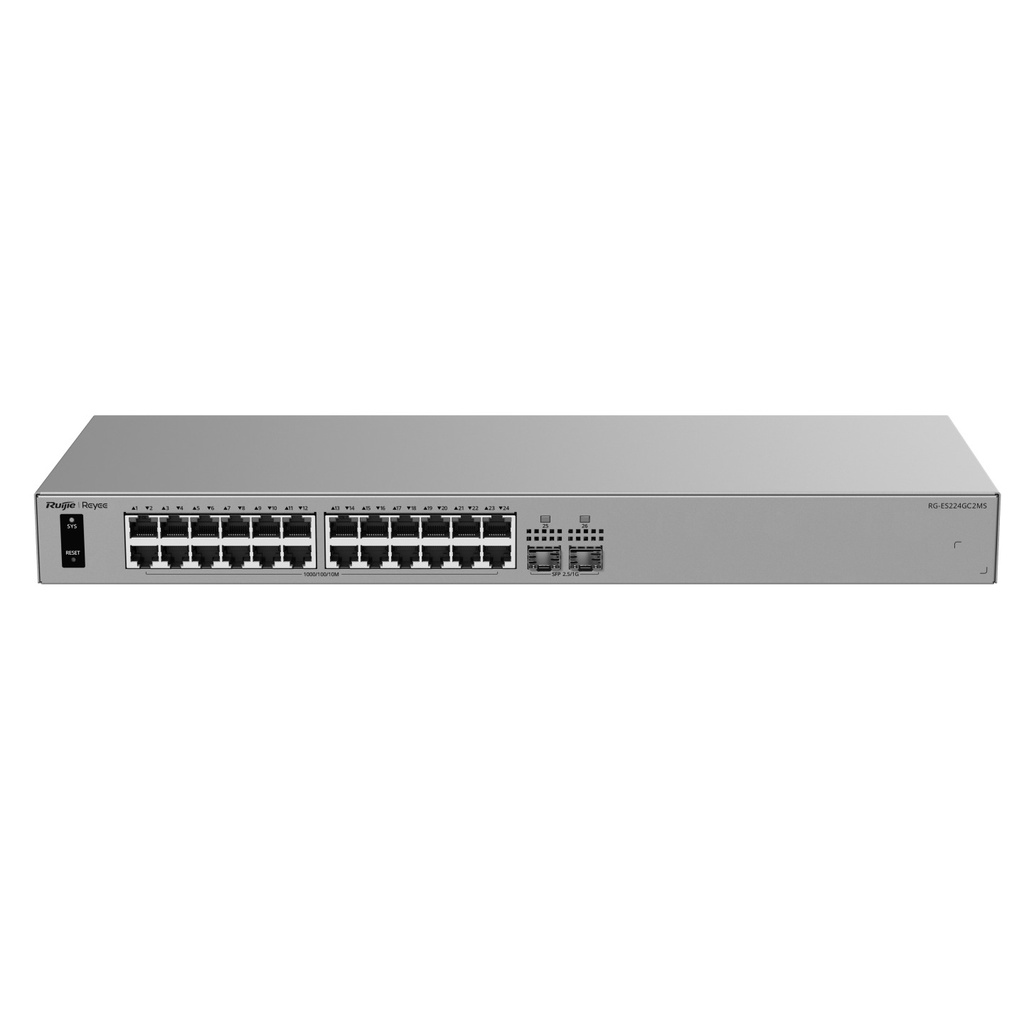

Ruijie RG-ES224GC2MS 24-Port Gigabit Smart Cloud-Managed Switch with 2 x 2.5GE SFP Uplinks, ERPS, Fanless

Price:

$ 222.16


Ruijie RG-ES216GC2MS 16-Port Gigabit Smart Cloud-Managed Switch with 2 x 2.5GE SFP Uplinks, ERPS, Fanless
Ruijie RG-ES216GC2MS 16-Port Gigabit Smart Cloud-Managed Switch with 2 x 2.5GE SFP Uplinks, ERPS, Fanless
$ 157.98
$ 157.98
Ruijie RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Access Point, 2 x Gigabit Ports, PoE/PoE+ Powered
Ruijie RG-RAP62-Wall-Lite Wi-Fi 6 AX3000 Dual-Band Wall-Plate Access Point, 2 x Gigabit Ports, PoE/PoE+ Powered
$ 154.89
$ 154.89

Ruijie RG-ES224GC2MS 24-Port Gigabit Smart Cloud-Managed Switch with 2 x 2.5GE SFP Uplinks, ERPS, Fanless

https://arcip.com.au/web/image/product.template/10365/image_1920?unique=306b97f

Ruijie RG-ES224GC2MS 24-port Gigabit smart cloud-managed switch with 2 x 2.5GE SFP uplinks. 24 x 10/100/1000BASE-T RJ45 ports, 58 Gbps switching capacity, 43.15 Mpps forwarding, 32 VLANs, 16000 MAC entries, 12000-byte jumbo frames, ERPS, static link aggregation, port isolation, DHCP snooping and storm control. Managed via Ruijie Cloud, Ruijie Reyee App or eWeb (HTTP/HTTPS) with SON and camera detection. Fanless metal chassis, rack or desk mounting, built-in AC power, 18 W maximum, ±6 kV surge protection. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 222.16 222.16 AUD $ 222.16 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink

This combination does not exist.

In stock online
Switch Rackmount PoE Ruijie Cloud Managed SFP Transceiver Reyee CCTV
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-ES224GC2MS
Barcode
6976915006595
Tags

Ruijie RG-ES224GC2MS at a glance

The Ruijie RG-ES224GC2MS is a 24-port Gigabit Layer 2 smart switch with two 2.5GE SFP uplink ports, managed through Ruijie Cloud, the Reyee App or local eWeb. The SFP ports support ERPS ring protection and static link aggregation, and the fanless chassis delivers 58 Gbps switching capacity from a built-in AC supply.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-ES224GC2MS from Australian stock, with a GST tax invoice on every order.

Ports24 x GE RJ45 + 2 x 2.5GE SFP
Switching58 Gbps
ResilienceERPS ring support
ManagementRuijie Cloud / App

Best for

  • CCTV and office networks that need fibre uplinks between cabinets
  • Ring topologies using ERPS for link redundancy
  • Rack or desk installs where a fanless switch is preferred

Key features

24 x 10/100/1000BASE-T RJ45 ports plus 2 x 2.5GE SFP ports for higher-speed uplinks.

58 Gbps switching capacity and 43.15 Mpps forwarding rate.

ERPS support on the SFP uplinks for ring redundancy, as highlighted by Ruijie.

Static link aggregation for higher throughput; LACP is not supported.

Up to 32 IEEE 802.1Q VLANs, a 16000-entry MAC table and 12000-byte jumbo frames.

AI-powered failover and one-click smart protection for service continuity, according to Ruijie.

Ruijie Cloud, Reyee App and eWeb (HTTP/HTTPS) management with SON zero-touch provisioning and camera detection.

Fanless metal chassis with built-in AC power (18 W maximum) and ±6 kV surge protection.

Ruijie RG-ES224GC2MS specifications

Ruijie RG-ES224GC2MS technical specifications
SpecificationValue
Ports
10/100/1000BASE-T RJ45 ports24
2.5GE SFP ports2
PoENone
Reset button1
Performance
Switching capacity58 Gbps
Forwarding rate43.15 Mpps
MAC address table16000 entries
Maximum VLANs32
Jumbo frame (MTU)12000 bytes
Flash memory8 MB
Layer 2, reliability and security
IEEE 802.1Q VLANYes
Static link aggregationYes
LACPNo
Rate limiting (inbound/outbound per interface)Yes
Port isolationYes
Storm controlBroadcast, multicast and unknown unicast
DHCP snoopingYes
CPU protection policyYes
ERPS ring protectionYes
IGMP snoopingNo
ACLs / 802.1X / RADIUSNo
802.1p / DSCP traffic classificationNo
Management
Cloud managementRuijie Cloud and Ruijie Reyee App
Local managementeWeb (HTTP/HTTPS)
SON (zero-touch provisioning)Yes
Camera detectionYes
Port mirroringYes
Cable testYes
EEEYes
IPv4 pingYes
DHCP / DNS clientYes
Online upgradeYes
SNMP / LLDP / SyslogNo
Power
Power supplyBuilt-in (fixed) AC power supply
Input100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.6 A rated
Maximum power consumption18 W
Physical and environmental
CasingMetal
Dimensions (W x D x H)440 mm x 165 mm x 44 mm
CoolingFanless, natural cooling
MountingRack or desk
Operating temperature0°C to 40°C
Storage temperature–40°C to +70°C
Operating humidity10% to 90% RH (non-condensing)
MTBF200,000 hours
Surge protectionService ports ±6 kV common mode; power connector ±6 kV common and differential mode
CertificationCE, CB
In the box and warranty
ContentsSwitch, 2 rack-mount brackets, 4 rubber pads, power cord retention clip, 6 x M4 x 8 mm screws, power cord (1.8 m)
Warranty3 years

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-ES224GC2MS in depth

24 Gigabit ports with 2.5G fibre uplinks

The RG-ES224GC2MS pairs 24 Gigabit RJ45 access ports with two 2.5GE SFP ports. That gives more uplink bandwidth than a Gigabit SFP and suits linking switches across a building or campus.

Ring protection and aggregation

Ruijie supports ERPS for ring networks and static link aggregation for higher throughput. Port isolation, DHCP snooping and storm control are included for a more stable network.

Cloud managed, silent and protected

The switch is managed through Ruijie Cloud, the Reyee App or eWeb, with SON zero-touch provisioning. The fanless metal chassis can be rack or desk mounted and the ports carry 6 kV surge protection.

Frequently asked questions

Straight answers about the Ruijie RG-ES224GC2MS from the ARC IP Networks team. Last reviewed October 2026.

Two 2.5GE SFP ports, in addition to the 24 Gigabit RJ45 ports.

No. It is a non-PoE switch. For PoE, see the RG-ES220GS-P-V2 or RG-ES228GS-P-V2.

Yes. Ruijie lists ERPS support for ring redundancy; load balancing is not supported.

Yes. It is fanless with natural cooling, supports rack or desk mounting, and includes two rack-mount brackets.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-ES224GC2MS from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-ES224GC2MS in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Switching Capacity 58 Gbps
Network Layer Layer 2
Form Factor Rack Mount
Port Speed 24 x GbE + 2 x 2.5G SFP
Ports 26 Ports
Network Connectivity Wired
Uplink 2 x 2.5GE SFP
