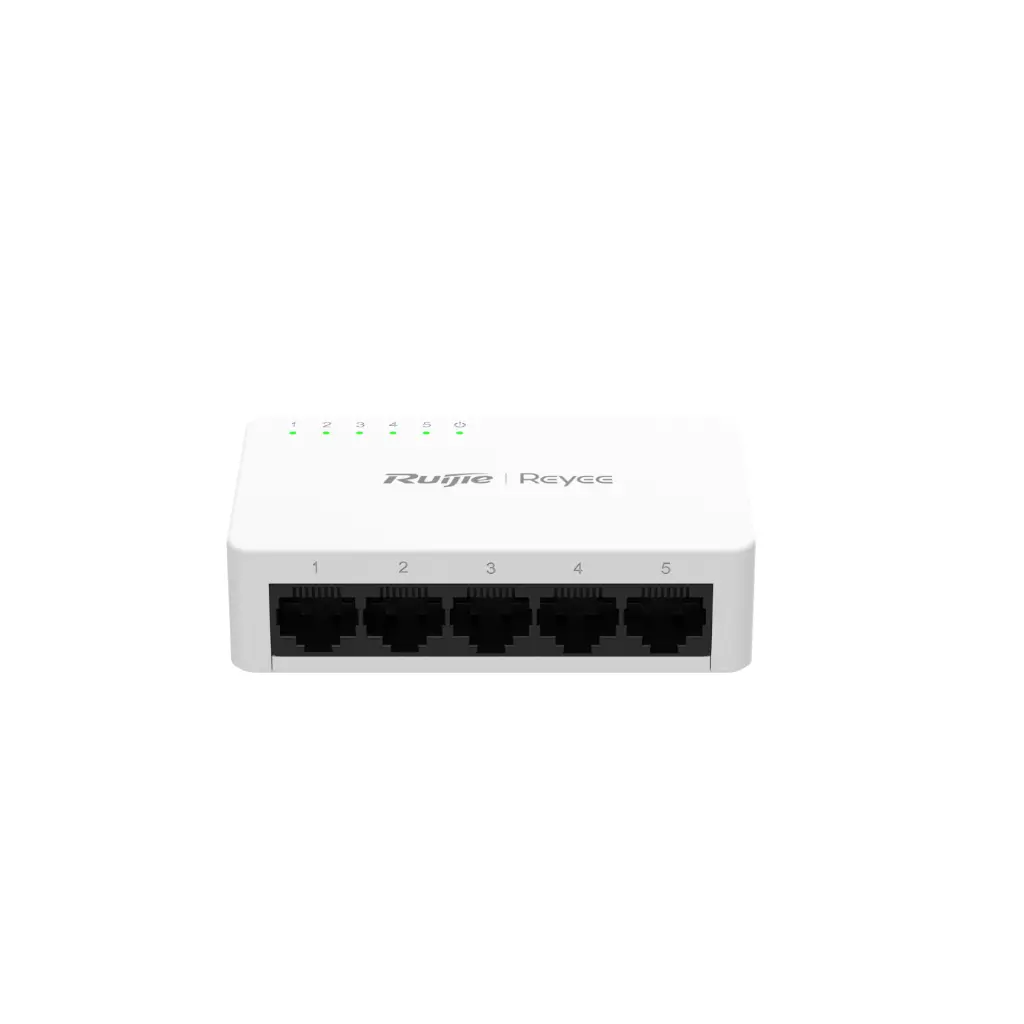

Ruijie RG-ES05F 5-Port 10/100 Mbps Unmanaged Switch, Plastic Case, Fanless, Plug and Play

Price:

$ 14.19


Hikvision DS-3T1512HP-SI-8P4F 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch (4 SFP)
Hikvision DS-3T1512HP-SI-8P4F 8-Port Gigabit Industrial Smart Managed Hi-PoE Switch (4 SFP)
$ 289.03
$ 289.03
Hikvision DS-2CE76U7T 8MP EXIR Turret Camera 3.6mm
Hikvision DS-2CE76U7T 8MP EXIR Turret Camera 3.6mm
$ 125.16
$ 125.16

Ruijie RG-ES05F 5-Port 10/100 Mbps Unmanaged Switch, Plastic Case, Fanless, Plug and Play

https://arcip.com.au/web/image/product.template/5542/image_1920?unique=306b97f

Ruijie RG-ES05F 5-port 10/100 Mbps unmanaged Reyee switch. 5 x 10/100 Mbps RJ45 auto-negotiating ports, 1 Gbps switching capacity, 0.74 Mpps forwarding rate. Plug and play with no configuration; visible on Ruijie Cloud when a managed switch is on the same network. Fanless plastic case, 85 x 52 x 23.5 mm, wall or desk mounting, external DC power adapter, 1.4 W maximum power consumption. Operating temperature 0°C to 45°C, MTBF 200,000 hours, CE and CB certified, 3-year Ruijie warranty. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 14.19 14.19 AUD $ 14.19 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Form Factor
  • Ports
  • Network Connectivity

This combination does not exist.

Switch Ruijie Reyee Unmanaged Switch
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-ES05F
Barcode
6971693279018
Tags

Ruijie RG-ES05F at a glance

The Ruijie RG-ES05F is a 5-port 10/100 Mbps unmanaged Reyee switch with 1 Gbps switching capacity and a 0.74 Mpps forwarding rate. It is plug and play with a fanless plastic case, draws at most 1.4 W, and Ruijie covers it with a 3-year warranty.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-ES05F from Australian stock, with a GST tax invoice on every order.

Ports5 x 10/100 RJ45
Switching1 Gbps
Max power1.4 W
Warranty3 years

Best for

  • Home offices needing extra wired ports for PCs, printers and TVs
  • Cafes and small retail counters with POS terminals and routers
  • Adding ports to a Reyee network where a managed switch provides Ruijie Cloud visibility

Key features

5 auto-negotiating 10/100 Mbps RJ45 ports with no configuration required.

Switching capacity of 1 Gbps and a forwarding rate of 0.74 Mpps.

Unmanaged switch that is visible on Ruijie Cloud when at least one managed switch is deployed on the same network.

Fanless design with natural cooling in a plastic casing for silent operation.

Low maximum power consumption of 1.4 W, powered by an external DC power adapter.

Wall or desk mounting.

Surge protection: Service port ±4 kV common mode; power connector ±2 kV common mode, ±1 kV differential mode.

MTBF of 200,000 hours and a 3-year Ruijie warranty.

Ruijie RG-ES05F specifications

Ruijie RG-ES05F technical specifications
SpecificationValue
Ports
Total RJ45 ports5
10/100BASE-T ports5
Product categoryLayer 2 unmanaged
Performance
Forwarding rate0.74 Mpps
Switching capacity1 Gbps
Power
Power supplyExternal DC power adapter
Adapter input100 V AC to 240 V AC, 50 Hz to 60 Hz
Adapter output5 V DC, 1 A max
Maximum power consumption1.4 W
Physical
CasingPlastic
Dimensions (W x D x H)85 x 52 x 23.5 mm
CoolingFanless, natural cooling
MountingWall or desk
Environment and reliability
Operating temperature0°C to 45°C
Storage temperature-40°C to +75°C
Operating humidity10% to 90% RH, non-condensing
MTBF200,000 hours
ESD protectionAir discharge 8 kV, contact discharge 6 kV
Surge protectionService port ±4 kV common mode; power connector ±2 kV common mode, ±1 kV differential mode
Compliance and warranty
CertificationCE, CB
SafetyEN 62368-1, IEC 62368-1
Warranty3 years

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-ES05F in depth

Plug-and-play connectivity

The RG-ES05F adds five 10/100 Mbps wired ports to a small network without any setup. Connect the power adapter and Ethernet cables and every port auto-negotiates, making it a simple way to extend a router or wall point.

Quiet, compact and efficient

A fanless plastic case of 85 x 52 x 23.5 mm keeps it silent on a desk or wall, and maximum power consumption is just 1.4 W. Ruijie rates it for 0°C to 45°C operation with an MTBF of 200,000 hours.

Part of a Reyee network

Although it is unmanaged, the RG-ES05F is visible on Ruijie Cloud when at least one managed switch is deployed on the same network, so it appears alongside Reyee routers, switches and access points in the network topology.

Frequently asked questions

Straight answers about the Ruijie RG-ES05F from the ARC IP Networks team. Last reviewed October 2026.

No. It is an unmanaged plug-and-play switch; all 5 ports auto-negotiate 10/100 Mbps.

Yes, Ruijie says the unmanaged switch is visible on Ruijie Cloud, provided at least one managed switch is deployed on the same network.

No. It has a fanless design with natural cooling in a plastic case.

Maximum power consumption is 1.4 W. It runs from a DC power adapter rated at 5 V DC output.

Ruijie lists a 3-year warranty for this model.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-ES05F from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-ES05F in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Switching Capacity 1 Gbps
Form Factor Desktop / Wall
Ports 5 Ports
Network Connectivity Wired
RG-ES05F_Datasheet_Official_2026-05-13.pdf
