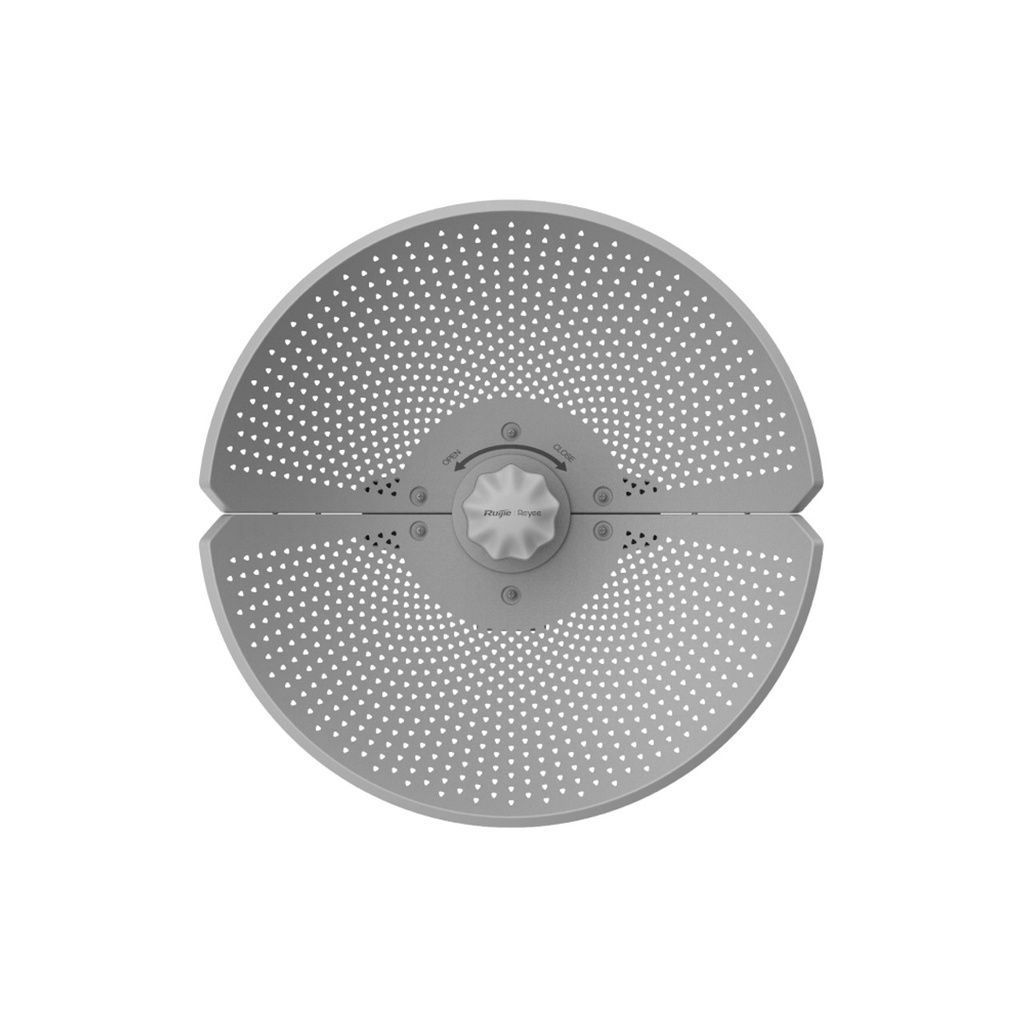

Ruijie RG-AirMetro460F 5GHz Wireless Bridge CPE, 23dBi Dish, Up to 15km PTP, Fast Ethernet Port, IP65

https://arcip.com.au/web/image/product.template/5631/image_1920?unique=306b97f

Ruijie RG-AirMetro460F outdoor 5 GHz wireless bridge CPE for the RG-AirMetro series. 2 x 2 Wi-Fi 5 (802.11ac) radio with integrated 23 dBi parabolic dish (9° beam) and 2.4 GHz management radio. Maximum bridge distance 15 km; Ruijie-tested throughput 80 Mbps at 1 km and 50 Mbps at 10 km (HT40). 1 x 10/100 Mbps Ethernet port, 24 V passive PoE adapter included, 9W max. IP65, -40°C to +70°C, 6 kV surge protection. Base station/CPE mode, one-touch pairing, Ruijie Cloud and Ruijie Reyee App management. Genuine Ruijie from ARC IP Networks, authorised Ruijie reseller with Australian stock.

$ 116.02 116.02 AUD $ 116.02 incl. GST

Not Available For Sale


  • Brand
  • Ingress Protection

This combination does not exist.

Outdoor Ruijie Reyee Wireless Bridge Point to Point
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
RG-AirMetro460F
Barcode
6971693276710
Tags

Ruijie RG-AirMetro460F at a glance

The Ruijie RG-AirMetro460F is an outdoor 5 GHz Wi-Fi 5 bridge CPE in the RG-AirMetro series with a 23 dBi parabolic dish and one 10/100 Mbps Ethernet port. Ruijie lists a maximum bridge distance of 15 km and, in its own testing, 80 Mbps at 1 km and 50 Mbps at 10 km (HT40), making it a cost-focused CPE for camera and subscriber links.

ARC IP Networks is an authorised Ruijie reseller in Australia. We supply the genuine Ruijie RG-AirMetro460F from Australian stock, with a GST tax invoice on every order.

Max. PTP distance15 km
5 GHz antenna23 dBi dish, 9° beam
Port1 x 10/100 Mbps
Power24 V passive PoE, 9W max

Best for

  • Long-distance CCTV backhaul for a few cameras
  • WISP subscriber CPE in an RG-AirMetro point-to-multipoint network
  • Rural and site-to-site links where cabling is impractical

Key features

Maximum bridge distance of 15 km, per Ruijie's datasheet.

Integrated 2 x 2 5 GHz directional dish antenna with 23 dBi gain and a 9° horizontal and vertical beam.

Wi-Fi 5 (802.11ac) 5 GHz radio plus a 2.4 GHz 1 x 1 radio with built-in omnidirectional antenna.

Ruijie-tested throughput of 80 Mbps at 1 km and 3 km, 70 Mbps at 5 km and 50 Mbps at 10 km (HT40).

One 10/100 Mbps Ethernet port powered by the included 24 V passive PoE adapter, 9W maximum consumption.

Base station/CPE mode switching with TDMA point-to-multipoint transmission and 5 MHz offset.

One-touch pairing within 20 m.

IP65 housing with 6 kV surge and ±24 kV ESD protection, rated -40°C to +70°C.

Managed through Ruijie Cloud and the Ruijie Reyee App, including AI heatmap support.

Ruijie RG-AirMetro460F specifications

Ruijie RG-AirMetro460F technical specifications
SpecificationValue
Wireless
RadiosDual-radio: 2.4 GHz 1 x 1 SISO; 5 GHz 2 x 2 MIMO
StandardsWi-Fi 5 (802.11ac), compatible with 802.11a/b/g/n
5 GHz channel widthAuto/20/40/80 MHz
2.4 GHz channel widthAuto/20/40 MHz
Max. transmit power2.4 GHz 20 dBm; 5 GHz 29 dBm combined (varies by country)
Highest QAM order256
Antenna
5 GHz2 x 2 external directional dish with built-in feed source, 23 dBi
Beam width9° horizontal, 9° vertical
2.4 GHz1 x 1 built-in omnidirectional, 3 dBi
Bridge performance (Ruijie testing, HT40)
Maximum bridge distance15 km
1 km80 Mbps, RSSI -58 dBm
3 km80 Mbps, RSSI -66 dBm
5 km70 Mbps, RSSI -70 dBm
10 km50 Mbps, RSSI -78 dBm
Recommended 3 Mbps cameras12 at 1 km, 12 at 3 km, 10 at 5 km, 6 at 10 km
One-touch pairing range20 m
Hardware
Ethernet1 x 10/100BASE-T
CPUSingle-core, 575/580 MHz
Power24 V passive PoE adapter (included)
Max. power consumption9W
Installed dimensions (W x D x H)368.5 x 271 x 368.5 mm including mounting bracket
ColourElegant white
Environment
MountingPole
Operating temperature-40°C to +70°C
Storage temperature-40°C to +85°C
Operating humidity5% to 95% RH, non-condensing
Operating altitude-500 m to +5,000 m
IP ratingIP65
ESD protection24 kV contact and air discharge
Surge protectionService port ±6 kV common mode; power connector ±4 kV common mode, ±2 kV differential mode
Wind survivability220.32 km/h
MTBF400,000 hours
CoolingNatural cooling
Management
Local managementeWeb (username and password), local upgrade, configuration backup
Cloud managementRuijie Cloud and Ruijie Reyee App
Self-organising network (SON)Yes, up to 200 devices
Bridge toolsBridge speed test, recommended channel, real-time and optimal signal strength
SecurityWPA2-PSK; security keys per bridge, bridge group or whole network; bridge SSID hiding
IP servicesDHCP server and client, IPv4 ping and traceroute
Certification
CertificationsCE, CB
Package contents
In the boxDevice, parabolic dish antenna (2 parts listed), 24 V passive PoE adapter, power cord, mounting bracket, antenna base, 2 hose clamps, screws and nut, cable gland, user manual, warranty card

Figures from Ruijie's official product page and datasheet.

The Ruijie RG-AirMetro460F in depth

Long reach at Fast Ethernet speed

The RG-AirMetro460F uses the same 23 dBi dish and 15 km maximum bridge distance as the RG-AirMetro460G, but with a 10/100 Mbps port and a single-core CPU. Ruijie rates it at 80 Mbps up to 3 km and 50 Mbps at 10 km (HT40).

Suited to camera and subscriber links

Ruijie recommends up to 12 3 Mbps cameras at 1 km and 6 at 10 km, which suits small CCTV sites and WISP subscribers. It can act as a CPE to the RG-AirMetro550G-B base station or in a point-to-point pair.

Managed from the cloud

Pairing, alignment and monitoring are handled through Ruijie Cloud and the Ruijie Reyee App. The IP65 housing and surge protection are designed for exposed pole installation.

Frequently asked questions

Straight answers about the Ruijie RG-AirMetro460F from the ARC IP Networks team. Last reviewed October 2026.

Ruijie lists a maximum bridge distance of 15 km, with 80 Mbps at 1 km and 50 Mbps at 10 km (HT40) in its testing.

It has one 10/100 Mbps (Fast Ethernet) port. The RG-AirMetro460G is the Gigabit version.

Ruijie recommends up to 12 cameras at 3 Mbps over 1 km, 10 at 5 km and 6 at 10 km.

By the included 24 V passive PoE adapter; maximum power consumption is 9W.

Yes. It is IP65 rated, operates from -40°C to +70°C and has 6 kV surge protection.

ARC IP Networks is an authorised Ruijie reseller and supplies the RG-AirMetro460F from Australian stock with a GST tax invoice.

Explore the full Ruijie range: Ruijie Australia hub · Shop all Ruijie Reyee

Buy the Ruijie RG-AirMetro460F in Australia

ARC IP Networks is an authorised Ruijie reseller, supplying Ruijie Reyee access points, switches, routers and wireless bridges to businesses, installers and integrators across Australia.

  • Genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local help with warranty claims and choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Ruijie network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Ruijie model for your site.

Brand Ruijie
Ingress Protection IP65
RG-AirMetro460F_Datasheet_Official_2026-09-07.pdf
