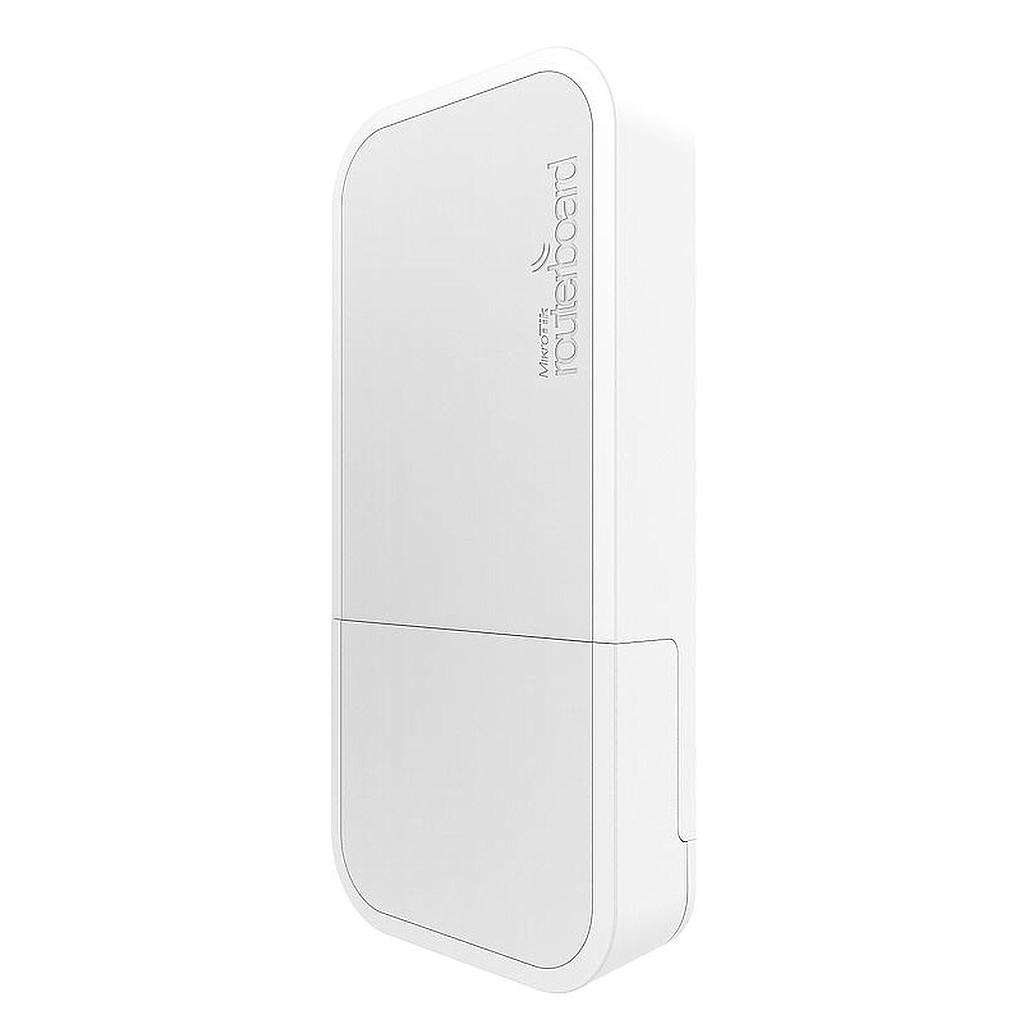

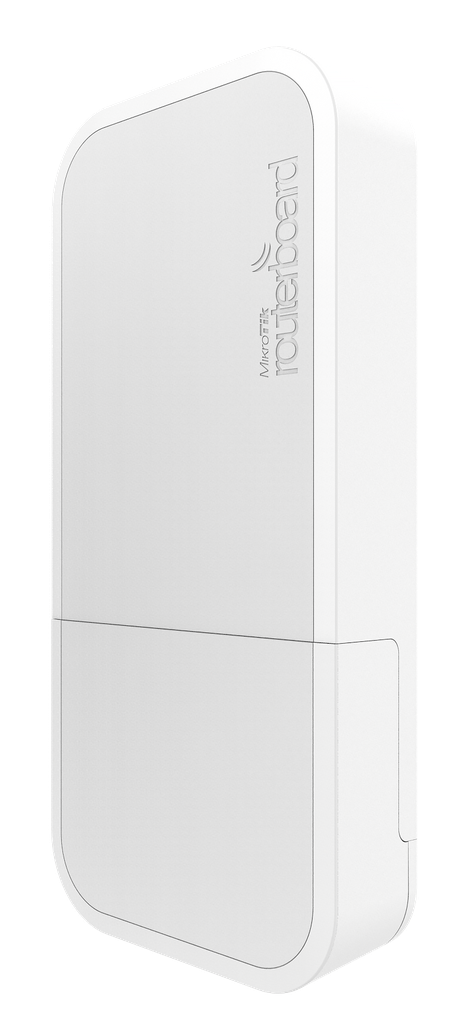

MikroTik RBwAPR-2nD&R11e-LoRa9 2.4GHz wAP w/ 902-928MHz LoRaWAN Kit

https://arcip.com.au/web/image/product.template/3128/image_1920?unique=9537b8a
The MikroTik RBwAPR-2nD&R11e-LoRa9 Kit offers a dual-purpose solution, combining a robust 2.4GHz outdoor wireless access point with a powerful 902-928MHz LoRaWAN gateway. This weatherproof kit is ideal for extending network coverage and building IoT infrastructures in remote or challenging environments.

288.75 288.75 AUD 288.75 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

MikroTik RouterOS
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RBwAPR-2nD&R11e-LR9
Barcode
4752224007025
Tags
RBwAPR-2nD&R11e-LR9
MikroTik RBwAPR-2nD&R11e-LoRa9 2.4GHz wAP w/ 902-928MHz LoRaWAN Kit

Features

  • Integrated 2.4 GHz 802.11b/g/n Wireless Access Point
  • Built-in 902-928 MHz LoRaWAN Gateway (R11e-LR9 miniPCIe card)
  • Weatherproof and Compact Outdoor Enclosure (wAP series)
  • 1x 10/100 Ethernet Port with PoE-in Support
  • Multiple Powering Options: Passive PoE-in, DC Jack, Automotive Connector
  • RouterOS Operating System (License Level 4) for Advanced Functionality
  • High Sensitivity LoRaWAN Concentrator for Extended IoT Range
  • Dual-functionality: Local Wi-Fi AP and Long-Range IoT Gateway in one device

Specifications

Processor & Memory
CPU Nominal Frequency650 MHz
CPU Core Count1
RAM64 MB
Storage16 MB Flash
Wireless (WiFi)
Wireless Standard802.11b/g/n
Frequency Band2.4 GHz
Antenna Gain2 dBi (Integrated Omni)
MIMO2x2 (Dual Chain)
LoRaWAN Gateway
LoRaWAN CardR11e-LR9
Frequency Range902-928 MHz
LoRaWAN Channels8 (Multi-channel concentrator)
Tx PowerUp to 27 dBm (EIRP, depends on regulatory limits and external antenna)
Rx Sensitivity-137 dBm (SF12, 125 kHz)
LoRa ChipsetSemtech SX1301/SX1302 or compatible
LoRa Antenna Connector2x U.FL (Requires external antenna/pigtails)
Ethernet
10/100 Ethernet Ports1
Powering
PoE In StandardPassive PoE (9-30V DC)
DC Jack Input Voltage9-30V DC
Automotive Input Voltage9-30V DC (4-pin connector)
Max Power Consumption6W (without PoE-out or significant external load)
General
Operating SystemRouterOS (License Level 4)
Dimensions185 x 85 x 30 mm (approx.)
Operating Temperature-40°C to +60°C
Enclosure TypeWeatherproof Plastic (Outdoor Rated)
MountingWall / Pole / Rail Mount (Kit included)

Professional Overview

The MikroTik RBwAPR-2nD&R11e-LoRa9 Kit is a comprehensive and highly versatile networking solution, meticulously engineered for outdoor and remote deployments that demand both robust local Wi-Fi and long-range Internet of Things (IoT) connectivity. This all-in-one device seamlessly integrates a powerful 2.4 GHz 802.11b/g/n wireless access point with a sophisticated 902-928 MHz LoRaWAN gateway (via the R11e-LR9 miniPCIe card). Its weatherproof enclosure ensures reliable operation in challenging environmental conditions, making it an indispensable asset for system integrators and network professionals building diverse IoT and remote monitoring infrastructures.

At its core, the kit offers dual-functionality. The integrated 2.4 GHz wireless radio provides reliable local Wi-Fi coverage for a variety of client devices, serving as a convenient access point for nearby laptops, smartphones, or network-enabled sensors. Simultaneously, the embedded R11e-LR9 LoRaWAN gateway card operates as an 8-channel concentrator in the 902-928 MHz band, offering high reception sensitivity (up to -137 dBm) and robust transmit power. This enables exceptional signal penetration and extended communication range, crucial for connecting remote or deeply-indoors LoRaWAN end-devices in applications like smart agriculture, smart cities, or industrial asset tracking.

The RBwAPR-2nD&R11e-LoRa9 Kit is designed for maximum operational flexibility and resilience. It features a 10/100 Ethernet port with Passive Power over Ethernet (PoE-in) support, simplifying installation by allowing the device to be powered directly over the network cable. Additionally, it offers multiple alternative powering options, including a standard DC jack and a 4-pin automotive connector, making it perfectly suited for direct integration into vehicles, public transport, or other mobile platforms, ensuring continuous operation even in dynamic environments. The robust 650 MHz CPU and 64MB RAM provide ample processing power for RouterOS's advanced routing, firewalling, and network management features.

Running MikroTik's industry-leading RouterOS (License Level 4), the kit provides extensive control over wireless settings, routing protocols, Quality of Service (QoS), and VPN support, enabling highly customized and secure network configurations. This powerful combination of weatherproof hardware, integrated local Wi-Fi, long-range LoRaWAN capabilities, and sophisticated software makes the MikroTik RBwAPR-2nD&R11e-LoRa9 Kit an indispensable, strategic investment for building resilient, future-proof IoT and remote connectivity solutions. It ensures enhanced data collection, improved operational efficiency, and smarter decision-making across diverse professional environments, delivering superior reliability and scalability for evolving network demands.
