QNAP QXP-T32P Dual-Port Thunderbolt 3 Expansion Card for TVS-h1288X and TVS-h1688X, PCIe Gen3 x4

https://arcip.com.au/web/image/product.template/8282/image_1920?unique=874d354

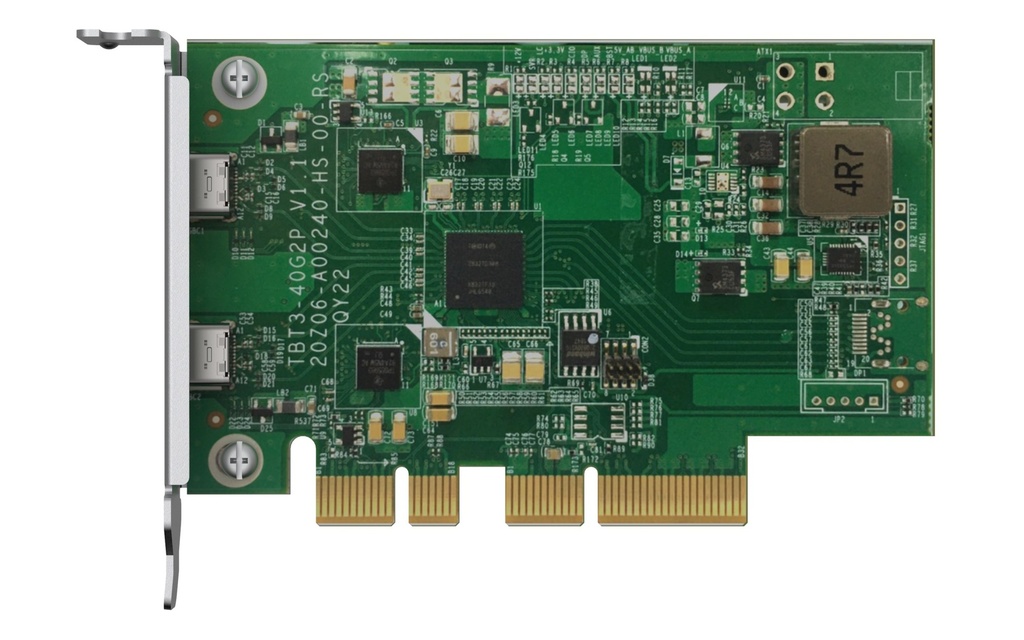

QNAP QXP-T32P dual-port Thunderbolt 3 expansion card with two USB Type-C Thunderbolt 3 ports and PCIe Gen3 x4 interface. Turns a QNAP TVS-h1288X or TVS-h1688X into a Thunderbolt 3 NAS for fast Final Cut Pro and Adobe Premiere Pro collaboration. Daisy-chain up to 6 QNAP Thunderbolt devices. Supports QTS 4.4.0 or later and QuTS hero 4.5.0 or later. Low-profile with full-height bracket included. 2 years QNAP warranty. Genuine QNAP from ARC IP Networks, authorised QNAP reseller with Australian stock.

$ 223.28 223.28 AUD $ 223.28 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
QXP-T32P
Barcode
4713213518489

QNAP QXP-T32P at a glance

The QNAP QXP-T32P is a dual-port Thunderbolt 3 (USB Type-C) expansion card with a PCIe Gen3 x4 interface that turns a compatible QNAP NAS into a Thunderbolt 3 NAS. QNAP lists the TVS-h1288X and TVS-h1688X as compatible models, where it must be installed in a PCIe Gen 3 x4 slot.

ARC IP Networks is an authorised QNAP reseller in Australia. We supply the genuine QNAP QXP-T32P from Australian stock, with a GST tax invoice on every order.

Ports2 x Thunderbolt 3 (USB-C)
InterfacePCIe Gen3 x4
Compatible NASTVS-h1288X, TVS-h1688X
Warranty2 years

Best for

  • Direct Thunderbolt 3 connection between Mac or PC editing workstations and a TVS-h1288X or TVS-h1688X
  • Final Cut Pro and Adobe Premiere Pro team collaboration on shared NAS storage
  • Daisy-chaining QNAP Thunderbolt devices

Key features

Two Thunderbolt 3 ports with USB Type-C connectors.

PCIe Gen3 x4 interface on a low-profile card.

Compatible with the TVS-h1288X and TVS-h1688X, installed in a PCIe Gen 3 x4 slot.

A NAS with the card can daisy-chain up to 6 QNAP Thunderbolt devices, including QNAP Thunderbolt NAS and QNA series Thunderbolt 3 to 10GbE adapters.

Legacy Thunderbolt 2 Macs can connect via Apple's Thunderbolt 3 (USB-C) to Thunderbolt 2 adapter, at up to 20Gb/s.

SMB support lets Final Cut Pro users create a library on a NAS volume and use it like local storage.

Supports QTS 4.4.0 or later and QuTS hero 4.5.0 or later.

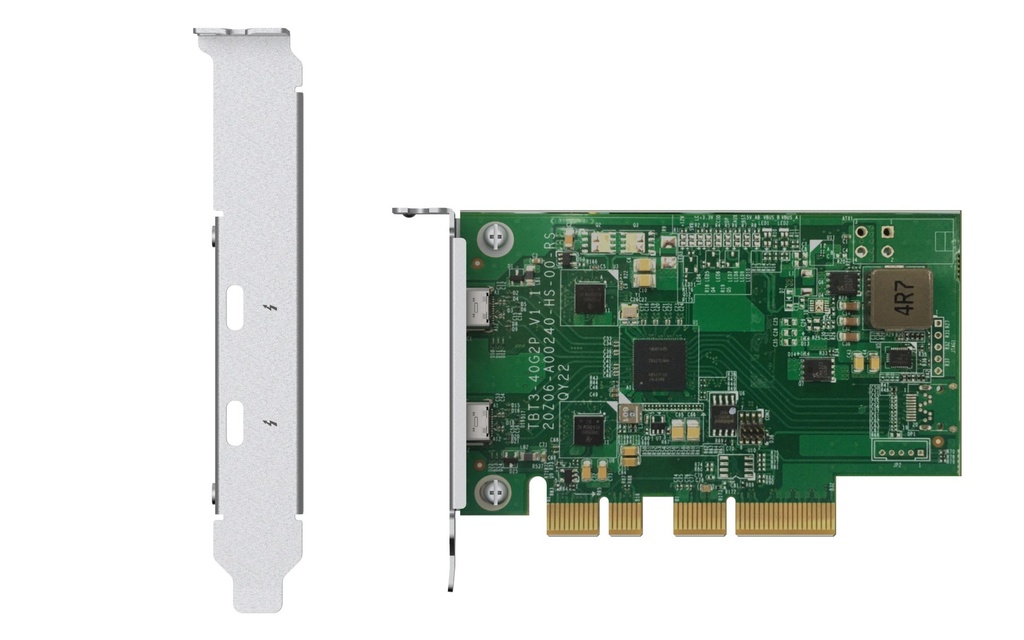

Low-profile bracket pre-installed with a full-height bracket included.

QNAP QXP-T32P specifications

QNAP QXP-T32P technical specifications
SpecificationValue
Interface
Ports2 x Thunderbolt 3 (USB Type-C)
PCIePCIe Gen3 x4
Form factorLow-profile
BracketLow-profile pre-installed; full-height included
Compatibility
Compatible NASTVS-h1288X, TVS-h1688X (PCIe Gen 3 x4 slot only)
Operating systemQuTS hero 4.5.0 or later; QTS 4.4.0 or later
CableCertified Thunderbolt 3 40Gbps cable
Package and warranty
Package contents1 x QXP-T32P, low-profile bracket (pre-installed), full-height bracket
Standard warranty2 years

Figures from QNAP's official product page and hardware specifications.

The QNAP QXP-T32P in depth

Thunderbolt 3 for your NAS

The QXP-T32P transforms a TVS-h1288X or TVS-h1688X into a Thunderbolt 3 NAS, giving editing workstations a direct high-speed connection. Use a certified Thunderbolt 3 40Gbps cable.

Streamlined video collaboration

Final Cut Pro and Adobe Premiere Pro users can store video resources centrally in the same NAS shared folder, and with SMB support Final Cut Pro libraries can live on a NAS volume as if they were local storage.

Daisy-chain and legacy support

Up to 6 QNAP Thunderbolt devices can be daisy-chained from the NAS, and older Thunderbolt 2 MacBooks can connect through Apple's adapter at up to 20Gb/s.

Frequently asked questions

Straight answers about the QNAP QXP-T32P from the ARC IP Networks team. Last reviewed October 2026.

QNAP lists the TVS-h1288X and TVS-h1688X, and the card can only be installed in a PCIe Gen 3 x4 slot in those models.

Two Thunderbolt 3 ports with USB Type-C connectors.

QNAP recommends a certified Thunderbolt 3 40Gbps cable. When connecting a Thunderbolt 4 host, use a Thunderbolt 4 certified cable or a passive Thunderbolt 3 cable shorter than 0.8 m.

QTS 4.4.0 or later, or QuTS hero 4.5.0 or later.

QNAP lists a 2 years standard warranty.

ARC IP Networks is an authorised QNAP reseller and supplies the QXP-T32P from Australian stock with a GST tax invoice.

Explore the full QNAP range: Shop all QNAP

Buy the QNAP QXP-T32P in Australia

ARC IP Networks is an authorised QNAP reseller, supplying QNAP NAS, expansion units, switches and network cards to businesses, creative studios, integrators and home users across Australia.

  • Genuine QNAP: sourced through QNAP's authorised Australian distribution, never grey import.
  • Australian stock, shipped Australia-wide.
  • Manufacturer's warranty and local pre-sales help choosing the right model.
  • GST tax invoice on every order, with trade and project pricing available.

Planning QNAP storage?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right QNAP model for your data.
