Teltonika PR1KCL28 Combo Quad Mobile/GNSS Roof SMA Antenna

Price:

$ 125.88


Teltonika PR1KCL25 Combo MIMO Mobile Roof SMA Antenna
Teltonika PR1KCL25 Combo MIMO Mobile Roof SMA Antenna
$ 34.02
$ 37.03 (8% OFF)
Teltonika PR1KCN40 5G Combo Mobile/GNSS SMA Antenna
Teltonika PR1KCN40 5G Combo Mobile/GNSS SMA Antenna
$ 223.39
$ 223.39

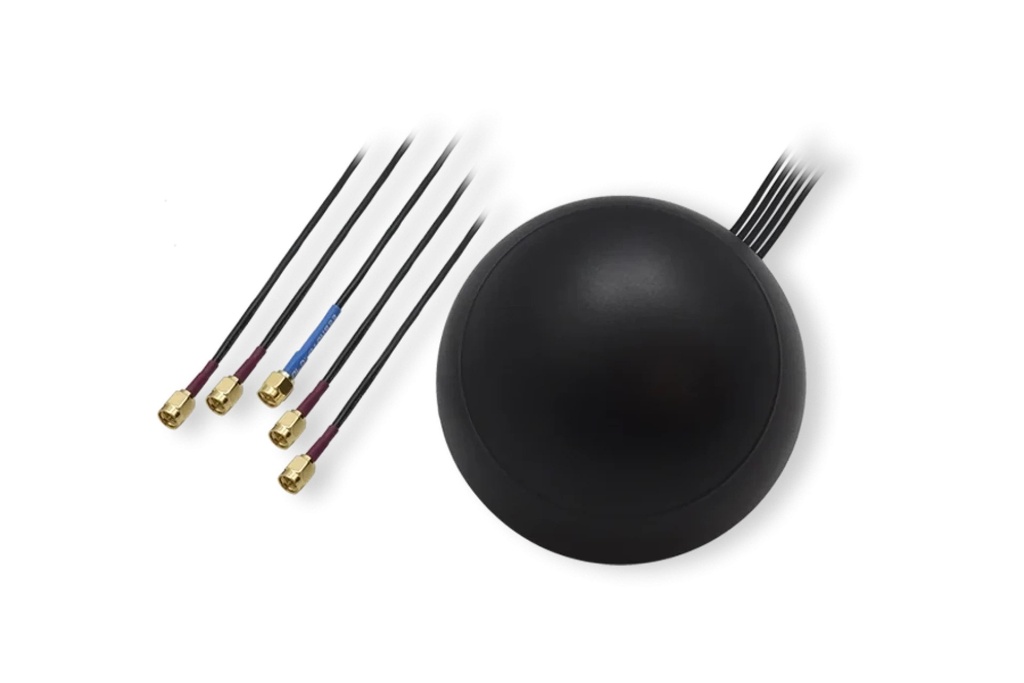

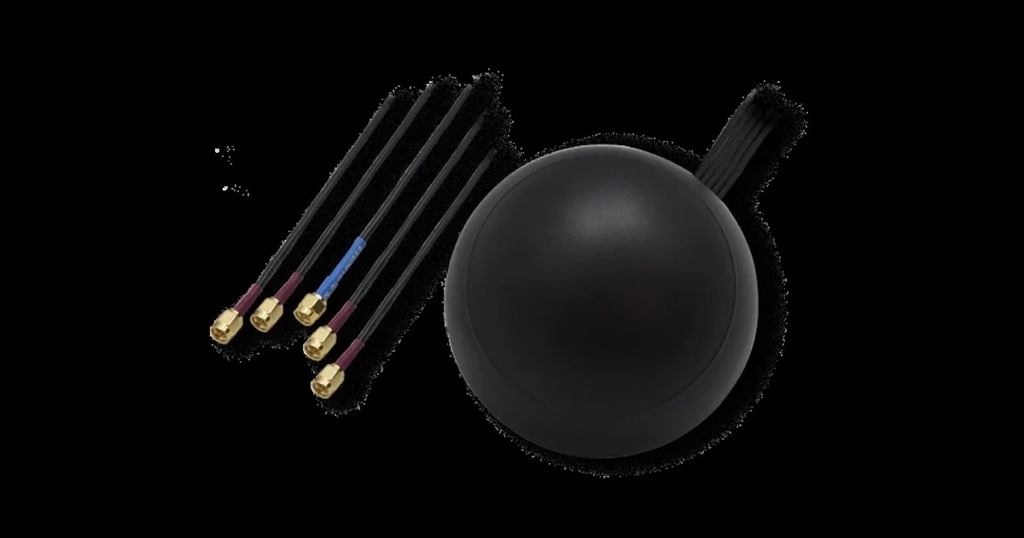

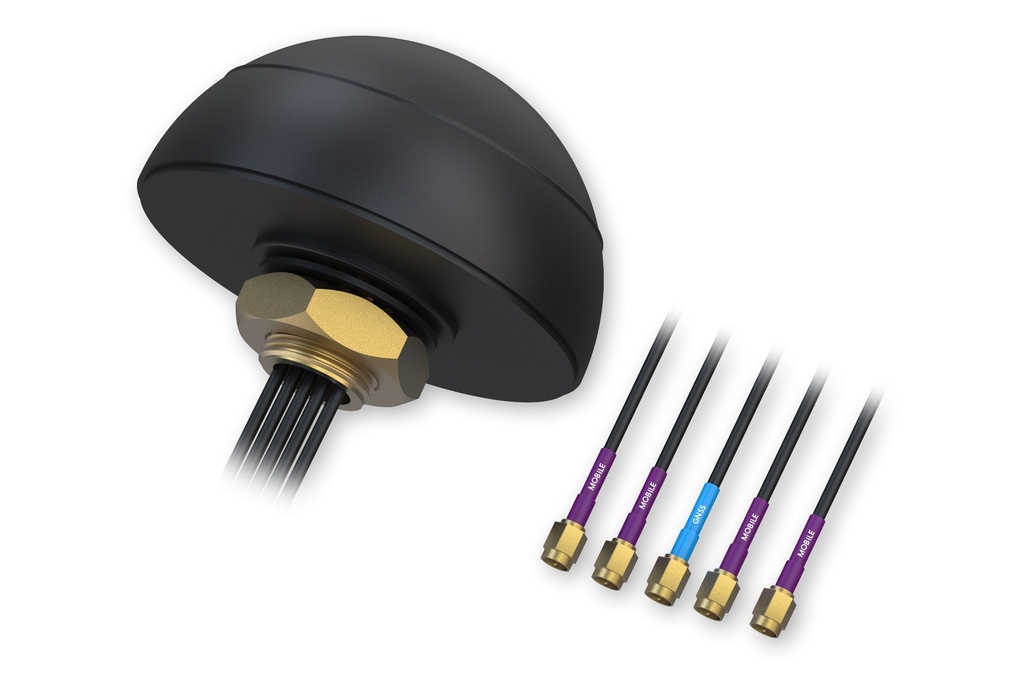

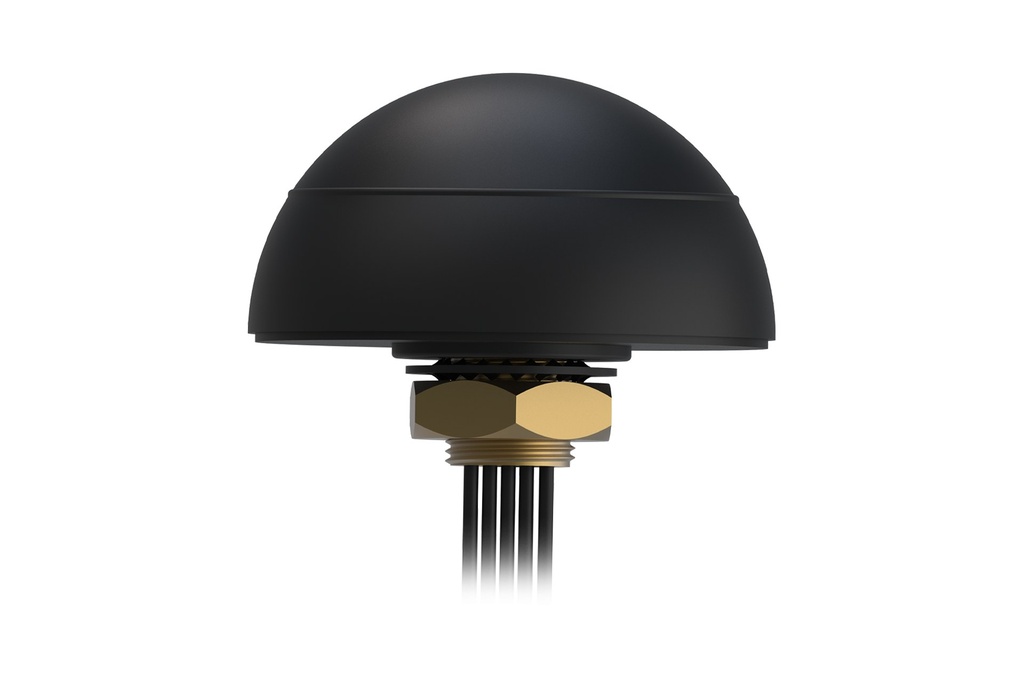

Teltonika PR1KCL28 Combo Quad Mobile/GNSS Roof SMA Antenna

https://arcip.com.au/web/image/product.template/15428/image_1920?unique=6bbe47d

The Teltonika PR1KCL28 (Combo Quad Mobile/GNSS Roof SMA Antenna) is a screw-mounted roof antenna combining a 4x SMA LTE MIMO antenna with a GNSS antenna. The LTE section covers 698 – 960 and 1710 – 2690 MHz with 3.0 dBi gain, while the GNSS section covers 1575.42 ± 3 MHz with 28 ± 2 dB LNA gain. It uses 5x RG174 cable, 3000 mm long.

$ 125.88 125.88 AUD $ 136.99 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
Barcode
4779051841134

Teltonika PR1KCL28 at a glance

The Teltonika PR1KCL28 (Combo Quad Mobile/GNSS Roof SMA Antenna) is a screw-mounted roof antenna combining a 4x SMA LTE MIMO antenna with a GNSS antenna. The LTE section covers 698 – 960 and 1710 – 2690 MHz with 3.0 dBi gain, while the GNSS section covers 1575.42 ± 3 MHz with 28 ± 2 dB LNA gain. It uses 5x RG174 cable, 3000 mm long.

ARC IP Networks supplies the genuine Combo Quad Mobile/GNSS Roof SMA Antenna from Australian stock with the full manufacturer's warranty.

LTE frequency698 – 960, 1710 – 2690 MHz
LTE gain3.0 dBi
GNSS frequency1575.42 ± 3 MHz
GNSS LNA gain28 ± 2 dB
Connectors4x SMA Male (LTE)
Cable5x RG174, 3000 mm
Operating temp.- 40 ⁰C ~ +85 ⁰C
UV resistanceYes

Best for

  • Roof-mounted LTE and GNSS connectivity for IoT solutions
  • Installations needing four LTE SMA connections plus GNSS from one antenna
  • Outdoor settings needing UV resistant housing

Consider instead

Key features

Teltonika PR1KCL28 specifications

Mechanical/Environmental

Mounting methodScrew

protection rating

Radome materialUV resistant plastic and cable
Housing dimensionsØ 110.0 x 53.0 mm
Cable5x RG174, 3000 mm
Operating temperature- 40 ⁰C ~ +85 ⁰C
Weight525 ± 10 g
UV resistanceYes
RoHS compliantYes

GNSS antenna

Frequency range1575.42 ± 3 MHz
PolarizationRHCP
LNA gain28 ± 2 dB
LNA noise figure≤ 1.5 dB
V.S.W.R< 2.0
Impedance50 Ω

TELTONIKA NETWORKS without prior notice.

Supply voltage3 – 5 VDC
Current consumption< 15 mA
Connector type and countSMA Male

LTE MIMO antenna

Frequency range698 – 960, 1710 – 2690 MHz
PolarizationLinear
Gain3.0 dBi
V.S.W.R< 3.0
Impedance50 Ω
Connector type and count4x SMA Male

Specifications from Teltonika's official product data for the PR1KCL28, checked October 2026.

The Combo Quad Mobile/GNSS Roof SMA Antenna in depth

Combined LTE MIMO and GNSS in one roof antenna

The PR1KCL28 integrates an LTE MIMO antenna and a GNSS antenna in a single housing. The LTE section covers 698 – 960 and 1710 – 2690 MHz with linear polarization, 3.0 dBi gain, V.S.W.R below 3.0 and 50 Ω impedance, and it connects through 4x SMA Male connectors. The GNSS section covers 1575.42 ± 3 MHz with RHCP polarization and a 28 ± 2 dB LNA gain.

Built for outdoor mounting

The housing measures Ø 110.0 x 53.0 mm and weighs 525 ± 10 g. It is secured by screw mounting. The radome is made from UV resistant plastic and the antenna is listed as UV resistant and RoHS compliant. The operating temperature range is - 40 ⁰C ~ +85 ⁰C.

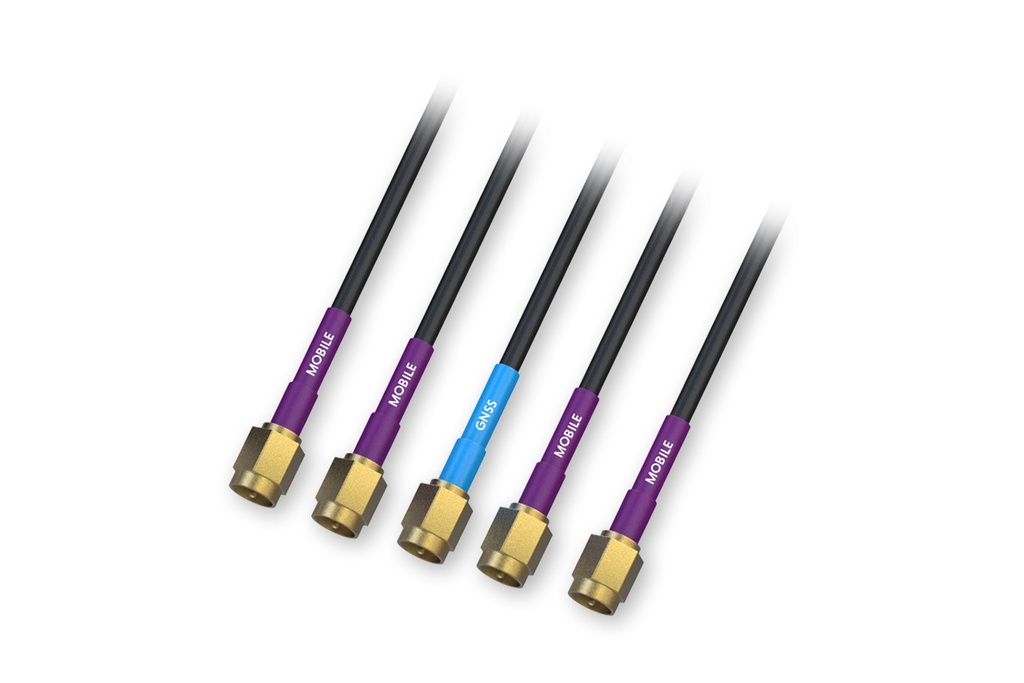

Cable and electrical details

The antenna is supplied with 5x RG174 cable, 3000 mm long. The GNSS section is powered with a 3 – 5 VDC supply and draws less than 15 mA, and its connector is SMA Male. The GNSS LNA noise figure is ≤ 1.5 dB and its V.S.W.R is below 2.0.

Frequently asked questions

Straight answers about the Combo Quad Mobile/GNSS Roof SMA Antenna from the ARC IP Networks team. Last reviewed October 2026.

The Teltonika PR1KCL28 is a Combo Quad Mobile/GNSS Roof SMA antenna. It combines an LTE MIMO antenna with 4x SMA Male connectors and a GNSS antenna in one screw-mounted housing.

The LTE MIMO section covers 698 – 960 and 1710 – 2690 MHz. The GNSS section covers 1575.42 ± 3 MHz.

The antenna uses 5x RG174 cable that is 3000 mm long.

The PR1KCL28 operates from - 40 ⁰C to +85 ⁰C. Its radome is made from UV resistant plastic, and the antenna is listed as UV resistant.

It is mounted with screws. The housing measures Ø 110.0 x 53.0 mm and weighs 525 ± 10 g.

The GNSS section uses a supply voltage of 3 – 5 VDC and has a current consumption below 15 mA.

ARC IP Networks supplies the Teltonika PR1KCL28 from Australian stock with the full manufacturer's warranty.
