Teltonika PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna

Price:

$ 248.07


Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
$ 245.61
$ 245.61
Teltonika PR1KCL25 Combo MIMO Mobile Roof SMA Antenna
Teltonika PR1KCL25 Combo MIMO Mobile Roof SMA Antenna
$ 34.02
$ 37.03 (8% OFF)

Teltonika PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna

https://arcip.com.au/web/image/product.template/15426/image_1920?unique=6bbe47d

The Teltonika PR1KCI49 (5G Combo MIMO Mobile/GNSS Roof SMA Antenna) is a roof-mounted antenna combining a 5G MIMO mobile antenna (4x SMA Male) with a GNSS antenna (1x SMA Male). The mobile antenna covers 600 ~ 960 and 1400 ~ 6000 MHz with max 4.9 dBi gain, and the unit is rated IP67 / IP69K after installation.

$ 248.07 248.07 AUD $ 248.07 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
Barcode
4779051841714

Teltonika PR1KCI49 at a glance

The Teltonika PR1KCI49 (5G Combo MIMO Mobile/GNSS Roof SMA Antenna) is a roof-mounted antenna combining a 5G MIMO mobile antenna (4x SMA Male) with a GNSS antenna (1x SMA Male). The mobile antenna covers 600 ~ 960 and 1400 ~ 6000 MHz with max 4.9 dBi gain, and the unit is rated IP67 / IP69K after installation.

ARC IP Networks supplies the genuine PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna from Australian stock with the full manufacturer's warranty.

Mobile frequency600 ~ 960, 1400 ~ 6000 MHz
Mobile gainMax 4.9 dBi
Connectors4x SMA Male (mobile), 1x SMA Male (GNSS)
GNSS frequency1164 ~ 1189, 1559 ~ 1606 MHz
Operating temperature-40 °C to +85 °C
IP ratingIP67 / IP69K (after installation)
Cable length3000 mm
Weight780 g

Best for

  • IoT solutions using 5G routers
  • Roof-mounted installations needing both mobile and GNSS antennas
  • Screw-mounted installations in harsh temperatures (-40 °C to +85 °C)

Consider instead

Key features

Teltonika PR1KCI49 specifications

5G Mobile Mimo Antenna

Frequency range600 ~ 960, 1400 ~ 6000 MHz
PolarisationLinear
Radiation pattern typeOmni-directional
GainMax 4.9 dBi
VSWR≤ 3.2
Impedance50 Ω
Connector type and count4x SMA Male

Gnss Antenna

Frequency range1164 ~ 1189, 1559 ~ 1606 MHz
PolarisationRHCP
Radiation pattern typeDirectional
Gain17 ± 2 dB
VSWR< 2
Impedance50 Ω
Supply voltage3 - 5 VDC
Current consumption16 ± 3 mA
Connector type and count1x SMA Male

Mechanical/Environmental

Cable4x ALS302, 1x RG174, 3000 mm
Operating temperature-40 °C to +85 °C
Mounting methodScrew (M27 nut)
IP ratingIP67 (after installation) / IP69K (after installation)
Weight780 g
RoHS compliant✓

Specifications from Teltonika's official product data for the PR1KCI49, checked October 2026.

The PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna in depth

5G MIMO and GNSS in one roof antenna

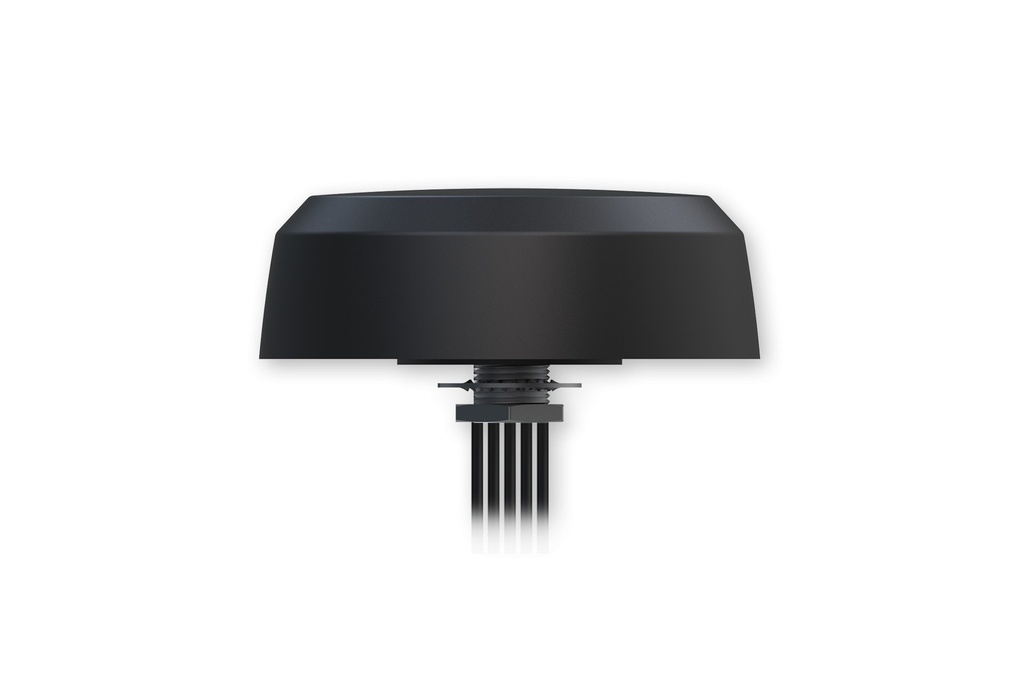

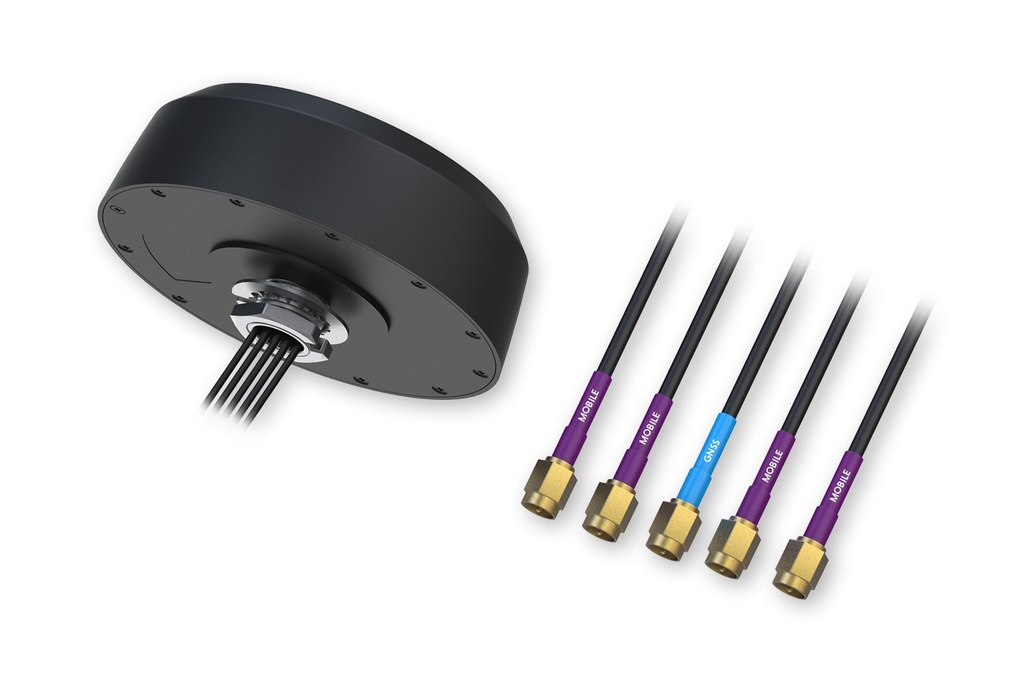

The Teltonika PR1KCI49 combines a 5G mobile MIMO antenna and a GNSS antenna in a single roof-mounted unit, designed for IoT solutions that use 5G routers. The mobile section is omni-directional with linear polarisation, covers 600 ~ 960 and 1400 ~ 6000 MHz, and offers max 4.9 dBi gain with 50 Ω impedance and VSWR of ≤ 3.2.

GNSS antenna details

The GNSS section covers 1164 ~ 1189 and 1559 ~ 1606 MHz with RHCP polarisation and a directional pattern. It provides 17 ± 2 dB gain, VSWR below 2 and 50 Ω impedance. It is powered at 3 - 5 VDC and draws 16 ± 3 mA, and connects through 1x SMA Male.

Cabling and build

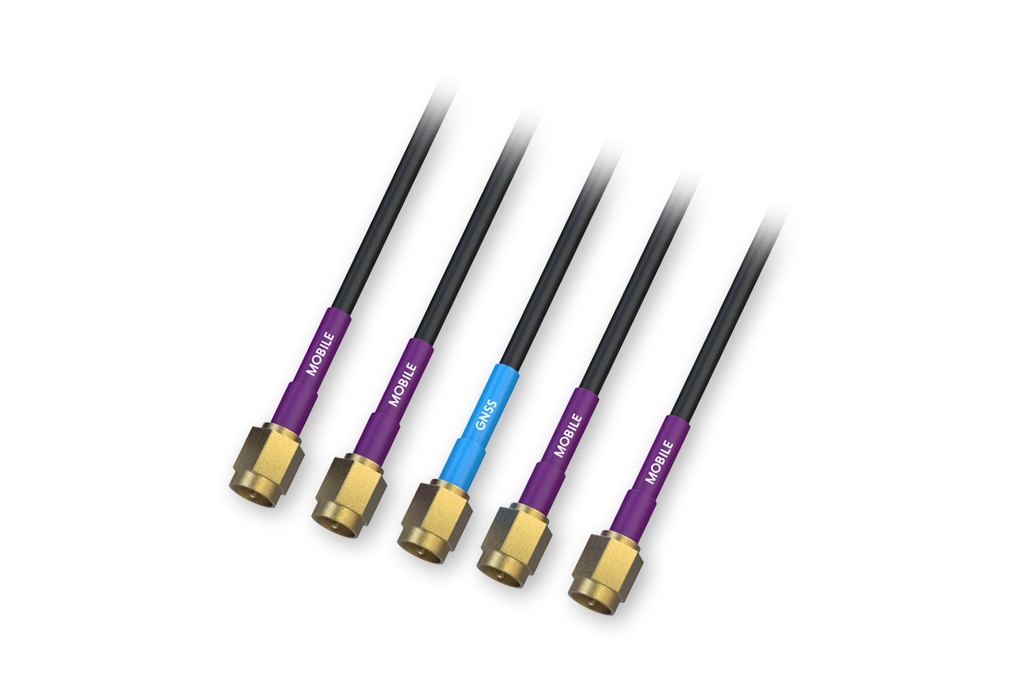

The antenna has 4x ALS302 and 1x RG174 cables, each 3000 mm long, ending in SMA Male connectors. It mounts by screw using an M27 nut and is rated IP67 and IP69K after installation. It operates from -40 °C to +85 °C, weighs 780 g and is RoHS compliant.

Frequently asked questions

Straight answers about the PR1KCI49 5G Combo MIMO Mobile/GNSS Roof SMA Antenna from the ARC IP Networks team. Last reviewed October 2026.

The Teltonika PR1KCI49 is a 5G combo MIMO mobile/GNSS roof SMA antenna for IoT solutions that use 5G routers. It combines a 5G mobile antenna with 4x SMA Male connectors and a GNSS antenna with 1x SMA Male connector.

The 5G mobile antenna covers 600 ~ 960 and 1400 ~ 6000 MHz. The GNSS antenna covers 1164 ~ 1189 and 1559 ~ 1606 MHz.

It mounts by screw using an M27 nut. The cables (4x ALS302 and 1x RG174) are 3000 mm long.

The antenna is rated IP67 and IP69K after installation. It operates from -40 °C to +85 °C.

The GNSS antenna has a supply voltage of 3 - 5 VDC and a current consumption of 16 ± 3 mA.

ARC IP Networks supplies the Teltonika PR1KCI49 from Australian stock with the full manufacturer's warranty.
