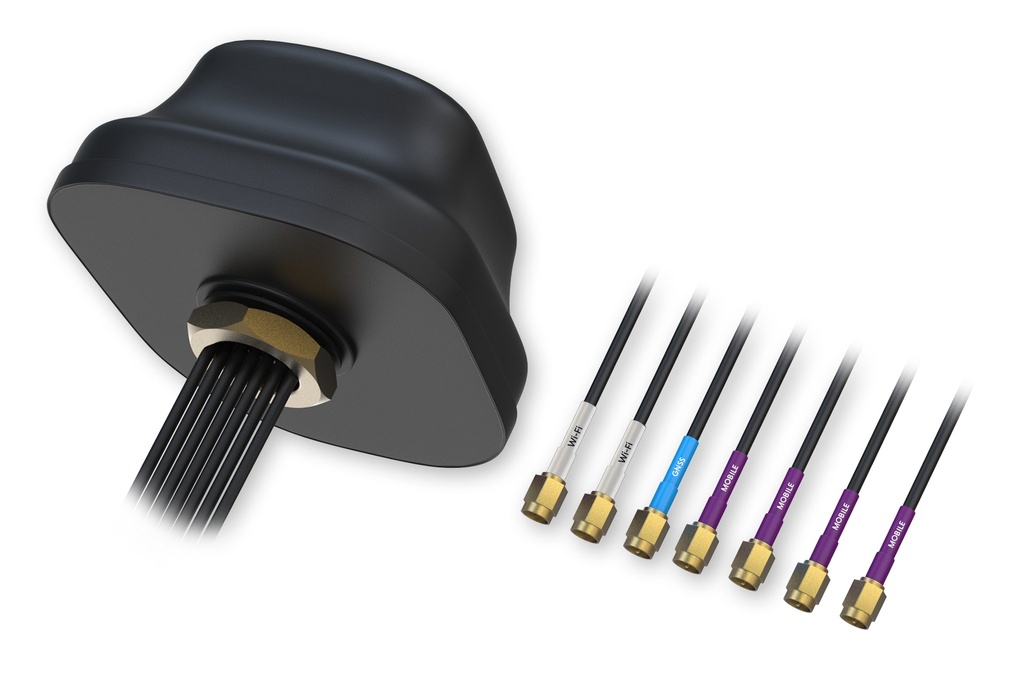

Teltonika PR1KC640 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Price:

$ 286.92


Teltonika PR1ICA70 Outdoor LTE & 5G/Wi-Fi/GPS Antenna
Teltonika PR1ICA70 Outdoor LTE & 5G/Wi-Fi/GPS Antenna
$ 459.12
$ 459.12
Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
Teltonika PR1KC647 5G Combo MIMO Mobile Roof SMA Antenna
$ 245.61
$ 245.61

Teltonika PR1KC640 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna

https://arcip.com.au/web/image/product.template/15424/image_1920?unique=6bbe47d

The Teltonika PR1KC640 (5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna) is a roof-mount antenna that combines 5G mobile MIMO, GNSS and Wi-Fi MIMO elements in one IP67-rated housing. The mobile section covers 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz with 4.0 dBi gain, and it connects through 4x SMA Male, 1x SMA Male (GNSS) and 2x RP SMA Male (Wi-Fi) connectors.

$ 286.92 286.92 AUD $ 312.26 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
Barcode
4779051841394

Teltonika PR1KC640 at a glance

The Teltonika PR1KC640 (5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna) is a roof-mount antenna that combines 5G mobile MIMO, GNSS and Wi-Fi MIMO elements in one IP67-rated housing. The mobile section covers 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz with 4.0 dBi gain, and it connects through 4x SMA Male, 1x SMA Male (GNSS) and 2x RP SMA Male (Wi-Fi) connectors.

ARC IP Networks supplies the genuine PR1KC640 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna from Australian stock with the full manufacturer's warranty.

5G mobile MIMO617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Mobile gain4.0 dBi
GNSS1164 - 1300 / 1559 - 1610 MHz
Wi-Fi MIMO2400 - 2483.5 / 4900 - 5925 MHz
Ingress protectionIP67 (exclude cable outlet)
Operating temperature-40 °C - +85 °C
Cable7 x LMR100, 3000 mm
Housing189 x 182 x 85 mm

Best for

  • Vehicle or roof-mounted installations needing mobile, GNSS and Wi-Fi from one antenna
  • Networking solutions that need 5G MIMO connectivity with positioning
  • Outdoor installations needing an IP67 radome

Consider instead

  • Teltonika PR1KC647: a 5G combo MIMO mobile roof SMA antenna for setups that do not need the GNSS and Wi-Fi elements in the same unit
  • Teltonika PR1KCN40: a 5G combo mobile/GNSS SMA antenna if you do not need the Wi-Fi elements
  • Teltonika PR1KCL25: a combo MIMO mobile roof SMA antenna aimed at LTE connectivity

Key features

Teltonika PR1KC640 specifications

5G Mobile Mimo Antenna

Frequency range617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
PolarisationLinear
Gain4.0 dBi
VSWR≤3.0
Impedance50 Ω
Connector type and count4x SMA Male

Gnss Antenna

Frequency range1164 - 1300 / 1559 - 1610 MHz
PolarisationRHCP
Supply voltage3 - 12 VDC
LNA Gain40 ± 2 dB
VSWR≤2.0
Impedance50 Ω
Current consumption≤60 mA
Connector type and countSMA Male

Wifi Mimo Antenna

Frequency range2400 - 2483.5 / 4900 - 5925 MHz
PolarisationLinear
Gain4.0 dBi
VSWR≤2.5
Impedance50 Ω
Connector type and count2x RP SMA Male

Mechanical/Environmental

Mounting methodScrew
Radome ingress projection ratingIP67 (exclude cable outlet)
Radome materialUV-Resistant ABS/PC
Weight960 ± 30 g
Housing dimensions189 x 182 x 85 mm
Cable7 x LMR100, 3000 mm
Recomended mounting dimensionsHole ø28 mm, panel thickness MAX 8 mm
Operating temperature-40 °C - +85 °C
RoHS compliant✓

Specifications from Teltonika's official product data for the PR1KC640, checked October 2026.

The PR1KC640 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna in depth

Three antenna types in one housing

The PR1KC640 integrates a 5G mobile MIMO antenna, a GNSS antenna and a Wi-Fi MIMO antenna in a single roof-mount unit. The mobile section covers 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz with 4.0 dBi gain and linear polarisation. The GNSS section covers 1164 - 1300 / 1559 - 1610 MHz with RHCP polarisation, and the Wi-Fi section covers 2400 - 2483.5 / 4900 - 5925 MHz with 4.0 dBi gain.

Connectors and electrical details

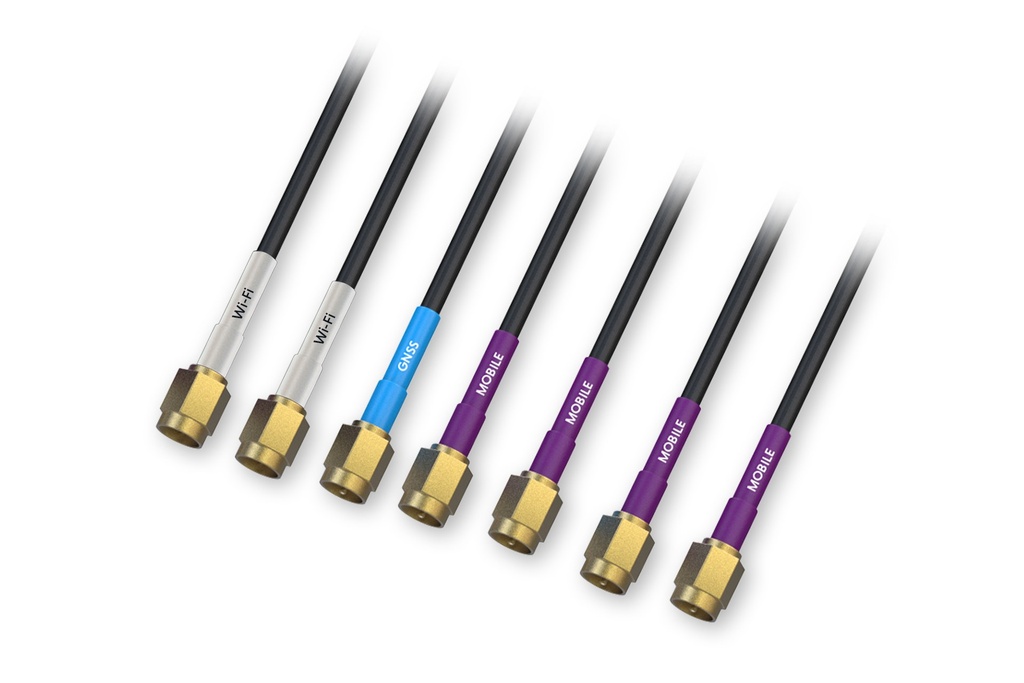

The mobile antenna uses 4x SMA Male connectors, the GNSS antenna uses 1x SMA Male, and the Wi-Fi antenna uses 2x RP SMA Male. All sections are rated at 50 Ω impedance. The GNSS antenna is active, with 40 ± 2 dB LNA gain, a 3 - 12 VDC supply voltage and current consumption of ≤60 mA. VSWR is ≤3.0 for mobile, ≤2.0 for GNSS and ≤2.5 for Wi-Fi.

Built for outdoor mounting

The radome is made of UV-Resistant ABS/PC and is rated IP67 (excluding the cable outlet). The antenna operates from -40 °C to +85 °C and is RoHS compliant. It mounts by screw through a hole of ø28 mm in a panel up to 8 mm thick. The housing measures 189 x 182 x 85 mm, weighs 960 ± 30 g and has a 3000 mm cable (7 x LMR100).

Frequently asked questions

Straight answers about the PR1KC640 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna from the ARC IP Networks team. Last reviewed October 2026.

The Teltonika PR1KC640 is a 5G combo MIMO mobile, GNSS and Wi-Fi roof SMA antenna. It combines all three antenna types in a single IP67-rated housing.

It has 4x SMA Male connectors for 5G mobile, 1x SMA Male for GNSS and 2x RP SMA Male for Wi-Fi. All sections have 50 Ω impedance.

The mobile section covers 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz, GNSS covers 1164 - 1300 / 1559 - 1610 MHz, and Wi-Fi covers 2400 - 2483.5 / 4900 - 5925 MHz.

It is screw-mounted. The recommended mounting dimensions are a hole of ø28 mm and a panel thickness of up to 8 mm.

The radome is rated IP67 (excluding the cable outlet) and made from UV-Resistant ABS/PC. The operating temperature range is -40 °C to +85 °C.

The cable is 7 x LMR100 and 3000 mm long.

ARC IP Networks supplies the Teltonika PR1KC640 from Australian stock with the full manufacturer's warranty.

Related Teltonika products

Browse the full range: Teltonika accessories

Buy the Teltonika PR1KC640 in Australia

ARC IP Networks supplies Teltonika industrial routers, gateways, switches and accessories to businesses, integrators, MSPs and installers across Australia.

  • Genuine Teltonika: sourced through Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Need a combined 5G, GNSS and Wi-Fi roof antenna for your deployment?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
