TP-Link POE380S Omada PoE++ Injector

Price:

$ 135.07


TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch
TP-Link TL-SG1024 24-Port Gigabit Rackmount Switch
$ 226.08
$ 226.08
TP-Link EAP653 Omada AX3000 Wi-Fi 6 Dual-Band Ceiling Access Point
TP-Link EAP653 Omada AX3000 Wi-Fi 6 Dual-Band Ceiling Access Point
$ 225.94
$ 225.94

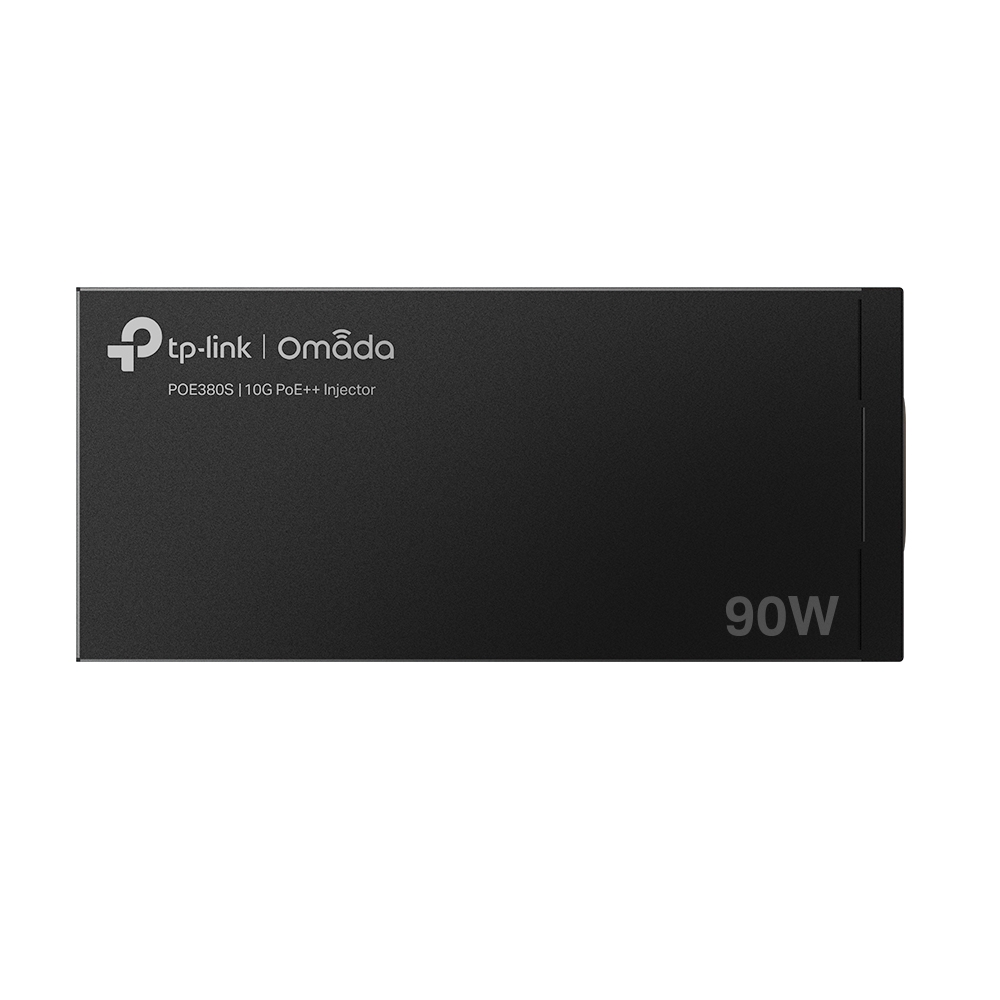

TP-Link POE380S Omada PoE++ Injector

https://arcip.com.au/web/image/product.template/8141/image_1920?unique=d95db27

The TP-Link POE380S is an Omada PoE++ injector with two multi-gigabit RJ45 ports supporting 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps: a data-in port and a power+data-out port supplying up to 90 W. It complies with IEEE 802.3af/at/bt and automatically determines the exact power each device needs; it is not compatible with passive PoE or other non-standard PoE devices. An integrated power supply, plug-and-play setup with no configuration required, a durable metal casing and wall or desktop mounting round it out. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 135.07 135.07 AUD $ 135.07 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
POE380S
Barcode
4895252506341
Tags

The TP-Link POE380S is an Omada PoE++ injector that adds up to 90 W of power to a single Ethernet run. Its data-in and power+data-out RJ45 ports both support 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps, an auto-sensing algorithm determines the power each device needs, and it is plug and play for desk or wall mounting.

POE380S overview

The POE380S is TP-Link's Omada PoE++ injector, with one data-in port and one power+data-out port. Network traffic enters on the RJ45 data-in port, and power and data leave together on the RJ45 power+data-out port, which delivers a maximum of 90 W. Both ports support 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps. The injector itself plugs into mains through its AC socket and accepts 100-240 V at 50/60 Hz, 1.6 A.

Power delivery is automatic. TP-Link's auto-sensing algorithm lets the POE380S power IEEE 802.3af and 802.3at powered devices, and the injector auto-determines the power each device needs, up to the 90 W maximum on its output port. TP-Link lists plug-and-play operation among its basic functions. Supported standards listed for the injector include IEEE 802.3i, 802.3u, 802.3ab, 802.3af and 802.3at. LED indication is listed as Power / PoE.

For cabling, TP-Link specifies UTP category 5, 5e or 6 cable up to 100 m for 1000BASE-T, UTP category 5 or 5e (or EIA/TIA-568 100 Ω STP) up to 100 m for 100BASE-TX, and UTP category 3, 4 or 5 (or 100 Ω STP) up to 100 m for 10BASE-T. The published network media specifications do not list cable categories for 2.5G, 5G or 10G operation, so the record gives no official cable category or distance for multi-gigabit operation.

Physically the POE380S measures 155 x 70 x 42 mm (6.1 x 2.8 x 1.7 in, W x D x H), and TP-Link lists both wall-mounting and desktop installation among its basic functions. It is rated for operation from 0 °C to 45 °C (32 °F to 113 °F) at 10% to 90% RH non-condensing, and for storage from -40 °C to 70 °C (-40 °F to 158 °F) at 5% to 90% RH non-condensing. FCC and CE certifications are listed. In the box are the POE380S, a power cord and an installation guide. ARC IP Networks supplies the POE380S from Australian stock with the full manufacturer's warranty.

Key features

Up to 90 W output

The power+data-out port delivers a maximum of 90 W.

10G multi-gigabit data

Both RJ45 ports support 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps.

Auto-sensing PoE

An auto-sensing algorithm powers 802.3af/at devices and determines the power each one needs.

Plug and play

TP-Link lists plug-and-play operation, with the output auto-determining the power requirement.

Mains powered

A built-in AC socket accepts 100-240 V, 50/60 Hz.

Power / PoE LED

LED indication is listed as Power / PoE.

Wall or desktop installation

A 155 x 70 x 42 mm unit that mounts on a wall or sits on a desk.

FCC and CE

FCC and CE certified, rated for 0 °C to 45 °C operation and -40 °C to 70 °C storage.

POE380S specifications

At a glance

PoE++ injector
Up to 90 W
10G/5G/2.5G/1G ports
802.3af/at devices
Auto power sensing
100-240 V AC input
Wall or desktop
Plug and play
POE380S full specifications
Hardware Features
Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Interface1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 data-in port; 1× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 power+data-out port (Max. 90 W); 1× AC socket
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Max. Power ConsumptionInput: 100-240 V, 50/60 Hz, 1.6A; Output: Auto-determine the necessary power requirements (max. 90 W)
Basic FunctionAuto-Sensing Algorithm enables providing power with 802.3af/at/bt PD; Auto-determine the necessary power requirements; Wall-mounting and desktop installation; Plug-and-Play
LEDPower / PoE
Dimensions ( W x D x H )6.1 2.8 1.7 in (155 70 42 mm)
Others
CertificationFCC, CE
EnvironmentOperating Temperature: 0°C to 45°C (32°F to 113°F); Storage Temperature: -40°C to 70°C (-40°F to 158°F); Operating Humidity: 10% to 90%RH non-condensing; Storage Humidity: 5% to 90%RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • POE380S
  • Power Cord
  • Installation Guide

Source: TP-Link's published package contents.

Who the POE380S is for

Powering a single PoE device

  • Power and data on one cable
  • Up to 90 W from one injector
  • Auto-sensing for 802.3af/at devices

Multi-gigabit links

  • 10 Gbps, 5 Gbps and 2.5 Gbps data
  • Also 1 Gbps, 100 Mbps and 10 Mbps
  • Plug-and-play operation

Buy the POE380S from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the POE380S from the ARC IP Networks team.

Last reviewed October 2026.

Up to 90 W on its power+data-out port. It auto-determines the power the connected device needs.

Both RJ45 ports support 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps.

TP-Link states its auto-sensing algorithm provides power to 802.3af and 802.3at powered devices.

TP-Link describes it as plug and play, and its output auto-determines the necessary power requirements up to 90 W.

From mains through its AC socket: 100-240 V, 50/60 Hz, 1.6 A. A power cord is included.

TP-Link specifies up to 100 m for 10BASE-T, 100BASE-TX and 1000BASE-T on the listed cable categories. Multi-gigabit cable categories are not listed.

Yes. It supports wall-mounting and desktop installation.

155 x 70 x 42 mm (6.1 x 2.8 x 1.7 in), W x D x H.

0 °C to 45 °C (32 °F to 113 °F), at 10% to 90% RH non-condensing. Storage is rated from -40 °C to 70 °C at 5% to 90% RH non-condensing.

The POE380S, a power cord and an installation guide.
