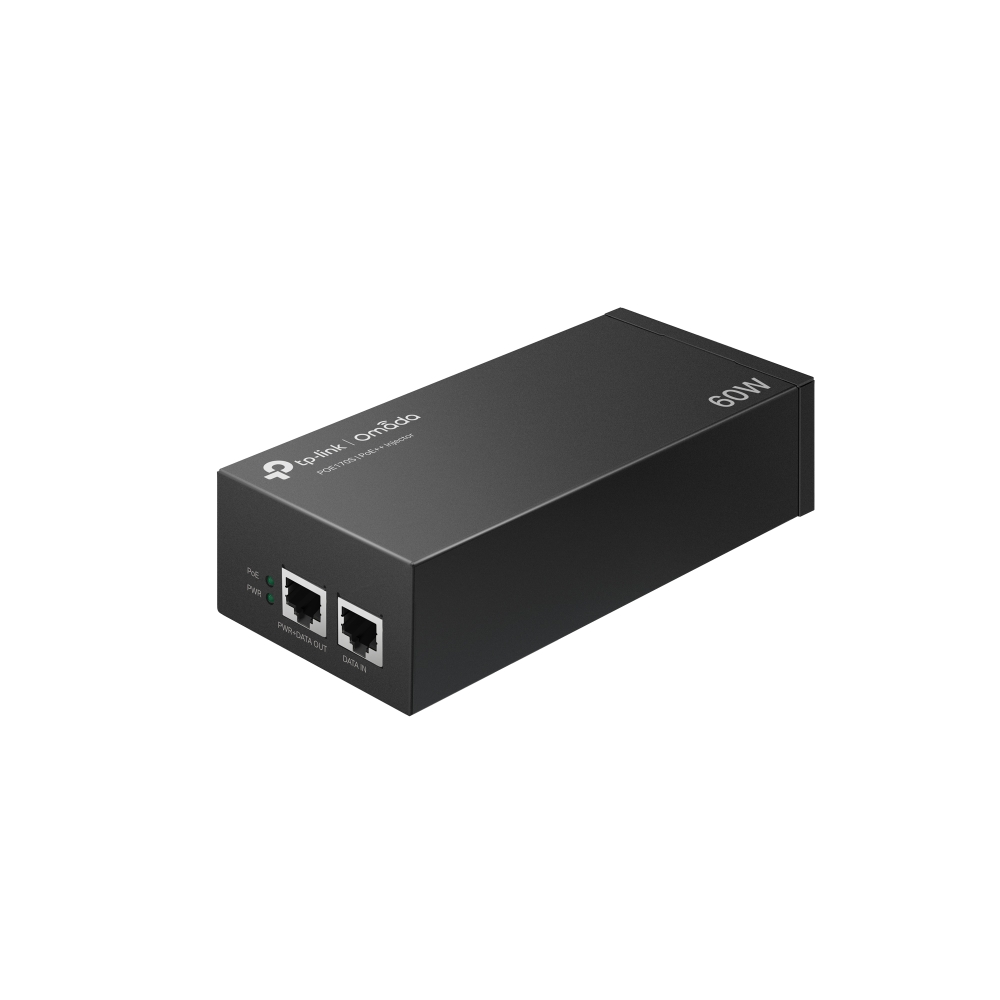

TP-Link POE170S Omada PoE++ Injector

https://arcip.com.au/web/image/product.template/8138/image_1920?unique=73ac110

The TP-Link POE170S is an Omada PoE++ injector with two Gigabit ports: a 10/100/1000Mbps data-in port and a power+data-out port supplying up to 60 W. It complies with IEEE 802.3af/at/bt (type 3) and automatically determines the power each device needs; it is not compatible with passive PoE or other non-standard PoE devices. TP-Link positions it for extending the network to places without power outlets, such as PTZ IP cameras, access points and LEDs. Plug and play in a durable metal casing for wall or desktop installation, with power cord and RJ45 cable included. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 77.75 77.75 AUD $ 77.75 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
POE170S
Barcode
4897098683897
Tags

The TP-Link POE170S is an Omada PoE++ injector that adds power to a single gigabit Ethernet link. It has a 10/100/1000 Mbps data-in port and a 10/100/1000 Mbps power+data-out port delivering up to 60 W, auto-determines the power a connected device needs, and comes in a metal case for desktop or wall mounting.

POE170S overview

The POE170S is TP-Link's Omada PoE++ injector, a single-port device that combines data from an existing network port with power from mains, then sends both down one Ethernet cable to a powered device. It has three connections: a 10/100/1000 Mbps RJ45 data-in port that connects to your switch or router, a 10/100/1000 Mbps RJ45 power+data-out port that connects to the powered device, and an AC socket for the supplied power cord. The power+data-out port delivers a maximum of 60 W and both RJ45 ports run at 10, 100 or 1000 Mbps.

Power delivery is automatic. TP-Link lists an auto-sensing algorithm that provides power to 802.3af and 802.3at powered devices, and the injector auto-determines the necessary power requirements of the connected device, up to the 60 W maximum. TP-Link describes the POE170S as plug-and-play. There are two LED indicators, Power and PoE. The AC input accepts 100 to 240 V at 50/60 Hz and is rated at 1.6 A, and the power cord is included in the box.

Supported Ethernet standards are IEEE 802.3i (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T), with 802.3af and 802.3at for PoE. Network media requirements are listed for each speed: 10BASE-T over UTP category 3, 4 or 5 cable or EIA/TIA-568 100 Ω STP up to 100 m; 100BASE-TX over UTP category 5 or 5e or 100 Ω STP up to 100 m; and 1000BASE-T over UTP category 5, 5e or 6 cable up to 100 m. These are the limits to plan cable runs against.

The POE170S is built in a metal casing measuring 155 x 70 x 42 mm and supports both desktop and wall-mounting installation. It is rated for operating temperatures of 0 to 45 degrees C and storage from -40 to 70 degrees C, with 10 to 90% RH non-condensing operating humidity and 5 to 90% RH non-condensing storage humidity. Certifications are FCC and CE. The box contains the POE170S injector, a power cord, an RJ45 cable and an installation guide. ARC IP Networks supplies the POE170S from Australian stock with the full manufacturer's warranty.

Key features

Up to 60 W output

The power+data-out port delivers a maximum of 60 W to the connected device.

Gigabit data in and out

Both RJ45 ports run at 10/100/1000 Mbps.

Auto-sensing PoE

An auto-sensing algorithm provides power to 802.3af and 802.3at powered devices.

Auto power determination

Automatically determines the power the connected device needs.

Plug-and-play

TP-Link lists the POE170S as plug-and-play.

Universal AC input

100 to 240 V, 50/60 Hz, 1.6 A input from the supplied power cord.

Metal casing

A 155 x 70 x 42 mm metal case for desktop or wall-mounting installation.

Status LEDs

Power and PoE indicators.

POE170S specifications

At a glance

PoE++ injector
Up to 60 W output
Gigabit data-in
Gigabit power+data-out
802.3af/at devices
100–240 V AC input
Metal casing
Desktop or wall mount
POE170S full specifications
Hardware Features
Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
Interface1× 10/100/1000Mbps RJ45 data-in port; 1× 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W); 1× AC socket
Network Media10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 100BASE-TX: UTP category 5, 5e cables (maximum 100 m); EIA/TIA-568 100Ω STP (maximum 100 m); 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m)
Max. Power ConsumptionInput: 100-240 V, 50/60 Hz, 1.6A; Output: Auto-determine the necessary power requirements (max. 60 W)
Basic FunctionAuto-Sensing Algorithm enables providing power with 802.3af/at/bt PD; Auto-determine the necessary power requirements; Wall-mounting and desktop installation supported; Plug-and-Play
LEDPower; PoE
Dimensions ( W x D x H )6.1×2.8×1.7 in (155×70×42 mm)
General
MaterialMetal Casing
Others
CertificationFCC, CE
EnvironmentOperating Temperature: 0°C to 45°C (32°F to 113°F); Storage Temperature: -40°C to 70°C (-40°F to 158°F); Operating Humidity: 10% to 90%RH non-condensing; Storage Humidity: 5% to 90%RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Omada PoE++ Injector POE170S
  • Installation Guide
  • Power Cord
  • RJ45 Cable

Source: TP-Link's published package contents.

Who the POE170S is for

Adding power to one link

  • Single powered device per injector
  • Up to 60 W output
  • Auto-determines the power required

Gigabit network segments

  • 10/100/1000 Mbps in and out
  • Cable runs up to 100 m
  • Desktop or wall-mounting installation

Buy the POE170S from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the POE170S from the ARC IP Networks team.

Last reviewed October 2026.

Up to 60 W from its power+data-out port, with the power level auto-determined for the connected device.

Yes. Both the data-in and power+data-out ports are 10/100/1000 Mbps RJ45.

TP-Link lists an auto-sensing algorithm that provides power to 802.3af and 802.3at powered devices.

No. TP-Link describes it as plug-and-play.

100 to 240 V, 50/60 Hz, rated at 1.6 A, via the supplied power cord.

Up to 100 m for 10BASE-T, 100BASE-TX and 1000BASE-T on the listed cable types; 1000BASE-T uses UTP category 5, 5e or 6.

Yes. Wall-mounting and desktop installation are both supported.

Power and PoE indicators.

The POE170S injector, a power cord, an RJ45 cable and an installation guide.

Operation from 0 to 45 °C and storage from -40 to 70 °C, with 10 to 90% RH non-condensing operating humidity.

155 x 70 x 42 mm, in a metal casing.

Need more than one POE170S for a PoE device installation?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
