Ubiquiti POE-54-80W - POE Adapter for EdgePoint

https://arcip.com.au/web/image/product.template/3801/image_1920?unique=8867584

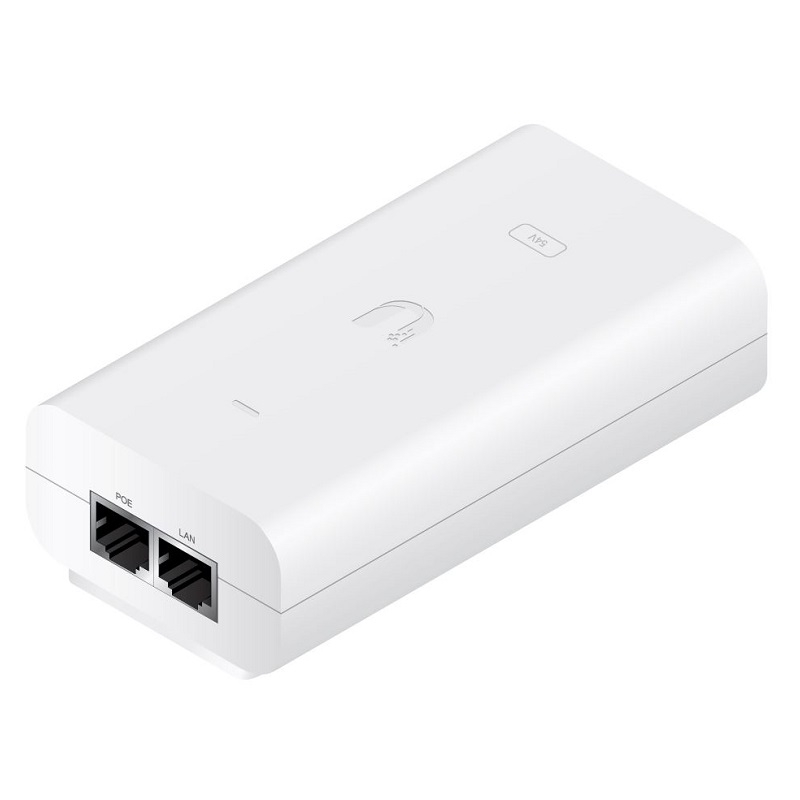

The Ubiquiti POE-54-80W is an industrial-grade, 80W Power over Ethernet adapter. It is specifically designed to provide reliable 54V power to high-performance devices like the Ubiquiti EdgePoint.

56.65 56.65 AUD 56.65 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti EdgeMax
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
POE-54-80W
Barcode
817882026642
Tags
POE-54-80W
Ubiquiti POE-54V-80W EdgePoint PoE Injector, 54VDC, 80W

Features

  • 54V Passive PoE output for EdgePoint devices
  • Delivers 54V DC at 1.5A (80W) high-power output
  • Gigabit Ethernet data passthrough
  • Earth grounding and surge protection
  • 4-pair powering for high-power delivery
  • Specifically designed for EdgePoint EP-R8 and EP-S16

Specifications

Power
PoE Type54V Passive PoE
Power Output54V DC, 1.5A (80W)
Input Voltage100-240V AC, 50/60Hz
Input Current0.8A @ 120VAC, 0.4A @ 240VAC
Efficiency87+%
4-Pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Network
Data PortGigabit LAN Port
Protection
Surge ProtectionBuilt-in surge and clamping protection
Earth GroundAC cable with earth ground
Physical
Dimensions123 x 65 x 34 mm (4.84 x 2.56 x 1.34")
Weight299 g (10.55 oz)
Environmental
Operating Temperature0 to 40 C (32 to 104 F)

Professional Overview

The Ubiquiti POE-54V-80W is a high-power 54V Passive PoE injector specifically designed for EdgePoint devices (EP-R8 and EP-S16). Delivering 80W of power at 54V DC with 1.5A output, this injector provides the substantial power required by EdgePoint router and switch models.

The injector uses 4-pair powering (pins 1, 2, 4, 5 for positive and 3, 6, 7, 8 for negative) to deliver high wattage over all four pairs. With 87%+ efficiency and 100-240V AC input, it operates reliably worldwide.

Built-in surge protection, clamping protection, and earth grounding via the AC cable ensure safe operation and protect connected EdgePoint equipment. The industrial-grade construction with operating temperature range of 0-40 C makes it suitable for controlled indoor environments.
