Ubiquiti POE-24-AF5X POE Injector, 24VDC, 24W Suit AF-X models

Price:

$ 33.55


Ubiquiti ISO-BEAM-19 NanoBeam 19 Isolator Shield
Ubiquiti ISO-BEAM-19 NanoBeam 19 Isolator Shield
$ 24.20
$ 24.20
Ubiquiti POE-48-24W-WH 48Volt 24Watt POE Injector
Ubiquiti POE-48-24W-WH 48Volt 24Watt POE Injector
$ 28.05
$ 28.05

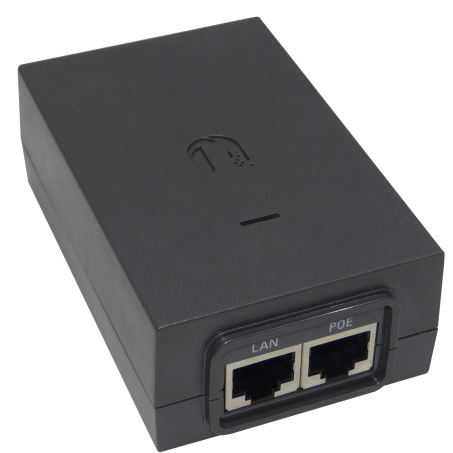

Ubiquiti POE-24-AF5X POE Injector, 24VDC, 24W Suit AF-X models

https://arcip.com.au/web/image/product.template/3799/image_1920?unique=175716d
Power your Ubiquiti airFiber X series radios with the POE-24-AF5X PoE Injector. It delivers 24VDC, 24W of reliable passive PoE and features remote reset capability for enhanced device management.

$ 33.55 33.55 AUD $ 33.55 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
POE-24-AF5X
Barcode
810354023040
Tags

Ubiquiti POE-24-AF5X at a glance

The Ubiquiti POE-24-AF5X (airFiber 5X PoE Injector, 24VDC, 24W) is a PoE adapter that provides 24VDC @ 1.0A output and helps protect your PoE devices. It has a Gigabit LAN port, an IEC-320 C6 AC connector and a rated input of 100-240VAC @ 50/60Hz. It is NDAA compliant.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine airFiber 5X PoE Injector (24VDC, 24W) from Australian stock with the full manufacturer's warranty.

Output24VDC @ 1.0A
Input100-240VAC @ 50/60Hz
LAN portGigabit
Surge protectionDifference and Common Mode
Dimensions88 x 57 x 33 mm
Operating temp0 to 40° C
CertificationsCE, FCC, IC, UL

Best for

  • Powering airFiber 5X devices over PoE
  • Protecting PoE devices with data and power surge protection
  • Deployments requiring NDAA-compliant equipment

Consider instead

Key features

Ubiquiti POE-24-AF5X specifications

Specifications

ModelPOE-24-AF5X
Dimensions88 x 57 x 33 mm (3.47 x 2.24 x 1.30")
Weight158.5 g (5.59 oz)
Output Voltage24VDC @ 1.0A
LAN Activity IndicatorNo
Gigabit LAN PortYes
Remote Reset CapabilityNo
Reset ButtonNo
Rated Voltage100-240VAC @ 50/60Hz
Input Current0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current<60A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency80+%
Output Ripple1% Max.
Switching Frequency65 kHz
Line Regulation≤ 3%
Load Regulation≤ 5%
2-Pair Powering–
4-Pair PoweringPins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity35 to 95% Noncondensing
AC ConnectorIEC-320 C6
Data IN / PoERJ45 Shielded Socket
Surge ProtectionDifference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20 _s) Power
Peak Pulse Current36A (10/1000 _s) Data
Shunt Capacitance<5 pF data
Response Time<1 ns
CertificationsCE, FCC, IC, UL
NDAA CompliantYes

Specifications from Ubiquiti's official product data for the POE-24-AF5X, checked October 2026.

The airFiber 5X PoE Injector (24VDC, 24W) in depth

24VDC PoE injector for airFiber 5X

The POE-24-AF5X is an airFiber 5X PoE Injector rated at 24VDC and 24W. It delivers 24VDC @ 1.0A and is part of the Ubiquiti PoE Adapter range, which provides features to help protect your PoE devices. It uses 4-pair powering, with pins 1, 2, 4, 5 (+) and pins 3, 6, 7, 8 (-), and has a Gigabit LAN port.

Surge protection and electrical specifications

The injector includes Difference and Common Mode surge protection, with clamping protection of 11V on data and 60V on power. Maximum surge discharge is 1500A (8/20 _s) on power, and peak pulse current is 36A (10/1000 _s) on data. Response time is under 1 ns and data shunt capacitance is under 5 pF. Efficiency is 80+%, with output ripple of 1% max. and a 65 kHz switching frequency.

Compact build and connectors

The unit measures 88 x 57 x 33 mm and weighs 158.5 g. Power comes in through an IEC-320 C6 AC connector, and data in and PoE use an RJ45 shielded socket. It operates from 0 to 40° C at 35 to 95% noncondensing humidity. Certifications are CE, FCC, IC and UL, and the unit is NDAA compliant.

Frequently asked questions

Straight answers about the airFiber 5X PoE Injector (24VDC, 24W) from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti POE-24-AF5X is the airFiber 5X PoE Injector, rated at 24VDC and 24W. It delivers 24VDC @ 1.0A and includes surge protection to help protect your PoE devices.

The output voltage is 24VDC @ 1.0A. The rated input is 100-240VAC @ 50/60Hz, with an input current of 0.6A @ 120VAC or 0.4A @ 240VAC.

Yes, the record lists a Gigabit LAN port. Data IN / PoE uses an RJ45 shielded socket.

No. The specifications list no reset button, no remote reset capability and no LAN activity indicator.

It provides Difference and Common Mode surge protection. Clamping protection is 11V on data and 60V on power.

Yes, the specifications list it as NDAA compliant. Certifications are CE, FCC, IC and UL.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the POE-24-AF5X from Australian stock with the full manufacturer's warranty.

Related Ubiquiti products

Ubiquiti POE-48-24W-WH

48Volt 24Watt POE Injector

Ubiquiti POE-24-7W-G-WH-AU

PoE Injector, 24VDC, 7W, Gigabit

Ubiquiti POE-24-12W-G-WH-AU

POE Injector, 24VDC, 12W, Gigabit, White

Browse the full range: Ubiquiti accessories · Why buy Ubiquiti from ARC IP Networks

Buy the Ubiquiti POE-24-AF5X in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Powering an airFiber 5X link with the POE-24-AF5X?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
