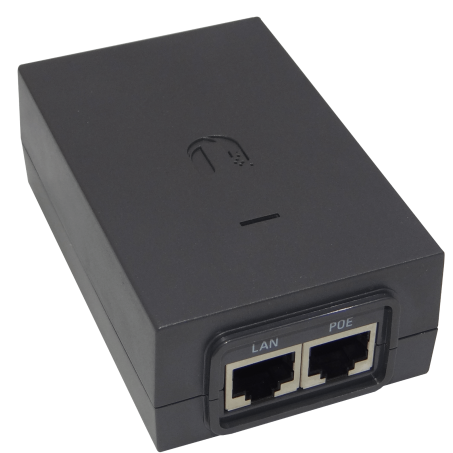

Ubiquiti POE-24-AF5X POE Injector, 24VDC, 24W Suit AF-X models

https://arcip.com.au/web/image/product.template/3799/image_1920?unique=8867584
Power your Ubiquiti airFiber X series radios with the POE-24-AF5X PoE Injector. It delivers 24VDC, 24W of reliable passive PoE and features remote reset capability for enhanced device management.

29.15 29.15 AUD 29.15 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
POE-24-AF5X
Tags
POE-24-AF5X
Ubiquiti POE-24-AF5X 24V Passive PoE Injector, 24W for airFiber X Models

Features

  • 24V Passive PoE output (NOT IEEE 802.3af/at/bt compliant)
  • Delivers 24V DC at 1A (24W) power output
  • Specifically designed for airFiber X models (AF-2X, AF-3X, AF-4X, AF-5X)
  • Remote reset capability for power cycling connected device
  • Gigabit Ethernet data passthrough
  • Integrated surge and ESD protection

Specifications

Power
PoE Type24V Passive PoE (Non-standard)
Power Output24V DC, 1A (24W)
Input Voltage100-240V AC, 50/60Hz
Network
Data PortGigabit RJ45 Ports
Data Speed10/100/1000 Mbps
Features
Remote ResetPower cycle capability for connected device
Protection
Surge ProtectionBuilt-in surge and ESD protection
Compatibility
Compatible DevicesAF-2X, AF-3X, AF-4X, AF-5X (airFiber X series)

Professional Overview

The Ubiquiti POE-24-AF5X is a 24V Passive Power over Ethernet injector specifically designed for airFiber X series radios. Delivering 24W of power (24V DC at 1A), this injector provides the power required by AF-2X, AF-3X, AF-4X, and AF-5X point-to-point wireless units.

IMPORTANT: This is NOT an IEEE 802.3af/at/bt compliant device - it uses Ubiquiti proprietary 24V passive PoE. Use only with compatible airFiber X devices. The injector includes a remote reset capability for power cycling the connected radio without physical access to the unit.

Built-in surge and ESD protection helps safeguard expensive airFiber equipment from electrical damage. Gigabit Ethernet passthrough ensures no data bottleneck. This is the recommended power injector for airFiber X deployments where the included injector needs replacement or additional units are required.
