TP-Link Omada T8S4-2T 8MP Turret PoE Security Camera System with 2TB HDD

https://arcip.com.au/web/image/product.template/11355/image_1920?unique=d95db27

The TP-Link Omada T8S4-2T is an 8MP turret PoE security camera system with four 4K (8MP) full-colour turret cameras and a 16-channel NVR with a preinstalled 2TB HDD, expandable to 16 TB. The NVR has eight PoE+ ports with a 115 W budget (30 W max per port), so one cable powers and connects each camera, plus HDMI output up to 3840x2160 and 24/7 recording by default. Each camera has person, vehicle and pet detection, red and blue flashing lights with sirens, a microphone and speaker, and infrared night vision to 30 m. The cameras are IP67 weatherproof and IK08 vandal proof. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,449.56 1449.56 AUD $ 1,449.56 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
OMADA-T8S4-2T
Barcode
1210002615501

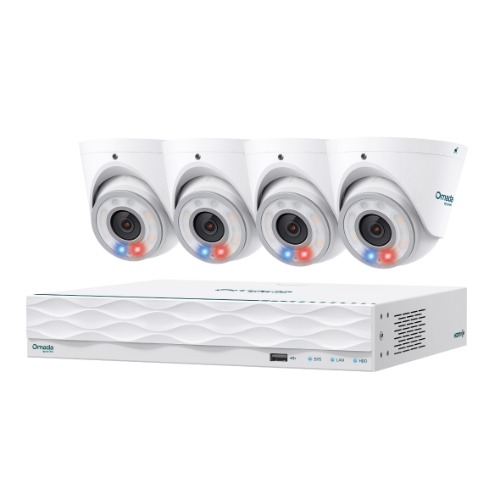

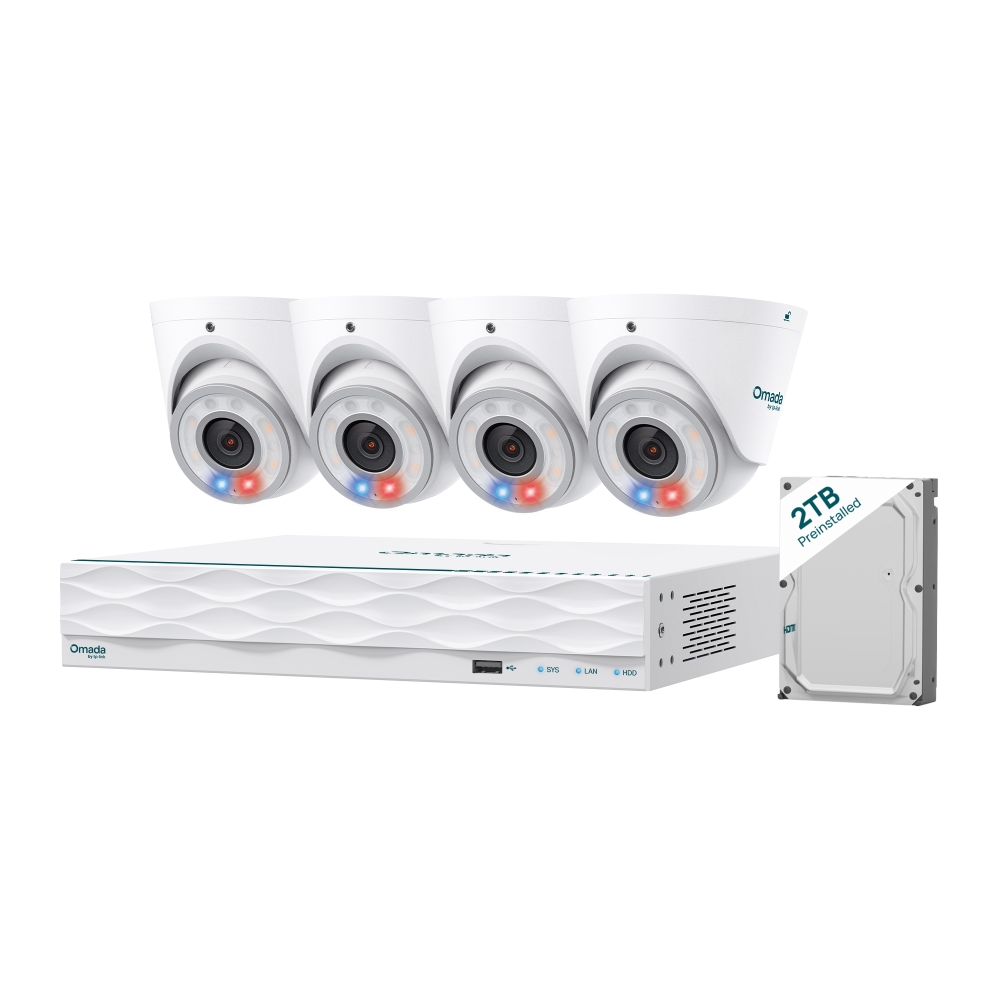

The TP-Link Omada T8S4-2T is a security camera system with four 8MP (3840x2160) turret PoE cameras and a 16-channel Omada NVR with eight PoE+ ports and a preinstalled 2 TB HDD. The cameras have 4 mm F1.6 lenses, colour and IR night vision to 30 m, person, vehicle and pet detection and IP67 housings; the NVR outputs 4K over HDMI and expands to 16 TB.

Omada T8S4-2T overview

The Omada T8S4-2T combines four Omada 8MP turret PoE cameras with an Omada 16-channel network video recorder, the NVR16-8P-2T, in one system. Each camera uses a 1/2.7-inch progressive scan CMOS sensor and records at up to 3840 x 2160 (8MP), at 25 fps on 50 Hz or 24 fps on 60 Hz; TP-Link notes the frame rate is limited to 20 fps if the image is rotated 90° or 270° or 120 dB WDR is turned on. The fixed 4 mm F1.6 lens covers 88° horizontally, 46° vertically and 105.4° diagonally. Four white LEDs and four 850 nm IR LEDs each reach 30 m, and minimum illumination is 0.005 lux, or 0 lux with IR or white light, with the illuminators set to auto, always on or always off.

The cameras detect motion, line crossing and intrusion with person, vehicle and pet classification, and also detect camera tampering. Each has red and blue warning lights, a built-in speaker, and a built-in microphone that picks up activity within a 5 m radius, as well as a microSD card slot. Recording modes are event-triggered, scheduled and 24/7, with 24/7 as the default. Video is compressed with H.265+, H.265, H.264+ or H.264. Each camera connects through one 10/100 Mbps PoE port (802.3af/at, 12.5 W maximum) or a 12 V DC input, and the housing is rated IP67 weatherproof and IK08 vandal proof, operating from -30 °C to 60 °C. Each turret measures 112 x 112 x 88 mm and weighs 0.5 kg.

The NVR powers and records the cameras over single cables. It has eight 10/100 Mbps PoE+ ports (802.3at/af) with a 115 W total PoE budget and up to 30 W per port, and TP-Link says one Ethernet cable can carry power and data up to 270 m; in that long-distance mode the port speed drops to 10 Mbps and the actual distance varies with the camera's power draw and the cable quality. The NVR accepts 16 IP video channels, and TP-Link lists up to 12 managed 4K/8MP cameras, so the four included cameras leave room to grow. A 2 TB HDD is preinstalled in its single SATA bay, which supports up to 16 TB, and an eSATA port adds external storage up to 16 TB. TP-Link says Smart Storage can record in SD while saving HD clips for events to make better use of the disk.

For viewing, the NVR has one HDMI output at up to 3840 x 2160/30 Hz and one VGA output at up to 1920 x 1080/60 Hz, usable simultaneously, with 1/4/6/8/9/16 and custom multi-view layouts. Synchronous playback covers 16 channels, although TP-Link notes fewer channels, or none, may play together if the total resolution exceeds 20MP. Remote access is through the app on Android or iOS, which TP-Link says needs no monthly fees, and through a web browser, with up to 40 users and 32 simultaneous streams. ONVIF Profile G/S/T lets the NVR work with Omada and ONVIF-compliant third-party cameras. The NVR has a gigabit uplink, front USB 2.0 and rear USB 3.0 ports, RCA audio in and out, runs from 53.5 V DC / 2.43 A and operates from -10 °C to 55 °C. ARC IP Networks supplies the Omada T8S4-2T from Australian stock with the full manufacturer's warranty.

Key features

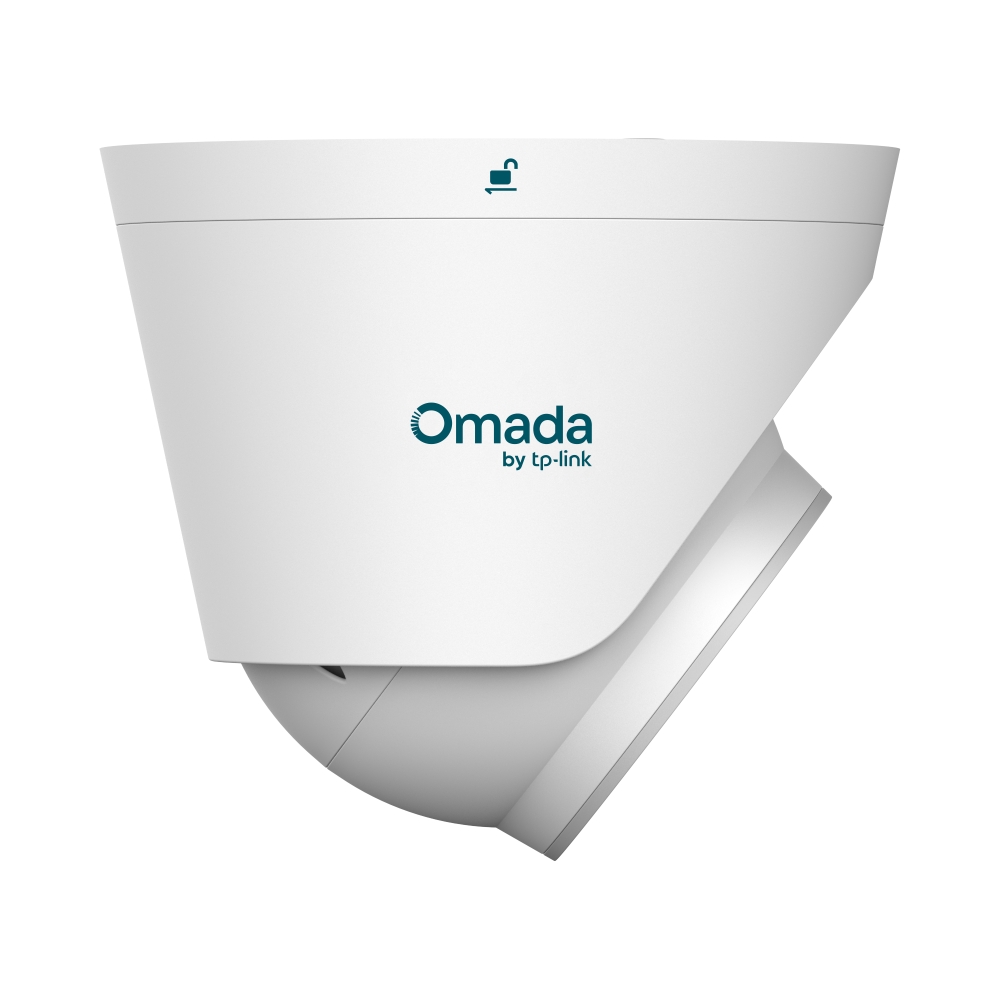

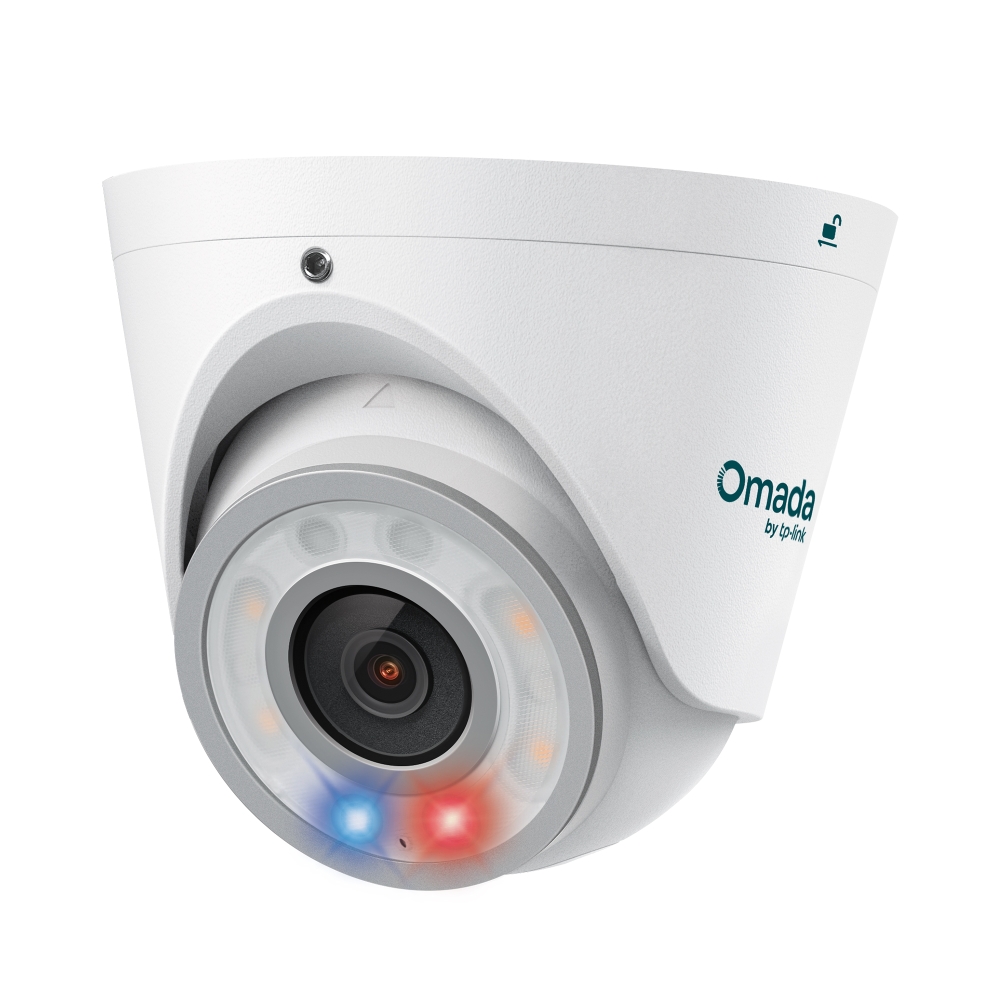

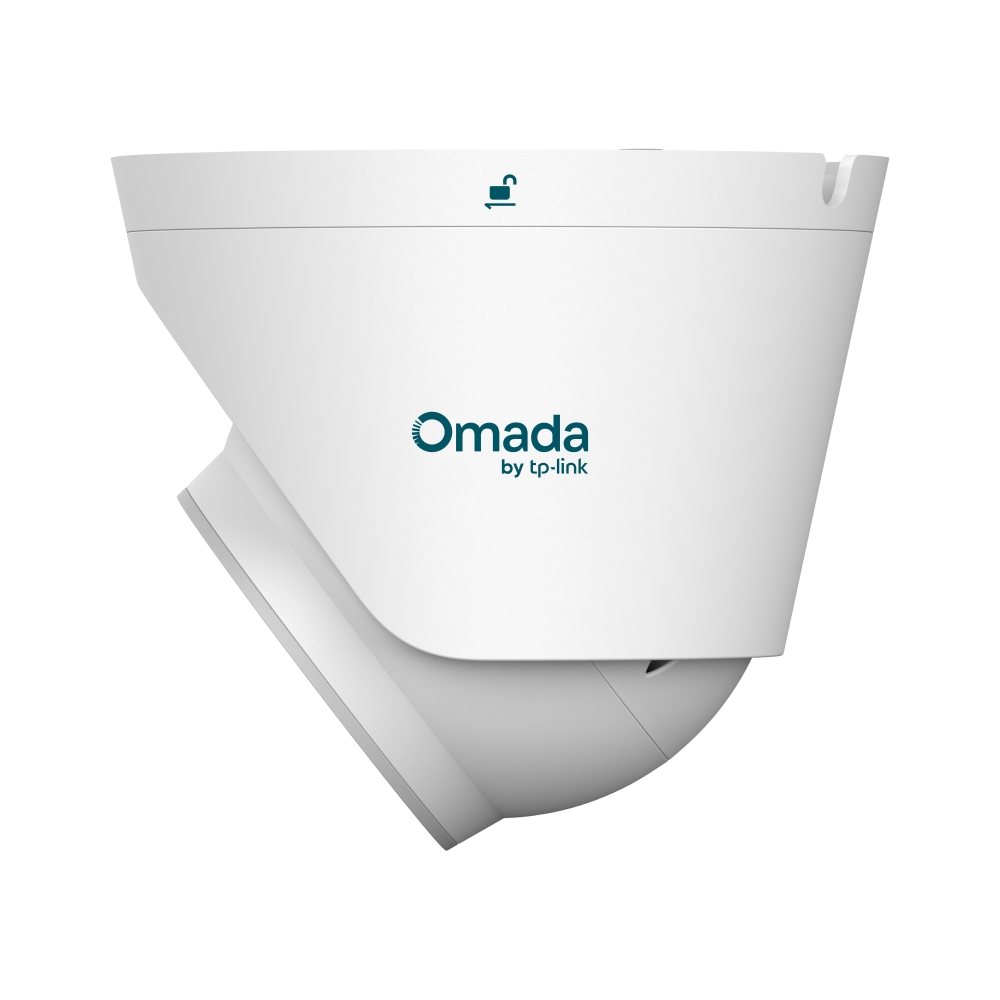

Four 8MP turret cameras

3840 x 2160 resolution, 4 mm F1.6 lens and an 88° horizontal field of view.

Colour and IR night vision

Four white LEDs and four IR LEDs per camera, each reaching 30 m.

Person, vehicle and pet detection

Motion, line-crossing and intrusion detection with person, vehicle and pet classification.

16-channel PoE+ NVR

Eight PoE+ ports with a 115 W budget (30 W per port) and 16 IP video channels.

2 TB HDD, expandable

Preinstalled 2 TB HDD in a SATA bay supporting up to 16 TB, plus eSATA up to 16 TB.

4K HDMI output

HDMI output at up to 3840 x 2160/30 Hz plus a 1080p VGA output, usable together.

Long PoE cable runs

Up to 270 m of power and data per cable in long-distance mode, at 10 Mbps.

Remote viewing by app

Android and iOS app access with no monthly fees, plus web access for up to 40 users.

Weatherproof cameras

IP67 weatherproof and IK08 vandal-proof turret housings, -30 °C to 60 °C.

ONVIF compatible

ONVIF Profile G/S/T for Omada and third-party ONVIF cameras.

Omada T8S4-2T specifications

At a glance

4 x 8MP turret cameras
16-channel NVR
8 x PoE+ ports
115 W PoE budget
2 TB HDD (up to 16 TB)
4K HDMI output
30 m night vision
IP67 cameras
Omada T8S4-2T full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
ApertureF1.6
Lens4 mm, Fixed Focal Lens, M12
FOVHorizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchAuto
White LEDQuantity: 4; Range: 98 ft (30m)
IR LEDQuantity: 4; Range: 98 ft (30 m); Wavelength: 850nm
Illuminator On/Off ControlAuto/Always on/Always off
Max. Resolution3840 x 2160 (8MP)
Main StreamFrame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080); Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-StreamFrame Rate: 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240); Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Video Bit RateMain Stream: 256 Kbps to 8192 Kbps; Sub-Stream: 64 Kbps to 1024 Kbps
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
EventMotion Detection (Person/Vehicle/Pet Detection); Line-Crossing Detection (Person/Vehicle/Pet Detection); Intrusion Detection (Person/Vehicle/Pet Detection); Camera Tampering
Recording ModesEvent-Triggered Recording, Scheduled Recording, 24/7 Recording (Default)
Interface & ButtonBuit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera; Buit-in Speaker; 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE; 1× DC Port; Reset Button; Red & Blue Warning Lights; Buit-in Memory Card Slot, Support MicroSD Card, up to 512GB
Operating Temperature-30 °C to 60 °C (-22 ℉ to 140 ℉)
Operating Humidity95% or Less (Non-Condensing)
Power SupplyDC; 12V DC ± 5%, Max. 12 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120100-2C1 (for EU Regions) PoE; PoE: 802.3af/at, Max. 12.5 W ErP Information; Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W
ProtectionIP67 Weatherproof; IK08 Vandal Proof
Product Dimensions (L x W x H)4.4 × 4.4 × 3.5 in (112 × 112 × 88 mm)
WeightNet Weight: 0.5 kg (1.10 lbs)
Nvr
IP Video Input16-Channel
Managed Cameras16 (HD); 16 (2K/5MP); 12 (4K/8MP); 8 (12MP); 6 (16MP)
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video CompressionH.265+/H.265/H.264+/H.264
Record Resolution16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback16-Channel
Decoding Capability25fps: 10-ch @ 2MP; 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk1× SATA Interface, Up to 16 TB Capacity; 1× 2TB HDD Preinstalled
PoE Budget115 W Available for All PoE+ Ports, 30 W Max per Port
External Interfaces1× eSATA, Supports External Storage Devices up to 16TB; 1× HDMI Port; 1× VGA Port; 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port; 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ); 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port; 1× DC Power Supply Port; 8× PoE+ Ports
Network ProtocolUPnP (Plug and Play); NTP (Network Timing); SMTP; DNS; TCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP; RTSP; SSL/TLS; RTP; IPv4; ARP; LLDP; FTP; IPv6; SNMP
Web BrowserChrome (57+); Firefox (52+); Edge (91+)
Max. User Access40 Users; Support up to 32 Simultaneous Video Streams
Power Supply53.5V DC/2.43 A
Working TemperatureNVR: -10 °C to 55 °C (14 °F to 131 °F); Power Adapter: 0 °C to 40 °C (32 °F to 104 °F)
InteroperabilityONVIF Profile G/S/T
Product Dimensions (L x W x H)10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
WeightNet Weight: 1.86 Kg (4.1 lbs)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the Omada T8S4-2T is for

A complete four-camera system

  • Cameras and NVR in one package
  • Single-cable PoE+ to each camera
  • 24/7, scheduled or event recording

Smart perimeter protection

  • Person, vehicle and pet detection
  • Line-crossing and intrusion alerts
  • Red and blue warning lights on each camera

Systems that will grow

  • 16 IP video channels on the NVR
  • Up to 12 managed 4K/8MP cameras
  • ONVIF third-party camera support

Buy the Omada T8S4-2T from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Omada T8S4-2T from the ARC IP Networks team.

Last reviewed October 2026.

Four Omada 8MP turret PoE cameras and a 16-channel Omada NVR (NVR16-8P-2T) with a preinstalled 2 TB HDD, according to TP-Link's product title and specifications.

3840 x 2160 (8MP), at 25 fps on 50 Hz or 24 fps on 60 Hz, limited to 20 fps with 90°/270° rotation or 120 dB WDR on.

Yes. Each camera has four white LEDs and four IR LEDs, each with a 30 m range, and the illuminators can be set to auto, always on or always off.

It has 16 IP video channels. TP-Link lists up to 16 HD or 2K/5MP cameras, 12 4K/8MP, 8 12MP or 6 16MP cameras.

Eight PoE+ ports, with a 115 W total budget and up to 30 W per port.

A 2 TB HDD is preinstalled. The SATA bay supports up to 16 TB, and an eSATA port supports external storage up to 16 TB.

Yes, through the app on Android or iOS, which TP-Link says has no monthly fees, or through a web browser.

Up to 270 m in long-distance mode, where port speed drops to 10 Mbps. Actual distance varies with power draw and cable quality and type.

Yes. They are rated IP67 weatherproof and IK08 vandal proof, and operate from -30 °C to 60 °C.

TP-Link states the NVR integrates with Omada and ONVIF-compliant third-party cameras, using ONVIF Profile G/S/T.

Need more than one Omada T8S4-2T for a multi-camera security system?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
