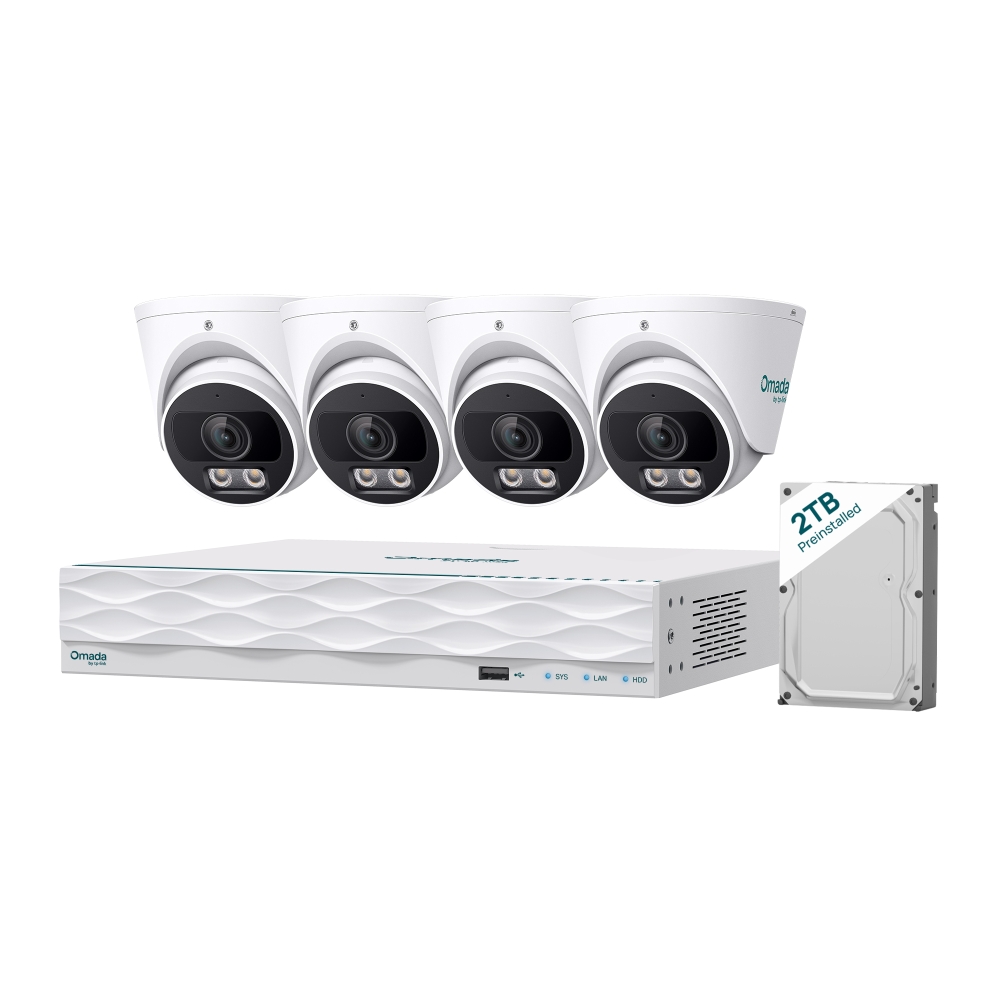

TP-Link Omada T5S4-2T 5MP Turret PoE Security Camera System with 2TB HDD

https://arcip.com.au/web/image/product.template/11326/image_1920?unique=d95db27

The TP-Link Omada T5S4-2T is a 5MP turret PoE security camera system with four cameras and a 16-channel NVR with a 2TB HDD preinstalled (expandable to 16TB). The NVR has eight PoE+ ports sharing a 115 W budget (30 W max per port). Each 5MP (2880 x 1620) camera offers person/vehicle/pet detection, people- and vehicle-triggered full-colour night vision, a built-in microphone and an all-metal IP67 weatherproof, IK08 vandal-proof housing. It records 24/7 locally with no monthly fees and suits homes, retail stores, cafés and warehouses. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,226.25 1226.25 AUD $ 1,226.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
OMADA-T5S4-2T
Barcode
1210002638470

The TP-Link Omada T5S4-2T is a PoE security camera system with four Omada 5MP turret cameras and a 16-channel NVR (Omada NVR16-8P-2T) with eight PoE+ ports and a preinstalled 2TB hard drive. The cameras record up to 2880x1620 with two infrared-white LEDs reaching 30 m and person, vehicle and pet detection; the NVR adds 4K HDMI output, up to 16 TB of storage and remote viewing by app.

Omada T5S4-2T overview

The Omada T5S4-2T is TP-Link's Omada 5MP turret PoE security camera system: four 5MP turret cameras with a 16-channel network video recorder and a 2TB HDD. The recorder, documented by TP-Link as the Omada NVR16-8P-2T, has eight PoE+ ports compliant with 802.3at/af, delivering up to 30 W per port from a 115 W budget available for all PoE+ ports, so each camera connects with one Ethernet cable carrying both power and data. The NVR accepts 16 IP video channels, so after the four included cameras there is room for more: TP-Link lists 16 managed cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP, and the NVR's ONVIF Profile G/S/T interoperability lets it work with Omada and ONVIF-compliant third-party cameras.

Each camera has a 1/2.65" progressive scan CMOS sensor with a maximum resolution of 2880x1620 (5MP) at 25 fps (50 Hz) or 30 fps (60 Hz), behind a fixed 4 mm F1.6 lens with a 92° horizontal and 110° diagonal field of view. Two integrated infrared-white LEDs reach 30 m in both IR and white-light modes, and minimum illumination is 0.005 lux, or 0 lux with IR or white light, and the illuminators can be set to auto, always on or always off. Motion, intrusion and line-crossing detection each support people, vehicle and pet detection, alongside video tampering detection. A built-in microphone records sound within a 5 m radius. The cameras are IP67 weatherproof and IK08 vandal-proof, operate from -30 to 60 °C, and draw a maximum of 8.7 W on 802.3af/at PoE.

The NVR records to its preinstalled 2TB HDD, and its single SATA interface supports drives up to 16 TB; an eSATA port also supports external storage devices up to 16 TB. TP-Link says the built-in drive supports continuous recording, and that Smart Storage can record in SD and save HD clips for events to make better use of storage space. Record modes include manual, scheduled and event recording, with instant, regular and event playback and clip backup. Video output is one HDMI port up to 3840x2160 at 30 Hz and one VGA port up to 1920x1080, which can output simultaneously, with 1/4/6/8/9/16 or custom multi-view layouts. TP-Link states synchronous playback of 16 channels, noting that fewer channels, or none, may play simultaneously if the total resolution exceeds 20MP. Decoding capability is 4 channels at 5MP at 30 fps.

For long cable runs, TP-Link says the NVR can send power and data up to 270 m to PoE cameras in long distance mode, with port speed dropping to 10 Mbps and actual distance varying with device power draw and cable quality and type. Remote viewing is available from Android and iOS, with up to 40 users and 32 simultaneous video streams. The NVR uplinks through a gigabit Ethernet port, has front USB 2.0 and rear USB 3.0 ports and RCA audio in and out, runs from a 53.5 V DC / 2.43 A supply, works from -10 to 55 °C, and measures 260 x 230 x 45 mm. Alarm features include anomaly alerts for disk errors, NVR offline, IP conflicts and PoE power limits. ARC IP Networks supplies the Omada T5S4-2T from Australian stock with the full manufacturer's warranty.

Key features

Four 5MP turret cameras

2880x1620 at up to 30 fps, 4 mm F1.6 lens with a 110° diagonal field of view.

Infrared-white LEDs

Two infrared-white LEDs with 30 m IR and white-light range on every camera.

Person, vehicle and pet detection

Motion, intrusion and line-crossing detection each distinguish people, vehicles and pets.

16-channel NVR with 8 PoE+ ports

802.3at/af PoE+ up to 30 W per port from a 115 W budget, one cable per camera.

2TB HDD, expandable to 16 TB

Preinstalled 2TB drive with one SATA interface up to 16 TB, plus eSATA for external storage.

4K HDMI output

HDMI up to 3840x2160 and VGA up to 1920x1080, with simultaneous output and multi-view layouts.

Room to expand

Manages up to 16 cameras at 5MP, with ONVIF Profile G/S/T for Omada and third-party cameras.

IP67 and IK08 cameras

Weatherproof and vandal-proof turrets rated from -30 to 60 °C.

Remote viewing

View on Android and iOS, with up to 40 users and 32 simultaneous streams.

Long distance mode

Up to 270 m PoE runs, at 10 Mbps, with distance depending on device draw and cabling.

Omada T5S4-2T specifications

At a glance

4 x 5MP turret cameras
16-channel NVR
8 x PoE+ ports
115 W PoE budget
2TB HDD (up to 16 TB)
4K HDMI output
IR + white LED 30 m
IP67 / IK08
Omada T5S4-2T full specifications
Camera
Image Sensor1/2.65” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
ApertureF1.6
Lens4 mm, Fixed Focal Lens, M12
FOVHorizontal FOV: 92°, Vertical FOV: 48°, Diagonal FOV: 110°
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchAuto
Integrated Infrared-White LEDQuantity: 2; IR Range: 98 ft (30 m); White LED Range: 98 ft (30 m); IR Wavelength: 850 nm
Illuminator On/Off ControlAuto/Always on/Always off
Max. Resolution2880 x 1620 (5MP)
Main StreamFrame Rate: 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720) 60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720)
Sub-StreamFrame Rate: 50Hz: 25fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps (848x480,704x576, 640x480, 640x360,352x288, 320x240)
Video Bit RateMain Stream: 256 Kbps to 6144 Kbps; Sub-Stream: 64 Kbps to 512 Kbps
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
EventMotion Detection (People Detection, Vehicle Detection, Pet Detection); Intrusion Detection (People Detection, Vehicle Detection, Pet Detection); Line-Crossing Detection (People Detection, Vehicle Detection, Pet Detection); Video Tampering Detection
Recording ModesN/A
Interface & ButtonBuit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera; 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE; 1× DC Port
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity95% or Less (Non-Condensing)
Power SupplyDC; 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120100-2C1 (for EU Regions) PoE; PoE: 802.3af/at, Max. 8.7 W ErP Information; Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.2 W
ProtectionIP67 Weatherproof; IK08 Vandal Proof
Product Dimensions (L x W x H)4.4 × 4.4 × 3.4 in (112 × 112 × 87 mm)
WeightNet Weight: 0.45 kg (0.99 lbs)
Nvr
IP Video Input16-Channel
Managed Cameras16 (HD); 16 (2K/5MP); 12 (4K/8MP); 8 (12MP); 6 (16MP)
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video CompressionH.265+/H.265/H.264+/H.264
Record Resolution16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback16-Channel
Decoding Capability25fps: 10-ch @ 2MP; 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk1× SATA Interface, Up to 16 TB Capacity; 1× 2TB HDD Preinstalled
PoE Budget115 W Available for All PoE+ Ports, 30 W Max per Port
External Interfaces1× eSATA, Supports External Storage Devices up to 16TB; 1× HDMI Port; 1× VGA Port; 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port; 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ); 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port; 1× DC Power Supply Port; 8× PoE+ Ports
Network ProtocolUPnP (Plug and Play); NTP (Network Timing); SMTP; DNS; TCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP; RTSP; SSL/TLS; RTP; IPv4; ARP; LLDP; FTP; IPv6; SNMP
Web BrowserChrome (57+); Firefox (52+); Edge (91+)
Max. User Access40 Users; Support up to 32 Simultaneous Video Streams
Power Supply53.5V DC/2.43 A
Working TemperatureNVR: -10 °C to 55 °C (14 ℉ to 131 ℉); Power Adapter: 0 °C to 40 °C (32 ℉ to 104 ℉)
InteroperabilityONVIF Profile G/S/T
Product Dimensions (L x W x H)10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
WeightNet Weight: 2.23 Kg (4.92 lbs)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the Omada T5S4-2T is for

Property surveillance

  • Four cameras ready to install with one cable each
  • IR and white LED range of 30 m
  • Instant alerts for suspicious activity

Continuous recording

  • Preinstalled 2TB HDD, expandable to 16 TB
  • Scheduled, manual and event recording
  • Smart Storage for event clips

Systems that will grow

  • 16 channels with four cameras included
  • ONVIF Profile G/S/T compatibility
  • Remote viewing on Android and iOS

Buy the Omada T5S4-2T from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Omada T5S4-2T from the ARC IP Networks team.

Last reviewed October 2026.

Four Omada 5MP turret PoE cameras and a 16-channel NVR with a preinstalled 2TB HDD, as described in TP-Link's product title.

16 IP video channels: 16 cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP.

By PoE from the NVR's eight 802.3at/af PoE+ ports, up to 30 W per port and 115 W across all PoE+ ports. Each camera draws up to 8.7 W.

A 2TB HDD is preinstalled. The NVR's SATA interface supports up to 16 TB, and the eSATA port supports external storage devices up to 16 TB.

Up to 2880x1620 (5MP) at 25 fps (50 Hz) or 30 fps (60 Hz).

Each camera has two integrated infrared-white LEDs with a 30 m IR range (850 nm) and a 30 m white LED range, with auto, always-on or always-off control.

Yes. Mobile access is supported on Android and iOS, and the NVR supports up to 40 users and 32 simultaneous video streams.

Yes. HDMI output supports up to 3840x2160 at 30 Hz, and VGA up to 1920x1080 at 60 Hz, with simultaneous output.

The NVR supports ONVIF Profile G/S/T and TP-Link says it integrates with Omada and ONVIF-compliant third-party cameras.

Yes. They are IP67 weatherproof and IK08 vandal-proof, with an operating range of -30 to 60 °C.

Need more than one Omada T5S4-2T for a site security installation?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
