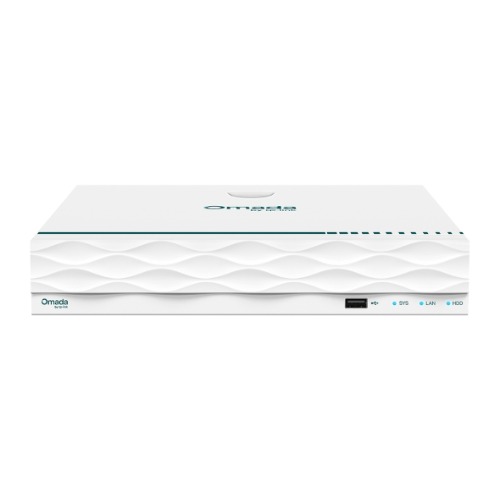

TP-Link Omada NVR16-8P-2T 8-Port PoE+ Network Video Recorder with 2TB HDD

https://arcip.com.au/web/image/product.template/11317/image_1920?unique=d95db27

The TP-Link Omada NVR16-8P-2T is an 8-Port PoE+ Network Video Recorder with a preinstalled 2TB HDD, supporting up to 16 IP camera channels. Eight PoE+ ports share a 115 W budget with up to 30 W per port, and Long-Distance Mode extends PoE to 270m at a reduced 10 Mbps. The SATA bay takes drives of up to 16 TB for 24/7 continuous recording, with 4K HDMI and VGA outputs, H.265+, ONVIF Profile G/S/T and 16-channel synchronous playback when total resolution stays within 20MP. Remote viewing and alerts run via Omada Central, and TP-Link suggests it for homes, retail, cafés and warehouses. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 779.91 779.91 AUD $ 779.91 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
OMADA-NVR16-8P-2T
Barcode
1210002612883

The TP-Link Omada NVR16-8P-2T is a 16-channel network video recorder with eight built-in PoE+ ports and a preinstalled 2TB hard drive, expandable to a single 16 TB drive. It records up to 16MP, decodes H.265+/H.264+, outputs 4K over HDMI with simultaneous VGA, works with Omada and ONVIF Profile G/S/T cameras, and offers remote access through Omada Central and the mobile app.

Omada NVR16-8P-2T overview

The Omada NVR16-8P-2T is TP-Link's Omada 8-port PoE+ network video recorder with a 2TB HDD, supporting up to 16 channels of IP video input. How many cameras it manages depends on resolution: 16 cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP. Recording resolutions run from QCIF up to 16MP, video compression covers H.265+, H.265, H.264+ and H.264, and audio compression G.711A, G.711U and G.726. Decoding capability is listed as 10 channels at 2MP and 25 fps, or at 30 fps one channel at 16MP, two at 8MP, four at 5MP, five at 4MP or six at 3MP. Synchronous playback covers 16 channels, with TP-Link's condition that the number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 20MP.

Eight RJ45 10/100 Mbps PoE ports, compliant with 802.3at and 802.3af, power and connect cameras directly, so each camera needs only one Ethernet cable for both power and data. TP-Link states that cable runs of up to 270 m are possible, with the condition that port speed in long-distance mode drops to 10 Mbps and that actual distance may vary with the PoE device's power consumption and the cable quality and type. A separate gigabit RJ45 port connects the NVR to your network. The recorder is powered by a 53.5 V DC / 2.43 A adapter, with maximum consumption of 4.17 W without a disk or 7.81 W with a disk.

Storage starts with the preinstalled 2TB hard drive in the single SATA bay, which accepts drives of up to 16 TB, and there is also an eSATA port. TP-Link describes 24/7 free smart recording: the built-in drive supports continuous recording, and Smart Storage records in SD while saving HD clips for events to use space more efficiently. Recording modes are manual, scheduled and event, with instant, regular and event playback regular and video clip backup, and a front USB 2.0 and rear USB 3.0 port. For local viewing, a 4K HDMI output (3840 x 2160 at 30 Hz) and a 1080p VGA output can run simultaneously with 1/4/6/8/9/16 or custom multi-view layouts, and RCA audio in and out are provided.

Smart perimeter protection uses Omada cameras' detection features: motion detection with vehicle, human and pet classification, video tampering, line-crossing and intrusion detection, with alarm linkage to a buzzer, pop-ups, push notifications, email, recording, light and audible alarms (the alarm functions require a camera). TP-Link says Omada Central lets you keep an eye on a residence or business with centralised management, real-time access and smart alerts, and the app gives remote access without monthly fees. ONVIF Profile G/S/T interoperability brings in compliant third-party cameras. The 260 x 230 x 45 mm industrial-grade housing operates from -10 to 55 degrees C. In the box: the NVR, power adapter, AC cord, HDMI cable, 1 m network cable, HDD screws, USB mouse, installation guide and surveillance sticker. ARC IP Networks supplies the Omada NVR16-8P-2T from Australian stock with the full manufacturer's warranty.

Key features

16-channel recording

Up to 16 IP cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP.

8 built-in PoE+ ports

802.3at/af PoE on eight 10/100 Mbps ports powers cameras over one cable each.

2TB HDD preinstalled

One SATA bay with a 2TB drive fitted, expandable to a single 16 TB drive, plus eSATA.

4K HDMI output

HDMI up to 3840 x 2160 at 30 Hz, with simultaneous VGA output and multi-view layouts.

H.265+ compression

H.265+, H.265, H.264+ and H.264 video, with recording up to 16MP.

Smart Storage

Record in SD and save HD clips for events, for continuous 24/7 recording.

Smart detection alarms

Vehicle, human and pet detection, line-crossing and intrusion alarms with push and email linkage (camera required).

Omada Central remote access

Centralised management, real-time access and smart alerts, plus app access without monthly fees.

ONVIF Profile G/S/T

Works with Omada and ONVIF-compliant third-party cameras.

Long-distance PoE mode

Up to 270 m per run in long-distance mode, at 10 Mbps, subject to cable and device power.

Omada NVR16-8P-2T specifications

At a glance

16-channel NVR
8 x PoE+ ports
2TB HDD fitted
Up to 16 TB
4K HDMI output
H.265+
Up to 16MP recording
ONVIF Profile G/S/T
Omada NVR16-8P-2T full specifications
Video and Audio
IP Video Input16-Channel
Managed Cameras16 (HD); 16 (2K/5MP); 12 (4K/8MP); 8 (12MP); 6 (16MP)
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output ModeHDMI and VGA Simultaneous Output
Multi-View Display1/4/6/8/9/16, Custom Layout
Decoding
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution16MP/8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-Channel
Capability25fps: 10-ch @ 2MP; 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Record Management
Record ModeManual Recording; Scheduling Recording; Event Recording
Playback ModeInstant Playback; Regular Playback; Event Playback
Backup ModeRegular Backup; Video Clip Backup
Playback FunctionPlay; Pause; Stop; Fast Forward; Play By Frame; Video Clip; Export Clip; Audio On/Off
Network
ProtocolUPnP (Plug and Play); NTP (Network Timing); SMTP; DNS; TCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP; RTSP; SSL/TLS; RTP; IPv4; ARP; LLDP; FTP; IPv6; SNMP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF Profile G/S/T
External Interface
Network Interface1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input (1.4 Vp-p, 10KΩ); 1-ch RCA Output (2.8 Vp-p, 1KΩ)
Power1× DC Jack
Reset Button1
eSATA1
HDMI1
VGA1
Hard Disk
SATA1 SATA Interfaces
Capacity1× SATA Interface, Up to 16 TB Capacity; 1× 2TB HDD Preinstalled
PoE
Standard802.3at/af Compliant
Interface1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget115 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General AlarmMotion Detection (Vehicle Detection, Human Detection, Pet Detection); Video Tampering; Line-Crossing Detection; Intrusion Detection Note: The alarm function requires the use of a camera.
Anomaly AlarmIPC IP Conflict; Video signal loss Note: The alarm function requires the use of a camera.; No disk; Hard drive exception; Hard drive reallocated section count error; No enough space of hard drive; Hard drive password error; NVR offline; NVR IP Conflict; Single Port Short Circuit; Single port power exceeded; Pse chip temperature is too high; Total power exceeded; FTP Directory Storage Space Insufficient; The IP address obtained from DHCP conflicts with the internal IP; Login Exception
Alarm LinkageEvent:; Buzzer; Pop-up Alarm Screen; Push Notification; Send Email; Highlight Window; Recording Linkage; Light Alarm; Audible Alarm; Channel Alarm Output Note: The alarm function requires the use of a camera. Anormaly Alarm:; Buzzer; Send Email; Pop-up Alarm Screen; Record Linkage
General
Storage Temperature-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity10%~90% RH Non-Condensing
Working TemperatureNVR: -10 °C to 55 °C (14 °F to 131 °F); Power Adapter: 0°C to 40°C (32 °F to 104 °F)
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )10 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Net Weight2.19 Kg (4.83 lbs)
Gross Weight3.58 Kg (7.89 lbs)
Power Supply53.5V DC/2.43A
Max. Power Consumption4.17 W (Without Disk); 7.81 W (With Disk)
CertificationsCE, NTRA, HDMI, FCC, VCCI, BSMI, ONVIF, UL 4200A

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Omada Network Video Recorder
  • Power Adapter
  • AC Power Cord
  • HDMI Cable
  • Network Cable (3 ft/1 m)
  • HDD Screws
  • USB Mouse
  • Installation Guide
  • Surveillance Sticker

Source: TP-Link's published package contents.

Who the Omada NVR16-8P-2T is for

Residential surveillance

  • Up to 16 cameras on one recorder
  • PoE+ ports power cameras directly
  • Remote access from the app

Business surveillance

  • Centralised management via Omada Central
  • Smart detection alerts
  • ONVIF third-party camera support

Buy the Omada NVR16-8P-2T from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Omada NVR16-8P-2T from the ARC IP Networks team.

Last reviewed October 2026.

Up to 16 channels: 16 cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP.

Eight 10/100 Mbps PoE ports, compliant with 802.3at and 802.3af.

A 2TB hard drive is preinstalled. The single SATA bay supports up to 16 TB, and there is an eSATA port.

Yes. The HDMI output supports up to 3840 x 2160 at 30 Hz, and HDMI and VGA can output simultaneously.

It supports ONVIF Profile G/S/T, so ONVIF-compliant third-party cameras can be integrated.

TP-Link states up to 270 m in long-distance mode, where port speed drops to 10 Mbps; actual distance varies with the device's power consumption and the cable quality and type.

Synchronous playback supports 16 channels, but TP-Link notes fewer than 16, or none, may play simultaneously if the total resolution exceeds 20MP.

Yes. Remote access is available through Omada Central and the Android or iOS app, which TP-Link says involves no monthly fees.

H.265+, H.265, H.264+ and H.264, with G.711A, G.711U and G.726 audio.

The NVR, power adapter, AC power cord, HDMI cable, 1 m network cable, HDD screws, USB mouse, installation guide and surveillance sticker.

Need more than one Omada NVR16-8P-2T for a residential or business surveillance install?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
