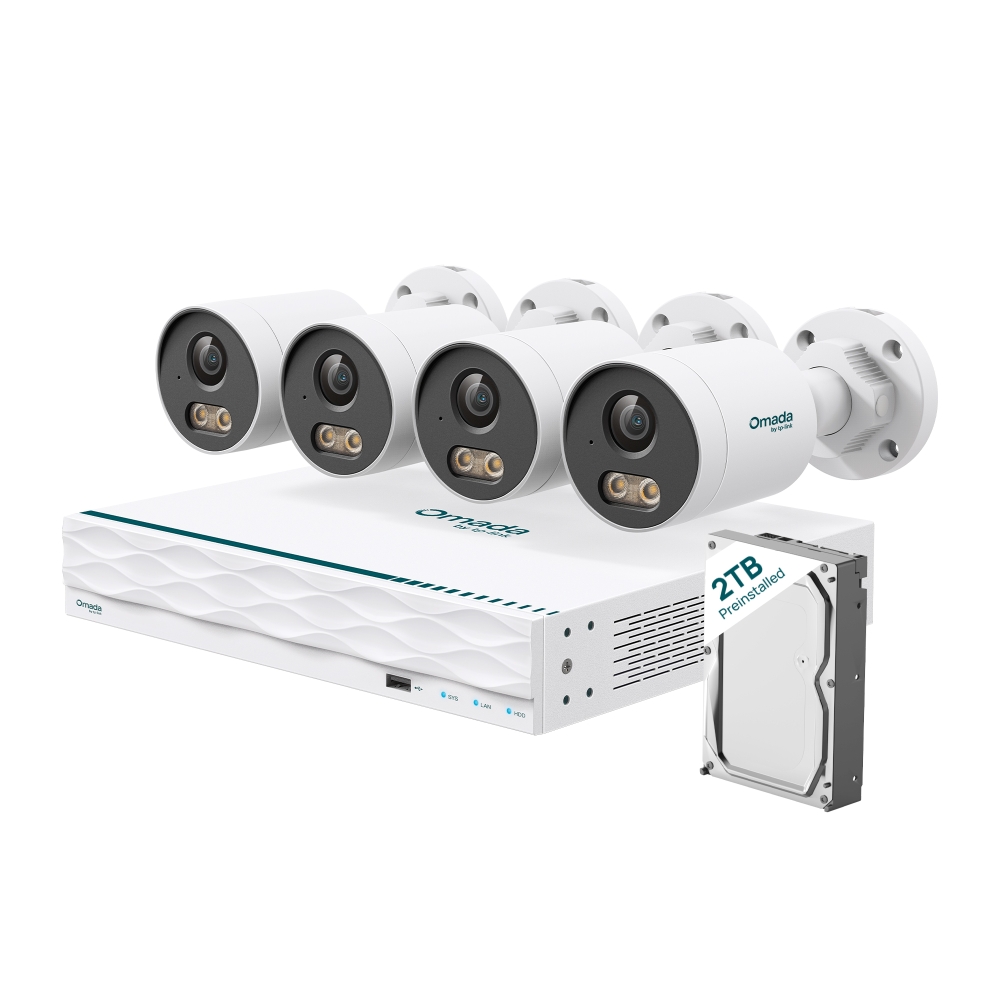

TP-Link Omada B5S4-2T 5MP Bullet PoE Security Camera System with 2TB HDD

https://arcip.com.au/web/image/product.template/11351/image_1920?unique=d95db27

The TP-Link Omada B5S4-2T is a 5MP bullet PoE security camera system with four cameras and a 16-channel NVR with a 2TB HDD preinstalled (expandable to 16TB). The NVR has eight PoE+ ports sharing a 115 W budget (30 W max per port). Each 5MP (2880 x 1620) camera offers person/vehicle/pet detection, people- and vehicle-triggered full-colour night vision, a built-in microphone and an all-metal IP67 weatherproof, IK10 vandal-proof housing. It records 24/7 locally with no monthly fees and suits homes, retail stores, cafés and warehouses. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 1,226.25 1226.25 AUD $ 1,226.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
OMADA-B5S4-2T
Barcode
1210002638456

The TP-Link Omada B5S4-2T is a 5MP PoE security camera system with four Omada 5MP bullet cameras and a 16-channel NVR with eight PoE+ ports and a preinstalled 2TB HDD. The cameras offer 2880 x 1620 video, 30 m IR and white-light night vision and person, vehicle and pet detection, and the NVR provides a 115 W PoE budget and 4K HDMI output.

Omada B5S4-2T overview

The Omada B5S4-2T packages four cameras and a recorder into one Omada surveillance system: four Omada 5MP bullet PoE cameras with a 16-channel NVR and a preinstalled 2TB hard drive. The NVR (Omada NVR16-8P-2T in TP-Link's datasheet) has eight PoE+ ports on 10/100 Mbps RJ45 interfaces, compliant with 802.3at/af, and a PoE budget of 115 W available for all PoE+ ports with up to 30 W per port. TP-Link says one Ethernet cable transmits power and data to each PoE camera, at up to 270 m in long distance mode; in that mode the port speed drops to 10 Mbps, and actual distance may vary. The four included cameras take four of the eight PoE+ ports, and the NVR manages up to 16 cameras in total (16 at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP).

Each camera uses a 1/2.65-inch progressive scan CMOS sensor and a fixed 4 mm F1.6 lens to record up to 2880 x 1620 (5MP) at 25 fps (50 Hz) or 30 fps (60 Hz), with a 92-degree horizontal, 48-degree vertical and 110-degree diagonal field of view. Two integrated infrared-white LEDs give 30 m of IR (850 nm) and 30 m of white light, and minimum illumination is 0.005 lux, or 0 lux with IR or white light. Detection covers motion, intrusion and line-crossing, each with people, vehicle and pet detection, plus video tampering detection. A built-in microphone records anything within a 5 m radius. The cameras are IP67 weatherproof and IK10 vandal proof, operate from -30 to 60 degrees C, and are powered by 802.3af/at PoE (max 8.7 W) or 12 V DC.

On the recording side, the 2TB drive is preinstalled in the NVR's single SATA bay, which supports up to 16 TB, and an eSATA port supports external storage of up to 16 TB. TP-Link says the drive supports continuous recording, and Smart Storage can record in SD while saving HD clips for events to make better use of space. Record modes are manual, scheduled and event recording, with H.265+, H.265, H.264+ and H.264 compression. The NVR offers 4K HDMI output (3840 x 2160 at 30 Hz) and VGA output at up to 1920 x 1080, used simultaneously, with 1/4/6/8/9/16 and custom multi-view layouts. TP-Link lists 16-channel synchronous playback, noting that fewer than 16 channels, or none, may play simultaneously if the total resolution exceeds 20MP.

For alerts, the NVR handles general alarms from the cameras and anomaly alarms such as disk errors, IP conflicts, single-port short circuit, port or total power exceeded and NVR offline, with linkage to a buzzer, pop-up screen, push notification, email, recording, light and audible alarms. TP-Link describes secure remote access to your cameras from anywhere via the app, on Android and iOS, and a web interface for Chrome, Firefox and Edge. The NVR supports ONVIF Profile G/S/T for Omada and ONVIF-compliant third-party cameras, up to 40 users and 32 simultaneous video streams, and runs from a 53.5 V DC / 2.43 A supply, operating from -10 to 55 degrees C. ARC IP Networks supplies the Omada B5S4-2T from Australian stock with the full manufacturer's warranty.

Key features

Four 5MP bullet cameras

2880 x 1620 video with a 4 mm F1.6 lens and 110-degree diagonal field of view.

16-channel PoE+ NVR

Eight PoE+ ports with a 115 W budget and 30 W max per port; manages up to 16 cameras.

2TB HDD preinstalled

One SATA bay up to 16 TB, plus eSATA for external storage up to 16 TB.

Colour and IR night vision

Two infrared-white LEDs per camera, each with 30 m IR and 30 m white light.

Person, vehicle and pet detection

Motion, intrusion and line-crossing detection with people, vehicle and pet classification.

4K HDMI output

3840 x 2160 at 30 Hz on HDMI, with simultaneous VGA output and multi-view layouts.

Long-distance PoE

Up to 270 m in long distance mode, where port speed drops to 10 Mbps.

IP67 and IK10 cameras

Weatherproof and vandal-proof cameras rated from -30 to 60 degrees C.

ONVIF Profile G/S/T

Integrates with Omada and ONVIF-compliant third-party cameras.

Remote access

View cameras from anywhere via the app on Android and iOS.

Omada B5S4-2T specifications

At a glance

4 x 5MP bullet cameras
16-channel NVR
8 x PoE+ ports
115 W PoE budget
2TB HDD (up to 16 TB)
4K HDMI output
30 m night vision
IP67 / IK10 cameras
Omada B5S4-2T full specifications
Camera
Image Sensor1/2.65” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
ApertureF1.6
Lens4 mm, Fixed Focal Lens, M12
FOVHorizontal FOV: 92°, Vertical FOV: 48°, Diagonal FOV: 110°
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchAuto
Integrated Infrared-White LEDQuantity: 2; IR Range: 98 ft (30 m); White LED Range: 98 ft (30 m); IR Wavelength: 850 nm
Illuminator On/Off ControlAuto/Always on/Always off
Max. Resolution2880 x 1620 (5MP)
Main StreamFrame Rate: 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720) 60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720)
Sub-StreamFrame Rate: 50Hz: 25fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps (848x480,704x576, 640x480, 640x360,352x288, 320x240)
Video Bit RateMain Stream: 256 Kbps to 6144 Kbps; Sub-Stream: 64 Kbps to 512 Kbps
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
EventMotion Detection (People Detection, Vehicle Detection, Pet Detection); Intrusion Detection (People Detection, Vehicle Detection, Pet Detection); Line-Crossing Detection (People Detection, Vehicle Detection, Pet Detection); Video Tampering Detection
Recording ModesN/A
Interface & ButtonBuit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera; 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE; 1× DC Port
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Operating Humidity95% or Less (Non-Condensing)
Power SupplyDC; 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120100-2C4 (for EU Regions) PoE; PoE: 802.3af/at, Max. 8.7 W ErP Information; Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.3 W
ProtectionIP67 Weatherproof; IK10 Vandal Proof
Product Dimensions (L x W x H)6.7 × 2.9 × 2.9 in (169.8 × 74 × 74 mm)
WeightNet Weight: 0.42 kg (0.93 lbs)
Nvr
IP Video Input16-Channel
Managed Cameras16 (HD); 16 (2K/5MP); 12 (4K/8MP); 8 (12MP); 6 (16MP)
HDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video CompressionH.265+/H.265/H.264+/H.264
Record Resolution16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback16-Channel
Decoding Capability25fps: 10-ch @ 2MP; 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk1× SATA Interface, Up to 16 TB Capacity; 1× 2TB HDD Preinstalled
PoE Budget115 W Available for All PoE+ Ports, 30 W Max per Port
External Interfaces1× eSATA, Supports External Storage Devices up to 16TB; 1× HDMI Port; 1× VGA Port; 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port; 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ); 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port; 1× DC Power Supply Port; 8× PoE+ Ports
Network ProtocolUPnP (Plug and Play); NTP (Network Timing); SMTP; DNS; TCP/IP; UDP; ICMP; HTTP; HTTPS; DHCP; RTSP; SSL/TLS; RTP; IPv4; ARP; LLDP; FTP; IPv6; SNMP
Web BrowserChrome (57+); Firefox (52+); Edge (91+)
Max. User Access40 Users; Support up to 32 Simultaneous Video Streams
Power Supply53.5V DC/2.43 A
Working TemperatureNVR: -10 °C to 55 °C (14 °F to 131 °F); Power Adapter: 0 °C to 40 °C (32 °F to 104 °F)
InteroperabilityONVIF Profile G/S/T
Product Dimensions (L x W x H)10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
WeightNet Weight: 2.23 Kg (4.92 lbs)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

Who the Omada B5S4-2T is for

Property perimeter protection

  • Intrusion and line-crossing alerts
  • People, vehicle and pet detection
  • Colour night images with white LEDs

Growing camera systems

  • Four cameras now, up to 16 on the NVR
  • Eight PoE+ ports for single-cable installs
  • ONVIF support for third-party cameras

Buy the Omada B5S4-2T from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Omada B5S4-2T from the ARC IP Networks team.

Last reviewed October 2026.

Four Omada 5MP bullet PoE cameras and a 16-channel NVR with eight PoE+ ports and a preinstalled 2TB HDD.

It manages up to 16 cameras at HD or 2K/5MP, 12 at 4K/8MP, 8 at 12MP or 6 at 16MP. It has eight PoE+ ports, so cameras beyond eight need power from another source.

Yes. The SATA bay supports drives up to 16 TB, and the eSATA port supports external storage up to 16 TB.

115 W available for all PoE+ ports, with up to 30 W per port.

TP-Link states up to 270 m over one Ethernet cable in long distance mode, where port speed drops to 10 Mbps. Actual distance may vary.

Up to 2880 x 1620 (5MP), at 25 fps (50 Hz) or 30 fps (60 Hz).

Yes. Two infrared-white LEDs give 30 m of IR and 30 m of white light for colour images at night.

Yes. HDMI output supports up to 3840 x 2160 at 30 Hz, and VGA output up to 1920 x 1080 at 60 Hz.

Yes. TP-Link describes secure remote access from anywhere via the app on Android and iOS, plus a web interface.

The NVR supports ONVIF Profile G/S/T and TP-Link says it integrates with Omada and ONVIF-compliant third-party cameras.

Need more than one Omada B5S4-2T for a business or property surveillance install?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
