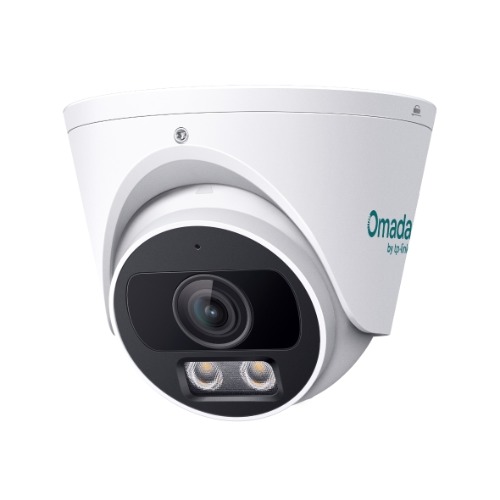

TP-Link Omada 5MP Turret PoE Security Camera

https://arcip.com.au/web/image/product.template/11333/image_1920?unique=d95db27

The TP-Link Omada 5MP Turret is a PoE security camera with 5MP resolution (2880x1620) from a 1/2.65-inch CMOS sensor and a 4 mm F1.6 lens with a 92° horizontal field of view. Integrated infrared and white LEDs switch smartly between infrared and full-colour night vision, each with a 30 m range. Person, vehicle and pet detection plus intrusion and line-crossing detection help cut false alarms, with 120dB WDR and H.265+ compression. It has a built-in microphone, works with the Omada Guard app and ONVIF, and is IP67 weatherproof and IK08 vandal proof. Power is via PoE or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 143.97 143.97 AUD $ 143.97 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
OMADA-5MP-TURRET
Barcode
1210002638371

The TP-Link Omada 5MP Turret is a PoE security camera with a 1/2.65" CMOS sensor recording up to 2880x1620, a 4 mm F1.6 lens with a 110° diagonal view, and two infrared-white LEDs for 24-hour full-colour or IR night vision to 30 m. It adds person, vehicle and pet detection, line-crossing and intrusion alerts, a built-in microphone, H.265+ compression and an IP67, IK08 metal housing, managed through the Omada Guard app or Omada Cloud-Based Controller.

Omada 5MP Turret overview

The Omada 5MP Turret is TP-Link's Omada PoE security camera in a turret housing. It uses a 1/2.65" progressive scan CMOS sensor with a maximum resolution of 2880x1620, recording the main stream at 25 fps (50 Hz) or 30 fps (60 Hz) at resolutions from 2880x1620 down to 1280x720. The fixed 4 mm F1.6 lens gives a 92° horizontal, 48° vertical and 110° diagonal field of view, and TP-Link's DORI distances for it are 80 m to detect, 33 m to observe, 16 m to recognise and 8 m to identify. Image tools include 120 dB wide dynamic range, BLC, 3D DNR and SmartIR, an SNR of 52 dB or more, up to four privacy masks and adjustable brightness, contrast, saturation, sharpness, exposure and white balance.

TP-Link's headline for this camera is 5MP Super HD with 24-hour full colour. Two integrated infrared-white LEDs provide both IR and white-light illumination, each with a range of 30 m, and the illuminator can be set to auto, always on or always off. Minimum illumination is 0.005 lux, or 0 lux with IR or white light, with an IR-cut filter and automatic day/night switching. TP-Link describes the built-in spotlights as revealing true colours and accurate details around the clock, and lists a Smart IR and colour night vision switch among the highlights.

For detection, the camera's motion detection includes people, vehicle and pet detection, which TP-Link says smartly identifies people, vehicles and pets to reduce false notifications. It also offers intrusion detection, line-crossing detection and video tampering detection, with alarm linkage by email, FTP upload or push message. A built-in microphone with environment noise filtering records sound within a 5 m radius of the camera. Video is compressed with H.265+, H.265, H.264+ or H.264 on the main stream, with main-stream bit rates from 256 to 6144 Kbps. The camera has no on-board storage slot and no speaker (audio communication is listed as N/A), and it supports ONVIF (Profile S/T), RTSP and up to three main and three sub-streams of simultaneous live view.

Installation is through a single 10/100 Mbps RJ45 port with 802.3af/at PoE (maximum 8.7 W), so one network cable carries power and data; a 12 V DC port (maximum 7.4 W) is also available. The metal housing is rated IP67 weatherproof and IK08 vandal-proof, operates from -30 to 60 °C, weighs 0.45 kg and measures 112 x 112 x 87 mm, with manual adjustment of 360° pan, 85° tilt and 360° rotation. You manage it through the Web UI, the Omada Guard app or the Omada Cloud-Based Controller (Guard), with password protection, HTTPS, IP/MAC restriction, digest authentication and 802.1X. In the box are the camera, waterproof and mounting accessories, a network cable, mounting templates, a surveillance sticker and guides. ARC IP Networks supplies the Omada 5MP Turret from Australian stock with the full manufacturer's warranty.

Key features

5MP Super HD

A 1/2.65" CMOS sensor recording up to 2880x1620 at 25/30 fps.

24-hour full colour

Two infrared-white LEDs with 30 m IR and white-light range, and 0 lux with IR or white light.

Person, vehicle and pet detection

Smart motion detection identifies people, vehicles and pets to reduce false notifications.

Event detection

Intrusion, line-crossing and video tampering detection with email, FTP and push alerts.

4 mm F1.6 lens

92° horizontal and 110° diagonal field of view, with DORI detect distance of 80 m.

Built-in microphone

Records sound within a 5 m radius, with environment noise filtering.

Easy PoE installation

One cable carries power and data via 802.3af/at PoE, maximum 8.7 W.

IP67 and IK08 metal housing

Weatherproof and vandal-proof, rated from -30 to 60 °C.

H.265+ compression

H.265+/H.265/H.264+/H.264 on the main stream, with CBR or VBR bit rate control.

Omada Guard management

Manage via the Omada Guard app, Omada Cloud-Based Controller (Guard) or Web UI, with ONVIF Profile S/T.

Omada 5MP Turret specifications

At a glance

5MP 2880x1620
4 mm F1.6 lens
110° diagonal FOV
IR + white LED 30 m
Person/vehicle/pet detection
Built-in mic
802.3af/at PoE
IP67 / IK08
Omada 5MP Turret full specifications
Camera
Image Sensor1/2.65” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchAuto
Lens
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOV4 mm: Horizontal FOV: 92°, Vertical FOV: 48°, Diagonal FOV: 110°
Lens MountM12 P 0.5
DORI Distance4 mm Detect: 262 ft (80 m) Observe: 108 ft (33 m) Recognize: 52 ft (16 m) Identify: 26 ft (8 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
Illuminator
Illuminator On/Off ControlAuto/Always on/Always off
Integrated Infrared-White LEDQuantity: 2; IR Range: 98 ft (30 m); White LED Range: 98 ft (30 m); IR Wavelength: 850 nm
Video
Max. Resolution2880x1620
Main StreamFrame Rate: 50Hz: 25fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720) 60Hz: 30fps (2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720)
Sub-StreamFrame Rate: 50Hz: 25fps (848x480,704x576, 640x480, 640x360,352x288, 320x240) 60Hz: 30fps (848x480,704x576, 640x480, 640x360,352x288, 320x240)
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6144 Kbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance
Image EnhancementBLC/3D DNR/SmartIR
Wide Dynamic Range120dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
OSD SettingYes
Audio
Audio CommunicationN/A
Audio InputYes (Built-in Microphone)
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8KHz, 16KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw, G.711 ulaw)
Network
ProtocolTCP/IP, UDP, ICMP, ARP, SNMP, SMTP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP
ONVIFYes
APIOpen Network Video Interface (Profile S/T)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientWeb UI, Omada Guard APP, Omada Cloud-Based Controller (Guard)
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP/MAC Restriction, Digest Authentication, 802.1X authentication
Alarm And Event Management
EventMotion Detection (People Detection, Vehicle Detection, Pet Detection); Intrusion Detection; Line-Crossing Detection; Video Tampering Detection
Alarm LinkageSending Email; Upload to FTP; Message Push
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
On-board StorageN/A
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
AudioN/A
General
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.45 kg
Power SupplyDC; 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120100-2C1 (for EU Regions) PoE; PoE: 802.3af/at, Max. 8.7 W ErP Information; Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.2 W
ProtectionIP67 Weatherproof, IK08 Vandal Proof
Product Dimensions (L x W x H)4.4 × 4.4 × 3.4 in (112 × 112 × 87 mm)
CertificationsCE, FCC, BSMI, VCCI, KC, NTRA, IP67, IK08

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Omada Camera
  • Quick Start Guide
  • Waterproof Accessories
  • Mounting Accessories
  • Network Cable
  • Surveillance Sticker
  • Mounting Templates
  • Installation Guide

Source: TP-Link's published package contents.

Who the Omada 5MP Turret is for

Day and night colour surveillance

  • Full-colour images with white-light LEDs
  • IR night vision to 30 m
  • 120 dB wide dynamic range

Event-driven monitoring

  • Person, vehicle and pet detection
  • Line-crossing and intrusion alerts
  • Email, FTP and push notifications

Simple PoE installs

  • One cable for power and data
  • IP67 weatherproof and IK08 vandal-proof
  • Omada Guard app management

Buy the Omada 5MP Turret from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Omada 5MP Turret from the ARC IP Networks team.

Last reviewed October 2026.

Up to 2880x1620 (5MP) from a 1/2.65" progressive scan CMOS sensor, at 25 fps (50 Hz) or 30 fps (60 Hz).

Yes. Two infrared-white LEDs give white-light range of 30 m for full-colour images and IR range of 30 m, with auto, always-on or always-off control.

The 4 mm F1.6 lens gives 92° horizontal, 48° vertical and 110° diagonal field of view.

Yes. Motion detection includes person, vehicle and pet detection, which TP-Link says reduces false notifications.

Yes. It supports 802.3af/at PoE with a maximum draw of 8.7 W, or 12 V DC at up to 7.4 W.

Yes. A built-in microphone records sound within a 5 m radius. There is no built-in speaker, and audio communication is listed as N/A.

No. On-board storage is listed as N/A.

Yes. It is rated IP67 weatherproof and IK08 vandal-proof, with an operating range of -30 to 60 °C.

Through the Web UI, the Omada Guard app or the Omada Cloud-Based Controller (Guard). It also supports ONVIF Profile S/T.

The Omada camera, quick start guide, waterproof accessories, mounting accessories, network cable, surveillance sticker, mounting templates and installation guide, according to TP-Link's published package contents.

Need more than one Omada 5MP Turret for a business surveillance rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
