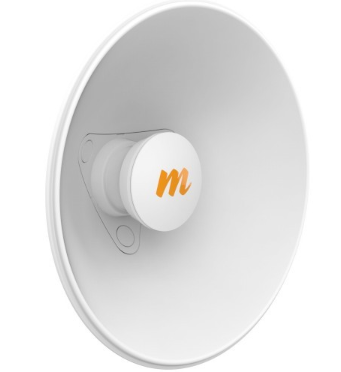

Mimosa N5-X20-2 4.9-6.4GHz 250mm Dish Ant. for C5x B5x 2Pk

https://arcip.com.au/web/image/product.template/3522/image_1920?unique=ed1b1a2
Instantly upgrade your Mimosa C5x radios for mid-range links with the N5-X20 20dBi dish antenna. This convenient 2-pack provides an easy, twist-on solution for boosting gain and performance in minutes.

171.74 171.74 AUD 171.74 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Mimosa
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
N5-X20-2
Tags
N5-X20-2
Mimosa N5-X20-2 4.9-6.4GHz 250mm Dish Ant. for C5x B5x 2Pk

Features

  • Specifically designed for the Mimosa C5x modular radio
  • Easy, twist-on installation with no special tools required
  • High gain of 20 dBi for mid-range PtP or long-range PtMP links
  • Extended frequency range: 4.9 – 6.4 GHz
  • Compact 250mm dish for low wind load and discreet installs
  • Rugged design for outdoor deployment
  • Convenient 2-pack for building a complete link

Specifications

Antenna Properties
Frequency Range4.9 – 6.4 GHz
Gain20 dBi
PolarizationDual-Slant 45°
Beamwidth (3dB)12°
Front-to-Back Ratio>30 dB
Cross-Polar Isolation>20 dB
ConnectionTwist-on for Mimosa C5x
Physical
Diameter250 mm (9.8")
Wind Survivability200 km/h (125 mph)
Pack Size2 Antennas

Professional Overview

The Mimosa N5-X20 is a high-performance dish antenna that transforms the modular C5x radio into a powerful, mid-range client or Point-to-Point (PTP) device. As part of Mimosa’s innovative X-series of interchangeable antennas, the N5-X20 empowers network operators to rapidly adapt a single radio to various link distance requirements. This convenient 2-pack provides a complete solution for deploying a full PTP link or for upgrading two client sites.

Engineered for superior technical performance, the N5-X20 delivers 20 dBi of gain, creating a focused 12° beam of RF energy. This increased gain and focused beamwidth are critical for establishing stable, high-throughput connections over mid-range distances while inherently rejecting interference from adjacent sources. The antenna's support for an extended frequency range of 4.9–6.4 GHz allows operators to move beyond the congested 5GHz spectrum, finding cleaner channels to ensure maximum link reliability and performance.

The standout feature of the N5-X20 is its revolutionary twist-on mounting system. This design allows the antenna to be attached to the C5x radio in seconds, without any tools. This direct, integrated connection eliminates the need for external RF jumper cables, which are a common source of signal loss and failure points in outdoor installations. The result is a more reliable, higher-performing link and a dramatically simplified installation process. Built to withstand harsh outdoor conditions, the N5-X20 is an essential tool for WISPs building scalable, high-performance, and cost-effective wireless networks.

Brand Mimosa
