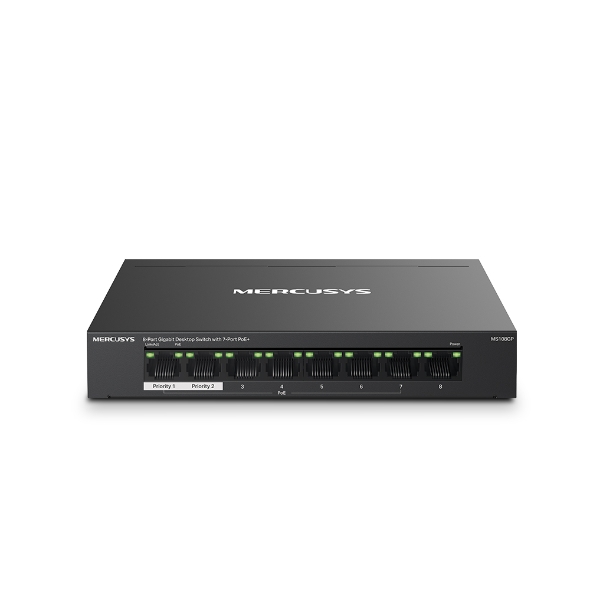

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+

https://arcip.com.au/web/image/product.template/8130/image_1920?unique=73ac110

The Mercusys MS108GP is an 8-port Gigabit desktop switch with 7-port PoE+. All eight 10/100/1000 Mbps ports auto-negotiate, and ports 1-7 deliver up to 30 W each to 802.3af/at powered devices from a 65 W total PoE budget (based on laboratory testing). Extend Mode lengthens PoE reach to 250 m with the port speed dropping to 10 Mbps, and Isolation Mode separates traffic on ports 1-7. Mercusys positions it for surveillance in offices, dormitories and small businesses. Plug and play with a durable metal case and silent operation. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 83.14 83.14 AUD $ 83.14 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MS108GP
Barcode
6957939001209
Tags

The Mercusys MS108GP is an 8-port gigabit desktop switch with seven 802.3af/at PoE+ ports and a 65 W PoE budget. Each PoE+ port delivers up to 30 W to IP cameras, access points, IP phones and similar devices, with one-click isolation mode, port prioritisation and plug-and-play setup in a metal case. Mercusys names surveillance for offices, dormitories and small businesses among its uses.

MS108GP overview

The MS108GP is Mercusys's 8-port gigabit desktop switch with 7-port PoE+. All eight ports are gigabit, and ports 1 to 7 supply Power over Ethernet compliant with 802.3af/at powered devices. Each PoE+ port can deliver a maximum of 30 W, and the switch has a total PoE power budget of 65 W. Mercusys says that budget enables a variety of uses, including surveillance for offices, dormitories and small businesses, and lists IP cameras, access points, IP phones, PCs and video recorders as compatible devices. Because one cable carries both data and power, Mercusys points out that you can do away with extra cables and power adapters, saving on infrastructure, and that devices can be placed in more locations, making deployment possible in more complex situations.

Two practical controls are built in. Isolation mode, turned on with one click, divides traffic for ports 1 to 7 to prevent snooping and tampering between connected devices and to isolate broadcast storms. Port prioritisation gives the data of specific ports priority so that delay-sensitive applications such as voice and video keep their quality. Mercusys also describes power management that improves power usage while protecting your devices from power surges. Everything else is plug and play: the ports auto-negotiate 10/100/1000 Mbps with automatic MDI/MDIX, and no additional configuration is needed.

When you plan PoE loads, the official power figures matter. The 65 W budget is shared across the seven PoE+ ports, so a mix of lower-draw devices fits more easily than several devices each drawing the full 30 W. Mercusys lists maximum power consumption of 5.07 W with no powered device connected and 77.33 W with 65 W of powered devices connected (220 V / 50 Hz), and maximum heat dissipation of 17.238 BTU/h and 262.922 BTU/h respectively. Power comes from an external adapter rated at 53.5 V / 1.31 A, which is included. Data rates are 10/100/1000 Mbps at half duplex and 20/200/2000 Mbps at full duplex, with IEEE 802.3x flow control, 9 KB jumbo frames and an 8K MAC address table.

The MS108GP is housed in a durable metal case that Mercusys says provides efficient heat dissipation, excellent prevention of signal interference, equipment stability and a long network life. It measures 171 x 98 x 27 mm. The official operating range is 0 to 40 °C at 10 to 90 % RH non-condensing, with storage from -40 to 70 °C and 5 to 95 % RH non-condensing. In the box you get the MS108GP switch, the power adapter and a quick installation guide, and documentation is published on the manufacturer's support site. ARC IP Networks supplies the MS108GP from Australian stock with the full manufacturer's warranty.

Key features

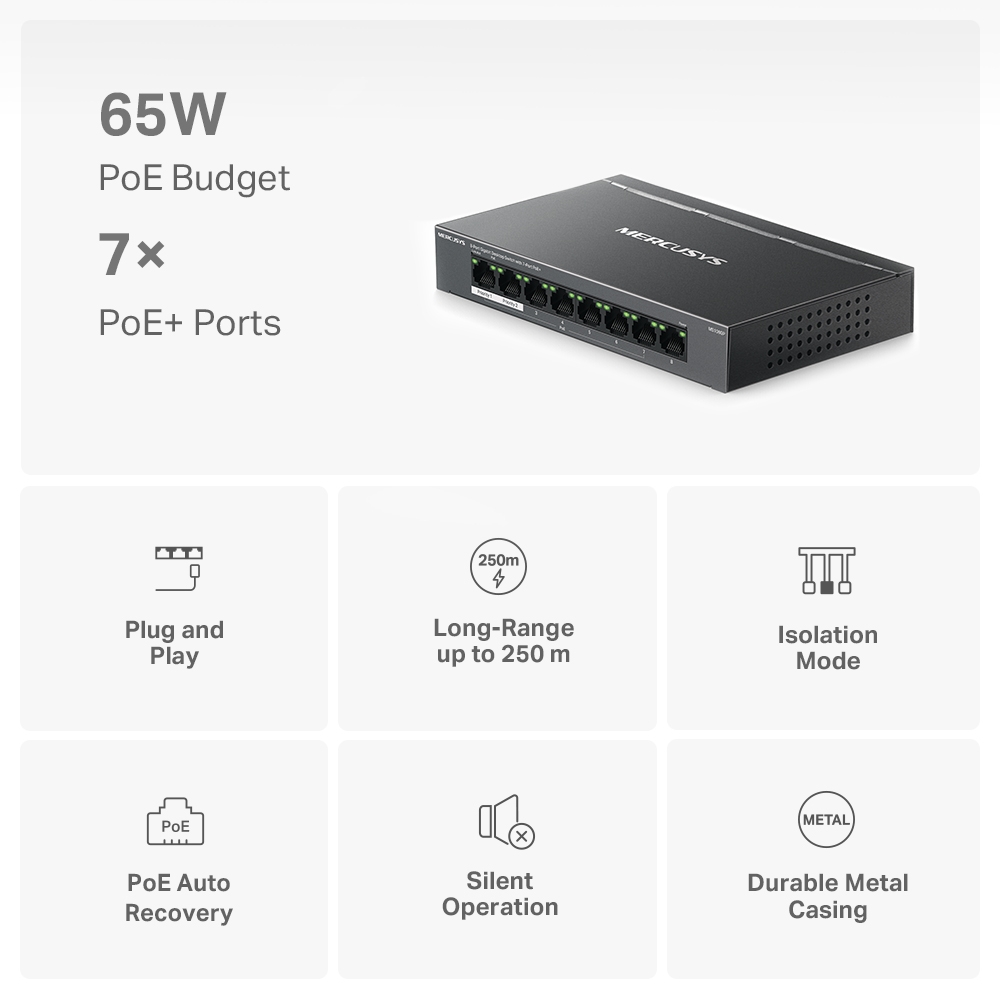

7 PoE+ ports, 65 W budget

Ports 1 to 7 deliver PoE+ compliant with 802.3af/at powered devices, sharing a 65 W total budget.

Up to 30 W per port

Each PoE+ port supports a maximum of 30 W for IP cameras, access points, IP phones and more.

Eight gigabit ports

All eight ports are gigabit, with auto-negotiation (10/100/1000 Mbps) and automatic MDI/MDIX.

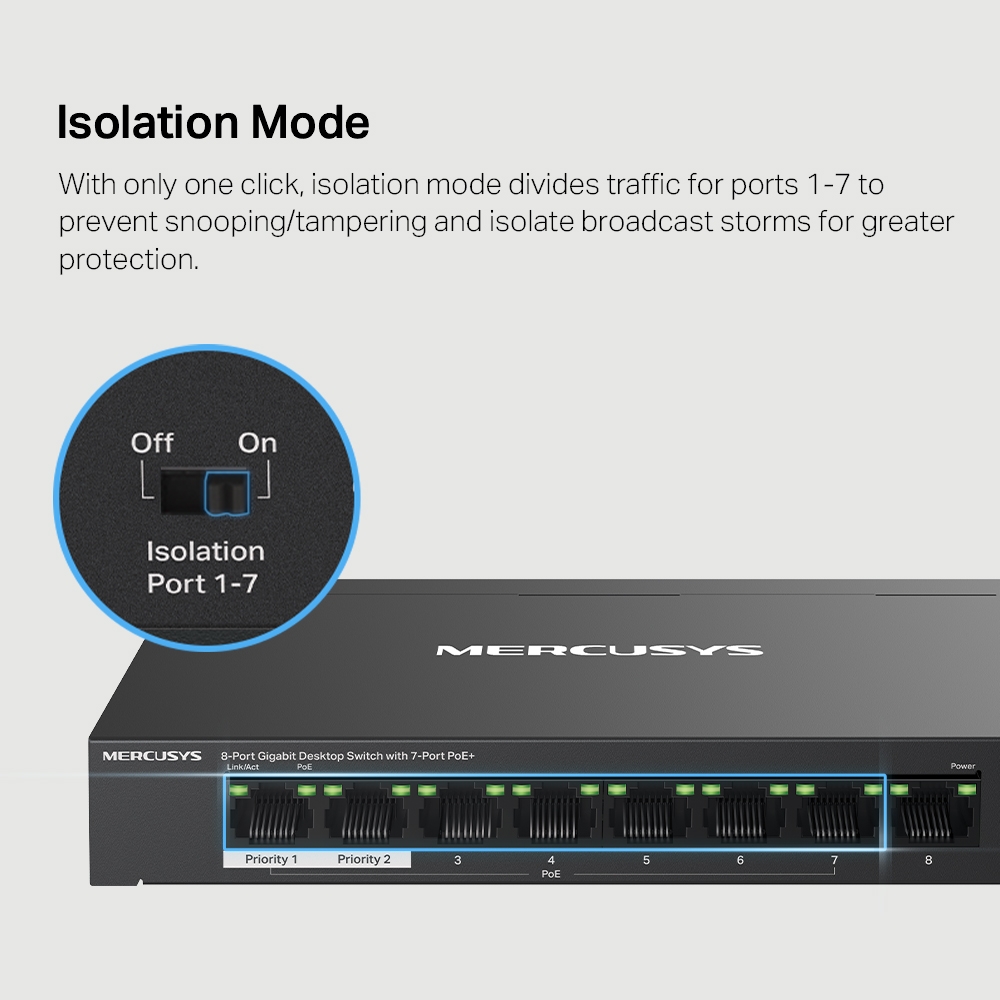

One-click isolation mode

Divides traffic for ports 1 to 7 to prevent snooping and tampering and isolate broadcast storms.

Port prioritisation

Prioritise the data of specific ports to protect the quality of voice and video applications.

Power management

Mercusys says it improves power usage while protecting your devices from power surges.

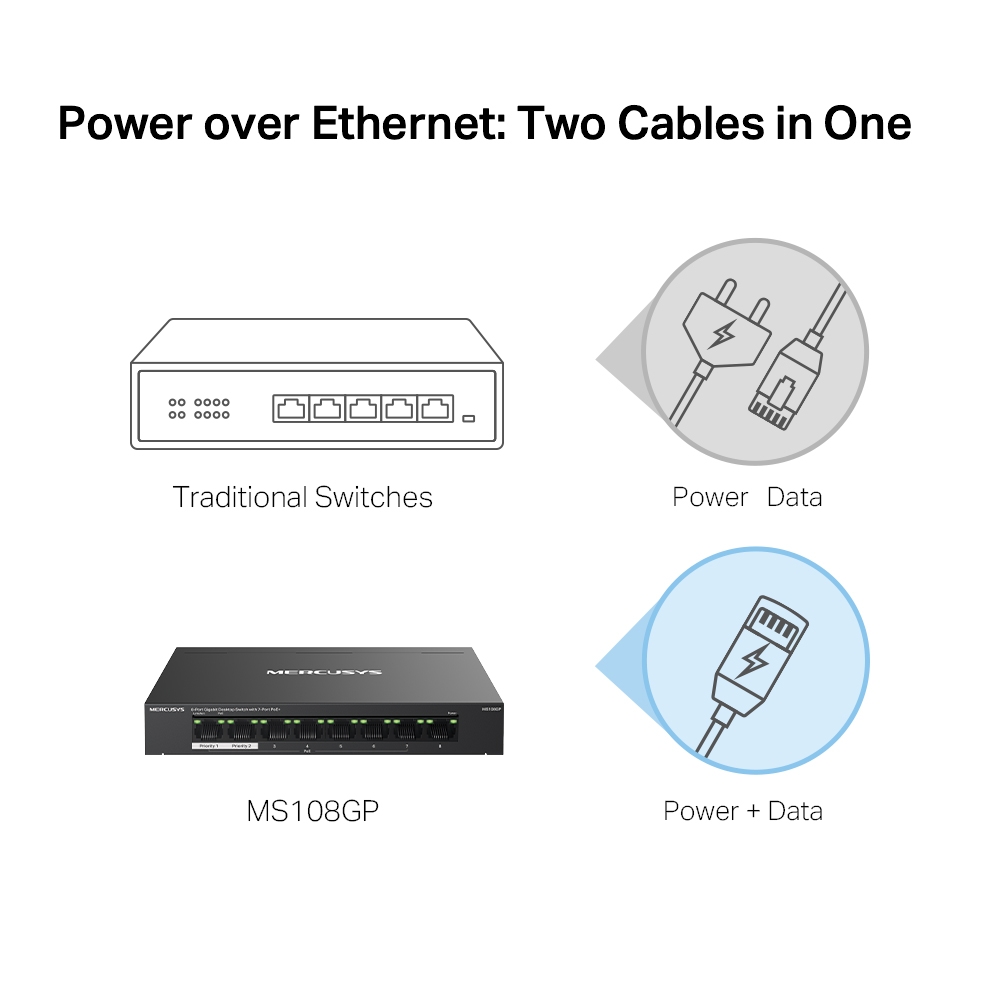

Fewer cables and adapters

Power and data on one cable removes extra power adapters and gives more placement options.

Plug and play

No additional configuration is needed.

Durable metal case

Efficient heat dissipation, signal interference prevention and long network life in a 171 x 98 x 27 mm desktop body.

MS108GP specifications

At a glance

8 x gigabit ports
7 x PoE+ ports
30 W per port
65 W PoE budget
802.3af/at
Isolation mode
Port priority
Metal case
MS108GP full specifications
Specifications
Dimensions (W X D X H)171 98 27 mm
PoE PortsRJ45; Standard: Compliant with 802.3 af/at Powered Devices; PoE Ports: Port 1- Port 7; PoE Power Budget: 65 W
External Power SupplyExternal Power Adapter (Output: 53.5V/1.31A)
Standards and ProtocolsIEEE 802.3x Flow Control
Data Rates10/100/1000 Mbps at Half Duplex; 20/200/2000 Mbps at Full Duplex
Jumbo Frame9 KB
Mac Address Table8K
Max Power Consumption5.07W(220 V / 50 Hz, no PD connected); 77.33W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation17.238 BTH/h (no PD connected); 262.922 BTH/h(with 65W PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% RH non-condensing; Storage Humidity: 5%~95% RH non-condensing

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

What's in the box

  • 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
  • Power Adapter
  • Quick Installation Guide

Source: Mercusys's published package contents.

Who the MS108GP is for

Surveillance for offices and small businesses

  • Powering IP cameras and video recorders
  • Isolation mode to separate camera traffic
  • 65 W shared across seven PoE+ ports

Dormitories

  • PoE devices without extra power adapters
  • Plug-and-play setup
  • Compact metal desktop switch

Access points and IP phones

  • 802.3af/at PoE+ up to 30 W per port
  • Port prioritisation for voice and video
  • Gigabit on all eight ports

Buy the MS108GP from ARC IP Networks

ARC IP Networks supplies genuine Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine Mercusys: new Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MS108GP from the ARC IP Networks team.

Last reviewed October 2026.

Seven. Ports 1 to 7 are PoE+ ports and all eight ports are gigabit.

65 W in total, shared across the seven PoE+ ports. Each port can supply a maximum of 30 W.

The PoE ports are compliant with 802.3af/at powered devices.

No configuration is needed; it is a plug-and-play switch. It does include isolation mode and port prioritisation features as described by Mercusys.

Turned on with one click, it divides traffic for ports 1 to 7 to prevent snooping and tampering and to isolate broadcast storms.

Mercusys lists IP cameras, access points, IP phones, PCs and video recorders as compatible, within the 30 W per port and 65 W total limits.

Maximum power consumption is 5.07 W with no powered device connected and 77.33 W with 65 W of powered devices connected (220 V / 50 Hz).

Yes, jumbo frames up to 9 KB. The MAC address table holds 8K entries and IEEE 802.3x flow control is supported.

It measures 171 x 98 x 27 mm and has a durable metal case.

The 8-Port Gigabit Desktop Switch with 7-Port PoE+ (MS108GP), a power adapter and a quick installation guide, according to Mercusys's published package contents.

Need more than one MS108GP for a small office surveillance or Wi-Fi rollout?

Ask ARC IP Networks for volume and project pricing on genuine Mercusys products.
