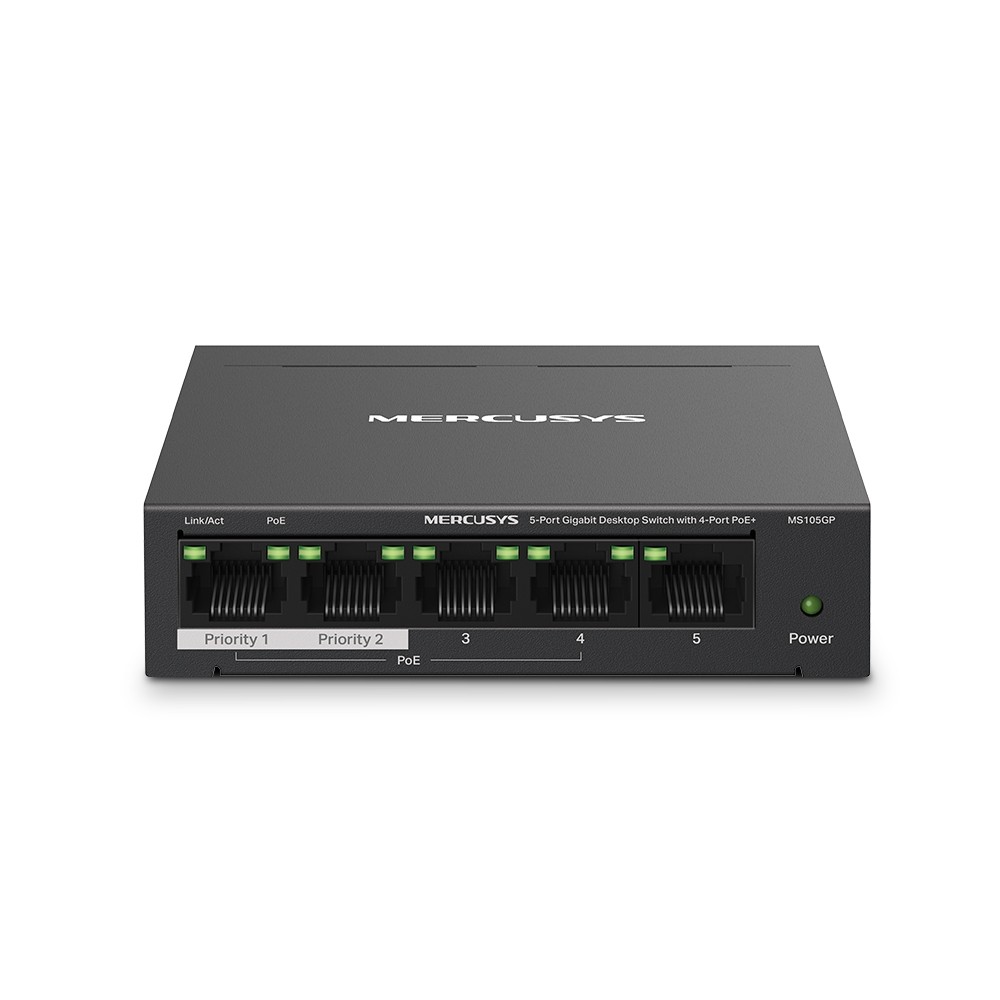

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+

https://arcip.com.au/web/image/product.template/8126/image_1920?unique=1a0ad29

The Mercusys MS105GP powers and connects up to four PoE devices from one small switch. All five RJ45 ports are Gigabit; ports 1-4 are 802.3af/at PoE+ with up to 30 W each and a 65 W total budget (based on laboratory testing). Extend Mode pushes PoE to 250 m with the port speed reduced to 10 Mbps, Isolation Mode separates traffic on ports 1-4, and the metal case suits desk or wall mounting.

$ 54.00 54.0 AUD $ 62.00 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Switch PoE Managed Switch TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MS105GP
Barcode
6957939001186
Tags

The Mercusys MS105GP is a 5-port Gigabit desktop switch with four 802.3af/at PoE+ ports (ports 1-4). Each PoE+ port supplies up to 30 W within a 65 W total budget, Extend Mode reaches 250 m at 10 Mbps, and Isolation Mode and port prioritisation suit small camera and access point installs. It is plug and play in a metal case.

MS105GP overview

The MS105GP is the PoE member of the Mercusys 5-port family. All five ports are 10/100/1000 Mbps RJ45, and ports 1 to 4 also deliver power over Ethernet compliant with 802.3af/at powered devices. Each PoE+ port supports up to 30 W and the four share a 65 W total power budget. Cameras, access points, IP phones, PCs and video recorders are all on Mercusys' compatibility list, with office, dormitory and small-business surveillance as the suggested uses. That 65 W is a lab result, not a guarantee: client devices and the environment change what you actually get. The AU page shows V1 and V2, and this page follows V2.

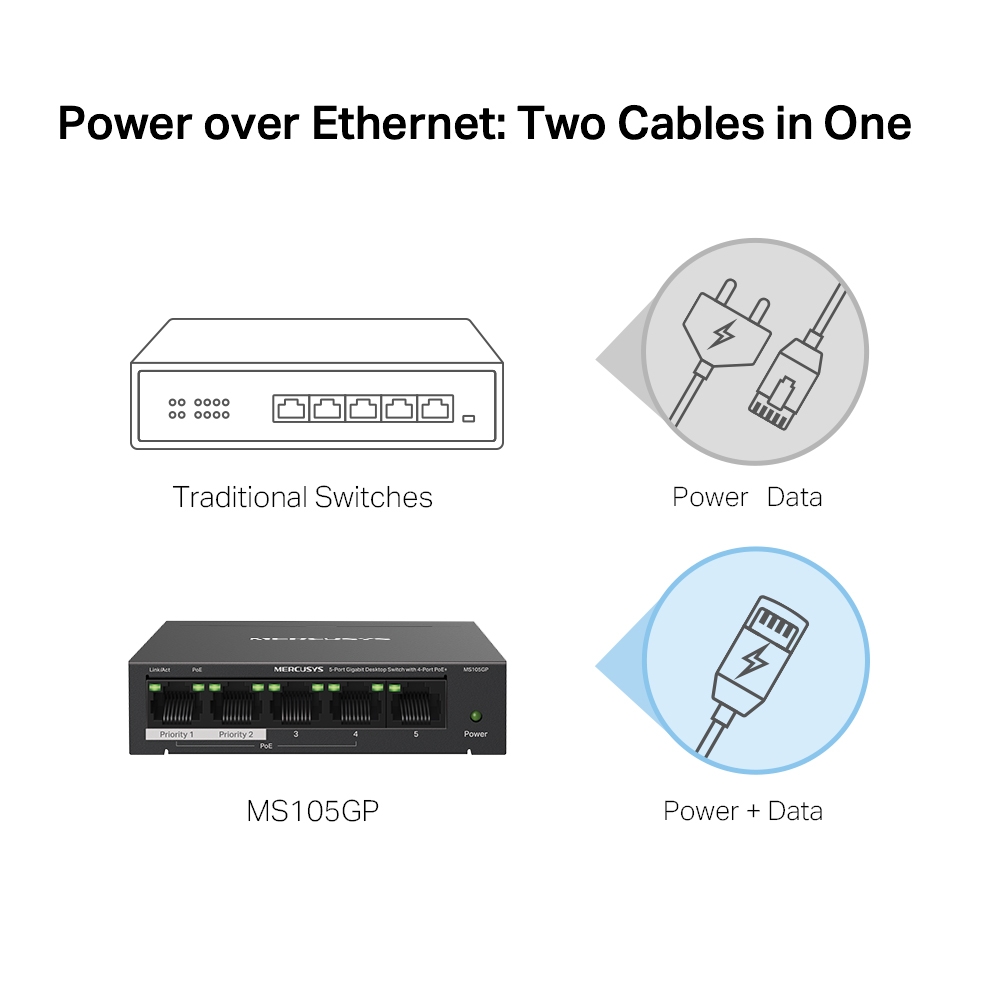

Running data and power over one cable is the core of the pitch. Mercusys says it removes the need for electricians, saves money on extra cables and power adapters, allows more placement options in complex situations, and improves power usage while protecting devices from power surges. For cameras on longer runs, Extend Mode increases PoE transmission distance on ports 1-4 to 250 m. In that mode the port speed drops to 10 Mbps, and the actual distance depends on the power draw of the PoE devices and the cable quality and type.

Two further features help on small camera networks. Flip the isolation switch and ports 1-4 can no longer see each other's traffic, which guards against snooping and isolates broadcast storms. Port prioritisation gives specific ports precedence so voice and video keep their quality. Beyond that the MS105GP is plug and play, with auto-negotiation and automatic MDI/MDIX and no configuration. Mercusys lists 802.3x flow control, IGMP snooping v1/v2/v3, a 2K MAC table, 9 KB jumbo frames and store-and-forward switching.

The switch measures 99.8 x 98 x 25 mm in a durable metal case that Mercusys says aids heat dissipation and interference prevention, and it can be installed on a desk or wall. Power comes from an external 53.5 V / 1.31 A adapter. Maximum power consumption is 3.13 W with no powered device connected and 75.15 W with a 65 W load (220 V / 50 Hz). Operating temperature is 0-40 °C at 10-90% RH non-condensing. In the box: the MS105GP, a power adapter and a Quick Installation Guide.

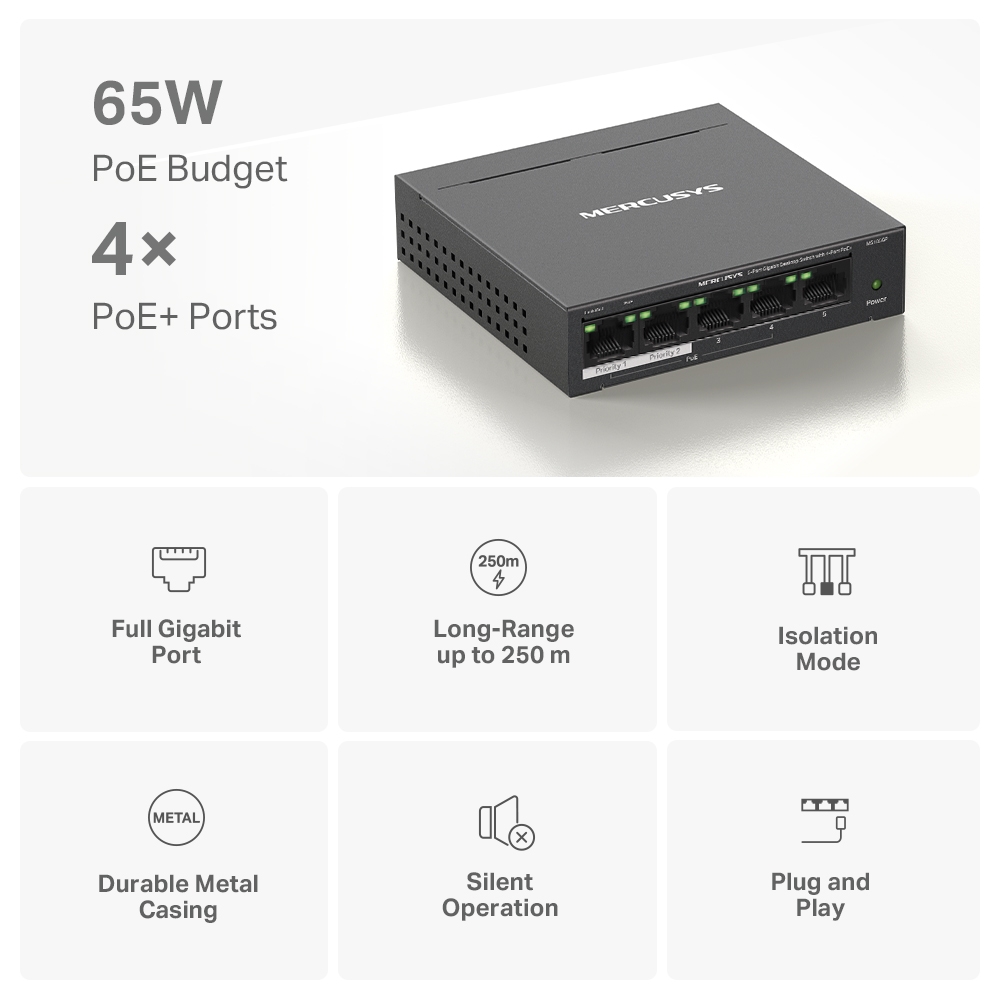

Key features

Four PoE+ ports

Ports 1-4 compliant with 802.3af/at powered devices.

65 W PoE budget

Up to 30 W per port; budget based on laboratory testing.

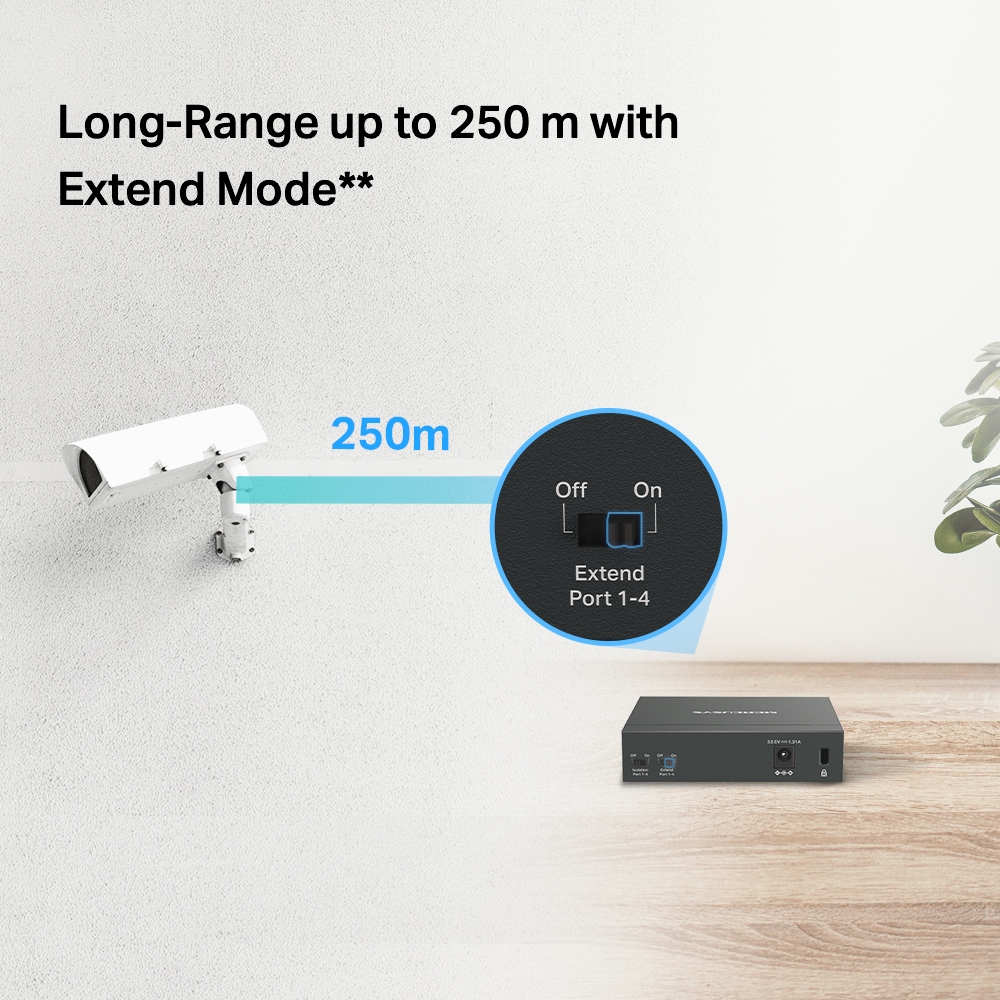

250 m Extend Mode

Longer PoE runs on ports 1-4, with speed reduced to 10 Mbps.

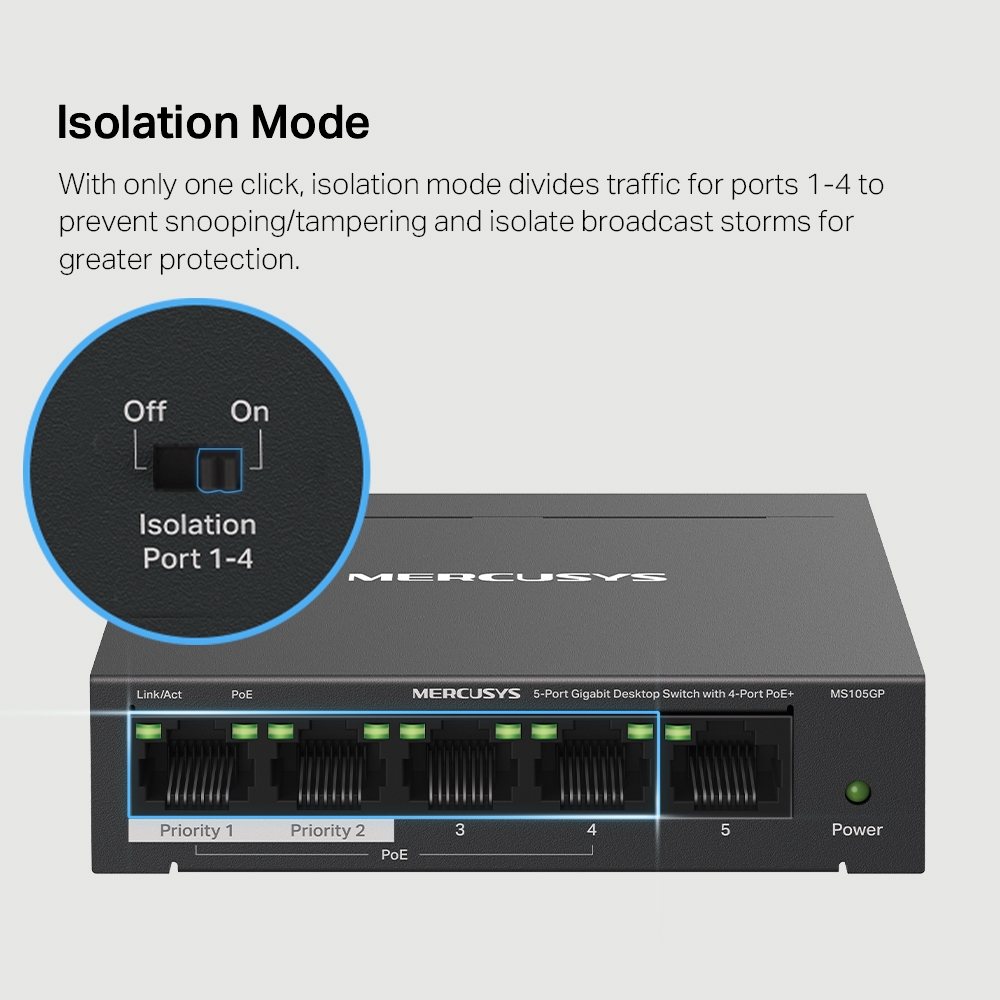

Isolation Mode

One click separates traffic on ports 1-4.

Port prioritisation

Keeps voice and video traffic ahead on selected ports.

Metal desktop case

99.8 x 98 x 25 mm, for desk or wall.

MS105GP specifications

At a glance

5 x Gigabit RJ45
4 x PoE+
65 W PoE budget
30 W per port
250 m Extend Mode
Isolation Mode
IGMP snooping
Metal case
MS105GP full specifications
Specifications
Transfer MethodStore and Forward
ManagementPlug and Play
Advanced Features802.3x Flow Control; IGMP Snooping V1/V2/V3; Isolation Mode; Extend Mode
Dimensions (W X D X H)99.8 98 25mm
PoE PortsRJ45; Standard: Compliant with 802.3 af/at Powered Devices; PoE Ports: Port 1- Port 4; PoE Power Budget: 65 W
Interfaces5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power SupplyExternal Power Adapter (Output: 53.5V/1.31A)
InstallationDesktop; Wall Mount
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates10/100/1000 Mbps at Half Duplex; 20/200/2000 Mbps at Full Duplex
Jumbo Frame9 KB
LEDEthernet Ports (1, 2, 3, 4, 5), Power
Mac Address Table2K
Max Power Consumption3.13W(220 V / 50 Hz, no PD connected); 75.15W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation10.64 BTH/h (no PD connected); 255.51 BTH/h(with 65W PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% RH non-condensing; Storage Humidity: 5%~95% RH non-condensing

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

What's in the box

  • 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
  • Power Adapter
  • Quick Installation Guide

Source: Mercusys's published package contents.

Who the MS105GP is for

Small camera kits

  • Four PoE+ camera ports
  • 250 m Extend Mode
  • Isolation on ports 1-4

Access points and phones

  • Up to 30 W per port
  • 802.3af/at compatible
  • Priority for voice and video

Dormitories and small shops

  • One cable for power and data
  • Plug and play
  • Wall-mountable metal case

MS105GP compared

The MS105GP against its Mercusys 5-port siblings. It is the only one of the four that supplies PoE, with four PoE+ ports sharing 65 W; the MS105G and MS105GS are data-only Gigabit switches and the MS105GS-M2 is a data-only 2.5 Gbps model. Figures come from each Mercusys Australia product page.

SpecificationMS105GMS105GSMS105GPMS105GS-M2
RJ45 ports5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 10/100/1000 Mbps5 x 100 Mbps/1/2.5 Gbps
PoENoneNone4 x PoE+ (ports 1-4), 65 W budgetNone
Switching figureUp to 10 GbpsUp to 10 GbpsNot stated25 Gbps
Jumbo frame16 KB15 KB9 KB12 KB
CasingRed and black compact designMetalMetalMetal, fanless
Power adapter output5 V / 0.6 A5 V / 0.6 A53.5 V / 1.31 A9 VDC / 0.6 A
Dimensions105 x 70 x 24.9 mm3.92 x 3.86 x 0.99 in99.8 x 98 x 25 mm99.8 x 98 x 25 mm

Source: Mercusys Australia product pages for each model.

Buy the MS105GP from ARC IP Networks

ARC IP Networks supplies Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MS105GP from the ARC IP Networks team.

Last reviewed October 2026.

Four. Ports 1-4 are PoE+; the fifth Gigabit port carries data only.

65 W in total with up to 30 W per port. Mercusys says the budget is based on laboratory testing and is not guaranteed.

With Extend Mode on, PoE reaches up to 250 m, but those ports drop to 10 Mbps and the distance depends on cable and device power draw.

It separates traffic on ports 1-4 with one switch, helping prevent snooping and isolating broadcast storms.

Yes. It auto-negotiates speed and MDI/MDIX and needs no configuration.

The MS106GP adds a sixth Gigabit port, PoE Auto Recovery and 12 Gbps switching capacity; both have four PoE+ ports and a 65 W budget.

An external power adapter with 53.5 V / 1.31 A output.

The MS105GP, a power adapter and a Quick Installation Guide.

Need more than one MS105GP for a small camera or access point job?

Ask ARC IP Networks for volume and project pricing on Mercusys products.
