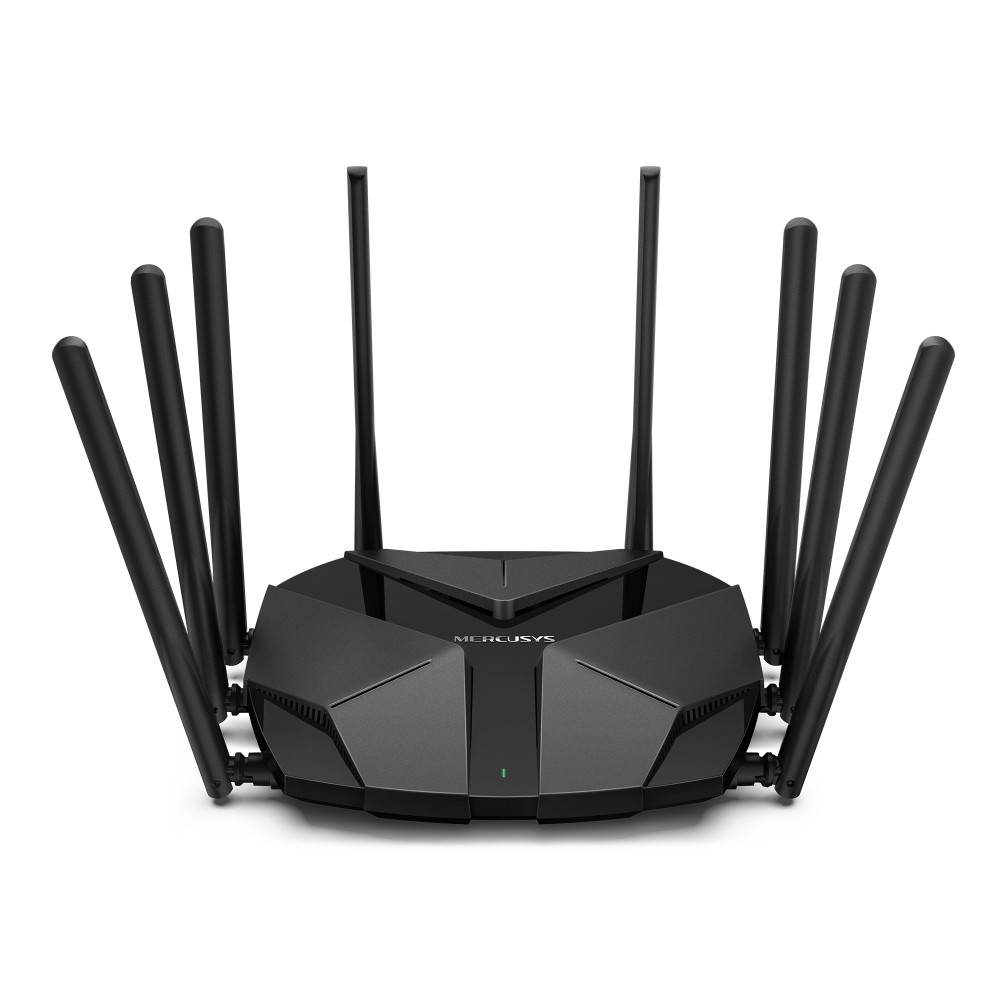

Mercusys MR90X AX6000 8-Stream Wi-Fi 6 Router

https://arcip.com.au/web/image/product.template/8125/image_1920?unique=cdb3afc

The Mercusys MR90X is an AX6000 8-stream Wi-Fi 6 router with 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. It supports 160 MHz channels, 1024-QAM, OFDMA and 4x4 MU-MIMO, uses a quad-core 1.6 GHz processor and eight fixed antennas, and provides a 2.5 Gbps WAN/LAN port, a gigabit WAN/LAN port and two gigabit LAN ports.

$ 202.74 202.74 AUD $ 202.74 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Router 5G TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MR90X
Barcode
6957939000875
Tags

The Mercusys MR90X is an AX6000 8-stream Wi-Fi 6 router. It reaches 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz with 160 MHz channels and 4x4 MU-MIMO, runs on a quad-core 1.6 GHz processor, and has eight antennas and a 2.5 Gbps WAN/LAN port.

MR90X overview

The MR90X is an AX6000 router with eight Wi-Fi streams. Mercusys rates it at 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz, roughly 6000 Mbps combined, and describes it as 2.3 times faster than an 802.11ac 4x4 dual-band router rated at 2600 Mbps. The figures are maximum physical rates from IEEE 802.11 and are not guaranteed in real conditions, where building materials, obstacles, traffic and client location all affect results.

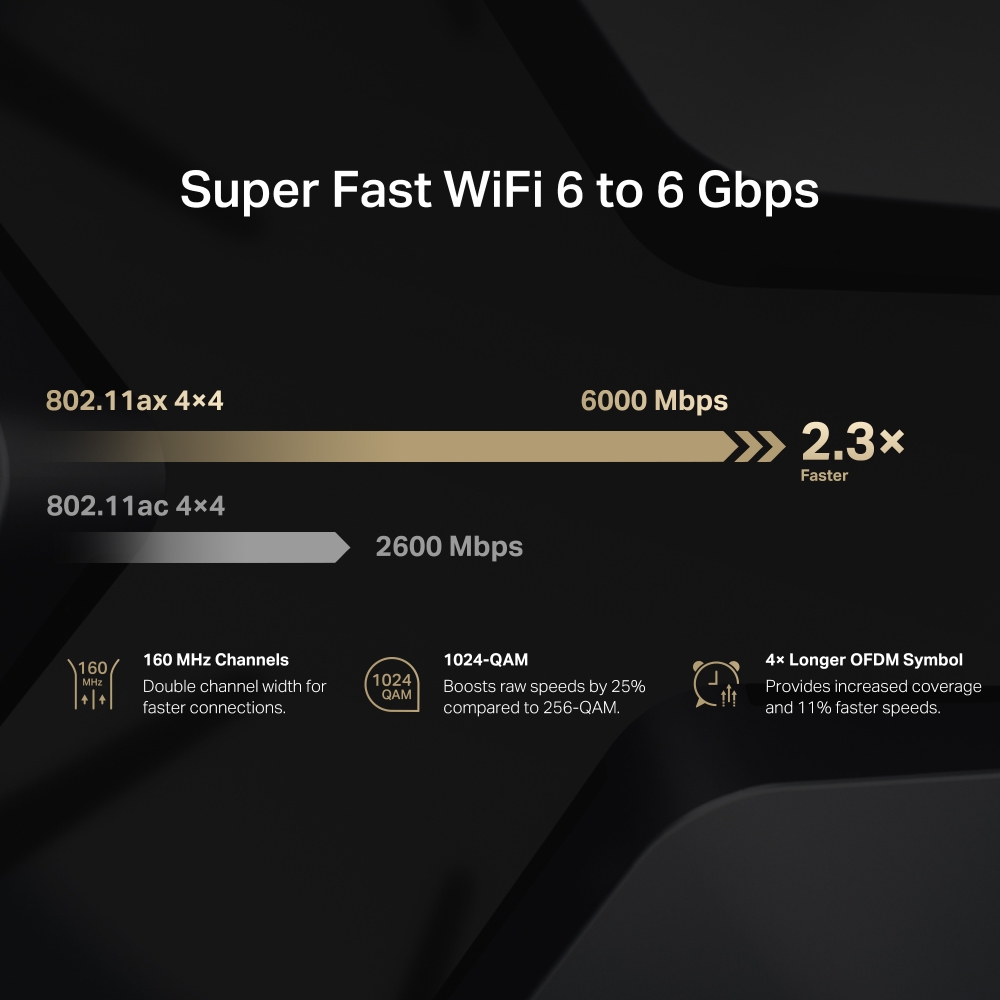

Speed comes from 160 MHz channels, 1024-QAM and a four-times-longer OFDM symbol. Mercusys says 1024-QAM boosts raw speed by 25% over 256-QAM, and the longer symbol adds coverage and 11% faster speeds. OFDMA and 4x4 MU-MIMO allow multiple clients to transmit simultaneously, which Mercusys ties to the 802.11ax goal of at least four times the average per-station throughput in dense deployments. BSS Colouring reduces neighbour interference, and Target Wake Time saves battery on compatible devices. These features require client support, and 160 MHz on 5 GHz may be unavailable in some regions.

A quad-core 1.6 GHz processor handles heavy traffic, and Mercusys quotes stable connections for up to 256 devices, the combined 2.4 GHz and 5 GHz total under laboratory conditions. Eight fixed omnidirectional antennas with beamforming extend coverage around the home.

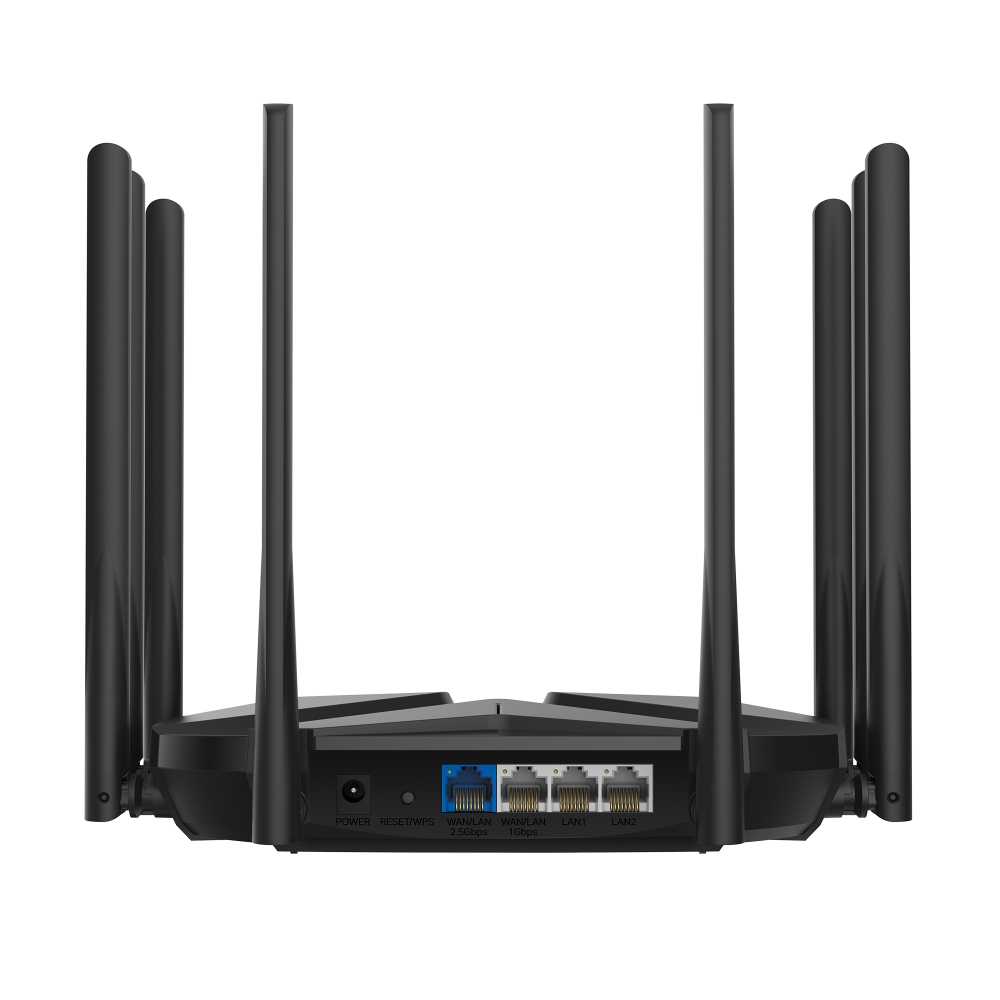

The port layout is flexible: one 2.5 Gbps WAN/LAN port, one gigabit WAN/LAN port and two gigabit LAN ports. Because both multi-purpose ports support WAN or LAN, you can choose which one carries the internet connection, for example the 2.5 Gbps port for a multi-gig service or for a fast NAS. Router and Access Point modes are available.

For service providers, Mercusys highlights ISP Preset (Agile Config), which customises default settings such as logo, WAN type, SSID, password, time zone and language one device at a time or in batches, and TR-069 remote management for integration with an ACS. Home features include WPA3 security (clients must support it), Smart Connect, guest networks on both bands, parental controls with profiles and time limits, OpenVPN and PPTP VPN server support, port forwarding, an SPI firewall and IP and MAC binding. The MR90X measures 209 x 172.2 x 42.4 mm, has a combined Reset/WPS button and operates from 0 to 40 °C.

Key features

AX6000 8-stream Wi-Fi 6

4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz.

4x4 MU-MIMO and OFDMA

Serves many devices at once in busy households.

Quad-core 1.6 GHz CPU

Handles heavy traffic for up to 256 devices (lab figure).

Eight fixed antennas

Omnidirectional high-gain antennas with beamforming.

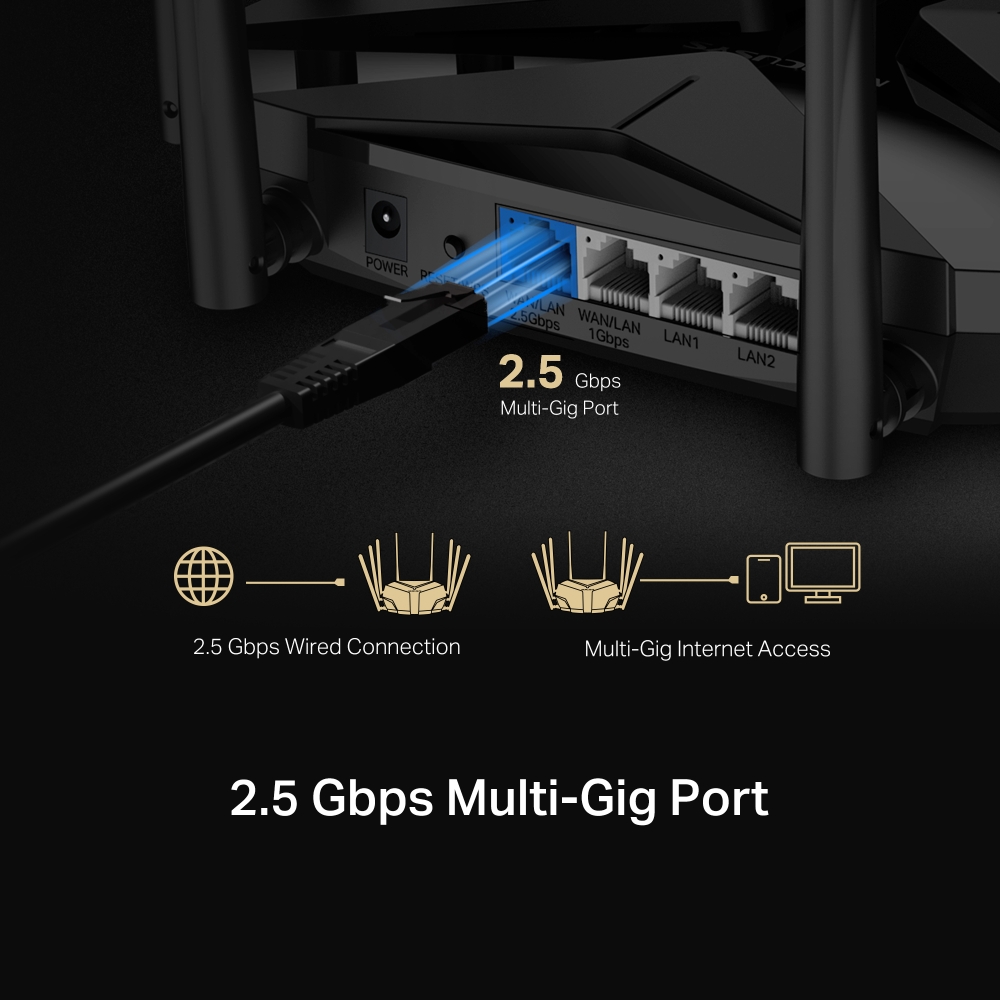

2.5 Gbps WAN/LAN port

Use it for a multi-gig internet service or a fast wired device.

Flexible WAN/LAN ports

A gigabit WAN/LAN port and two gigabit LAN ports as well.

160 MHz and 1024-QAM

Wider channels and denser modulation for compatible clients.

ISP Preset and TR-069

Provider tools for batch configuration and remote management.

MR90X specifications

At a glance

AX6000 Wi-Fi 6
4804 + 1148 Mbps
8 streams
4x4 MU-MIMO
Quad-core 1.6 GHz
8 x antennas
2.5 Gbps WAN/LAN
Up to 256 devices
MR90X full specifications
Specifications
Wireless StandardsCompatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
Signal Rate4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)
Reception Sensitivity11g 6Mbps: -97dBm; 11g 54Mbps: -79dBm; 11n HT40 MCS7:-74dBm; 11n HT20 MCS7:-77dBm; 11a 6Mbps: -97dBm; 11a 54Mbps: -79dBm; 11ac VHT20 MCS8:-75dBm; 11ac VHT40 MCS9:-71dBm; 11ac VHT80 MCS9:-67dBm; 11ax VHT20 MCS11:-67dBm; 11ax VHT40 MCS11:-64dBm; 11ax VHT80 MCS11:-61dBm
Transmission Power2.4 GHz < 20dBm (EIRP); 5 GHz < 23dBm (band1、 band2); 5 GHz < 30dBm (band3)
Wireless SecurityWPA / WPA2-Personal, WPA2 / WPA3-Personal
Wireless FunctionsEnable/Disable Wireless Radio, WMM
WAN TypeDynamic IP/Static IP/PPPoE/L2TP/PPTP
ManagementAccess Control; Local Management; Remote Management
DHCPServer, DHCP Client List
NAT ForwardingPort Forwarding, Port Triggering, UPnP, DMZ
Firewall SecuritySPI Firewall, IP and MAC Address Binding
Guest Network2.4 GHz Guest Network, 5 GHz Guest Network
VPN ServerOpenVPN, PPTP supported
Dimensions (W X D X H)8.2 × 6.8 × 1.6 in; (209 × 172.2 × 42.4 mm)
Interfaces1× 2.5 Gbps WAN/LAN Port + 1× Gigabit WAN/LAN Port + 2× Gigabit LAN Ports
ButtonReset/WPS Button
Antenna Type8× Fixed Omni-Directional Antennas
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F); Operating Humidity: 10%~90% Non-Condensing; Storage Humidity: 5%~90% Non-Condensing

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

What's in the box

  • AX6000 8-Stream Wi-Fi 6 Router MR90X
  • Power Adapter
  • Quick Installation Guide
  • RJ45 Ethernet Cable

Source: Mercusys's published package contents.

Who the MR90X is for

Large, busy homes

  • Eight antennas with beamforming
  • Up to 256 devices (lab)
  • 4x4 MU-MIMO

Multi-gig connections

  • 2.5 Gbps WAN/LAN port
  • Choose which port is WAN
  • Gigabit LAN for other devices

ISPs and installers

  • ISP Preset (Agile Config)
  • TR-069 remote management
  • Access Point mode

MR90X compared

The MR90X against the AX3000 Mercusys routers. Figures come from each model's Mercusys Australia product page.

FeatureMR80XMR85XMR90X
Wi-Fi classAX3000AX3000AX6000
5 GHz / 2.4 GHz2402 / 574 Mbps2402 / 574 Mbps4804 / 1148 Mbps
ProcessorQualcomm 64-bit dual-coreNot statedQuad-core 1.6 GHz
Antennas448
2.5 Gbps portNoWANWAN/LAN
Gigabit ports1 WAN + 3 LAN3 LAN1 WAN/LAN + 2 LAN

Source: Mercusys Australia product pages for each model.

Buy the MR90X from ARC IP Networks

ARC IP Networks supplies Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MR90X from the ARC IP Networks team.

Last reviewed October 2026.

AX6000: 4804 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz. These are maximum signal rates, not guaranteed throughput.

Mercusys describes the MR90X as an 8-stream router with 4x4 MU-MIMO, served by eight antennas.

Up to 256, the combined 2.4 GHz and 5 GHz total measured under laboratory conditions.

The 2.5 Gbps and gigabit ports both support WAN or LAN, so you can use either for the internet connection.

Yes, with compatible clients. Mercusys notes 160 MHz on 5 GHz may be unavailable in some regions.

Yes. Mercusys lists OpenVPN and PPTP VPN server support.

Yes. Router mode and Access Point mode are both supported.

The MR90X comes with a power adapter, a Quick Installation Guide and an RJ45 Ethernet cable.

Need more than one MR90X for a large home or small office?

Ask ARC IP Networks for volume and project pricing on Mercusys products.
