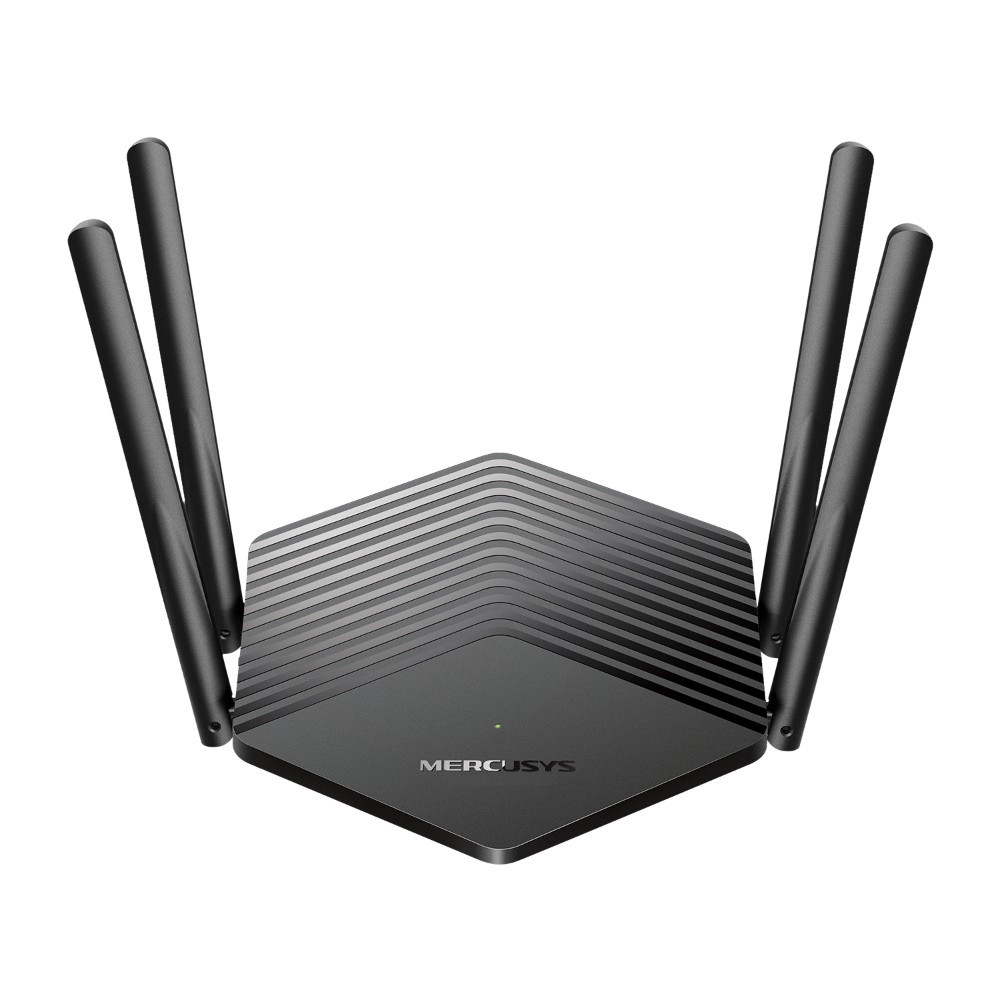

Mercusys MR60X AX1500 Dual-Band Wi-Fi 6 Router

https://arcip.com.au/web/image/product.template/8124/image_1920?unique=cdb3afc

The Mercusys MR60X is an AX1500 Wi-Fi 6 router with signal rates of 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, 80 MHz channels and 1024-QAM. It supports OFDMA, BSS Colour and beamforming, has two 5 dBi 5 GHz antennas and two 4 dBi 2.4 GHz antennas, and provides one gigabit WAN port and three gigabit LAN ports, IPTV settings, WPA3 and EasyMesh compatibility.

$ 77.31 77.31 AUD $ 77.31 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Router TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MR60X
Barcode
6957939001223
Tags

The Mercusys MR60X is an AX1500 dual-band Wi-Fi 6 router for everyday homes. It delivers 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, uses OFDMA, MU-MIMO and BSS Colour to serve several devices efficiently, and has four external high-gain antennas with beamforming, one gigabit WAN port and three gigabit LAN ports.

MR60X overview

The MR60X is Mercusys's AX1500 Wi-Fi 6 router, a step up from Wi-Fi 5 for everyday home networks. It combines 1201 Mbps on 5 GHz with 300 Mbps on 2.4 GHz, and Mercusys compares the 5 GHz figure with 867 Mbps on a 2x2 Wi-Fi 5 router. The higher rate comes from 1024-QAM modulation and a longer OFDM symbol, with channels up to 80 MHz. Mercusys stresses that maximum signal rates are physical rates from the IEEE 802.11 standard, and that real throughput and coverage depend on the building, interference, traffic, product location and the capabilities of each client.

For households with many devices, Mercusys lists OFDMA and MU-MIMO, which let the router transmit to and from several devices at the same time rather than one after another. BSS Colour tags frames from different access points so that neighbouring networks cause less interference, and Target Wake Time helps compatible phones and IoT devices conserve battery. Smart Connect combines 2.4 GHz and 5 GHz under one network name and moves devices to the band with the stronger signal and faster speed.

Coverage comes from four external antennas: two 5 dBi antennas for 5 GHz and two 4 dBi antennas for 2.4 GHz, working with beamforming to concentrate signal towards connected devices. Wired connections are full gigabit, with one WAN and three LAN ports. Mercusys notes that real network speed can be limited by Ethernet port rate, cabling and the internet provider. The MR60X also lists EasyMesh compatibility, so it can share one Wi-Fi name and password with other EasyMesh routers and extenders.

The software includes Router and AP modes, IPTV support (IGMP Proxy, IGMP Snooping, Bridge/Custom and Tag VLAN), IPv6, guest networks on both bands, AP isolation, airtime fairness, a wireless schedule and WPS. Security options are WPA, WPA2 and WPA3, an SPI firewall, access control and IP and MAC binding, while parental controls offer profiles, time control, pausing the internet and website filtering. QoS has time settings and priority control, and DDNS covers Mercusys, NO-IP and DynDNS.

Setup takes a few minutes with on-screen directions in the Mercusys app for iOS or Android, which also manages the router away from home; a web page and Mercusys ID cloud account are listed too. The MR60X measures 175.6 x 157.2 x 45 mm, can be placed on a desk or mounted on a wall, uses a 12 V / 1 A supply and has a system LED, a WPS button and a reset button. It operates from 0 to 40 °C.

Key features

AX1500 Wi-Fi 6

1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.

OFDMA and MU-MIMO

Transmits to several devices at once for better efficiency.

BSS Colour

Reduces interference from neighbouring Wi-Fi networks.

Four high-gain antennas

Two 5 dBi (5 GHz) and two 4 dBi (2.4 GHz) with beamforming.

Full gigabit ports

One gigabit WAN port and three gigabit LAN ports.

Smart Connect

One network name; devices are steered to the stronger band.

IPTV support

IGMP Proxy/Snooping, Bridge/Custom and Tag VLAN.

WPA3 security

With SPI firewall, access control and IP and MAC binding.

MR60X specifications

At a glance

AX1500 Wi-Fi 6
1201 + 300 Mbps
1024-QAM
OFDMA
4 x external antennas
1 x gigabit WAN
3 x gigabit LAN
WPA3
MR60X full specifications
Specifications
Wi-Fi ClassAX1500
Wi-Fi (2.4 GHz)300Mbps
Wi-Fi (5 GHz)1201Mbps
Wireless Standards802.11ax/ac/a/b/g/n
Max Channel Width80MHz
Reception Sensitivity5G:; 11a 6Mbps:-94dBm; 11a 54Mbps:-78dBm; 11ac VHT20 MCS8:-74dBm; 11ac VHT40 MCS8:-70dBm; 11ac VHT80 MCS8:-65dBm; 2.4GHz:; 11g 6Mbps: -97dBm; 11g 54Mbps: -79dBm; 11n HT40 MCS7:-74dBm; 11n HT20 MCS7:-78dBm
Max Wi-Fi Modulation1024 QAM
Wireless SecurityWPA/WPA2/WPA3
Wireless FunctionsGuest Network; Smart Connect; Wireless Schedule; WPS; AP Isolation; Airtime Fairness
Operation ModesRouter/AP
WAN ModeDynamic IP; Static IP; PPPoE; PPTP; L2TP
DHCPAddress Reservation; DHCP Client List; Server
NAT ForwardingPort Forwarding; Port Triggering; DMZ; UPnP
ProtocolsIPv4; IPv6
IPTVIGMP Proxy; IGMP Snooping; Bridge/Custom; Tag VLAN
Guest Network2.4G Guest Network; 5G Guest Network
Parental ControlsProfile Settings; Time Control; Pause the Internet; Website Filtering
DDNSMERCUSYS; NO-IP; DynDNS
Easy MeshEasymesh Compatible
QoSTime Settings; Priority Control
SecuritySPI Firewall; Access Control; IP & MAC Binding
ISP FeatureCWMP; ISP Preset(Agile Config); Superadmin
SystemFirmware Upgrade; Backup and Restore; Administration; System Log; Time & Language Settings; Reboot
DiagnosticsPing; Traceroute
LED ManagementLED Control; Night Mode
Device ManagementMERCUSYS APP; Webpage
CloudMERCUSYS ID
LanguageBulgarian; Czech; Danish; German; English; Spanish; Finnish; French; Hungarian; Italian; Japanese; Korean; Dutch; Norwegian; Polish; Portuguese; Romanian; Russian; Slovak; Swedish; Turkish; Ukrainian; Vietnamese; Chinese; Taiwan
Advanced FeaturesOFDMA; BSS Color; Beamforming
Dimensions (W X D X H)175.6 × 157.2× 45 mm; (6.9 × 6.2 × 1.8 in)

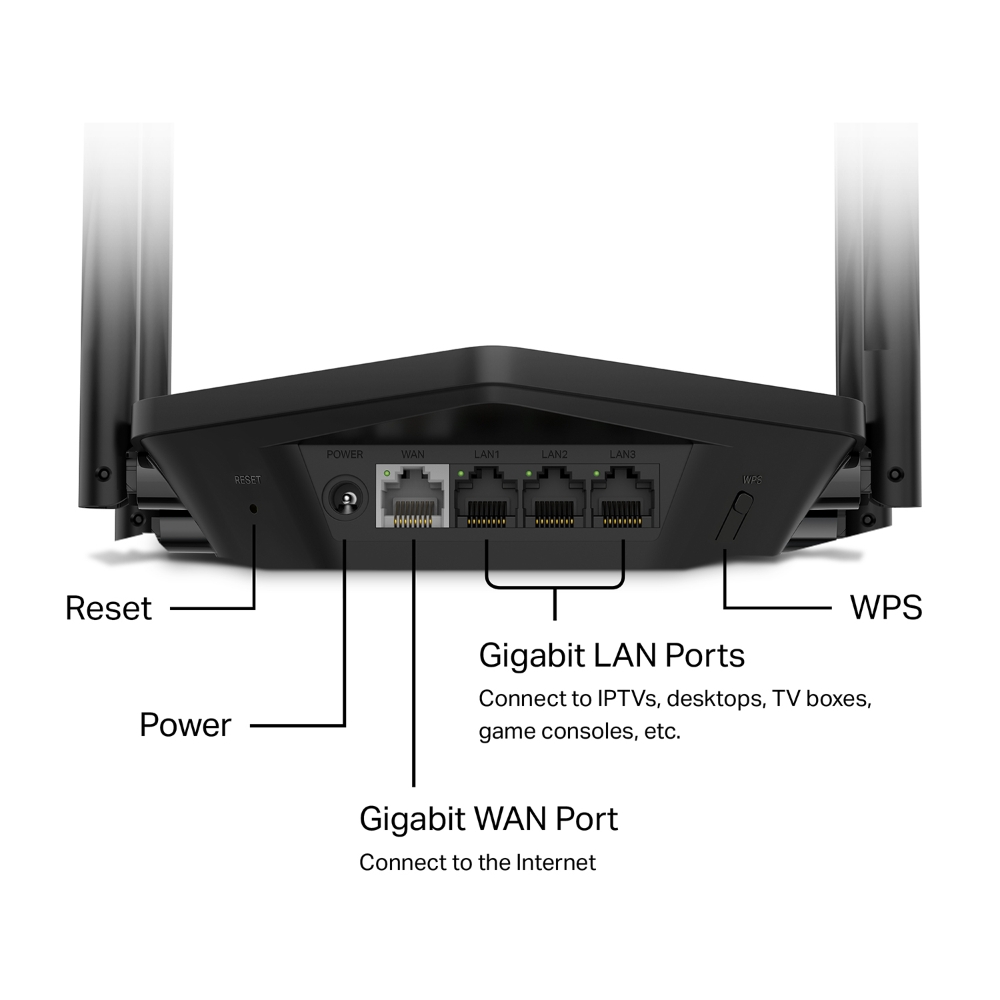

Interfaces1× GE WAN; 3× GE LAN
Antenna2× 5G External Antennas(5dBi); 2× 2.4G External Antennas(4dBi)
Button1× WPS Button; 1× Reset Button
Power SupplyInput:100~240V, 50/60Hz; Output: 12V/1A
InstallationDesktop; Wall-mount
LED1× SYS
Network Services Enabled by DefaultWeb Server; Manage and configure device through web (HTTP/HTTPS); Port: 80/443 Protocol: TCP; DNS; DNS; Port: 53 Protocol: TCP & UDP; DHCP Server; IP address assignment (DHCP); Port: 67 Protocol: UDP; App management; Manage and configure device through app; Port: 20001 Protocol: TCP; Port: 30001 Protocol: TCP; Port: 20002 Protocol: UDP
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F); Operating Humidity: 10%~90% Non-Condensing; Storage Humidity: 5%~90% Non-Condensing

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

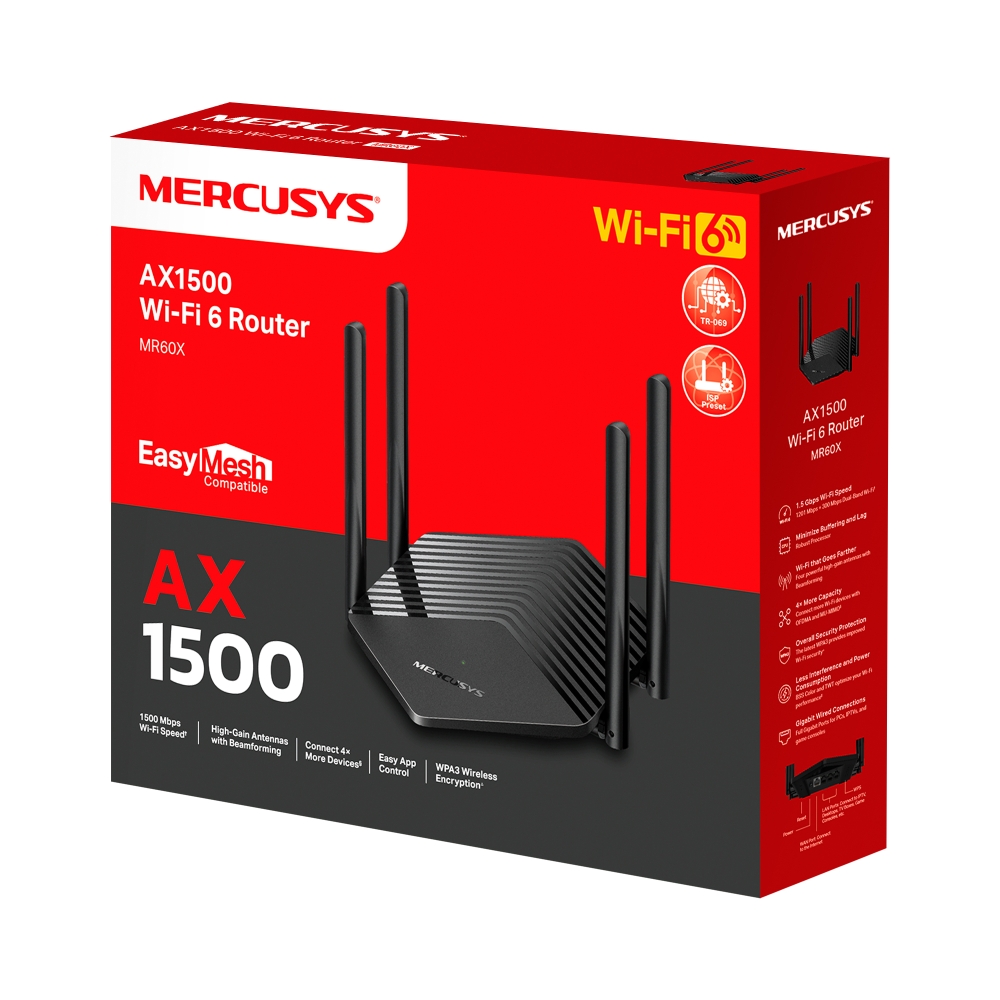

What's in the box

  • AX1500 Wi-Fi 6 Router MR60X
  • Power Adapter
  • Quick Installation Guide
  • RJ45 Ethernet Cable

Source: Mercusys's published package contents.

Who the MR60X is for

First Wi-Fi 6 upgrade

  • 1201 Mbps on 5 GHz
  • Smart Connect single network
  • App setup in minutes

IPTV households

  • IGMP Proxy and Snooping
  • Tag VLAN
  • Gigabit LAN ports for set-top boxes

Families

  • Parental profiles and time control
  • Guest networks on both bands
  • BSS Colour for apartments

MR60X compared

The MR60X with Mercusys's other Wi-Fi 6 routers. Every value comes from the model's Mercusys Australia product page.

FeatureMR60XMR80XMR85X
Wi-Fi classAX1500AX3000AX3000
5 GHz / 2.4 GHz1201 / 300 Mbps2402 / 574 Mbps2402 / 574 Mbps
Max channel width80 MHz160 MHz160 MHz (Mercusys overview)
WAN portGigabitGigabit2.5 Gbps
LAN ports3 x gigabit3 x gigabit3 x gigabit
Dimensions175.6 x 157.2 x 45 mm208.8 x 171.6 x 41.7 mm209 x 171.7 x 42.4 mm

Source: Mercusys Australia product pages for each model.

Buy the MR60X from ARC IP Networks

ARC IP Networks supplies Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MR60X from the ARC IP Networks team.

Last reviewed October 2026.

AX1500: 1201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. These are maximum signal rates, and real-world speeds are lower.

Yes. It uses 802.11ax and is backward compatible with 802.11ac/a/b/g/n devices.

Yes. One gigabit WAN port and three gigabit LAN ports.

No. The maximum channel width listed for the MR60X is 80 MHz. The AX3000 MR80X and MR85X use 160 MHz.

Yes. Mercusys lists Router and AP operation modes.

Yes. It supports IGMP Proxy, IGMP Snooping, Bridge/Custom and Tag VLAN.

Yes. Desktop and wall-mount installation are both listed.

The package includes the MR60X, a power adapter, an Ethernet cable and the Quick Installation Guide.

Need more than one MR60X for home Wi-Fi 6 upgrades?

Ask ARC IP Networks for volume and project pricing on Mercusys products.
