Cisco MGBLX1 Gigabit Ethernet 1000BASE-LX SFP Transceiver, 1310 nm, 10 km SMF

Price:

$ 334.74


Cisco Meraki MG51E 5G Cellular Gateway, External Antennas, Dual SIM, 2x 2.5GbE, IP67, PoE+ (End-of-Sale)
Cisco Meraki MG51E 5G Cellular Gateway, External Antennas, Dual SIM, 2x 2.5GbE, IP67, PoE+ (End-of-Sale)
$ 2,649.93
$ 2,649.93
Cisco Meraki MS150-24P-4G Cloud-Managed Stackable Switch, 24x 1GbE RJ45, 370W PoE, 4x 1G SFP Uplinks
Cisco Meraki MS150-24P-4G Cloud-Managed Stackable Switch, 24x 1GbE RJ45, 370W PoE, 4x 1G SFP Uplinks
$ 4,017.46
$ 4,017.46

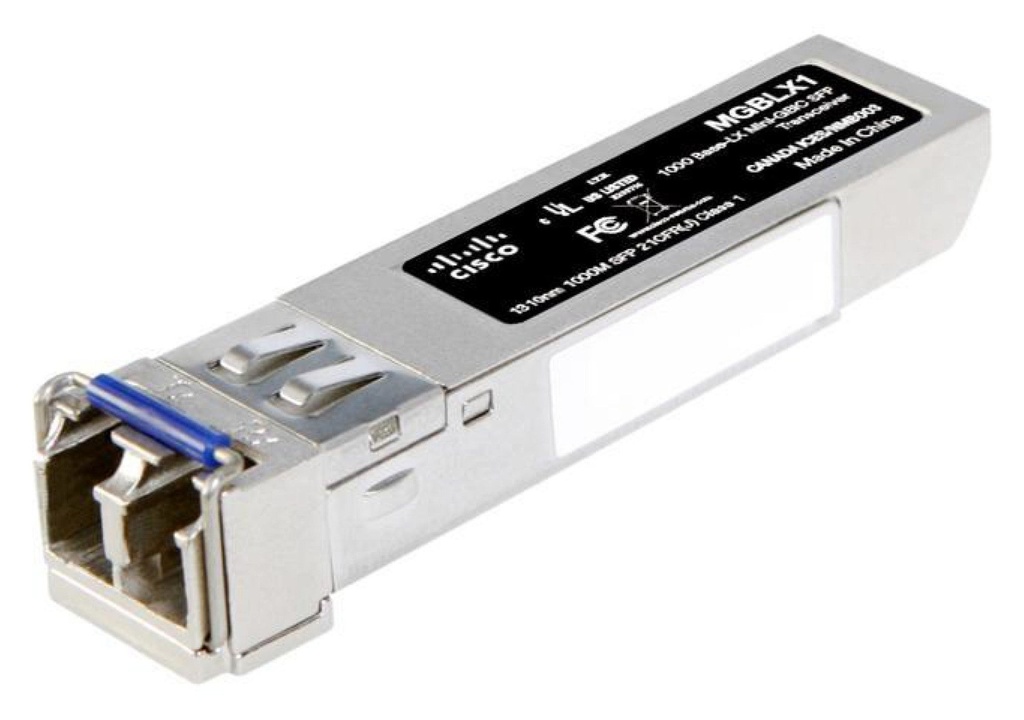

Cisco MGBLX1 Gigabit Ethernet 1000BASE-LX SFP Transceiver, 1310 nm, 10 km SMF

https://arcip.com.au/web/image/product.template/13424/image_1920?unique=59f8d2d

Cisco MGBLX1 Gigabit Ethernet 1000BASE-LX SFP (mini-GBIC) transceiver for single-mode fibre. 1310 nm wavelength, up to 10 km, duplex LC connector. Average output power -9.5 to -3 dBm, receiver sensitivity -20 dBm typical, 1 W maximum, operating temperature 0 to 70°C. Hot swappable with an integrated spring latch. Listed as a supported SFP for Cisco Catalyst 1200, Catalyst 1300 and Cisco Business 220 switches. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 334.74 334.74 AUD $ 334.74 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MGBLX1

Cisco MGBLX1 at a glance

The Cisco MGBLX1 is a 1000BASE-LX Gigabit Ethernet SFP (mini-GBIC) transceiver for single-mode fibre, using 1310 nm and reaching up to 10 km over a duplex LC connector. It is hot swappable and adds fibre uplinks to Cisco small business and Catalyst 1200 and 1300 switches.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco MGBLX1 through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

ReachUp to 10 km SMF
Standard1000BASE-LX
ConnectorDuplex LC, 1310 nm
Power1 W max

Best for

  • Linking switches on different floors or in separate buildings
  • Gigabit fibre uplinks on Catalyst 1200 and 1300 switches
  • Small campus links between sites over single-mode fibre

Key features

1000BASE-LX SFP transceiver for single-mode fibre.

1310 nm wavelength, up to 10 km.

Duplex LC connector.

Hot swappable to maintain network availability.

Integrated spring latch for easy removal.

Average output power -9.5 to -3 dBm; receiver sensitivity -20 dBm typical.

Maximum power 1 W; operating temperature 0 to 70°C.

Listed as a supported SFP for Catalyst 1200, Catalyst 1300 and Cisco Business 220 switches.

Cisco MGBLX1 specifications

Cisco MGBLX1 technical specifications
SpecificationValue
Interface
Application1000BASE-LX
MediaSingle-mode fibre (SMF)
ConnectorDuplex LC
Maximum distanceUp to 10 km
Optical
Wavelength (Tx)1310 nm
Wavelength range (Rx)1310 nm
Average output power-9.5 dBm to -3 dBm
Receiver sensitivity-20 dBm (typ)
Receiver overload-3 dBm
Physical and power
Dimensions (W x H x D)13.4 x 8.5 x 55.7 mm
Power1 W (max)
Environment
Operating temperature0 to 70°C
Storage temperature-40 to 85°C
Operating humidity10% to 85% noncondensing
Storage humidity5% to 90% noncondensing
Compliance
EmissionsFCC Part 15 Class B, EN55022 Class B (CISPR 22B), VCCI Class B
SafetyFDA 21 CFR 1040.10 and 1040.11, EN60950, EN (IEC) 60825-1, 2
Package
ContentsCisco SFP transceiver, quick start guide
RequirementSwitch with SFP port

Figures from Cisco's official data sheet.

The Cisco MGBLX1 in depth

Gigabit fibre for small business switches

The MGBLX1 is one of Cisco's MGE SFP (mini-GBIC) modules, an easy way to add fibre connectivity or an extra Gigabit Ethernet port to a switch. It runs 1000BASE-LX at 1310 nm over single-mode fibre for up to 10 km.

Where it fits

Cisco positions MGE transceivers for links between switches on different floors, in separate buildings or across a small campus. The Catalyst 1200, Catalyst 1300 and Cisco Business 220 data sheets list the MGBLX1 as a supported SFP module.

Frequently asked questions

Straight answers about the Cisco MGBLX1 from the ARC IP Networks team. Last reviewed October 2026.

Up to 10 km over single-mode fibre at 1310 nm.

A duplex LC connector.

The Cisco Catalyst 1200, Catalyst 1300 and Cisco Business 220 Series data sheets list it; Cisco also says to consult the module quick start guide for interoperability.

Yes. Cisco lists it as hot swappable with an integrated spring latch.

Cisco lists 1 W maximum.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco MGBLX1 through Cisco's authorised Australian distribution, with a GST tax invoice.

Related Cisco products

Explore the full Cisco range: Cisco Australia hub · Shop all Cisco

Buy the Cisco MGBLX1 in Australia

ARC IP Networks is a Cisco Registered Partner, supplying Cisco switching, wireless, collaboration and security products to businesses, schools and integrators across Australia.

  • Genuine Cisco: sourced through Cisco's authorised Australian distribution, never grey import.
  • Australia-wide delivery, with Australian power where a power supply is included.
  • Manufacturer's warranty and local pre-sales help choosing the right model and licence.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Cisco network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Cisco model and licence for your site.
