TP-Link MC212CS-2 Omada Gigabit WDM Media Converter

Price:

$ 37.49


TP-Link MC211CS-20 Omada Gigabit WDM Media Converter
TP-Link MC211CS-20 Omada Gigabit WDM Media Converter
$ 49.01
$ 49.01
TP-Link MC212CS-20 Omada Gigabit WDM Media Converter
TP-Link MC212CS-20 Omada Gigabit WDM Media Converter
$ 55.43
$ 55.43

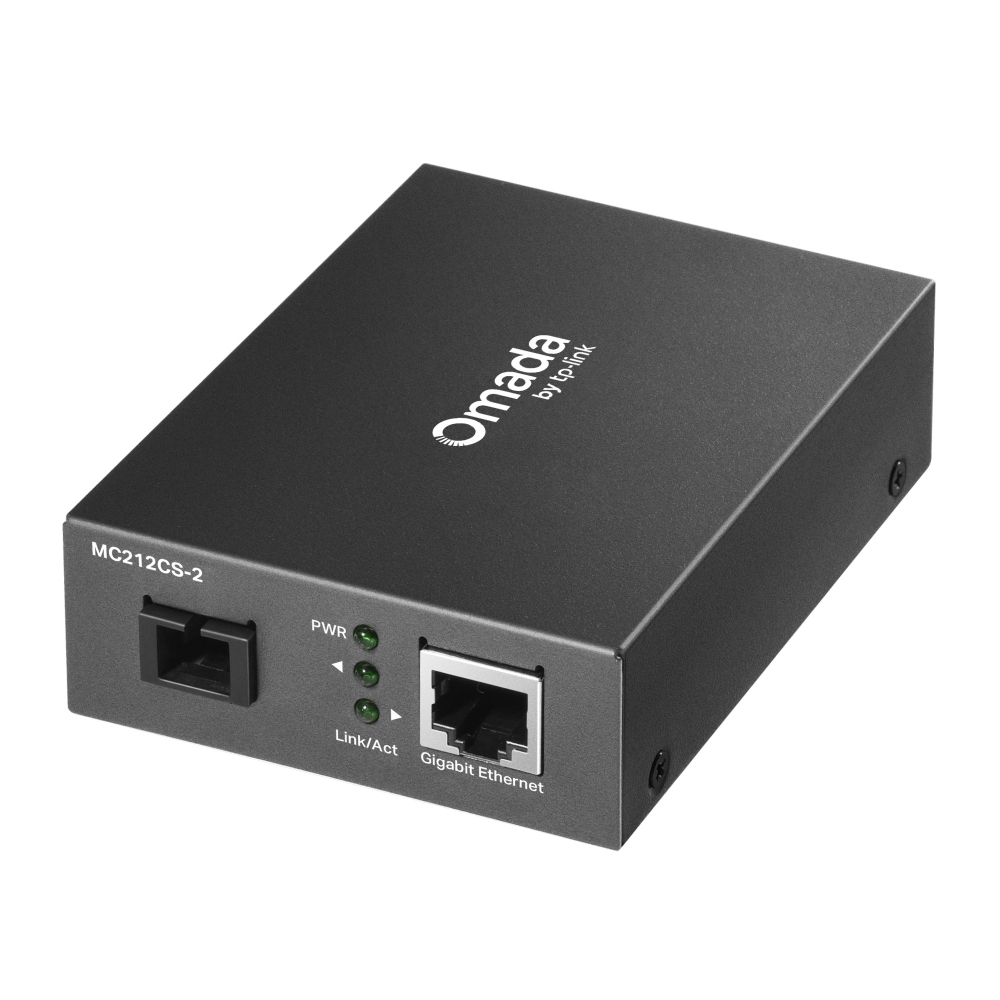

TP-Link MC212CS-2 Omada Gigabit WDM Media Converter

https://arcip.com.au/web/image/product.template/8118/image_1920?unique=73ac110

The TP-Link MC212CS-2 is an Omada Gigabit WDM media converter with one gigabit SC/UPC fibre port and one 10/100/1000 Mbps RJ45 port with Auto MDI/MDIX, converting between electrical and optical signals. WDM technology lets it transmit and receive data on a single fibre, extending fibre distance up to 2 km, with a 1310 nm TX and 1550 nm RX wavelength. It supports auto-negotiation of half/full duplex and IEEE 802.3x flow control, and runs from an external 9 V power adapter. TP-Link cites uses such as park security monitoring and wireless networking. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 37.49 37.49 AUD $ 37.49 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
SFP TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MC212CS-2
Barcode
1210002601115
Tags

The TP-Link MC212CS-2 is an Omada gigabit WDM media converter that converts between electrical and optical signals: one gigabit SC/UPC fibre port and one 10/100/1000 Mbps RJ45 port with auto MDI/MDIX, transmitting at 1310 nm and receiving at 1550 nm. TP-Link names park security monitoring and wireless networking as commercial scenarios for its long-distance fibre transmission.

MC212CS-2 overview

The MC212CS-2 is a gigabit media converter from TP-Link's Omada range. It provides a gigabit RJ-45 port and a gigabit SC fibre port and converts between electrical and optical signals, so a copper Ethernet device or network can be connected over optical fibre. The fibre side is one Gigabit SC/UPC fibre port and the copper side is one 10/100/1000 Mbps RJ45 port with auto MDI/MDIX. TP-Link states that long-distance data transmission through optical fibre can be applied to commercial scenarios such as park security monitoring and wireless networking, and these are the applications it names for the MC212CS-2.

The standards and protocols TP-Link lists for the MC212CS-2 are IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X and IEEE 802.3x flow control. The MC212CS-2 is a WDM model: its wavelength specification is 1310 nm TX and 1550 nm RX. TP-Link's MC211CS-2 Gigabit WDM Media Converter has the opposite specification, 1550 nm TX and 1310 nm RX, so the two models' wavelengths are complementary. The comparison table below sets their published specifications side by side so you can check the wavelengths before ordering each end of a link.

Physically, the MC212CS-2 measures 94.5 x 73 x 27 mm. It runs from an external power adapter rated at 9 V / 0.6 A, which is included in the box, and PWR and Link/Act LEDs show power and link activity. The operating temperature range is -5 to 50 °C (23 to 122 °F) at 10 to 90% RH non-condensing humidity, and the storage range is -40 to 70 °C (-40 to 158 °F) at 5 to 90% RH non-condensing humidity.

In the box are the MC212CS-2 media converter, a power adapter and an installation guide. Before ordering, confirm the fibre and the equipment at the far end of the link. The MC212CS-2 has one gigabit SC/UPC fibre port and transmits at 1310 nm and receives at 1550 nm, while the copper side accepts 10, 100 or 1000 Mbps devices through its RJ45 port. For a link built from two TP-Link converters of this series, the MC211CS-2 provides the opposite wavelengths. ARC IP Networks supplies the MC212CS-2 from Australian stock with the full manufacturer's warranty.

Key features

Electrical to optical conversion

Converts between electrical and optical signals, linking a copper RJ45 network to optical fibre.

Gigabit SC/UPC fibre port

One gigabit SC/UPC fibre port supporting IEEE 802.3z 1000BASE-X.

10/100/1000 Mbps RJ45 port

One 10/100/1000 Mbps RJ45 port with auto MDI/MDIX.

1310 nm Tx / 1550 nm Rx

WDM wavelengths of 1310 nm transmit and 1550 nm receive; the MC211CS-2 uses the opposite pair.

IEEE 802.3x flow control

Flow control is listed among the supported standards and protocols.

Long-distance fibre transmission

TP-Link names park security monitoring and wireless networking as commercial scenarios.

Status LEDs

PWR and Link/Act LEDs show power and link activity.

-5 to 50 °C operating

Rated for -5 to 50 °C operation and powered by an included 9 V / 0.6 A external adapter.

MC212CS-2 specifications

At a glance

Gigabit WDM
1 x SC/UPC fibre
1 x 10/100/1000 RJ45
1310 nm Tx
1550 nm Rx
802.3z 1000BASE-X
9 V / 0.6 A adapter
-5 to 50 °C
MC212CS-2 full specifications
Network
Standards and ProtocolsIEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3z 1000BASE-X; IEEE 802.3x Flow Control
Hardware Features
Interface1× Gigabit SC/UPC Fibre Port; 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Power SupplyExternal Power Adapter: 9 V/0.6 A
LEDPWR, Link/Act
Wave Length1310 nm TX, 1550 nm RX
Dimensions ( W x D x H )94.5x73x27 mm (37.2x28.7x10.6 in)
Environment
Operating Temperature-5˚C to 50˚C (23˚F to 122˚F)
Storage Temperature-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity10% to 90% RH non-condensing
Storage Humidity5% to 90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Media Converter MC212CS-2
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the MC212CS-2 is for

Park security monitoring

  • Long-distance transmission over optical fibre
  • Gigabit RJ45 port for the copper side
  • -5 to 50 °C operating range

Wireless networking

  • Gigabit SC/UPC fibre port
  • Auto MDI/MDIX on the RJ45 port
  • Complementary wavelengths with the MC211CS-2

MC212CS-2 compared

The MC212CS-2 and MC211CS-2 are both TP-Link Omada gigabit WDM media converters. Their published specifications are the same except for the wavelengths, which are reversed.

FeatureMC212CS-2MC211CS-2
Wavelength1310 nm TX, 1550 nm RX1550 nm TX, 1310 nm RX
Fibre port1 x Gigabit SC/UPC1 x Gigabit SC/UPC
Copper port1 x 10/100/1000 Mbps RJ45 (Auto MDI/MDIX)1 x 10/100/1000 Mbps RJ45 (Auto MDI/MDIX)
Power supplyExternal adapter, 9 V / 0.6 AExternal adapter, 9 V / 0.6 A
LEDsPWR, Link/ActPWR, Link/Act
Dimensions94.5 x 73 x 27 mm94.5 x 73 x 27 mm
Operating temperature-5 to 50 °C-5 to 50 °C

Source: TP-Link Australia product pages for each model.

Buy the MC212CS-2 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MC212CS-2 from the ARC IP Networks team.

Last reviewed October 2026.

It is a gigabit media converter that converts between electrical and optical signals, with one gigabit RJ-45 port and one gigabit SC fibre port.

It transmits at 1310 nm and receives at 1550 nm.

The published specifications are the same except the wavelengths: the MC212CS-2 is 1310 nm TX / 1550 nm RX and the MC211CS-2 is 1550 nm TX / 1310 nm RX.

One Gigabit SC/UPC fibre port.

10/100/1000 Mbps, with auto MDI/MDIX.

IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X and IEEE 802.3x flow control.

TP-Link names commercial scenarios such as park security monitoring and wireless networking for long-distance data transmission through optical fibre.

By an external power adapter rated at 9 V / 0.6 A, which is included in the box.

-5 to 50 °C operating at 10 to 90% RH non-condensing, and -40 to 70 °C in storage.

The MC212CS-2 media converter, a power adapter and an installation guide.

Need more than one MC212CS-2 for a fibre link project?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link Omada products.
