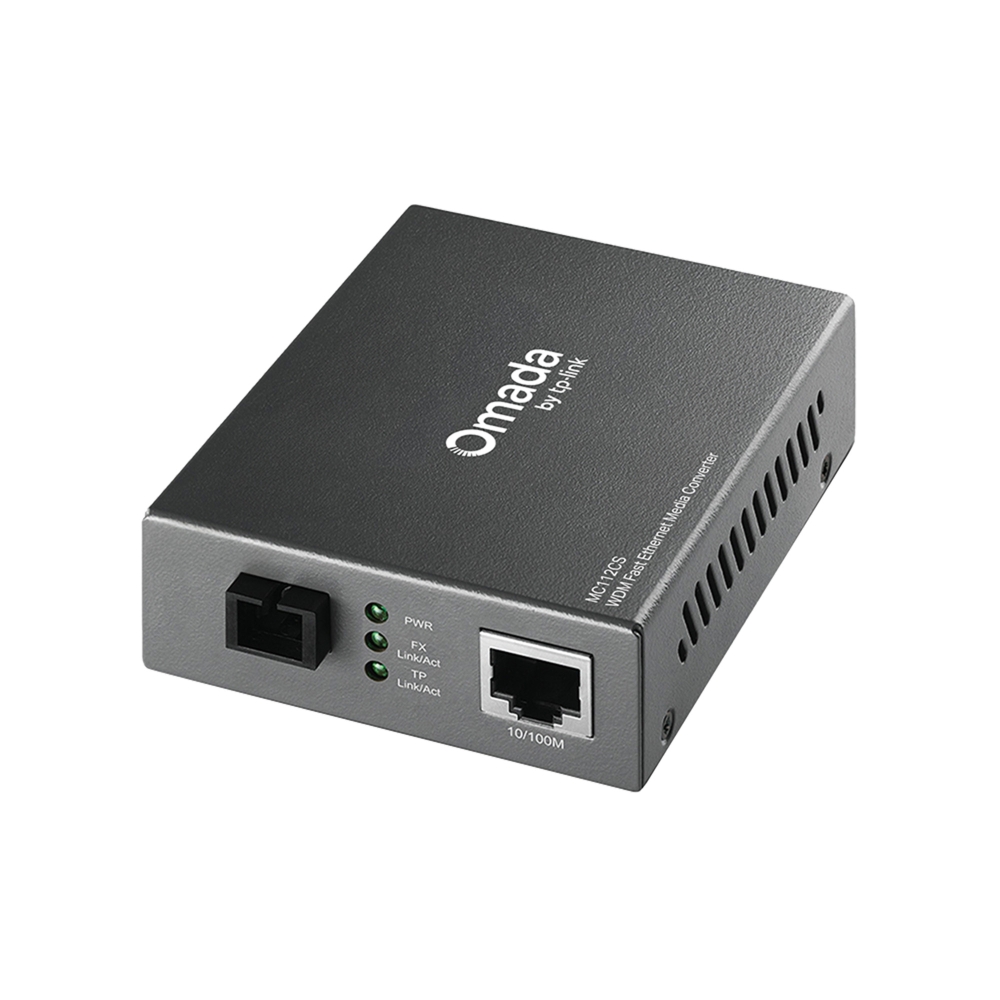

TP-Link MC112CS Omada 10/100Mbps WDM Media Converter

https://arcip.com.au/web/image/product.template/8113/image_1920?unique=6bbe47d

The TP-Link MC112CS is an Omada 10/100 Mbps WDM media converter that converts 100BASE-FX fibre to 10/100BASE-TX copper and vice versa. It has one 100M SC/UPC fibre port and one 10/100M RJ45 port with Auto MDI/MDIX. Using WDM technology, it transmits and receives over a single strand of single-mode fibre at distances of up to 20 km, sending at 1310 nm and receiving at 1550 nm, so the far end must use the opposite wavelengths, such as the TP-Link MC111CS. It can be used as a standalone unit or installed in the TP-Link MC1400 chassis. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 31.80 31.8 AUD $ 31.80 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

SFP TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MC112CS
Barcode
6935364030421
Tags

The TP-Link MC112CS is an Omada 10/100 Mbps WDM media converter that converts 100BASE-FX single-mode fibre to 10/100BASE-TX copper and back. Using WDM it sends and receives over a single fibre with an SC connector, extends fibre distance up to 20 km, and transmits at 1310 nm and receives at 1550 nm, pairing with a converter such as the TP-Link MC111CS.

MC112CS overview

The MC112CS is a media converter designed to convert 100BASE-FX fibre to 10/100BASE-TX copper media, or the other way around. It has one 100M SC/UPC fibre port and one 10/100M RJ45 port with auto MDI/MDIX. Its defining feature is WDM (wavelength division multiplexing) technology: the MC112CS needs only one fibre cable to both transmit and receive data which TP-Link says will save half the cabling cost. It is designed to the IEEE 802.3u 10/100BASE-TX and 100BASE-FX standards (with IEEE 802.3i also listed) and is built for single-mode fibre using the SC-type connector.

Because transmit and receive share one fibre, the two ends of a WDM link use opposite wavelengths. The MC112CS supports the longwave (LX) laser specification at a full wire-speed forwarding rate; it transmits at 1310 nm and receives at 1550 nm. That means the device at the other end must transmit at 1550 nm and receive at 1310 nm. TP-Link names its own MC111CS media converter as one example of a device that works with the MC112CS.

TP-Link rates the MC112CS for fibre distances of up to 20 km. The fibre port supports half-duplex and full-duplex transfer modes. On the copper side, 10BASE-T runs over UTP category 3, 4 or 5 cable and 100BASE-TX over category 5 or 5e cable, each up to 100 m, or over EIA/TIA-568 100 Ω STP up to 100 m. LED indicators are PWR and Link/Act. The fibre port runs 100BASE-FX over single-mode fibre, while the 10/100M copper RJ45 port supports auto MDI/MDIX.

The converter measures 94.5 x 73.0 x 27.0 mm and is powered by an external power adapter, which is included. Its maximum power consumption is 1.18 W. It is rated for operation from 0 °C to 50 °C with 10% to 90% non-condensing humidity, and storage from -40 °C to 70 °C, and it carries FCC, CE and RoHS compliance. In the box are the MC112CS, a power adapter and an installation guide. ARC IP Networks supplies the MC112CS from Australian stock with the full manufacturer's warranty.

Key features

WDM over a single fibre

Transmits and receives on one fibre cable, which TP-Link says saves half the cabling cost.

Up to 20 km

Extends fibre distance up to 20 km over single-mode fibre.

100BASE-FX to 10/100BASE-TX

Converts between 100BASE-FX fibre and 10/100BASE-TX copper in either direction.

1310 nm Tx / 1550 nm Rx

Longwave (LX) laser at full wire speed; pair with a device that transmits at 1550 nm and receives at 1310 nm.

Pairs with MC111CS

TP-Link names its MC111CS media converter as an example of a matching unit.

SC/UPC fibre port

One 100M SC/UPC port for single-mode fibre, with half/full-duplex modes.

Auto MDI/MDIX RJ45

One 10/100M RJ45 port with auto MDI/MDIX for copper connections up to 100 m.

Low power

1.18 W maximum power consumption from the included external power adapter.

MC112CS specifications

At a glance

10/100 Mbps
100BASE-FX
WDM, single fibre
Up to 20 km
1310 nm Tx / 1550 nm Rx
SC/UPC
Auto MDI/MDIX
1.18 W max
MC112CS full specifications
Media Converter & Module
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u
Basic FunctionAdopts WDM technology; Half/Full-Duplex transfer mode for FX port; Extends fibre distance up to 20km
Interface1× 100M SC/UPC port; 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1310nm Tx/1550nm Rx
WDM TX1310nm
WDM RX1550nm
Network Media 10BASE-TUTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-TUTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FXSingle-mode Fibre
Dimensions ( W x D x H )3.7 2.9 1.1 in. (94.5 73.0 27.0 mm)
Power SupplyExternal Power Adapter
Max. Power Consumption1.18W
LEDPWR, Link/Act
Safety & EmissionFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • MC112CS
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the MC112CS is for

Single-fibre 10/100 links

  • One fibre carries both directions
  • Up to 20 km over single-mode fibre
  • Pair with an MC111CS at the far end

Copper-to-fibre conversion

  • 100BASE-FX to 10/100BASE-TX
  • Auto MDI/MDIX on the RJ45 port
  • PWR and Link/Act LEDs

Buy the MC112CS from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MC112CS from the ARC IP Networks team.

Last reviewed October 2026.

It converts 100BASE-FX fibre to 10/100BASE-TX copper, or vice versa, using WDM so only one fibre is needed to transmit and receive.

A device that transmits at 1550 nm and receives at 1310 nm. TP-Link names its MC111CS media converter as one example.

TP-Link rates it to extend fibre distance up to 20 km.

Single-mode fibre with an SC/UPC connector.

It transmits at 1310 nm and receives at 1550 nm.

WDM transmits and receives over one fibre cable instead of two, which TP-Link says saves half the cabling cost.

10/100 Mbps on the RJ45 port and 100 Mbps (100BASE-FX) on the fibre port, at a full wire-speed forwarding rate.

By the external power adapter included in the box. Maximum power consumption is 1.18 W.

94.5 x 73.0 x 27.0 mm.

The MC112CS, a power adapter and an installation guide.
