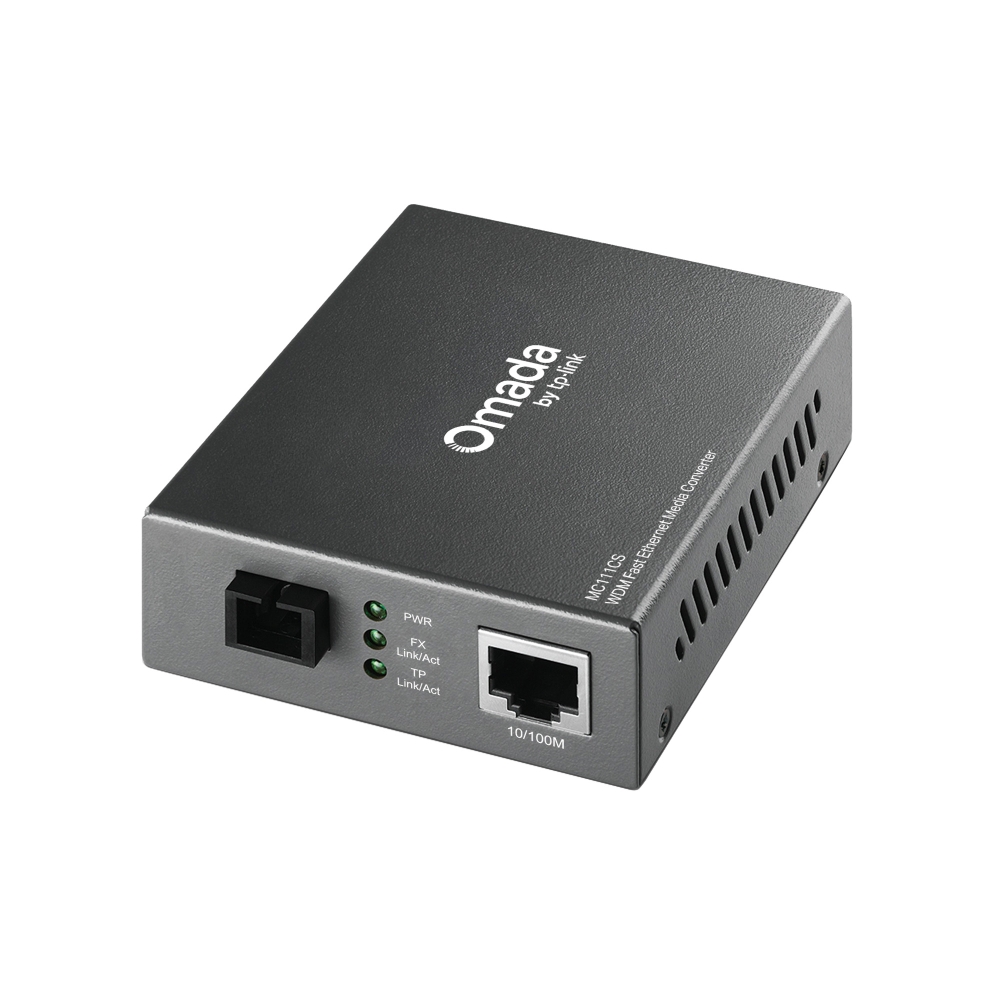

TP-Link MC111CS Omada 10/100Mbps WDM Media Converter

https://arcip.com.au/web/image/product.template/8112/image_1920?unique=73ac110

The TP-Link MC111CS is an Omada 10/100Mbps WDM media converter that converts 100BASE-FX fibre to 10/100BASE-TX copper and vice versa. Using WDM technology it transmits and receives over a single single-mode fibre with an SC connector, extending fibre distance up to 20 km. It transmits at 1550 nm and receives at 1310 nm, so the far end must use the opposite wavelengths; TP-Link names the MC112CS as one matching partner. It has a 10/100M RJ45 port with Auto MDI/MDIX and runs standalone or in the MC1400 chassis. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 36.47 36.47 AUD $ 36.47 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

SFP TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MC111CS
Barcode
1210002608824
Tags

The TP-Link MC111CS is an Omada 10/100 Mbps WDM media converter that converts 100BASE-FX fibre to 10/100BASE-TX copper and back. Using WDM, it sends and receives over one single-mode fibre on an SC/UPC port (1550 nm Tx, 1310 nm Rx) and extends fibre distance up to 20 km; TP-Link names the MC112CS as a matching unit for the other end.

MC111CS overview

The MC111CS is a media converter designed to convert 100BASE-FX fibre to 10/100BASE-TX copper media or vice versa. It has one 100M SC/UPC fibre port and one 10/100M RJ45 port with auto MDI/MDIX. It is designed under the IEEE 802.3u 10/100BASE-TX and 100BASE-FX standards, and TP-Link lists IEEE 802.3i and IEEE 802.3u as its supported standards. The fibre port supports half- and full-duplex transfer modes, and the converter extends fibre distance up to 20 km.

The key feature is WDM technology. Instead of using a pair of fibres, the MC111CS takes only one fibre cable to transmit and receive data, which TP-Link says will save half the cabling cost. It is designed for single-mode fibre cable using the SC-type connector, and supports the longwave (LX) laser specification at a full wire-speed forwarding rate. The MC111CS transmits at 1550 nm and receives at 1310 nm. That means the device at the other end of the fibre must transmit at 1310 nm and receive at 1550 nm. TP-Link gives its MC112CS media converter as one example of a unit that works with the MC111CS, so the two are deployed as a pair.

On the copper side, the RJ45 port accepts UTP category 3, 4 or 5 cable or EIA/TIA-568 100 ohm STP for 10BASE-T, and UTP category 5 or 5e cable or EIA/TIA-568 100 ohm STP for 100BASE-T, each up to 100 m. Status is shown by PWR and Link/Act LEDs. The MC111CS measures 94.5 x 73.0 x 27.0 mm (3.7 x 2.9 x 1.1 in) and is powered by an external power adapter, which is included. Maximum power consumption is 1.23 W.

The converter is rated for an operating temperature of 0 to 50 °C (32 to 122 °F) at 10 to 90% non-condensing humidity, and for storage from -40 to 70 °C at 5 to 90% non-condensing humidity. Safety and emission approvals are FCC, CE and RoHS. In the box are the MC111CS, a power adapter and an installation guide. When ordering, remember that a WDM link needs a complementary unit at each end: the MC111CS (1550 nm Tx / 1310 nm Rx) at one end and a unit that transmits at 1310 nm and receives at 1550 nm, such as the MC112CS, at the other. ARC IP Networks supplies the MC111CS from Australian stock with the full manufacturer's warranty.

Key features

Fibre to copper conversion

Converts 100BASE-FX fibre to 10/100BASE-TX copper media, or vice versa.

WDM over one fibre

Transmits and receives on a single fibre cable, which TP-Link says saves half the cabling cost.

Up to 20 km

Extends fibre distance up to 20 km over single-mode fibre.

1550 nm Tx / 1310 nm Rx

Pairs with a unit that transmits at 1310 nm and receives at 1550 nm, such as the TP-Link MC112CS.

SC/UPC fibre port

One 100M SC/UPC port for single-mode fibre, with half- and full-duplex transfer modes.

10/100M RJ45 port

One 10/100M RJ45 port with auto MDI/MDIX for the copper side.

Full wire-speed forwarding

Supports the longwave (LX) laser specification at a full wire-speed forwarding rate.

Low power

External power adapter included; maximum power consumption is 1.23 W, with PWR and Link/Act LEDs.

MC111CS specifications

At a glance

100BASE-FX to 10/100BASE-TX
WDM, single fibre
Up to 20 km
1550 nm Tx / 1310 nm Rx
SC/UPC port
Single-mode fibre
1.23 W max
0-50 °C operating
MC111CS full specifications
Media Converter & Module
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u
Basic FunctionAdopts WDM technology; Half/Full-Duplex transfer mode for FX port; Extends fibre distance up to 20km
Interface1× 100M SC/UPC port; 1× 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1550nm Tx/1310nm Rx
WDM TX1550nm
WDM RX1310nm
Network Media 10BASE-TUTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-TUTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FXSingle-mode Fibre
Dimensions ( W x D x H )3.7 2.9 1.1 in. (94.5 73.0 27.0 mm)
Power SupplyExternal Power Adapter
Max. Power Consumption1.23W
LEDPWR, Link/Act
Safety & EmissionFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~50℃ (32℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • MC111CS
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the MC111CS is for

Single-fibre 100 Mbps links

  • One single-mode fibre carries Tx and Rx
  • Up to 20 km fibre distance
  • Pairs with the MC112CS

Joining copper Ethernet to fibre

  • 10/100M RJ45 port with auto MDI/MDIX
  • SC/UPC 100BASE-FX port
  • Full wire-speed forwarding

Buy the MC111CS from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MC111CS from the ARC IP Networks team.

Last reviewed October 2026.

It converts 100BASE-FX fibre to 10/100BASE-TX copper media or vice versa, using one SC/UPC fibre port and one 10/100M RJ45 port.

One. It uses WDM technology to transmit and receive data over a single fibre cable.

Single-mode fibre with an SC-type connector (SC/UPC port).

TP-Link states it extends fibre distance up to 20 km.

It transmits at 1550 nm and receives at 1310 nm.

A device that transmits at 1310 nm and receives at 1550 nm. TP-Link gives its MC112CS media converter as one example that works with the MC111CS.

No. The fibre port is 100 Mbps (100BASE-FX) and the RJ45 port is 10/100 Mbps.

By an external power adapter, which is included. Maximum power consumption is 1.23 W.

0 to 50 °C operating, and -40 to 70 °C in storage.

The MC111CS, a power adapter and an installation guide.
