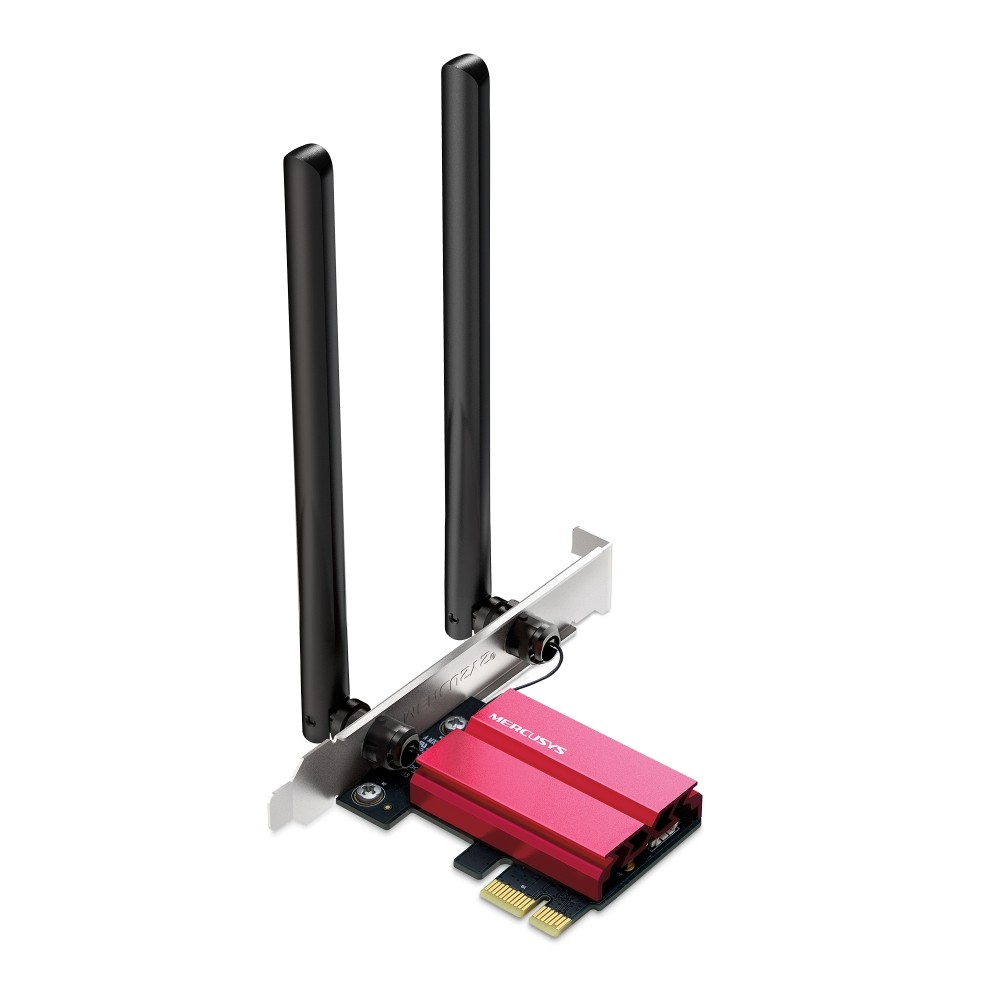

Mercusys MA86XE AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

https://arcip.com.au/web/image/product.template/9153/image_1920?unique=3c3b158

Mercusys MA86XE AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe adapter. Tri-band signal rates of 2402 Mbps (6 GHz), 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz), OFDMA and 2x2 MU-MIMO, two fixed high-performance omnidirectional antennas, WPA-PSK/WPA2-PSK/WPA3-SAE, Bluetooth header cable included. Windows 11/10 64-bit; 6 GHz currently Windows 11 only. Not compatible with a low-profile bracket.

$ 74.39 74.39 AUD $ 74.39 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MA86XE
Barcode
6957939001865

The Mercusys MA86XE is an AXE5400 tri-band Wi-Fi 6E PCIe card with Bluetooth 5.3. Mercusys lists 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, 2x2 MU-MIMO and OFDMA, two fixed omnidirectional antennas and WPA3-SAE. It supports 64-bit Windows 11 and Windows 10, but the 6 GHz band currently works only on Windows 11, and the card does not fit a low-profile bracket.

MA86XE overview

Mercusys describes Wi-Fi 6E as Wi-Fi 6 extended into the 6 GHz band, a newly opened frequency range that adds bandwidth, speed and lower latency, and the MA86XE is its PCIe card for taking a desktop there. It is an AXE5400 tri-band adapter with listed signal rates of 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, totalling speeds of up to 5.4 Gbps. Mercusys says the card unlocks a Wi-Fi 6E router's full potential, and that the 6 GHz band is exclusive to Wi-Fi 6E devices, so it avoids speed drops and interference from legacy devices. Backward compatibility covers 802.11ax/ac/a/b/g/n. Each rate is a physical maximum from the IEEE 802.11 specifications; Mercusys does not guarantee throughput or coverage, which depend on environment, network conditions and access point limitations.

OFDMA and MU-MIMO work together on the MA86XE so that more devices can talk to the router at once rather than waiting in turn. Mercusys's diagram puts a 2x2 160 MHz Wi-Fi 6E card with MU-MIMO at 2.4 Gbps, against 867 Mbps for a 2x2 80 MHz Wi-Fi 5 card and 1000 Mbps for a gigabit wired connection. It also cites ultra-low latency for smooth real-time gaming and immersive VR. Wi-Fi 6, Wi-Fi 6E, OFDMA, MU-MIMO, 1024-QAM and HE160 all need an access point with the same capabilities, and 160 MHz channels may be partly unavailable in the 5 GHz or 6 GHz band in some regions. Published reception sensitivity on 6 GHz is -86 dBm (HE160 MCS0) and -56 dBm (HE160 MCS11).

Bluetooth 5.3 turns the PC Bluetooth-capable, with Mercusys claiming a more stable connection, farther range and faster transmission than Bluetooth 4. It notes that the Bluetooth Core Specification 5.0 and 5.3 releases brought double the speed and four times the coverage of Bluetooth 4.2. A Bluetooth header cable comes in the box. Mercusys also says the MA86XE's functionality may be restricted on some computing systems and platforms, and that you may need to update the adapter's drivers after an operating system update.

Two fixed high-performance omnidirectional antennas are fitted, and because they are fixed, Mercusys states the MA86XE is not compatible with the low-profile bracket. Windows 11 and Windows 10 are supported in 64-bit form, and the 6 GHz band is currently supported only on Windows 11. Security options are WPA-PSK, WPA2-PSK and WPA3-SAE, with WPA3 requiring a matching access point. The card measures 228 x 120.8 x 21.5 mm and is rated for 0 to 40 °C. Package contents are the AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter (MA86XE), a Bluetooth header cable, a quick installation guide and a resource CD.

Key features

AXE5400 tri-band Wi-Fi 6E

2402 Mbps on 6 GHz and 5 GHz, plus 574 Mbps on 2.4 GHz.

6 GHz band

Free of legacy-device interference; currently Windows 11 only.

OFDMA and 2x2 MU-MIMO

More devices served at once with a compatible router.

Bluetooth 5.3

Stable, longer-range Bluetooth; header cable in the box.

Two omnidirectional antennas

Fixed high-performance antennas for wider signal coverage.

WPA3-SAE

Plus WPA-PSK and WPA2-PSK, with a WPA3-capable access point.

Bracket compatibility

Not compatible with the low-profile bracket, per Mercusys.

Windows 11 and 10

64-bit only; 6 GHz requires Windows 11.

MA86XE specifications

At a glance

AXE5400 Wi-Fi 6E
2402 Mbps (6 GHz)
2402 Mbps (5 GHz)
574 Mbps (2.4 GHz)
Bluetooth 5.3
PCIe card
WPA3-SAE
Windows 11/10 64-bit
MA86XE full specifications
Specifications
Wireless StandardsIEEE 802.11 a/n/ac/ax 5 GHz; IEEE 802.11 b/g/n/ax 2.4 GHz
Signal Rate2402 Mbps on 6 GHz; 2402 Mbps on 5 GHz; 574 Mbps on 2.4 GHz
Reception Sensitivity6 GHz:; 11ax HE160 MCS0:-86 dBm; 11ax HE160 MCS11:-56 dBm; 5 GHz:; 11ax HE80 MCS0: -90 dBm; 11ax HE80 MCS11: -59 dBm; 11a 54Mbps: -77 dBm; 11ac VHT80 MCS0: -92dBm; 11ac VHT80 MCS9: -64dBm; 2.4 GHz:; 11ax HE40 MCS0: -91 dBm; 11ax HE40 MCS11: -60 dBm; 11g 54Mbps: -76 dBm; 11n HT40 MCS7: -72dBm
Wireless SecurityWPA-PSK/WPA2-PSK/WPA3-SAE
Dimensions (W X D X H)9.0 × 4.8 × 0.85 in (228 × 120.8 × 21.5 mm)
Antenna Type2× Fixed High-Performance Omni-Directional Antennas
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F); Operating Humidity: 10%~90% Non-Condensing; Storage Humidity: 5%~90% Non-Condensing
System RequirementsSupported operating systems include Windows 10, 11(64-bit)

Source: Mercusys's published specifications for this model (Mercusys Australia product page). throughput figures are Mercusys's lab results. Mercusys may change specifications without notice.

What's in the box

  • AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter (MA86XE)
  • Bluetooth Header Cable
  • Quick Installation Guide
  • Resource CD

Source: Mercusys's published package contents.

Who the MA86XE is for

Windows 11 desktops with a Wi-Fi 6E router

  • 6 GHz band away from legacy devices
  • Real-time gaming and VR
  • Up to 5.4 Gbps combined

Towers adding Bluetooth 5.3

  • Wi-Fi 6E and Bluetooth on one card
  • Header cable supplied
  • Not for low-profile brackets

MA86XE compared

The MA86XE and MA86XH share AXE5400 tri-band Wi-Fi 6E rates. The MA86XE is an internal PCIe card with Bluetooth 5.3, while the MA86XH plugs into USB 3.0 and also supports 32-bit Windows.

SpecificationMA86XEMA86XH
InterfacePCIe cardUSB 3.0
6 / 5 / 2.4 GHz2402 / 2402 / 574 Mbps2402 / 2402 / 574 Mbps
BluetoothBluetooth 5.3Not listed
Antennas2 fixed omnidirectional2 external high-gain
Operating systemsWindows 11/10 64-bitWindows 11/10 32/64-bit
6 GHz on Windows 10No (Windows 11 only)No (Windows 11 only)

Source: Mercusys Australia product pages for each model.

Buy the MA86XE from ARC IP Networks

ARC IP Networks supplies Mercusys products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New Mercusys product from Australian stock.
  • Manufacturer warranty: the full Mercusys manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the MA86XE from the ARC IP Networks team.

Last reviewed October 2026.

Mercusys lists Bluetooth 5.3 for the MA86XE in its product title, specifications and package contents.

No. Mercusys says the 6 GHz band is currently only supported on Windows 11; Windows 10 uses 5 GHz and 2.4 GHz.

2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. These are physical maximums, and real throughput depends on your network.

No. Mercusys states it is not compatible with the low-profile bracket because of its fixed antennas.

Windows 11 and Windows 10, 64-bit.

To use 6 GHz you need a Wi-Fi 6E access point. OFDMA, MU-MIMO, 1024-QAM and HE160 also need router support.

Yes. WPA3-SAE is supported along with WPA-PSK and WPA2-PSK, when the access point also supports WPA3.

The AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter (MA86XE), a Bluetooth header cable, a quick installation guide and a resource CD.
