Cisco Meraki MA-ANT-C1-B Cellular Narrow Patch Antenna for MG21E, Wall/Pole Mount, RP-SMA

Price:

$ 605.54


Cisco Meraki MA-ANT-C1-A Cellular Dipole Antenna for MG21E, 698-5850 MHz, RP-SMA
Cisco Meraki MA-ANT-C1-A Cellular Dipole Antenna for MG21E, 698-5850 MHz, RP-SMA
$ 57.19
$ 57.19
Cisco Meraki MA-ANT-C2-A Cellular Dipole Antenna Pair for MG41E/MG51E, 617-6000 MHz, RP-SMA
Cisco Meraki MA-ANT-C2-A Cellular Dipole Antenna Pair for MG41E/MG51E, 617-6000 MHz, RP-SMA
$ 48.59
$ 48.59

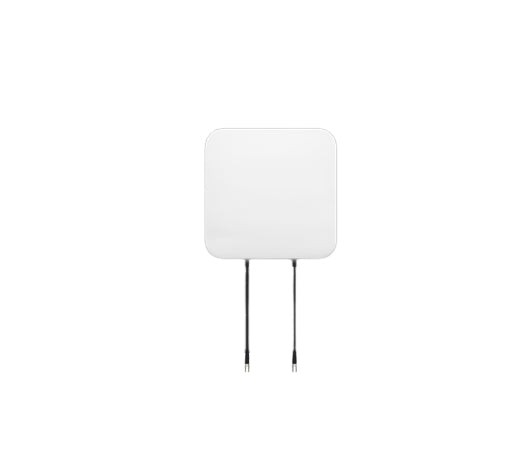

Cisco Meraki MA-ANT-C1-B Cellular Narrow Patch Antenna for MG21E, Wall/Pole Mount, RP-SMA

https://arcip.com.au/web/image/product.template/13280/image_1920?unique=1877e41

Cisco Meraki MA-ANT-C1-B narrow patch cellular antenna for the Meraki MG21E cellular gateway. Frequency ranges 698-791, 824-960, 1710-2170 and 2570-2690 MHz with peak gain 4/4/8/7 dBi, 60° H and V beamwidth, horizontal and vertical linear polarisation. 100 cm cables with RP-SMA, wall or pole mount bracket included. 220 x 220 x 46 mm, PC-ABS, -40 to 85°C. 1 year hardware warranty. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 605.54 605.54 AUD $ 605.54 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MA-ANT-C1-B

Cisco Meraki at a glance

The Cisco Meraki MA-ANT-C1-B is a narrow patch cellular antenna for the Meraki MG21E, giving higher directional gain toward a cell tower (up to 8 dBi, 60° beamwidth). It mounts to walls or poles with the included bracket, connects by 100 cm RP-SMA cables and works with the MG21E only.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco Meraki through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

TypeNarrow patch
Peak gainUp to 8 dBi
Cable100 cm, RP-SMA
FitsMG21E

Best for

  • MG21E sites with weak cellular signal
  • Pole mounting high up with line of sight to a cell tower
  • Improving MG21E signal quality where dipoles fall short

Key features

Narrow patch cellular antenna for the Meraki MG21E.

Frequency ranges 698-791, 824-960, 1710-2170 and 2570-2690 MHz.

Peak gain 4 / 4 / 8 / 7 dBi across those ranges.

Linear polarisation: horizontal (left port) and vertical (right port).

60° horizontal and 60° vertical beamwidth.

100 cm cables with RP-SMA connectors.

Mounting bracket included for walls and poles; no other accessories required.

220 mm x 220 mm x 46 mm, PC-ABS, -40°C to 85°C.

1 year hardware warranty included.

Cisco Meraki specifications

Cisco Meraki technical specifications
SpecificationValue
Electrical
Antenna typeNarrow patch
Frequency ranges698-791, 824-960, 1710-2170, 2570-2690 MHz
Peak gain4 / 4 / 8 / 7 dBi
PolarisationLinear, horizontal (left) and vertical (right)
Beamwidth60° H / 60° V
Cables and mounting
Cable length100 cm
ConnectorRP-SMA
MountingWalls and poles, bracket included
Physical and environmental
Dimensions220 mm x 220 mm x 46 mm
MaterialPC-ABS
Temperature-40°C to 85°C
Humidity95% at 55°C
Compatibility
Certified forMG21E only
MG21E statusEnd-of-sale (MG21E-HW-WW Jul 10, 2024)
Warranty
Hardware warranty1 year

Figures from Cisco's official data sheet.

The Cisco Meraki in depth

Directional gain for the MG21E

Mounted high on a pole with a clearer line of sight to a cell tower, the MA-ANT-C1-B gives the MG21E higher signal quality and power than the included dipoles.

Simple installation

The mounting bracket is included and no other accessories are needed to mount it on a wall or pole.

Frequently asked questions

Straight answers about the Cisco Meraki from the ARC IP Networks team. Last reviewed October 2026.

Meraki states it works with the MG21E only.

Peak gain is 4 dBi at 700 and 960 MHz, 8 dBi at 2170 MHz and 7 dBi at 2690 MHz, with a 60° x 60° beamwidth.

The mounting hardware bracket is included; no other accessories are required to mount it to a wall or pole.

Meraki lists the MG21E as end-of-sale (MG21E-HW-WW on Jul 10, 2024, end of support Sep 18, 2029). This antenna is not itself on the Meraki EOL list.

Meraki states a 1 year hardware warranty is included.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco Meraki MA-ANT-C1-B through Cisco's authorised Australian distribution, with a GST tax invoice.
