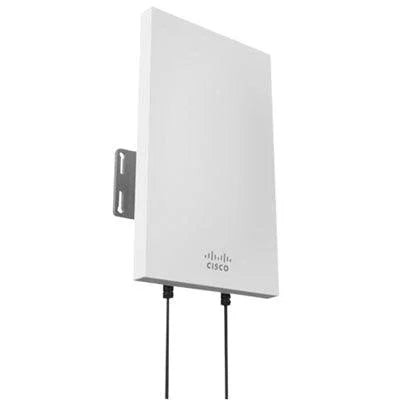

Cisco Meraki MA-ANT-27 Outdoor Dual-Band 9/12 dBi Sector Antenna

https://arcip.com.au/web/image/product.template/13264/image_1920?unique=1877e41

Cisco Meraki MA-ANT-27 outdoor sector antenna for Meraki outdoor access points. Dual-band 2.4/5 GHz, gain 9 dBi at 2.4 GHz / 12 dBi at 5 GHz, half-power beamwidth H: 86°/65°, V: 34°/18°, density: high. One antenna with two integrated N-connector pigtail cables (use two on 4x4:4 APs), N-type connectors. Operating temperature -40°C to 70°C. Supported on Meraki MR74, MR76, MR84 and MR86. Not certified for the tri-band CW9163E or indoor APs. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 494.21 494.21 AUD $ 494.21 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
MA-ANT-27

Cisco Meraki at a glance

The Cisco Meraki MA-ANT-27 is an outdoor sector antenna (dual-band 2.4/5 GHz) for Meraki outdoor access points, rated at 9 dBi at 2.4 GHz / 12 dBi at 5 GHz with a half-power beamwidth of H: 86°/65°, V: 34°/18°. Meraki supports it on the MR74, MR76, MR84 and MR86; it is not certified for the tri-band CW9163E.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco Meraki through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

BandDual 2.4/5 GHz
Gain9 dBi @ 2.4 GHz / 12 dBi @ 5 GHz
ConnectorN-type
FitsMR74, MR76, MR84, MR86

Best for

  • Directional outdoor coverage from an MR76 or MR86
  • Point-to-point mesh backhaul between outdoor Meraki APs
  • High-density outdoor areas such as courtyards and car parks

Key features

Sector antenna for Cisco Meraki outdoor access points, dual-band 2.4/5 GHz.

Rated gain 9 dBi at 2.4 GHz / 12 dBi at 5 GHz.

Half-power beamwidth H: 86°/65°, V: 34°/18°.

Two integrated pigtail cables with N connectors; both must connect to the same radio on the AP.

Supported on the MR74, MR76, MR84 and MR86 outdoor access points.

Operating temperature -40°C to 70°C.

Not tested or certified for the tri-band CW9163E; Meraki directs CW9163E users to the CW-ANT antenna family.

On 4x4:4 APs (MR84/MR86) all four ports must be connected to identical antennas with the same orientation, so two antennas are needed.

Replacement mounting hardware is available separately as MA-MNT-ANT-6.

Cisco Meraki specifications

Cisco Meraki technical specifications
SpecificationValue
Antenna
TypeSector
Band(s)Dual-band 2.4/5 GHz
Gain9 dBi at 2.4 GHz / 12 dBi at 5 GHz
Half-power beamwidthH: 86°/65°, V: 34°/18°
DensityHigh
Connection
ConnectorIntegrated pigtail cables with N connectors
Supplied asOne antenna with two integrated N-connector pigtail cables (use two on 4x4:4 APs)
Physical and environmental
Dimensions230 mm x 140 mm x 48 mm
Operating temperature-40°C to 70°C
RatingOutdoor
Compatibility
Supported Meraki APsMR74, MR76, MR84 and MR86
Not supported onCW9163E (tri-band Wi-Fi 6E), indoor MR access points, MR70/MR78
Mounting
Replacement mounting kitMA-MNT-ANT-6

Figures from Cisco's official data sheet.

The Cisco Meraki in depth

Outdoor antenna for Meraki MR APs

The MA-ANT-27 is part of Meraki's dual-band generation of outdoor antennas (ANT-20/21/23/25/27) for the MR74, MR76, MR84 and MR86. All Meraki outdoor antennas use standard N-type connectors.

Connecting it correctly

Sector and patch antennas have two integrated pigtail cables that must both connect to the same radio. On a 2x2:2 MR76, for example, one antenna can serve the 2.4 GHz ports and another the 5 GHz ports.

Frequently asked questions

Straight answers about the Cisco Meraki from the ARC IP Networks team. Last reviewed October 2026.

Meraki supports the MA-ANT-27 on the MR74, MR76, MR84 and MR86 outdoor access points. It is not supported on indoor MR APs, on the MR70/MR78 (integrated antennas) or on the tri-band CW9163E.

Meraki rates it at 9 dBi at 2.4 GHz / 12 dBi at 5 GHz, with a half-power beamwidth of H: 86°/65°, V: 34°/18°.

It has two integrated pigtail cables with N connectors. Both connectors must go to the same radio, and the antenna should not be split across the top and bottom ports of the AP.

Meraki lists MA-MNT-ANT-6 as the replacement mounting hardware for the ANT-21/23/25/27 outdoor antennas, so the antenna can be re-mounted without replacing it.

Meraki says only Cisco Meraki antennas are fully certified and supported on Meraki APs; damage caused by a third-party antenna is not covered by the device warranty.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco Meraki MA-ANT-27 through Cisco's authorised Australian distribution, with a GST tax invoice.
