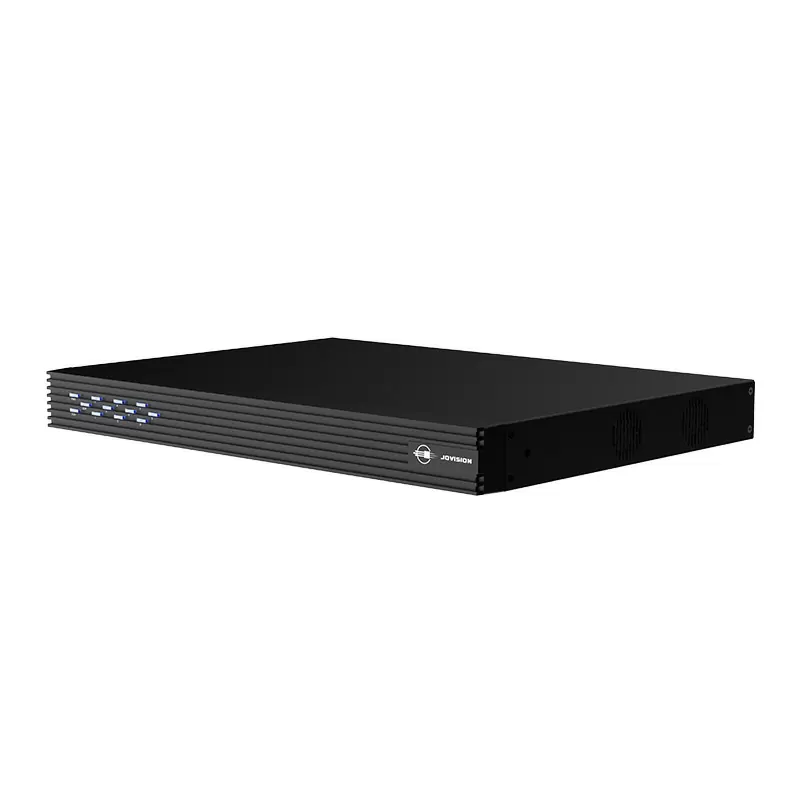

Jovision 9CH Video Wall Decoder

https://arcip.com.au/web/image/product.template/951/image_1920?unique=ed1b1a2
9CH Video Wall Decoder. 9x HDMI Output (Decode 9 screens video wall, Multiple screens can be spliced), 11CH of 8MP/22CH of 5.0MP/ 32CH of 4.0MP/64CH 1080P Decoding Capability, Each output supports 1/4/8/9/16 split screen, Support multi-screen TV-wall, Screen merging and Sequencing

4,345.00 4345.0 AUD 4,345.00 incl. GST

Not Available For Sale


  • Brand
  • Video Input
  • Connectivity

This combination does not exist.

Jovision
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
JVS-D6016-9HD
Tags

Key Features

• 9x HDMI Output (Decode 9 Screens Video Wall, Multiple Screens Can Be Spliced).

• 18CH of 4.0MP, 36CH 1080P Decoding Capability.

• Each Output Supports 1/4/8/9/16 Split Screen.

• Support Multi-screen TV-wall, Screen Merging and Sequencing


Specifications

ModelJVS-D6016-9HD
Hardware
Decoding Ability18CH 4.0MP, 36CH 1080P
Video Output9x HDMI
HDMI In1x
Ethernet2x RJ-45,10/100/1000Mbps Adaptive
USB1x
RS2321x
RS4851x
Audio In1x
Audio Out1x
Alarm In6x
Alarm Out4x
Features
TV Wall Configuration and ManagementSupport remote configuration and management of the video wall through the client.
Live Video WallSupport
Video Wall PlaybackSupport
Video Wall SequenceSupport set the sequence according to the plan
PTZ ControlSupport
Window Splicing

Support. Maximum 9 or screens arbitrary splicing. After splicing, it supports split screen.

Number of split screen is as follows: 1/4/6/8/9/16

Window RoamingSupport . Support up to one window
Window ZoomWindow zoom
Screen Split1/4/8/9/16
Hybrid DecodingSupport
RTSP StreamingSupport RTSP streaming from remote device.
LanguageSupport English/Chinese
Virtual BannerSupport. Font size, Color, Background can be set
Output ResolutionMaximum support 4K output
ConfigurationNetwork Configuration (Modify IP), Local upgrade, Factory restoration
Device ManagementSupport Device Search (Protocol Support 1.0, 2.0 ONVIF), Add, Delete, Group
Software ProjectionSupport
Hardware ProjectionSupport
Scene ManagementSupport. Save the Scene For Easy Use
Set BackgroundSupport.
Access ProtocolCloudSEE Private Protocol/ ONVIF Protocol, Support ONVIF IPC/NVR Access
General
Power SupplyAC 220V 50Hz
Working Temperature-10°C ~ 55°C
Working Humidity10% ~ 90%
Dimensions440x55x360(mm)
Weight≤5Kg


Description


Brand Jovision
Video Input 9CH HDMI
Connectivity LAN
JVS-D6016-9HD 9CH Decorder.pdf
Download
