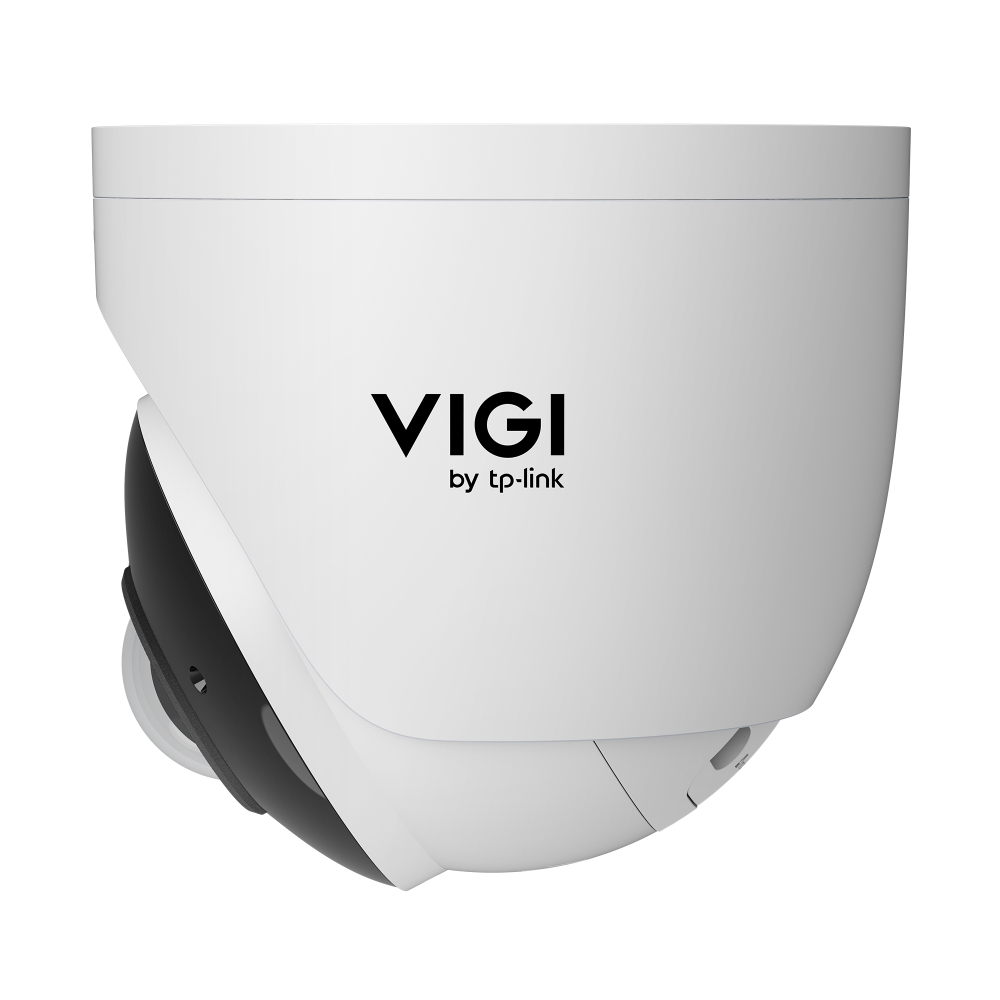

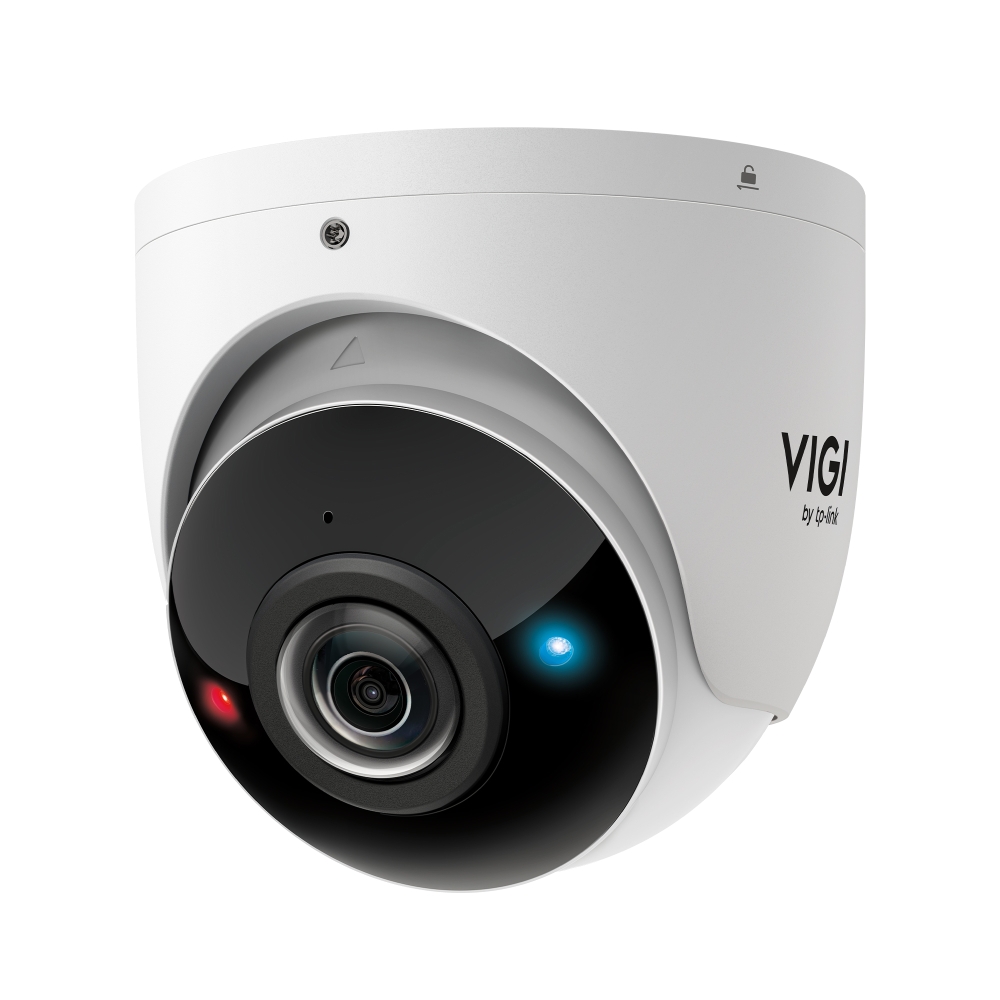

TP-Link VIGI InSight S485PI 8MP IR Panoramic Turret Camera

https://arcip.com.au/web/image/product.template/11415/image_1920?unique=d95db27

The TP-Link VIGI InSight S485PI is an 8MP IR panoramic turret network camera that captures a 180° horizontal view in 4K at up to 3840 x 2160 through a 1.65 mm fixed lens. A single panoramic camera can cover large spaces such as hotel lobbies, playgrounds, intersections and warehouses, cutting installation costs. Active defence uses red-blue warning lights and sound alarms to deter intruders. Audio in/out and alarm in/out ports connect external devices, and Human & Vehicle Classification improves alert accuracy. It is IP67 weatherproof and IK10 vandal proof, powered by 802.3at PoE or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 370.34 370.34 AUD $ 370.34 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S485PI
Barcode
8885020627886

The TP-Link VIGI InSight S485PI is an 8MP (3840 x 2160) IR panoramic turret network camera whose 1.65 mm F2.0 lens covers a 180° horizontal field of view in one shot. It adds red-blue warning lights with sound alarms, audio and alarm inputs and outputs for external devices, two-way audio, 120 dB True WDR, 802.3at PoE power and an IP67, IK10 metal housing.

InSight S485PI overview

The InSight S485PI is TP-Link's VIGI 8MP panoramic turret camera, built around the idea of one shot, huge vision. Its fixed 1.65 mm F2.0 lens gives a 180° horizontal, 86° vertical and 180° diagonal field of view, so a single camera covers a full half-circle. A 1/2.7-inch progressive scan CMOS sensor records that view at up to 3840 x 2160, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, with main-stream resolutions down to 1280 x 720; TP-Link notes the frame rate is limited to 20 fps if the image is rotated 90° or 270°. With the 1.65 mm lens TP-Link quotes DORI distances of 44 m for detection, 18.33 m for observation, 8.8 m for recognition and 4.4 m for identification.

Night viewing uses four 850 nm IR LEDs with a 20 m range, and minimum illumination is 0.005 lux, or 0 lux with IR light. True WDR at 120 dB analyses and blends different exposures so that both bright and dark areas stay properly exposed in high-contrast lighting. Further image tools include BLC, 3D DNR, HLC, Smart IR, prevention of overexposure to infrared light, an SNR of 52 dB or more, up to four privacy masks and four regions of interest. Video is compressed with H.265+, H.265, H.264+ or H.264 at 256 Kbps to 8 Mbps on the main stream.

For deterrence the S485PI has red-blue warning lights, which TP-Link says are more effective than white lights and create a strong deterrent effect when paired with audio alarms; active defence alarms can use both sound and light. Motion detection is enhanced with human and vehicle classification for more accurate alerts, and smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, abnormal sound and scene change detection. One alarm in, one alarm out, one audio in and one audio out let the camera integrate with external alarm or access control devices, and an alarm input device can itself trigger events. Alarm linkage covers memory card recording, FTP upload, alarm output, push notifications, an alarm server and email. A built-in microphone, which picks up activity within a 5 m radius, and a built-in speaker give two-way audio with environment noise filtering, and recordings can be stored on a microSD card in the built-in slot.

The camera connects through one 10/100 Mbps RJ45 port with 802.3at PoE (class 4, 21 W maximum) or a 12 V DC input (18 W maximum), so plan for a PoE+ switch port. It works with the VIGI App, VIGI VMS, VIGI Cloud VMS and its web UI, supports ONVIF Profiles S, T and G, and allows three main streams and three sub-streams to be viewed at once. The metal housing is rated IP67 waterproof and IK10 vandal proof, operates from -30 °C to 60 °C, measures 112.3 x 112.3 x 110.2 mm and weighs 0.76 kg. In the box are the camera, a Quick Start Guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the InSight S485PI from Australian stock with the full manufacturer's warranty.

Key features

180° panoramic view

A 1.65 mm F2.0 lens covers 180° horizontally and 86° vertically in one shot.

8MP resolution

Up to 3840 x 2160 at 25 fps (50 Hz) or 30 fps (60 Hz).

Red-blue warning lights

Flashing red-blue lights that TP-Link says deter more effectively than white lights when paired with audio alarms.

Audio and alarm I/O

One alarm in/out and one audio in/out for external alarm or access control devices.

Two-way audio

Built-in microphone and speaker with environment noise filtering.

Human and vehicle classification

Motion detection enhanced with human and vehicle classification for more accurate alerts.

120 dB True WDR

Blends different exposures so bright and dark areas both stay properly exposed.

20 m IR night vision

Four 850 nm IR LEDs with a 20 m range and Smart IR.

IP67 and IK10 metal housing

Waterproof and vandal-proof turret housing rated from -30 °C to 60 °C.

InSight S485PI specifications

At a glance

8MP (3840 x 2160)
180° horizontal FOV
1.65 mm F2.0 lens
Red-blue warning lights
Alarm and audio I/O
Two-way audio
802.3at PoE (21 W)
IP67 / IK10
InSight S485PI full specifications
Camera
Image Sensor1/2.7“ Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length1.65 mm
ApertureF2.0
FOV1.65mm:; Horizontal FOV: 180°; Vertical FOV: 86°; Diagonal FOV: 180°
Lens MountM12
DORI Distance1.65mm; Detect: 144.36 ft (44 m); Observe: 60.15 ft (18.33 m); Recognize: 28.87 ft (8.8 m); Identify: 14.44 ft (4.4 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Illuminator
IR LEDQuantity: 4 Range: 65.62 ft (20 m) Wavelength: 850 nm
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution3840x2160
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI4 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputBuilt-in Microphone Audio In Interface
Audio OutputBuilt-in Speaker Audio Out Interface
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Upload to FTP Server; Alarm Output Device; Push Notifications; Send to Alarm Server; Active Defence-Sound Alarm; Active Defence-Light Alarm; Email Alarm
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. 3
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out Red-Blue Warning Lights
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB 5
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30 to 60 °C
Storage Temperature-40 °C to 60 °C
Operating Humidity95% or Less (Non-condensing)
Storage Humidity95% or Less (Non-condensing)
MaterialMetal
Net Weight0.76 Kg
Power Supply12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug; PoE: 802.3at, class 4, Max. 21 W
ProtectionIP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)
CertificationsCE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S485PI is for

Wide areas from one camera

  • 180° horizontal view in one shot
  • 8MP resolution across the scene
  • Four regions of interest

Active deterrence and integration

  • Red-blue lights with sound alarms
  • Alarm and audio in/out for external devices
  • Two-way audio with a built-in speaker

Buy the InSight S485PI from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S485PI from the ARC IP Networks team.

Last reviewed October 2026.

180° horizontal, 86° vertical and 180° diagonal, from a fixed 1.65 mm F2.0 lens.

8MP, up to 3840 x 2160, at up to 25 fps on 50 Hz or 30 fps on 60 Hz.

TP-Link quotes DORI distances of 44 m detection, 18.33 m observation, 8.8 m recognition and 4.4 m identification.

Four 850 nm IR LEDs with a 20 m range.

802.3at PoE (class 4), with a maximum of 21 W. It can also run from 12 V DC (18 W maximum).

Yes. It has one alarm in and one alarm out, plus one audio in and one audio out, for external alarm or access control devices.

Yes. Red-blue warning lights can be used with sound alarms for active deterrence.

Yes. It has a built-in microphone and a built-in speaker.

Yes. It is rated IK10 vandal proof and IP67 waterproof.

The camera, a Quick Start Guide, waterproof cable attachments and mounting accessories.

Need more than one InSight S485PI for a site security rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
