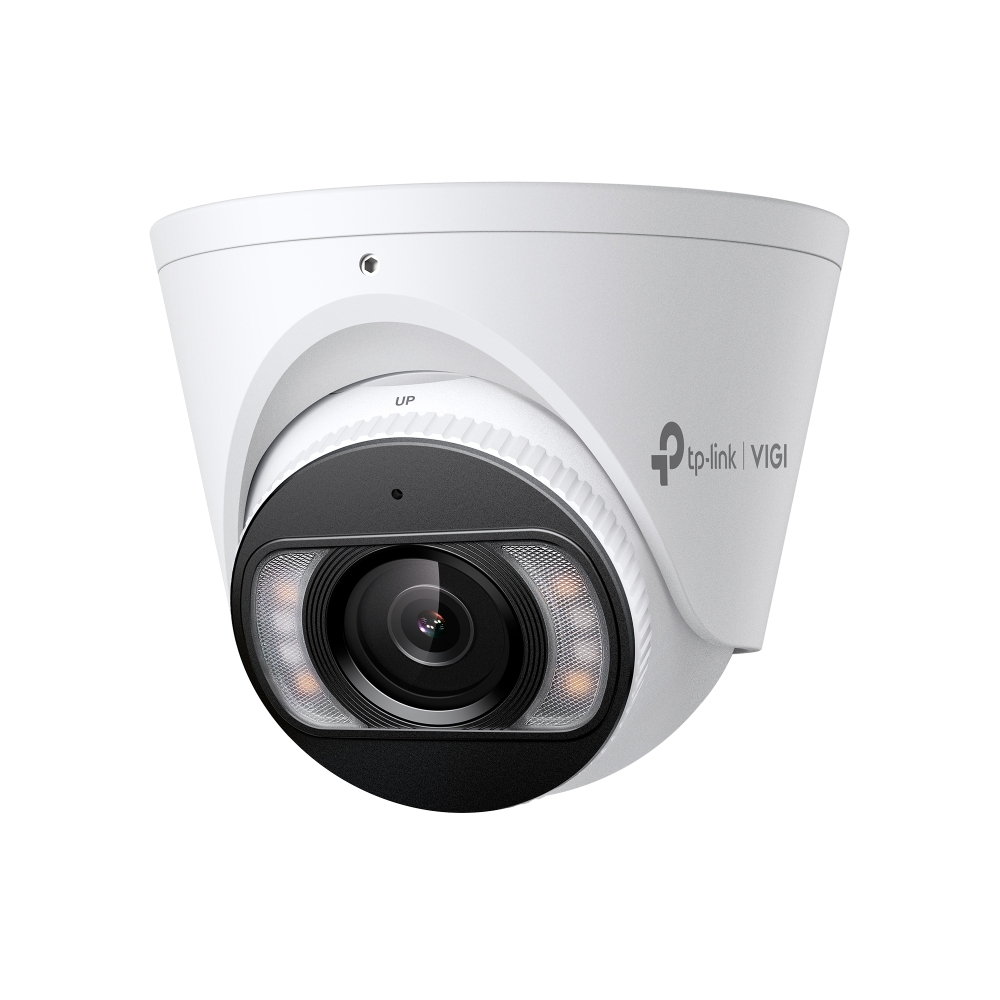

TP-Link VIGI InSight S455(2.8mm) 5MP Colour Turret Camera

https://arcip.com.au/web/image/product.template/11411/image_1920?unique=d95db27

The TP-Link VIGI InSight S455(2.8mm) is a 5MP full-colour turret network camera with a maximum resolution of 2880 x 1620. The 2.8 mm F1.6 fixed lens covers a 111.4° horizontal field of view, and four IR LEDs and four white LEDs each reach 30m for 24-hour full colour. Human & Vehicle Classification filters out false alerts, while People & Vehicle Analytics, used with VIGI specified software, speeds up post-event search. It also provides active defence, two-way audio with a built-in speaker, H.265+ compression and IP67 protection, with 802.3af/at PoE or 12V DC power. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 166.13 166.13 AUD $ 166.13 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S455-2.8MM
Barcode
8885020628241

The TP-Link VIGI InSight S455(2.8mm) is a 5MP full-colour turret network camera with a 2.8 mm F1.6 lens, 2880 x 1620 resolution and a 111.4-degree horizontal view. Four IR and four white LEDs each reach 30 m, and it adds two-way audio, human and vehicle classification, a microSD slot, PoE and IP67 protection.

InSight S455(2.8mm) overview

The InSight S455 is a VIGI 5MP turret camera designed for full-colour monitoring; TP-Link's headline is "Sharper Vision, Smarter Protection". This version has the 2.8 mm F1.6 fixed lens, giving a 111.4-degree horizontal, 58.8-degree vertical and 134-degree diagonal field of view on an M12 mount. A 1/2.7-inch progressive scan CMOS sensor records up to 2880 x 1620 at up to 25 fps (50 Hz) or 30 fps (60 Hz); if the image is rotated 90 or 270 degrees, frame rate is limited to 20 fps. DORI distances for the 2.8 mm lens are 64 m to detect, 27 m to observe, 13 m to recognise and 6 m to identify. Minimum illumination is 0.005 lux, or 0 lux with IR or white light.

At night the S455 can show colour or infrared images. It has four 850 nm IR LEDs and four white LEDs, each with a 30 m range, and the illuminator can be set to auto, scheduled, always on or always off. The day/night switch is unified, scheduled or automatic. Image tools include 120 dB WDR (TP-Link notes that only DWDR is supported when People & Vehicle Analytics is enabled), BLC, 3D DNR, HLC and Smart IR, an option to prevent overexposure to infrared light, and an SNR of 52 dB or better. Up to four privacy masks and one ROI region can be set. Main-stream compression options are H.265+, H.265, H.264+ and H.264, at 256 Kbps to 6 Mbps.

Detection uses human and vehicle classification, which TP-Link says distinguishes humans and vehicles from other objects for more accurate event notifications. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, people and vehicle detection, abnormal sound and scene change, and basic events cover motion, video tampering and illegal login exceptions. When an event occurs, the camera can record to the memory card, push a message, sound an audible warning or flash its white light. A built-in microphone records anything within a 5 m radius and a built-in speaker provides two-way audio. There are no separate alarm or audio connectors on this model.

Power comes from 802.3af/at PoE (class 0, max 12 W) through the 10/100M RJ45 port, or 12 V DC (max 11 W). A built-in microSD card slot provides on-board storage. You can manage the camera with the VIGI app, VIGI Security Manager, web UI, VIGI VMS or VIGI Cloud VMS, and it supports ONVIF Profile S/T/G with three main streams and three sub-streams viewable simultaneously. The metal housing is rated IP67, measures 111 x 111 x 83.7 mm, weighs 0.48 kg and operates from -30 to 60 degrees C. In the box are the camera, a quick start guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the InSight S455(2.8mm) from Australian stock with the full manufacturer's warranty.

Key features

5MP resolution

2880 x 1620 from a 1/2.7-inch progressive scan CMOS sensor.

2.8 mm wide-angle lens

F1.6 lens with 111.4-degree horizontal and 134-degree diagonal field of view.

Full-colour night vision

Four white LEDs with a 30 m range for colour images at night.

30 m IR

Four 850 nm IR LEDs with a 30 m range for infrared night images.

Human and vehicle classification

Distinguishes humans and vehicles from other objects for more accurate notifications.

Smart events

Intrusion, line-crossing, region entry/exit, loitering, object abandoned/removed and more.

Two-way audio

Built-in microphone (5 m radius) and built-in speaker.

Audible and light deterrence

Event linkage to an audible warning or white light flashing.

PoE powered

802.3af/at PoE (class 0, max 12 W) or 12 V DC.

IP67 metal turret

111 x 111 x 83.7 mm, rated -30 to 60 degrees C.

InSight S455(2.8mm) specifications

At a glance

5MP (2880 x 1620)
2.8 mm F1.6 lens
111.4° horizontal FOV
30 m white light / IR
Human/vehicle AI
Two-way audio
PoE 802.3af/at
IP67
InSight S455(2.8mm) full specifications
Camera
Image Sensor1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length2.8/4 mm
ApertureF1.6
FOV2.8 mm: Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°; 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens MountM12 P 0.5
DORI Distance2.8 mm Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft); 4 mm Detect: 80 m (262 ft) Observe: 33 m (108 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
Illuminator
Illuminator Type4× IR LED; 4× White LED
IR LEDQuantity: 4; Range: 30m; Wavelength: 850nm
Illuminator Distance30 m (98 ft)
White LEDQuantity: 4; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2880 X 1620
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 704x576,640x480, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIONVIF Profile S/T/G
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.48 Kg
Power Supply12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12 W
ProtectionIP67
Product Dimensions (L x W x H)4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S455(2.8mm) is for

Wide-angle colour coverage

  • 111.4-degree horizontal view
  • Colour images at night with white LEDs
  • 5MP detail across the scene

Detection and deterrence

  • Human and vehicle classification
  • Audible warning and white light flashing on events
  • Two-way audio through the built-in speaker

Buy the InSight S455(2.8mm) from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S455(2.8mm) from the ARC IP Networks team.

Last reviewed October 2026.

5MP, with a maximum resolution of 2880 x 1620 at up to 25 fps (50 Hz) or 30 fps (60 Hz).

111.4 degrees horizontal, 58.8 degrees vertical and 134 degrees diagonal.

64 m detect, 27 m observe, 13 m recognise and 6 m identify.

Yes. Four white LEDs with a 30 m range allow colour images at night, and four 850 nm IR LEDs with a 30 m range provide infrared.

Yes. It distinguishes humans and vehicles from other objects for more accurate event notifications.

Yes. It has a built-in microphone covering a 5 m radius and a built-in speaker.

No. Alarm and audio interfaces are listed as N/A; event linkage uses the memory card, message push, audible warning and white light flashing.

By 802.3af/at PoE (class 0, max 12 W) or a 12 V DC supply (max 11 W).

Yes. It is rated IP67 and operates from -30 to 60 degrees C.

The VIGI network camera, a quick start guide, waterproof cable attachments and mounting accessories.

Need more than one InSight S455(2.8mm) for a business surveillance rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
