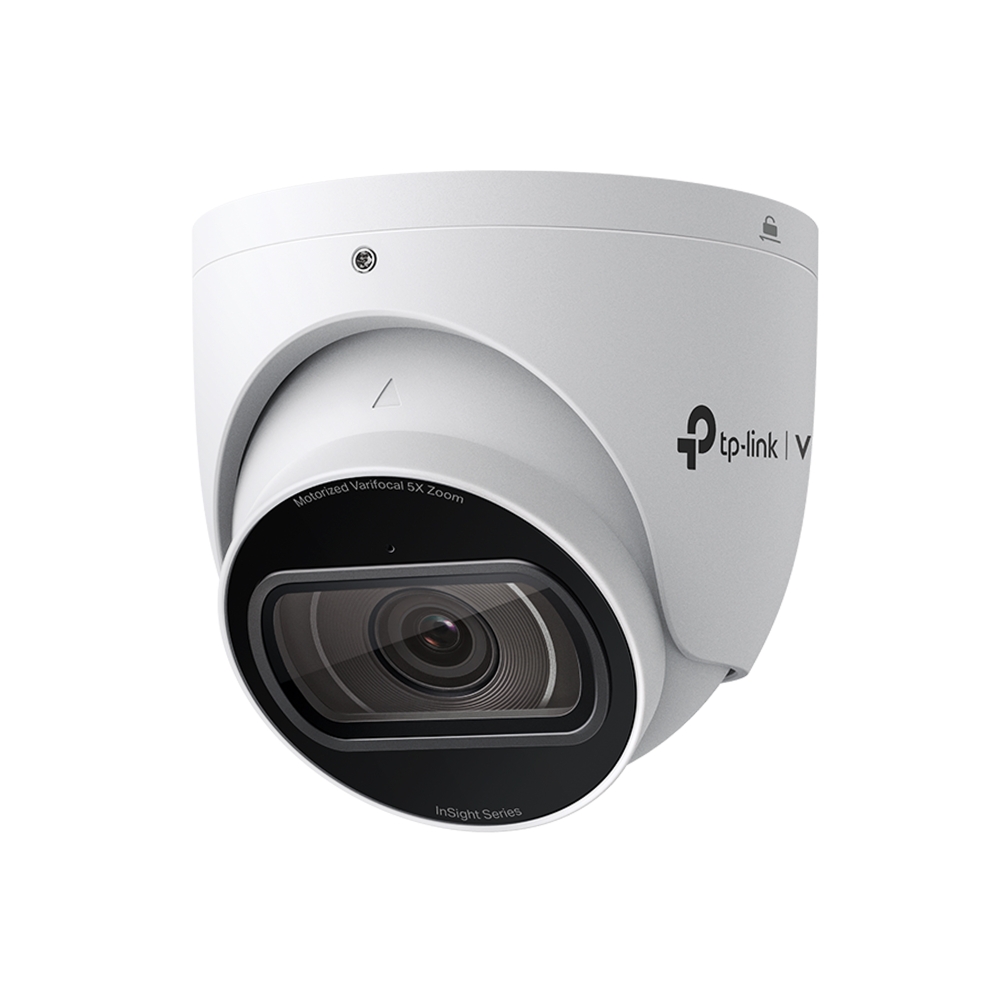

TP-Link VIGI InSight S445ZI 4MP IR Varifocal Turret Zoom Camera

https://arcip.com.au/web/image/product.template/11410/image_1920?unique=d95db27

The TP-Link VIGI InSight S445ZI is a 4MP IR motorised varifocal turret network camera. Its 2.7-13.5 mm motorised lens delivers 5X optical zoom, so the field of view can be narrowed to areas of interest, and four 850nm IR LEDs reach up to 60m in the dark. Human & Vehicle Classification provides more accurate event notifications, with True WDR at 120 dB, Smart IR and 3D DNR improving image quality. It has two-way audio, one alarm in and one alarm out, H.265+ and microSD recording up to 512 GB (card not included). It is IP67 weatherproof and IK10 vandal proof, powered by 802.3af/at PoE or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 277.57 277.57 AUD $ 277.57 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S445ZI
Barcode
8885020623550

The TP-Link VIGI InSight S445ZI is a 4MP (2688 x 1520) IR turret network camera with a motorised 2.7-13.5 mm varifocal lens giving 5x optical zoom and a 29.6° to 102° horizontal view. It has four IR LEDs reaching 60 m, 120 dB True WDR, human and vehicle classification, alarm and audio inputs and outputs, PoE power and an IP67, IK10 metal housing.

InSight S445ZI overview

The InSight S445ZI is a TP-Link VIGI 4MP IR motorised varifocal turret network camera. Its 2.7-13.5 mm F1.6 lens provides 5x optical zoom, driven by a motor rather than set by hand. TP-Link says adjusting the field of view helps you concentrate on areas of interest, minimise invalid detection zones and improve target clarity. The horizontal field of view ranges from 102.0° at the wide end to 29.6° at full zoom (53.8° to 16.8° vertical, 122.8° to 34.1° diagonal), and the DORI distances scale with it: TP-Link quotes 66-207 m for detection, 28-86 m for observation, 13-41 m for recognition and 7-21 m for identification across the zoom range.

A 1/2.9-inch progressive scan CMOS sensor records at up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, with main-stream resolutions down to 1920 x 1080; TP-Link notes the frame rate is limited to 20 fps if the image is rotated 90° or 270°. Night viewing uses four 850 nm IR LEDs with a 60 m range, and minimum illumination is 0.005 lux, or 0 lux with IR light. True WDR at 120 dB analyses and blends different exposures so that both bright and dark areas stay properly exposed in high-contrast lighting. Further image tools include BLC, 3D DNR, HLC, Smart IR, prevention of overexposure to infrared light, an SNR of 52 dB or more, up to four privacy masks and one region of interest.

Motion detection is enhanced with human and vehicle classification, which distinguishes people and vehicles from other objects for more accurate alerts. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, abnormal sound and scene change detection, plus people and vehicle detection and video tampering detection. Alarms can trigger memory card recording, message push, an audible warning, email, capture upload to FTP and an alarm-out device. The camera has one alarm input and one alarm output, and one audio input and one audio output. TP-Link lists two-way audio and a built-in microphone, which picks up activity within a 5 m radius; a built-in speaker is not listed. Video is compressed with H.265+, H.265, H.264+ or H.264, and recordings can be stored on a microSD card in the built-in slot.

The camera connects through one 10/100 Mbps RJ45 port with 802.3af/at PoE (class 0, 12 W maximum) or a 12 V DC input (10.8 W maximum). It works with the VIGI App, VIGI Security Manager, VIGI VMS, VIGI Cloud VMS and its web UI, supports ONVIF Profiles S, T and G, and allows three main streams and three sub-streams to be viewed at once. The metal housing is rated IP67 weatherproof and IK10 vandal proof, operates from -30 °C to 60 °C, measures 112.3 mm in diameter by 92.5 mm high and weighs 0.71 kg, with manual adjustment of 0-360° pan, 0-77° tilt and 0-360° rotation. In the box are the camera, a Quick Start Guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the InSight S445ZI from Australian stock with the full manufacturer's warranty.

Key features

Motorised 5x varifocal lens

2.7-13.5 mm F1.6 lens with 5x optical zoom, from a 102.0° to a 29.6° horizontal view.

Up to 207 m detection

DORI distances of 66-207 m detect and 7-21 m identify across the zoom range.

4MP resolution

Up to 2688 x 1520 at 25 fps (50 Hz) or 30 fps (60 Hz).

60 m IR night vision

Four 850 nm IR LEDs with a 60 m range and Smart IR.

120 dB True WDR

Blends different exposures so bright and dark areas both stay properly exposed.

Human and vehicle classification

Motion detection enhanced with human and vehicle classification for more accurate alerts.

Alarm and audio I/O

One alarm in, one alarm out, one audio in and one audio out.

IP67 and IK10 metal housing

Weatherproof and vandal-proof turret housing rated from -30 °C to 60 °C.

PoE powered

802.3af/at PoE (class 0, 12 W max) or 12 V DC through one 10/100 Mbps port.

InSight S445ZI specifications

At a glance

4MP (2688 x 1520)
2.7-13.5 mm motorised
5x optical zoom
60 m IR
120 dB True WDR
Alarm in/out
PoE
IP67 / IK10
InSight S445ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 66-207 m (217-579 ft); Observe: 28-86 m (92-282 ft); Recognize: 13-41 m (43-135 ft); Identify: 7-21 m (23-69 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 77°, Rotation: 0° to 360°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 60m (197ft); Wavelength: 850nm
Illuminator Distance197 ft (60 m)
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 512 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; Email Alarm; Upload Capture to FTP; Alarm Out Device
Linkage MethodN/A
Output NotificationMessage Push; Email Alarm; Upload Capture to FTP
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port

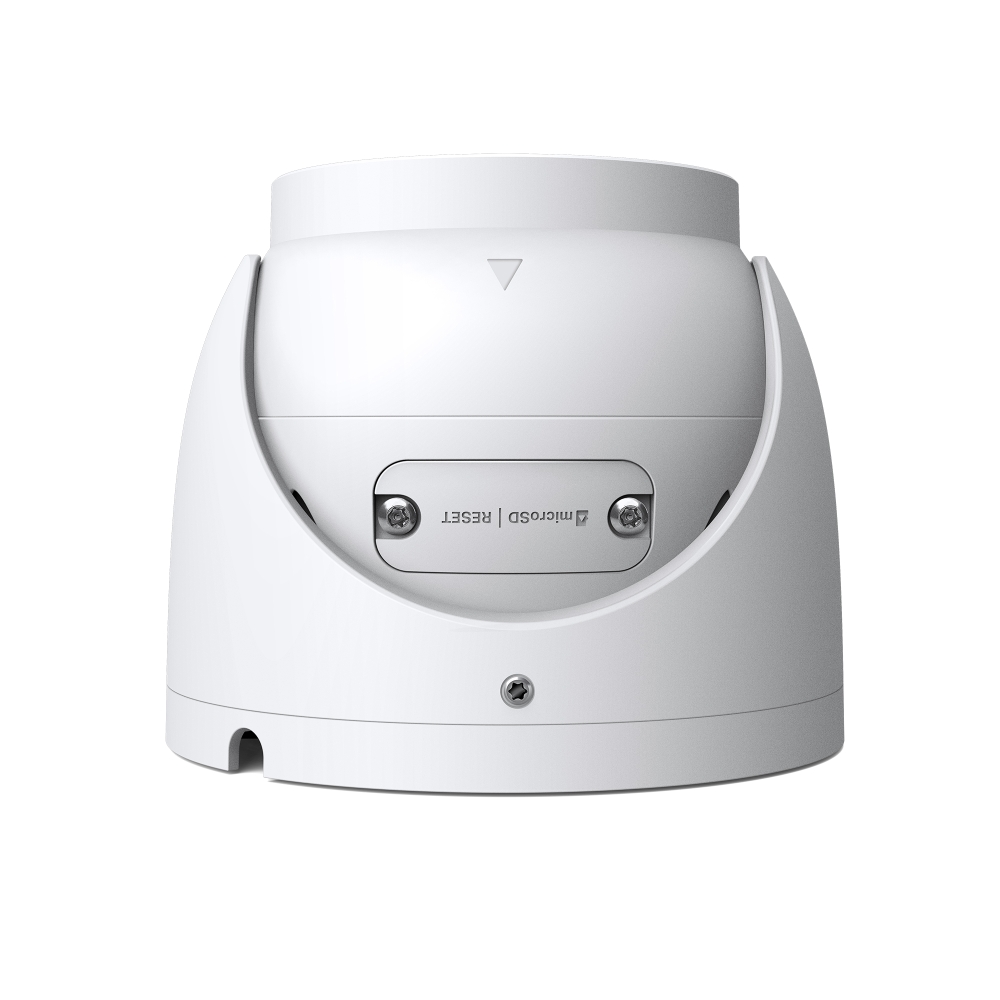

On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.71 Kg
Gross Weight0.96 Kg
Power Supply12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)Φ4.4 × 3.6 in (Φ112.3 × 92.5 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S445ZI is for

Zooming in on areas of interest

  • Motorised 5x optical zoom
  • Minimise invalid detection zones
  • Up to 207 m detection at full zoom

Integrated security systems

  • Alarm input and output
  • Human and vehicle classification
  • IK10 vandal-proof housing

Buy the InSight S445ZI from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S445ZI from the ARC IP Networks team.

Last reviewed October 2026.

A motorised 2.7-13.5 mm varifocal lens with 5x optical zoom.

29.6° to 102.0° horizontal, 16.8° to 53.8° vertical and 34.1° to 122.8° diagonal, depending on zoom.

TP-Link quotes DORI distances of 66-207 m detection, 28-86 m observation, 13-41 m recognition and 7-21 m identification across the zoom range.

4MP, up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz.

It uses four 850 nm IR LEDs with a 60 m range. White-light LEDs are not listed.

Yes. It has one alarm in and one alarm out, plus one audio in and one audio out.

TP-Link lists two-way audio, a built-in microphone and an audio output. A built-in speaker is not listed.

802.3af/at PoE (class 0), up to 12 W. It can also run from 12 V DC.

Yes. It is rated IK10 vandal proof and IP67 weatherproof.

The camera, a Quick Start Guide, waterproof cable attachments and mounting accessories.

Need more than one InSight S445ZI for a site security rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
