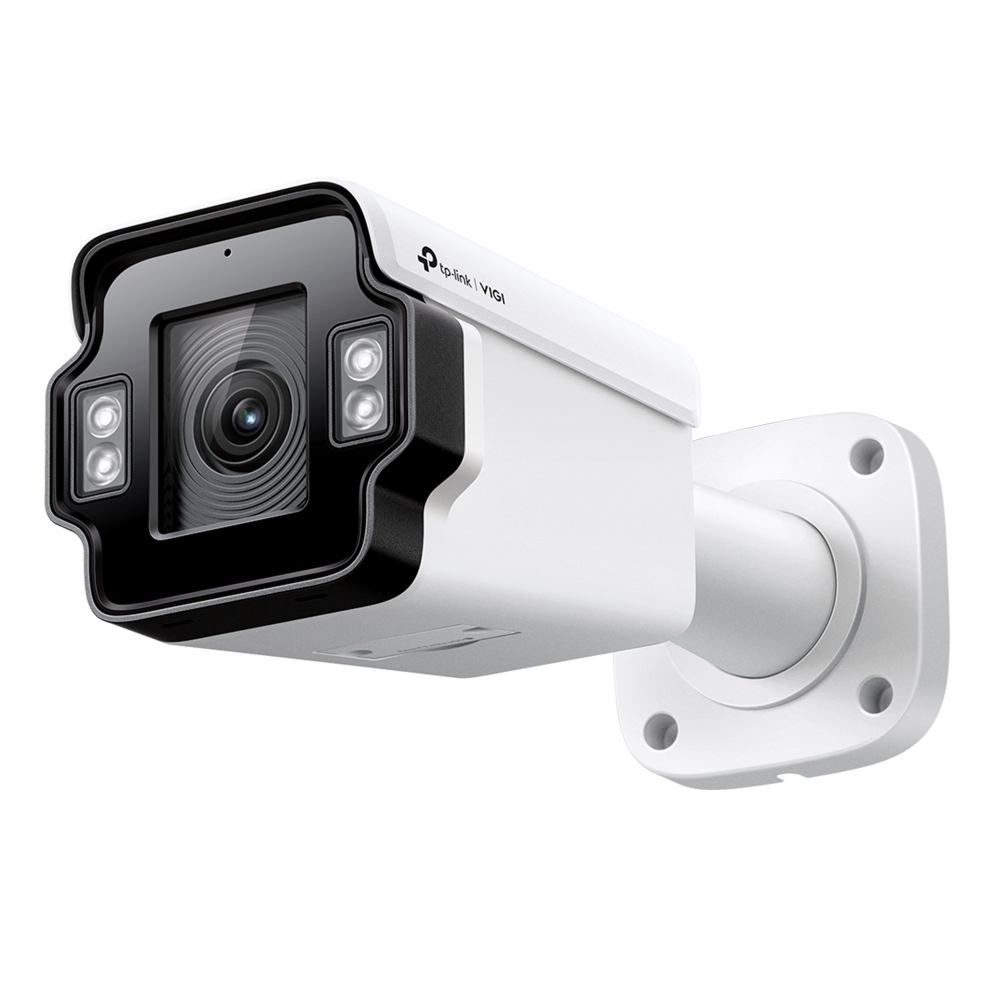

TP-Link VIGI InSight S345ZI 4MP Outdoor IR Varifocal Bullet Camera

https://arcip.com.au/web/image/product.template/11402/image_1920?unique=d95db27

The TP-Link VIGI InSight S345ZI is a 4MP outdoor IR motorised varifocal bullet network camera. The 2.7-13.5 mm motorised lens provides 5X optical zoom so the field of view can be adjusted to areas of interest, and four IR LEDs reach up to 60 m at night. Human & Vehicle Classification gives more accurate event notifications, supported by True WDR at 120 dB, Smart IR and 3D DNR. It offers two-way audio, one alarm in and one alarm out, H.265+ and microSD recording up to 512 GB (card not included), with IP67 and IK10 protection and 802.3af/at PoE or 12V DC power. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 305.43 305.43 AUD $ 305.43 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S345ZI
Barcode
8885020623574

The TP-Link VIGI InSight S345ZI is a 4MP outdoor IR bullet network camera with a 2.7-13.5 mm motorised varifocal lens (5x optical zoom), F1.6 aperture, four 850 nm IR LEDs reaching 60 m, human and vehicle classification, 120 dB WDR and H.265+. It is IP67 weatherproof and IK10 vandal proof, takes PoE (802.3af/at) or 12 V DC, and has alarm and audio inputs and outputs.

InSight S345ZI overview

The InSight S345ZI is VIGI's 4MP outdoor IR motorised varifocal bullet network camera. Its 1/2.9-inch progressive scan CMOS sensor delivers a maximum resolution of 2688 x 1520, and the 2.7-13.5 mm motorised varifocal lens gives 5x optical zoom with an F1.6 aperture. Across the zoom range the horizontal field of view runs from 102.0° at the wide end to 29.6° at the tele end. VIGI says adjusting the field of view helps you concentrate on areas of interest, minimise invalid detection zones and enhance target clarity. DORI distances across the zoom range are detect 66-207 m, observe 28-86 m, recognise 13-41 m and identify 7-21 m, and minimum illumination is 0.005 lux, or 0 lux with IR.

For darkness, four 850 nm IR LEDs provide an illuminator distance of 60 m (197 ft), with auto, scheduled, always-on or always-off control and an IR cut filter for day/night switching. Image enhancement includes BLC, 3D DNR, HLC and Smart IR, with 120 dB WDR. VIGI describes its True WDR as analysing and blending different exposures so both bright and dark areas remain properly exposed in high-contrast lighting. Video uses H.265+, H.265, H.264+ or H.264 on the main stream; VIGI says H.265+ reduces the bandwidth and storage needed while maintaining image quality. The main stream runs up to 30 fps (60 Hz) or 25 fps (50 Hz), up to 20 fps when the image is rotated 90° or 270°.

Human and vehicle classification distinguishes humans and vehicles from other objects for more accurate event notifications, and motion detection is enhanced with that classification. Smart events cover intrusion, line crossing, region entering and exiting, object abandoned and removed, loitering, people and vehicle detection, abnormal sound and scene change detection. Alarm linkage includes memory card recording, message push, an audible warning, email alarms, FTP capture upload and an alarm out device, supported by one alarm input and one alarm output. Audio covers a built-in microphone, one audio in and one audio out interface, two-way audio and environmental noise filtering; there is no built-in speaker.

The S345ZI has a metal body rated IP67 weatherproof and IK10 vandal proof, measuring 256 x 100 x 101 mm, and operates from -30 to 60 °C. It has a 10/100M RJ45 port and is powered by PoE (802.3af/at, class 0, max 12 W) or 12 V DC (max 10.8 W). A microSD card slot provides on-board storage. It supports ONVIF Profiles S, T and G and RTSP, and is managed with the VIGI app, VIGI Security Manager, the web UI, VIGI VMS or VIGI Cloud VMS. In the box are the camera, a quick start guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the InSight S345ZI from Australian stock with the full manufacturer's warranty.

Key features

4MP resolution

2688 x 1520 maximum resolution from a 1/2.9-inch progressive scan CMOS sensor.

2.7-13.5 mm motorised varifocal

5x optical zoom with F1.6 aperture; 102.0° to 29.6° horizontal field of view.

60 m IR night vision

Four 850 nm IR LEDs with a 60 m (197 ft) illuminator distance.

Human and vehicle classification

Distinguishes humans and vehicles from other objects for more accurate alerts.

Smart event detection

Intrusion, line crossing, region entry/exit, loitering, object left/removed and abnormal sound.

120 dB True WDR

Blends exposures to keep bright and dark areas properly exposed in high-contrast scenes.

H.265+ compression

Reduces bandwidth and storage needs while maintaining image quality.

Alarm and audio I/O

1 alarm in, 1 alarm out, 1 audio in, 1 audio out, built-in microphone and two-way audio.

IP67 and IK10 metal body

Weatherproof and vandal-proof, powered by PoE 802.3af/at or 12 V DC.

InSight S345ZI specifications

At a glance

4MP (2688 x 1520)
2.7-13.5 mm, 5x zoom
F1.6 aperture
60 m IR
Human & vehicle classification
120 dB WDR
IP67 / IK10
PoE or 12 V DC
InSight S345ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 66-207 m (217-579 ft); Observe: 28-86 m (92-282 ft); Recognize: 13-41 m (43-135 ft); Identify: 7-21 m (23-69 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 60m (197ft); Wavelength: 850nm
Illuminator Distance197 ft (60 m)
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 512 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; Email Alarm; Upload Capture to FTP; Alarm Out Device
Linkage MethodN/A
Output NotificationMessage Push; Email Alarm; Upload Capture to FTP
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net WeightKg
Gross WeightKg
Power Supply12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S345ZI is for

Concentrating on areas of interest

  • Motorised 5x varifocal lens
  • Identify distance up to 21 m at tele
  • Minimise invalid detection zones

Harsh outdoor positions

  • IP67 weatherproof, IK10 vandal proof
  • Metal body, -30 to 60 °C
  • 60 m IR night vision

Buy the InSight S345ZI from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S345ZI from the ARC IP Networks team.

Last reviewed October 2026.

4MP, with a maximum resolution of 2688 x 1520.

A 2.7-13.5 mm motorised varifocal lens with 5x optical zoom and an F1.6 aperture. The horizontal field of view ranges from 102.0° to 29.6°.

Its four 850 nm IR LEDs have an illuminator distance of 60 m (197 ft).

Across the zoom range: detect 66-207 m, observe 28-86 m, recognise 13-41 m and identify 7-21 m.

Human and vehicle classification, plus intrusion, line crossing, region entering/exiting, object abandoned/removed, loitering, people and vehicle detection, abnormal sound and scene change detection.

By PoE (802.3af/at, class 0, max 12 W) or 12 V DC (max 10.8 W) through a 5.5 mm coaxial plug.

Yes. It is IP67 weatherproof and IK10 vandal proof, and operates from -30 to 60 °C.

Yes. It has 1 alarm in, 1 alarm out, 1 audio in and 1 audio out, a built-in microphone and two-way audio. It has no built-in speaker.

The VIGI app, VIGI Security Manager, the web UI, VIGI VMS or VIGI Cloud VMS. It also supports ONVIF Profiles S, T and G.

The VIGI network camera, a quick start guide, waterproof cable attachments and mounting accessories.

Need more than one InSight S345ZI for a site camera rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
