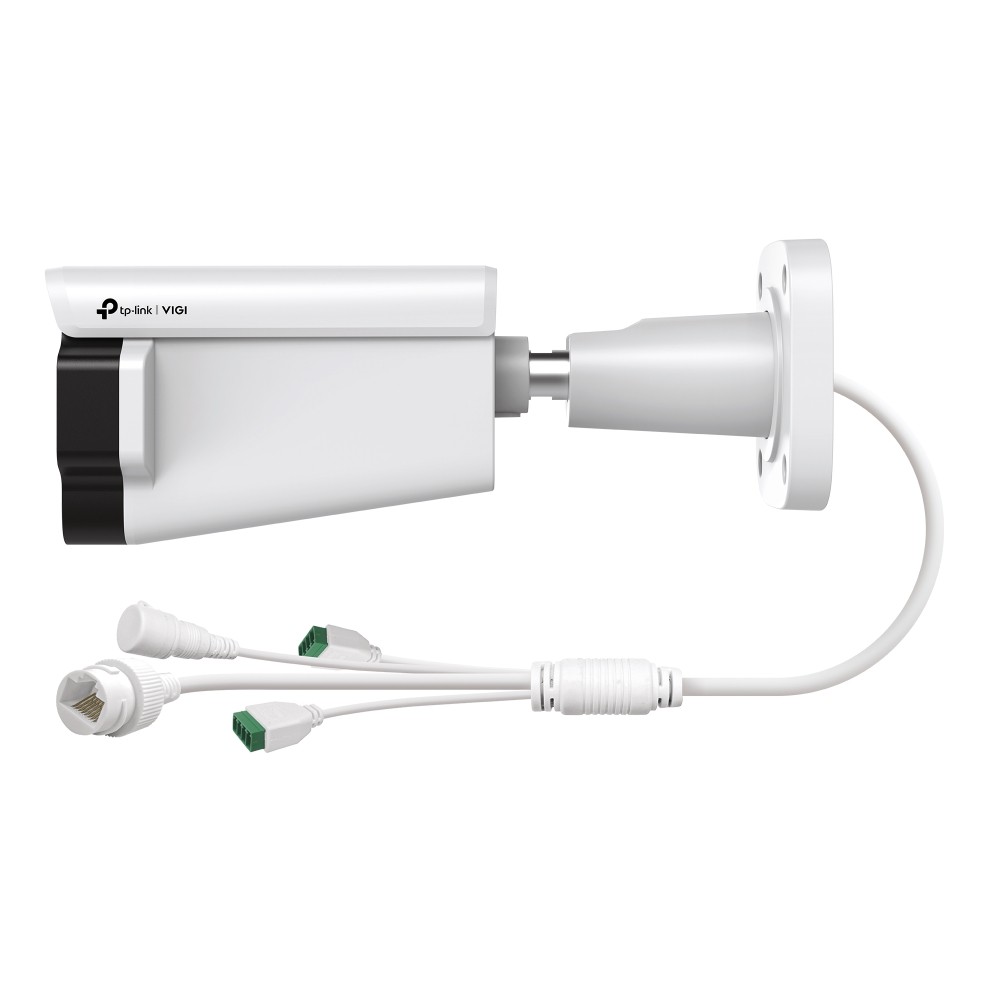

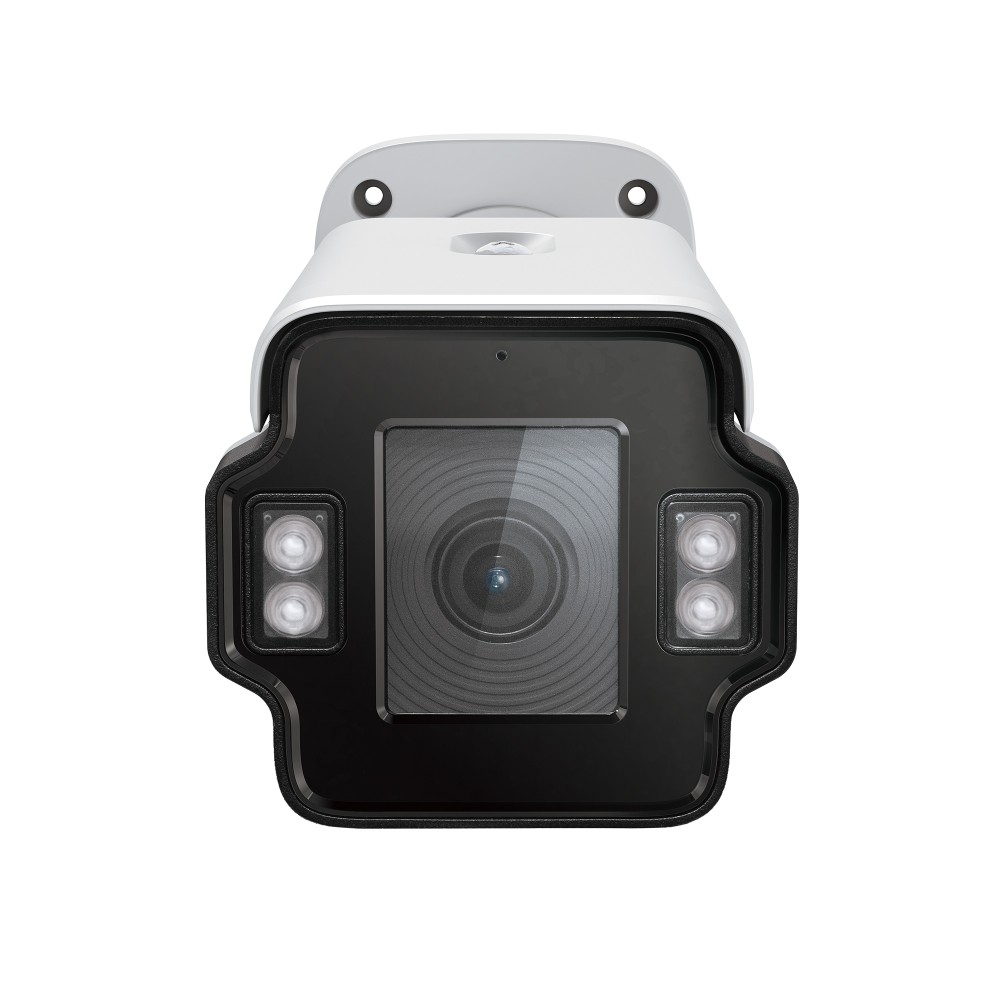

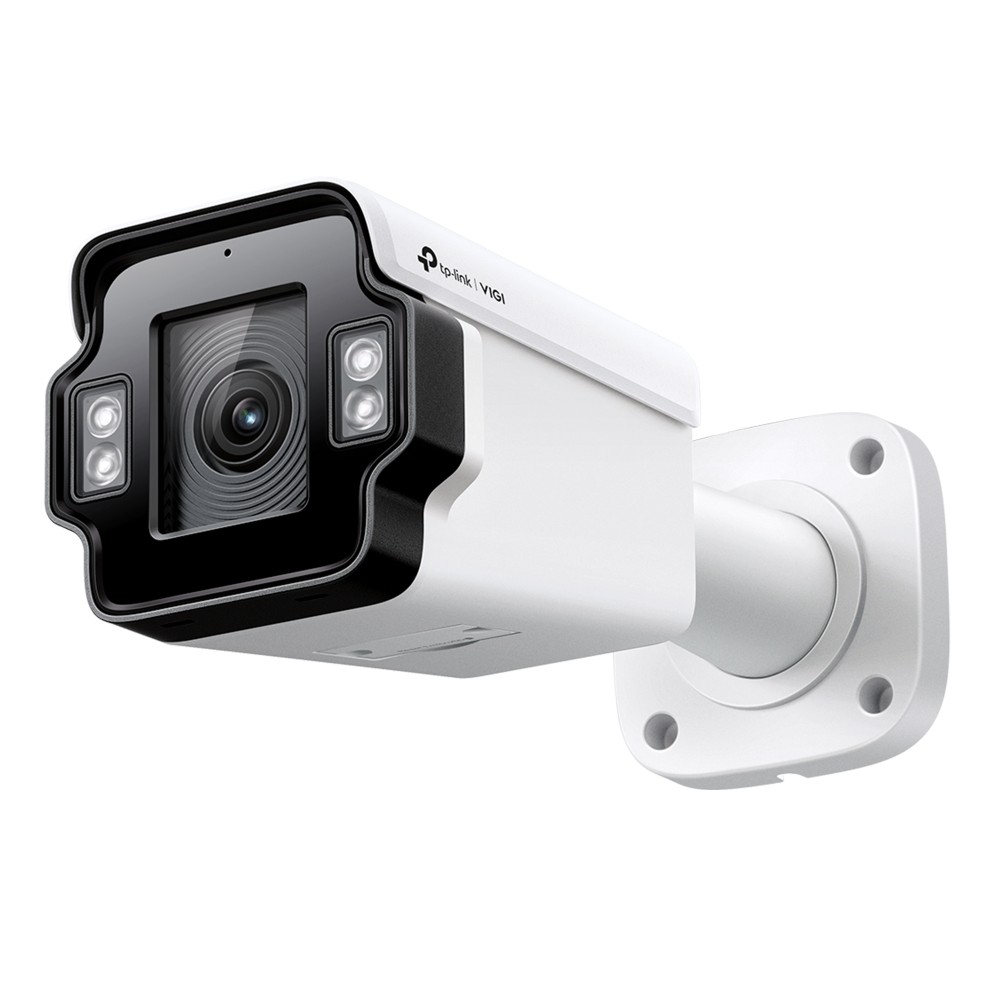

TP-Link VIGI InSight S345ZI 4MP Outdoor IR Motorised Varifocal Bullet Network Camera

https://arcip.com.au/web/image/product.template/11402/image_1920?unique=7e74e81

The TP-Link VIGI InSight S345ZI is an outdoor 4MP (2688 x 1520) IR bullet network camera with a motorised 2.7-13.5 mm F1.6 varifocal lens and 5X optical zoom. Horizontal view adjusts from 102.0° to 29.6°, and TP-Link quotes DORI detection of 66 to 207 m across the zoom. Four 850 nm IR LEDs reach 60 m. It also has human and vehicle classification, smart event detection, one alarm in/out, one audio in/out, a microSD slot up to 512 GB, 802.3af/at PoE and an IP67, IK10 metal housing. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 305.43 305.43 AUD $ 305.43 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S345ZI
Barcode
8885020623574

The TP-Link VIGI InSight S345ZI is a 4MP outdoor IR bullet network camera built around a motorised 2.7-13.5 mm varifocal lens with 5X optical zoom. TP-Link quotes detection from 66 to 207 m across the zoom range and IR night vision to 60 m, and the metal body adds human and vehicle classification, alarm and audio terminals, microSD recording, PoE and IP67 and IK10 ratings.

InSight S345ZI overview

The VIGI InSight S345ZI is TP-Link's 4MP outdoor IR bullet with a motorised varifocal lens, sold under the line 'See Every Detail Up Close'. Instead of a fixed focal length, it carries a 2.7 to 13.5 mm F1.6 lens with 5X optical zoom. TP-Link's reasoning is that adjusting the field of view lets you concentrate on areas of interest, minimise invalid detection zones and enhance target clarity. The horizontal field of view spans 102.0° wide to 29.6° tele, the vertical 53.8° to 16.8°, and the diagonal 122.8° to 34.1°.

TP-Link's DORI figures for the S345ZI cover the whole zoom range: 66 to 207 m to detect, 28 to 86 m to observe, 13 to 41 m to recognise and 7 to 21 m to identify. Imaging comes from a 1/2.9" progressive scan CMOS sensor at up to 2688 x 1520, with main-stream options of 2560 x 1440, 2304 x 1296, 2048 x 1280 and 1920 x 1080. Frame rate reaches 25 fps on 50 Hz or 30 fps on 60 Hz, limited to 20 fps if the image is rotated 90° or 270°. The main stream encodes in H.265+, H.265, H.264+ or H.264 at 256 Kbps to 6 Mbps, and TP-Link states that H.265+ saves 57.5% and 15% more storage than H.264 and H.265, based on its laboratory testing with a 3MP VIGI camera, with real results varying by recorded activity, resolution and other variables.

After dark, four 850 nm IR LEDs light the scene to 60 m, controlled automatically, by schedule, always on or always off. Minimum illumination is 0.005 lux, and 0 lux with IR. The image pipeline lists 120 dB True WDR for high-contrast scenes, BLC, 3D DNR, HLC and Smart IR, along with an SNR of 52 dB or better, up to four privacy masks and one region of interest. Motion detection uses human and vehicle classification so alerts focus on people and vehicles, and the smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people and vehicle detection, abnormal sound and scene change.

For integration, the S345ZI has one alarm input, one alarm output, one audio input and one audio output. There is a built-in microphone with a 5 m pickup radius; TP-Link lists the built-in speaker as N/A. Alarm linkage covers memory card recording, message push, audible warning, email alarm, FTP capture upload and an alarm out device. It is managed through the VIGI App, VIGI Security Manager, Web UI, VIGI VMS or VIGI Cloud VMS and supports ONVIF Profile S/T/G with three main and three sub-streams of live view. Power is 802.3af/at PoE (class 0, maximum 12 W) or 12 V DC (maximum 10.8 W). The metal bullet is rated IP67 weatherproof and IK10 vandal proof, runs from -30 to 60 °C and measures 256 x 100 x 101 mm; TP-Link's page does not state a weight. A microSD slot accepts cards up to 512 GB, and TP-Link notes the SD card is not included.

Key features

5X optical zoom

Motorised 2.7-13.5 mm F1.6 varifocal lens.

102° to 29.6° view

Horizontal field of view across the zoom range.

Long DORI range

Detect 66-207 m, observe 28-86 m, recognise 13-41 m, identify 7-21 m.

60 m IR

Four 850 nm IR LEDs with auto, scheduled or manual control.

4MP sensor

1/2.9" progressive scan CMOS, 2688 x 1520 at up to 30 fps on 60 Hz.

Human and vehicle classification

Motion alerts focused on people and vehicles.

Alarm and audio I/O

One alarm in and out, one audio in and out, built-in microphone.

Smart events

Intrusion, line-crossing, loitering, region entry and exit, abnormal sound.

IP67 and IK10

Metal bullet housing rated weatherproof and vandal proof.

PoE or 12 V DC

802.3af/at PoE, class 0, maximum 12 W; or 12 V DC.

InSight S345ZI specifications

At a glance

4MP 2688x1520
2.7-13.5 mm, 5X zoom
Detect 66-207 m
IR 60 m
Alarm in/out
Audio in/out
802.3af/at PoE
IP67 / IK10
InSight S345ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 66-207 m (217-579 ft); Observe: 28-86 m (92-282 ft); Recognize: 13-41 m (43-135 ft); Identify: 7-21 m (23-69 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 60m (197ft); Wavelength: 850nm
Illuminator Distance197 ft (60 m)
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 x 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 512 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; Email Alarm; Upload Capture to FTP; Alarm Out Device
Linkage MethodN/A
Output NotificationMessage Push; Email Alarm; Upload Capture to FTP
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30–60 °C
Storage Temperature-40–60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net WeightKg
Gross WeightKg
Power Supply12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)10.1 × 3.9 × 4 in (256 × 100 × 101 mm)
CertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S345ZI is for

Distant or narrow targets

  • Zoom to 13.5 mm for a 29.6° view
  • Detection quoted to 207 m
  • Identify distance up to 21 m

Outdoor IR coverage

  • Four 850 nm IR LEDs to 60 m
  • 0 lux with IR
  • Smart IR to limit overexposure

Sites with existing alarms

  • Alarm in and alarm out terminals
  • Audio in and out terminals
  • Email and FTP alarm linkage

InSight S345ZI compared

The S345ZI shares its 4MP sensor and motorised 2.7-13.5 mm lens with a dome and a turret version. Figures are from each model's TP-Link Australia product page.

SpecS345ZI (bullet)S245ZI (dome)S445ZI (turret)
HousingOutdoor bulletDomeTurret
Detect66-207 m62-200 m66-207 m
Observe28-86 m27-84 m28-86 m
Recognise13-41 m13-40 m13-41 m
Manual pan / tilt0-360° / 0-90°0-350° / 0-75°0-360° / 0-77°
Dimensions256 x 100 x 101 mmΦ129.9 x 102.5 mmΦ112.3 x 92.5 mm
ProtectionIP67, IK10IP67, IK10IP67, IK10

Source: TP-Link Australia product pages for each model.

Buy the InSight S345ZI from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S345ZI from the ARC IP Networks team.

Last reviewed October 2026.

Yes. It uses a motorised varifocal lens from 2.7 to 13.5 mm with an F1.6 aperture, giving 5X optical zoom.

102.0° horizontal at the widest setting and 29.6° at full zoom. Vertical coverage is 53.8° to 16.8° and diagonal is 122.8° to 34.1°.

TP-Link quotes DORI distances of 66-207 m to detect, 28-86 m to observe, 13-41 m to recognise and 7-21 m to identify, depending on the zoom position.

Four 850 nm IR LEDs reach 60 m. Minimum illumination is 0 lux with IR.

Yes, one alarm input and one alarm output, plus one audio input and one audio output.

TP-Link lists the built-in speaker as N/A. The camera has a built-in microphone covering a 5 m radius and an audio output terminal.

IP67 weatherproof and IK10 vandal proof, with an operating temperature range of -30 to 60 °C.

802.3af/at PoE (class 0, maximum 12 W) or 12 V DC through a 5.5 mm coaxial plug (maximum 10.8 W).

Yes, cards up to 512 GB. TP-Link notes the SD card is not included in the package.

It supports ONVIF Profile S/T/G and RTSP, and TP-Link lists the VIGI App, VIGI Security Manager, Web UI, VIGI VMS and VIGI Cloud VMS as clients.

Need more than one InSight S345ZI for a VIGI varifocal bullet deployment?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
