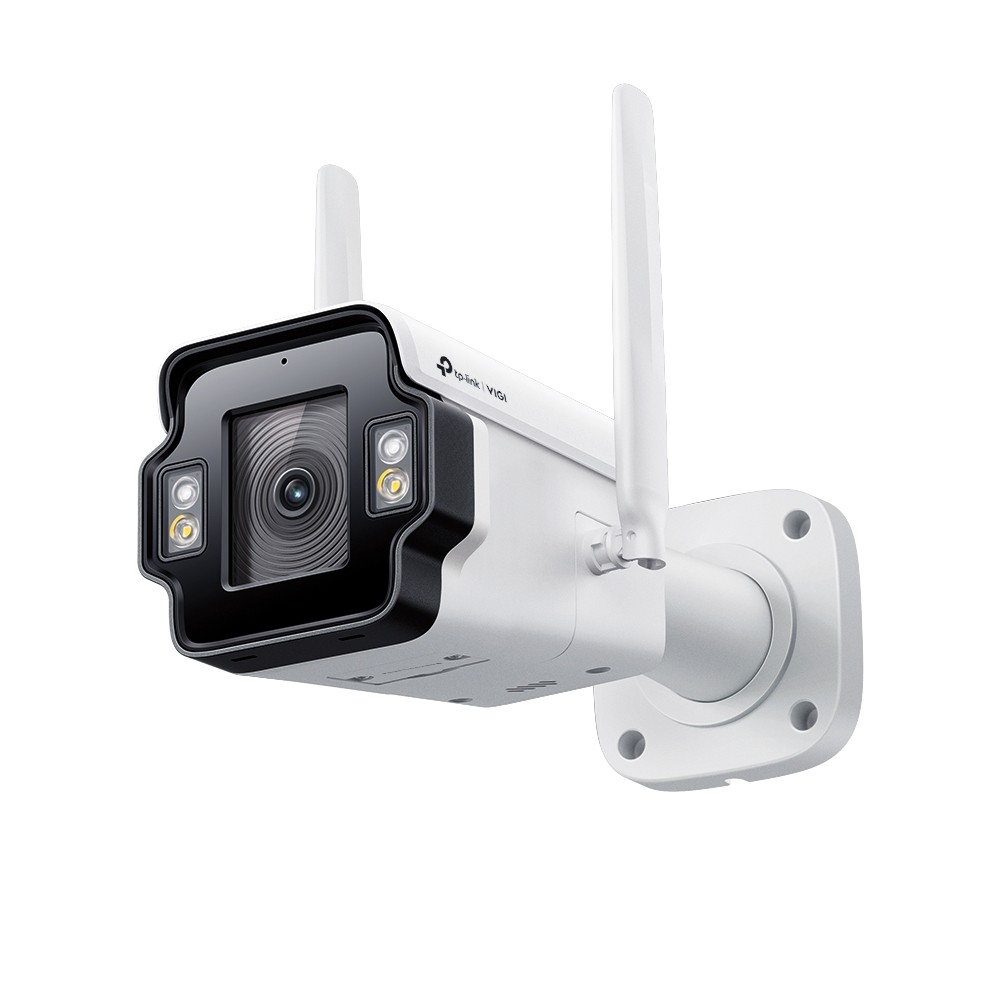

TP-Link VIGI InSight S345-4G(4mm) 4MP Outdoor Full-Colour 4G Bullet Network Camera

https://arcip.com.au/web/image/product.template/11400/image_1920?unique=1324beb

The TP-Link VIGI InSight S345-4G(4mm) is a 4MP (2688 x 1520) outdoor full-colour bullet network camera with built-in Cat 4 4G LTE through a Nano SIM slot, rated at up to 150 Mbps down and 50 Mbps up, plus three 10/100 Mbps LAN ports. The 4 mm F1.6 lens gives an 80.4° horizontal view and DORI distances of 80 m detect and 8 m identify. Two IR LEDs reach 50 m and two white LEDs 30 m. It adds human and vehicle classification, two-way audio, a microSD slot, IP66 protection and 12 V DC power with an adaptor in the box. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 323.95 323.95 AUD $ 323.95 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S345-4G-4MM
Barcode
8885020625585

The TP-Link VIGI InSight S345-4G(4mm) is a 4MP outdoor full-colour bullet camera that connects over 4G LTE using a Nano SIM, and also has three 10/100 Mbps LAN ports for other devices. Its 4 mm F1.6 lens covers 80.4° horizontally with DORI detection to 80 m, two IR LEDs reach 50 m and two white LEDs 30 m, and TP-Link's LightPro night vision switches to colour when people or vehicles are detected.

InSight S345-4G(4mm) overview

The VIGI InSight S345-4G is TP-Link's 4MP outdoor full-colour bullet camera with its own 4G mobile connection, introduced as '4G and 3 LAN Ports, Hassle-free Deployment'. It has a built-in Nano SIM card slot and a Category 4 modem covering LTE-FDD bands 1, 3, 5, 7, 8, 20 and 28, LTE-TDD bands 38, 40 and 41, and WCDMA bands 1, 5 and 8. TP-Link rates the 4G link at 150 Mbps downlink and 50 Mbps uplink, using two omni-directional dipole antennas. The Nano-SIM card and microSD card are not included.

The second difference is networking for other devices. The S345-4G has three 10/100 Mbps RJ45 LAN ports, which TP-Link says enable simultaneous connectivity for up to three devices. TP-Link describes the camera as ideal for coupling with solar power systems to eliminate additional wiring. Note that the camera itself is powered by 12 V DC (maximum 10.59 W) through a 5.5 mm coaxial plug, with a power adapter included in the box; TP-Link's specifications do not list PoE input for this model.

Optically, this model uses a fixed 4 mm F1.6 lens on a 1/2.7" progressive scan CMOS sensor. Horizontal coverage is 80.4°, vertical 41.8° and diagonal 98.7°, and TP-Link's DORI distances are 80 m detect, 33 m observe, 16 m recognise and 8 m identify. Maximum resolution is 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, with H.265+, H.265, H.264+ or H.264 on the main stream at 256 Kbps to 6 Mbps. For low light, two 850 nm IR LEDs reach 50 m and two white LEDs reach 30 m. TP-Link's LightPro night vision switches between IR and full-colour night vision by detecting people or vehicles: with nobody in view the camera stays in IR, and when a person or vehicle appears it turns on the white light for colour detail, which TP-Link says reduces light pollution and energy consumption. Minimum illumination is 0.005 lux, or 0 lux with IR or white light.

Detection features include human and vehicle classification on motion events, plus intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection. Alarm linkage covers memory card recording, message push, audible warning, white light flashing, FTP upload, alarm server and email. A built-in speaker and microphone (5 m radius) provide two-way audio. Image options include 120 dB WDR, BLC, 3D DNR, HLC and Smart IR, up to four privacy masks and one ROI. It is managed through the VIGI App, Web UI, VIGI VMS and VIGI Cloud VMS, and supports ONVIF Profile S/G/T. The metal bullet is rated IP66 weatherproof, operates from -30 to 60 °C, weighs 1.09 kg and measures 256 x 122 x 101 mm excluding antennas, with 0-360° pan, 0-90° tilt and 0-360° rotation. A microSD slot supports cards up to 512 GB.

Key features

Built-in 4G LTE

Cat 4 modem with Nano SIM slot, up to 150 Mbps down and 50 Mbps up.

Three LAN ports

Three 10/100 Mbps RJ45 ports for up to three devices.

4 mm F1.6 lens

80.4° horizontal, 41.8° vertical, 98.7° diagonal view.

DORI distances

Detect 80 m, observe 33 m, recognise 16 m, identify 8 m.

LightPro night vision

IR by default, white light and colour when people or vehicles are detected.

IR 50 m, white light 30 m

Two 850 nm IR LEDs and two white LEDs.

Human and vehicle classification

More accurate event notifications.

Two-way audio

Built-in speaker and microphone with noise filtering.

IP66 weatherproof

Metal bullet for -30 to 60 °C.

12 V DC with adaptor

Maximum 10.59 W; power adapter included in the box.

InSight S345-4G(4mm) specifications

At a glance

4MP 2688x1520
4G LTE Cat 4
Nano SIM slot
3 x LAN ports
4 mm, 80.4° HFOV
IR 50 m / white 30 m
12 V DC
IP66
InSight S345-4G(4mm) full specifications
Camera
Image Sensor1/2.7“ Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens MountM12
DORI DistanceDetect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Illuminator
Illuminator Type2× IR LED; 2× White LED
IR LEDQuantity: 2; Range: 50m; Wavelength: 850nm
Illuminator DistanceIR LED: 50 m (164 ft); White LED: 30 m (98 ft)
White LEDQuantity: 2; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 X 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes (Built-in Microphone)
Audio OutputYes (Built-in Speaker)
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/G/T)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
StandardLTE-TDD/LTE-FDD/WCDMA
SIM TypeNano SIM 1
Category4
FrequencyLTE-FDD: B 1/3/5/7/8/20/28; LTE-TDD: B 38/40/41; WCDMA: B 1/5/8
Uplink and Download Data RateUplink: 50 Mbps, Downlink: 150 Mbps
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception (Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing; Upload to FTP server; Send to Alarm Server; Email Alarm
Interfaces
Network Interface3 RJ45 10/100M LAN Ports
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 512 GB 1
Built-in Nano-SIM Card SlotYes
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30℃ to 60°C
Storage Temperature-40℃ to 60°C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight1.09 Kg
Power Supply12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
ProtectionIP66 Weatherproof
Product Dimensions (L x W x H)10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
CertificationsWPS, WHQL, Energy Star, CE, NCC, NTRA, KC, RCM, ONVIF, IP66

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Power Adapter

Source: TP-Link's published package contents.

Who the InSight S345-4G(4mm) is for

4G mobile connectivity

  • Built-in 4G LTE with Nano SIM
  • LTE-FDD bands including 1, 3, 7 and 28
  • VIGI App and Cloud VMS access

Solar-powered deployments

  • Suited to solar power systems, per TP-Link
  • 12 V DC input
  • Three LAN ports for other devices

Smart night lighting

  • LightPro switches IR to colour on detection
  • IR to 50 m
  • White light to 30 m

Buy the InSight S345-4G(4mm) from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S345-4G(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

Through its built-in 4G modem and a Nano SIM card. It supports LTE-FDD, LTE-TDD and WCDMA at Category 4, with up to 150 Mbps downlink and 50 Mbps uplink. The SIM card is not included.

LTE-FDD bands 1, 3, 5, 7, 8, 20 and 28; LTE-TDD bands 38, 40 and 41; and WCDMA bands 1, 5 and 8.

TP-Link says the three 10/100 Mbps RJ45 LAN ports enable simultaneous connectivity for up to three devices, and positions the camera for use with solar power systems to avoid extra wiring.

TP-Link lists only a 12 V DC input (maximum 10.59 W, 5.5 mm coaxial plug) for this model, and a power adapter is included in the package.

A fixed 4 mm F1.6 lens with an 80.4° horizontal, 41.8° vertical and 98.7° diagonal field of view.

Detect 80 m, observe 33 m, recognise 16 m and identify 8 m.

TP-Link's mode that keeps the camera on IR night vision when no person or vehicle is detected and switches on the white light for full-colour night images when one is, returning to IR when they leave.

Two 850 nm IR LEDs reach 50 m and two white LEDs reach 30 m.

It is rated IP66 weatherproof, with an operating temperature of -30 to 60 °C.

The VIGI network camera, a quick start guide, waterproof cable attachments, mounting accessories and a power adapter. The microSD card and Nano-SIM card are not included.

Need more than one InSight S345-4G(4mm) for a VIGI 4G camera deployment?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
