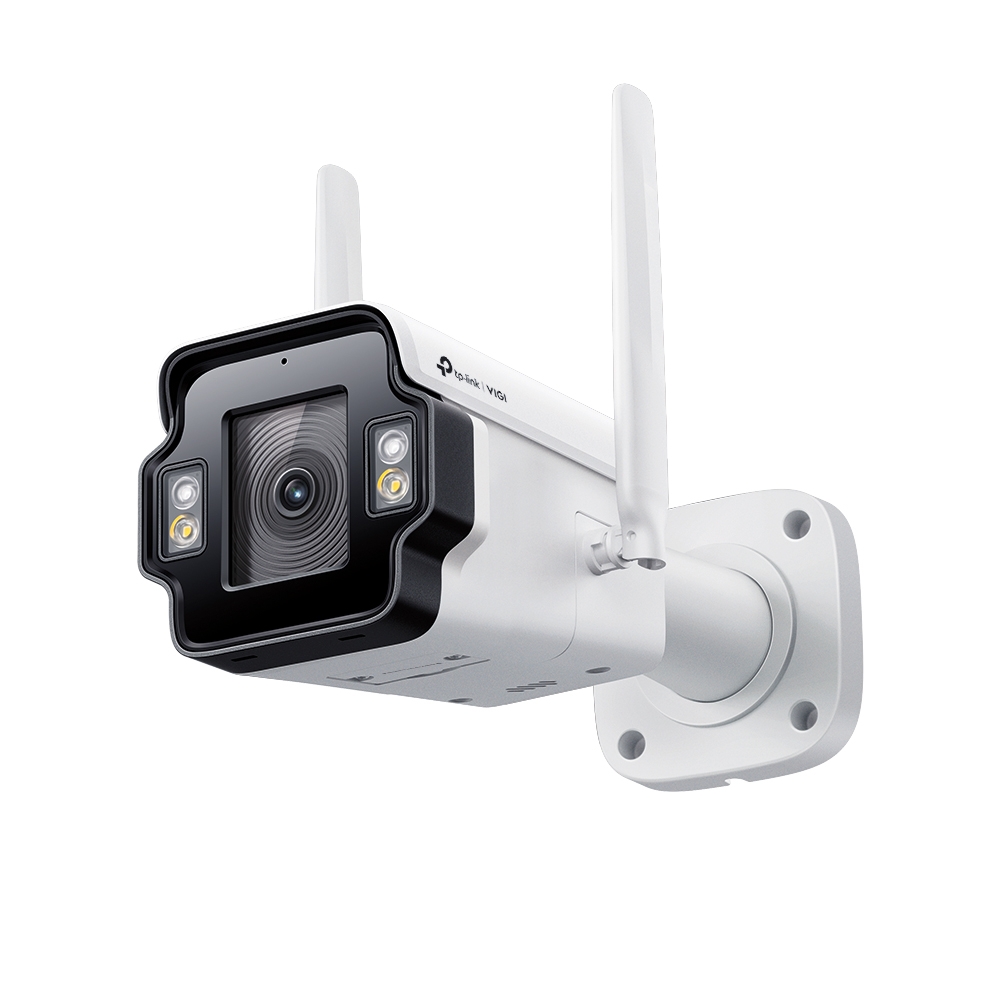

TP-Link VIGI InSight S345-4G(4mm) 4MP Outdoor Colour 4G Bullet Camera

https://arcip.com.au/web/image/product.template/11400/image_1920?unique=d95db27

The TP-Link VIGI InSight S345-4G(4mm) is a 4MP outdoor full-colour 4G bullet network camera with a 4 mm F1.6 fixed lens and an 80.4° horizontal field of view. Its LTE Cat 4 connection offers up to 150 Mbps down and 50 Mbps up, and three 10/100M LAN ports can connect up to three downstream devices, which TP-Link pairs with VIGI solar power systems to avoid extra wiring. LightPro Night Vision switches from IR (up to 50 m) to white light (up to 30 m) when people or vehicles are detected. It adds Human & Vehicle Classification, two-way audio, active defence, H.265+ and IP66 weatherproofing. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 323.95 323.95 AUD $ 323.95 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S345-4G-4MM
Barcode
8885020625585

The TP-Link VIGI InSight S345-4G(4mm) is a 4MP (2688 x 1520) outdoor full-colour bullet camera with a built-in Cat 4 4G LTE modem and nano SIM slot, plus three 10/100 Mbps LAN ports. It has a 4 mm F1.6 lens with an 80.4° horizontal view, IR to 50 m and white light to 30 m, human and vehicle classification, two-way audio and an IP66 metal housing.

InSight S345-4G(4mm) overview

The InSight S345-4G is a VIGI 4MP full-colour bullet camera with its own mobile connection. It has a built-in 4G modem supporting LTE-TDD, LTE-FDD and WCDMA at Category 4, with data rates of up to 150 Mbps downlink and 50 Mbps uplink, and a built-in nano SIM card slot. Supported bands are LTE-FDD B1, B3, B5, B7, B8, B20 and B28, LTE-TDD B38, B40 and B41, and WCDMA B1, B5 and B8, so check that your provider's bands are covered. Two dipole omnidirectional antennas cover 690-960 MHz and 1710-2690 MHz. TP-Link also gives the camera three 10/100 Mbps RJ45 LAN ports, which it describes as meeting deployment needs with minimal effort.

Image capture uses a 1/2.7-inch progressive scan CMOS sensor at up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz, with main-stream resolutions down to 1280 x 720. The 4 mm F1.6 fixed lens covers 80.4° horizontally, 41.8° vertically and 98.7° diagonally, and TP-Link quotes DORI distances of 80 m for detection, 33 m for observation, 16 m for recognition and 8 m for identification. Two 850 nm IR LEDs reach 50 m and two white LEDs reach 30 m for full-colour images, minimum illumination is 0.005 lux (0 lux with IR or white light), and the illuminators can be set to auto, scheduled, always on or always off. Image tools include 120 dB WDR, BLC, 3D DNR, HLC, Smart IR, up to four privacy masks and one region of interest.

Motion detection is enhanced with human and vehicle classification for more accurate alerts, and smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, abnormal sound and scene change detection, plus people and vehicle detection. Alarms can trigger memory card recording, message push, an audible warning, white light flashing, FTP upload, an alarm server and email. A built-in microphone, which picks up activity within a 5 m radius, and a built-in speaker give two-way audio with environment noise filtering. Video is compressed with H.265+, H.265, H.264+ or H.264 at 256 Kbps to 6 Mbps on the main stream, and recordings can be stored on a microSD card in the built-in slot.

The camera works with the VIGI App, VIGI VMS, VIGI Cloud VMS and its web UI, supports ONVIF Profiles S, G and T, and allows three main streams and three sub-streams to be viewed at once. It runs from 12 V DC (10.59 W maximum), and a power adapter is included. The metal housing is rated IP66 weatherproof, operates from -30 °C to 60 °C, measures 256 x 122 x 101 mm excluding antennas, and weighs 1.09 kg. In the box are the camera, a Quick Start Guide, waterproof cable attachments, mounting accessories and a power adapter. ARC IP Networks supplies the InSight S345-4G(4mm) from Australian stock with the full manufacturer's warranty.

Key features

Built-in 4G LTE

Cat 4 LTE with up to 150 Mbps downlink and 50 Mbps uplink, using a nano SIM.

Three LAN ports

Three 10/100 Mbps RJ45 LAN ports for minimal deployment effort.

4MP full-colour video

Up to 2688 x 1520 at 25 fps (50 Hz) or 30 fps (60 Hz).

4 mm F1.6 lens

80.4° horizontal view; 80 m detection and 8 m identification DORI distances.

50 m IR, 30 m white light

Two IR LEDs to 50 m and two white LEDs to 30 m for colour night images.

Human and vehicle classification

Motion detection enhanced with human and vehicle classification for more accurate alerts.

Abnormal sound detection

Plus intrusion, line-crossing, loitering and object abandoned/removed detection.

Two-way audio

Built-in microphone and speaker with environment noise filtering.

IP66 metal housing

Rated IP66 weatherproof, -30 °C to 60 °C.

InSight S345-4G(4mm) specifications

At a glance

4MP (2688 x 1520)
4G LTE Cat 4
Nano SIM slot
3 x LAN ports
4 mm F1.6 lens
50 m IR / 30 m white
Two-way audio
IP66
InSight S345-4G(4mm) full specifications
Camera
Image Sensor1/2.7“ Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
Lens
TypeFixed Focal Lens
Focal Length4 mm
ApertureF1.6
FOVHorizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens MountM12
DORI DistanceDetect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Illuminator
Illuminator Type2× IR LED; 2× White LED
IR LEDQuantity: 2; Range: 50m; Wavelength: 850nm
Illuminator DistanceIR LED: 50 m (164 ft); White LED: 30 m (98 ft)
White LEDQuantity: 2; Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688 X 1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520,2560x1440,2304x1296,2048x1280,1920x1080,1280x720
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 848x480,704x576, 640x480, 640x360,352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes (Built-in Microphone)
Audio OutputYes (Built-in Speaker)
Audio CompressionYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/G/T)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
StandardLTE-TDD/LTE-FDD/WCDMA
SIM TypeNano SIM 1
Category4
FrequencyLTE-FDD: B 1/3/5/7/8/20/28; LTE-TDD: B 38/40/41; WCDMA: B 1/5/8
Uplink and Download Data RateUplink: 50 Mbps, Downlink: 150 Mbps
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception (Illegal Login)
Alarm LinkageMemory Card Video Recording; Message Push; Audible Warning; White Light Flashing; Upload to FTP server; Send to Alarm Server; Email Alarm
Interfaces
Network Interface3 RJ45 10/100M LAN Ports
AlarmN/A
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support MicroSD Card, Up to 512 GB 1
Built-in Nano-SIM Card SlotYes
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
General
Operating Temperature-30℃ to 60°C
Storage Temperature-40℃ to 60°C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight1.09 Kg
Power Supply12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Power Plug
AntennaQuantity: 2; Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna; Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
ProtectionIP66 Weatherproof
Product Dimensions (L x W x H)10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)
CertificationsWPS, WHQL, Energy Star, CE, NCC, NTRA, KC, RCM, ONVIF, IP66

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Power Adapter

Source: TP-Link's published package contents.

Who the InSight S345-4G(4mm) is for

Sites using a 4G connection

  • Built-in 4G LTE with a nano SIM
  • Up to 150 Mbps down, 50 Mbps up
  • VIGI Cloud VMS and VIGI App access

Monitoring people and vehicles

  • Human and vehicle classification
  • Line-crossing and intrusion detection
  • Audible warning and white light flashing

Buy the InSight S345-4G(4mm) from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S345-4G(4mm) from the ARC IP Networks team.

Last reviewed October 2026.

Yes. It has a built-in Cat 4 4G LTE modem and a nano SIM slot, with data rates of up to 150 Mbps down and 50 Mbps up.

LTE-FDD B1/3/5/7/8/20/28, LTE-TDD B38/40/41 and WCDMA B1/5/8. Check that your provider's bands are covered.

No PoE input is listed. It runs from 12 V DC (10.59 W maximum), and a power adapter is included.

TP-Link lists three 10/100 Mbps RJ45 LAN ports and describes them as meeting deployment needs with minimal effort.

4MP, up to 2688 x 1520, at up to 25 fps on 50 Hz or 30 fps on 60 Hz.

TP-Link quotes DORI distances of 80 m detection, 33 m observation, 16 m recognition and 8 m identification.

Yes. Two white LEDs reach 30 m for colour images, and two IR LEDs reach 50 m.

Yes. It has a built-in microphone and speaker with environment noise filtering.

Yes. It is rated IP66 and operates from -30 °C to 60 °C.

The camera, a Quick Start Guide, waterproof cable attachments, mounting accessories and a power adapter.

Need more than one InSight S345-4G(4mm) for a 4G camera rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
