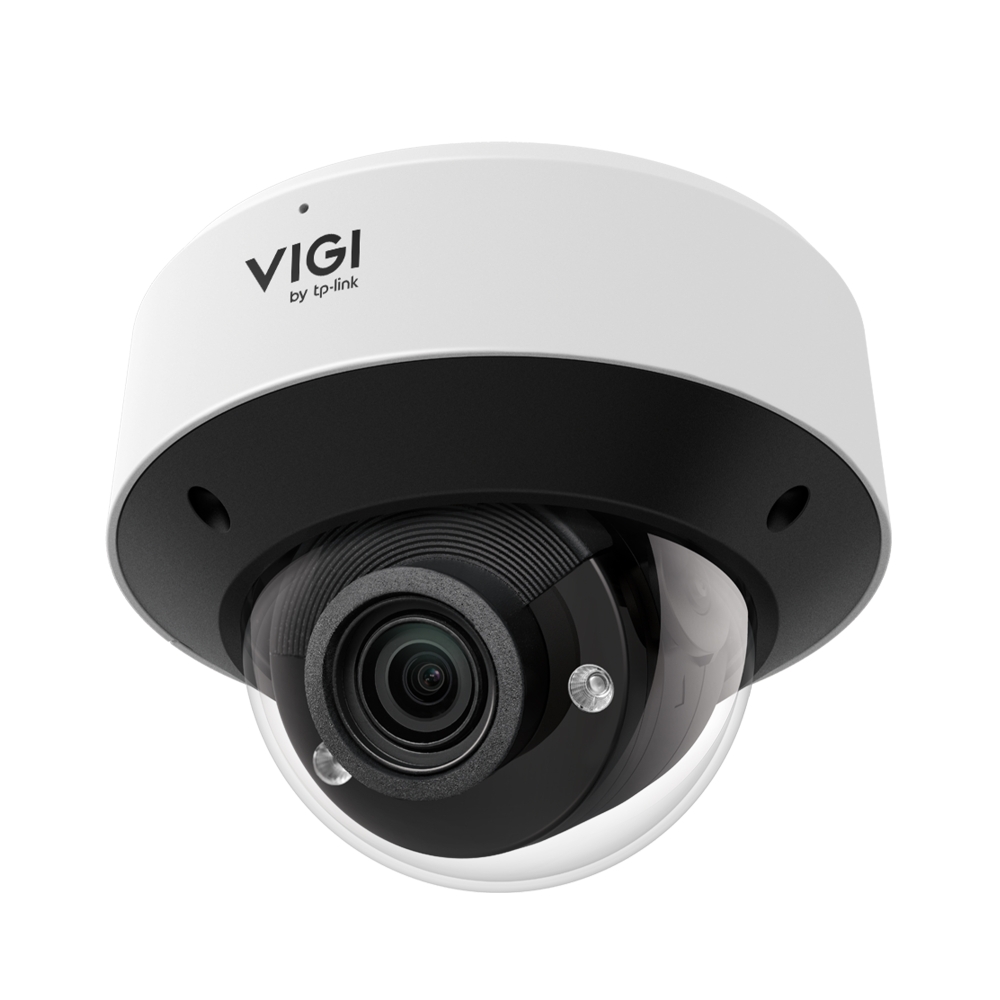

TP-Link VIGI InSight S245ZI 4MP IR Varifocal Dome Camera

https://arcip.com.au/web/image/product.template/11397/image_1920?unique=d95db27

The TP-Link VIGI InSight S245ZI is a 4MP IR motorised varifocal dome network camera. Its 2.7-13.5 mm motorised lens gives 5X optical zoom, and four 850 nm IR LEDs reach up to 60 m based on laboratory testing, with Smart IR, True WDR at 120 dB and 3D DNR for clearer footage. Human & Vehicle Classification reduces false alerts, and it supports two-way audio, one alarm in and one alarm out, H.265+ compression and a built-in microSD card slot. Rated IP67 weatherproof and IK10 vandal proof, it is powered by 802.3af/at PoE or 12V DC. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 305.43 305.43 AUD $ 305.43 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S245ZI
Barcode
8885020623598

The TP-Link VIGI InSight S245ZI is a 4MP IR dome network camera with a 2.7-13.5 mm motorised varifocal lens (5x optical zoom) and 2688 x 1520 resolution. It adds 120 dB True WDR, human and vehicle classification, two-way audio, alarm input and output, a microSD slot and PoE, in an IP67 weatherproof, IK10 vandal-proof metal housing.

InSight S245ZI overview

The InSight S245ZI is a VIGI 4MP dome camera built around a motorised varifocal lens. The 2.7-13.5 mm F1.6 lens gives 5x optical zoom, so the field of view can be set from 102 degrees horizontal at the wide end to 29.6 degrees at full zoom (diagonal 122.8 to 34.1 degrees). TP-Link says adjusting the field of view helps you concentrate on areas of interest, minimise invalid detection zones and enhance target clarity. DORI distances across the zoom range are 62-200 m to detect, 27-84 m to observe, 13-40 m to recognise and 7-21 m to identify. The 1/2.9-inch progressive scan CMOS sensor delivers up to 2688 x 1520 at up to 25 fps (50 Hz) or 30 fps (60 Hz); if the image is rotated 90 or 270 degrees, the frame rate is limited to 20 fps.

Image quality features include 120 dB WDR, which TP-Link calls True WDR: by analysing and blending different exposures it keeps bright and dark areas properly exposed in high-contrast lighting. BLC, 3D DNR, HLC and Smart IR are also listed, with an SNR of 52 dB or better and minimum illumination of 0.005 lux, or 0 lux with IR light. At night, four 850 nm IR LEDs provide illumination, controlled automatically, by schedule, or always on or off, and the day/night switch can be unified, scheduled or automatic. You can set up to four privacy masks and one region of interest. Video uses H.265+, H.265, H.264+ or H.264 on the main stream, and TP-Link says H.265+ reduces the bandwidth and storage needed while keeping image quality.

For analytics, the S245ZI distinguishes humans and vehicles from other objects for more accurate event notifications, and motion detection is enhanced with human and vehicle classification. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, people and vehicle detection, abnormal sound and scene change detection, alongside video tampering detection. Alarm linkage options include memory card recording, push notifications, an active defence sound alarm, email, FTP upload, an alarm output device and an alarm server. It has one alarm input and one alarm output, one audio input and one audio output, two-way audio and a built-in microphone that records anything within a 5 m radius; there is no built-in speaker.

Power comes from 802.3af/at PoE (class 0, max 12 W) through the 10/100M RJ45 port, or from 12 V DC (max 10.8 W). A built-in microSD card slot provides on-board storage. The camera works with the VIGI app, web UI, VIGI VMS and VIGI Cloud VMS, supports ONVIF Profile S/T/G, and allows three main streams and three sub-streams to be viewed simultaneously. The metal housing is IP67 weatherproof and IK10 vandal proof, measures 129.9 mm in diameter by 102.5 mm, weighs 0.775 kg and operates from -30 to 60 degrees C. In the box are the camera, a quick start guide, waterproof cable attachments and mounting accessories. ARC IP Networks supplies the InSight S245ZI from Australian stock with the full manufacturer's warranty.

Key features

Motorised 5x varifocal lens

2.7-13.5 mm F1.6 lens to frame the area of interest and enhance target clarity.

4MP resolution

2688 x 1520 from a 1/2.9-inch progressive scan CMOS sensor.

120 dB True WDR

Blends exposures so bright and dark areas stay properly exposed.

Human and vehicle classification

Distinguishes humans and vehicles from other objects for more accurate alerts.

Smart events

Intrusion, line-crossing, region entry/exit, loitering, object abandoned/removed and more.

Two-way audio and alarm I/O

Audio in/out, built-in microphone, and one alarm input and output.

H.265+ compression

TP-Link says H.265+ reduces bandwidth and storage while keeping image quality.

PoE powered

802.3af/at PoE (class 0, max 12 W) or 12 V DC.

IP67 and IK10 metal housing

Weatherproof and vandal-proof, operating from -30 to 60 degrees C.

VIGI management

VIGI app, web UI, VIGI VMS and VIGI Cloud VMS, plus ONVIF Profile S/T/G.

InSight S245ZI specifications

At a glance

4MP (2688 x 1520)
2.7-13.5 mm motorised
5x optical zoom
120 dB WDR
Human/vehicle AI
Two-way audio
PoE 802.3af/at
IP67 / IK10
InSight S245ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/Scheduled/Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 203-656 ft (62-200 m); Observe: 89-276 ft (27-84 m); Recognize: 43-131 ft (13-40 m); Identify: 23-69 ft (7-21 m)
Angle Adjustment (Manual)
RangePan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 197 ft (60 m) 1; Wavelength: 850 nm
Illuminator Distance197 ft (60 m) 1
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688x1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Push Notifications; Active Defence-Sound Alarm; Email Alarm; Upload to FTP Server; Alarm Output Device; Send to Alarm Server
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support microSD Card, up to 512 GB 3
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30°C to 60 °C
Storage Temperature-40°C to 60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.775 Kg
Power Supply12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)
CertificationsCE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S245ZI is for

Areas needing adjustable framing

  • Zoom in on specific areas of interest
  • Minimise invalid detection zones
  • Wide 102-degree to tight 29.6-degree view

Intrusion and alarm response

  • Intrusion and line-crossing detection
  • Active defence sound alarm
  • Alarm input and output for external devices

Buy the InSight S245ZI from ARC IP Networks

ARC IP Networks supplies genuine TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S245ZI from the ARC IP Networks team.

Last reviewed October 2026.

4MP, with a maximum resolution of 2688 x 1520 at up to 25 fps (50 Hz) or 30 fps (60 Hz).

A 2.7-13.5 mm F1.6 motorised varifocal lens with 5x optical zoom, giving a horizontal field of view from 29.6 to 102 degrees.

Across the zoom range: 62-200 m detect, 27-84 m observe, 13-40 m recognise and 7-21 m identify.

Yes. Four 850 nm IR LEDs, with minimum illumination of 0 lux with IR light.

Yes. It distinguishes humans and vehicles from other objects, and motion detection is enhanced with human and vehicle classification.

Yes. It supports two-way audio, with one audio input and one audio output and a built-in microphone covering a 5 m radius. There is no built-in speaker.

By 802.3af/at PoE (class 0, max 12 W) or a 12 V DC supply (max 10.8 W).

Yes. It has a built-in microSD card slot.

Yes. It is IP67 weatherproof and IK10 vandal proof, operating from -30 to 60 degrees C.

The VIGI app, web UI, VIGI VMS and VIGI Cloud VMS. It also supports ONVIF Profile S/T/G.

Need more than one InSight S245ZI for a VIGI surveillance rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link VIGI products.
