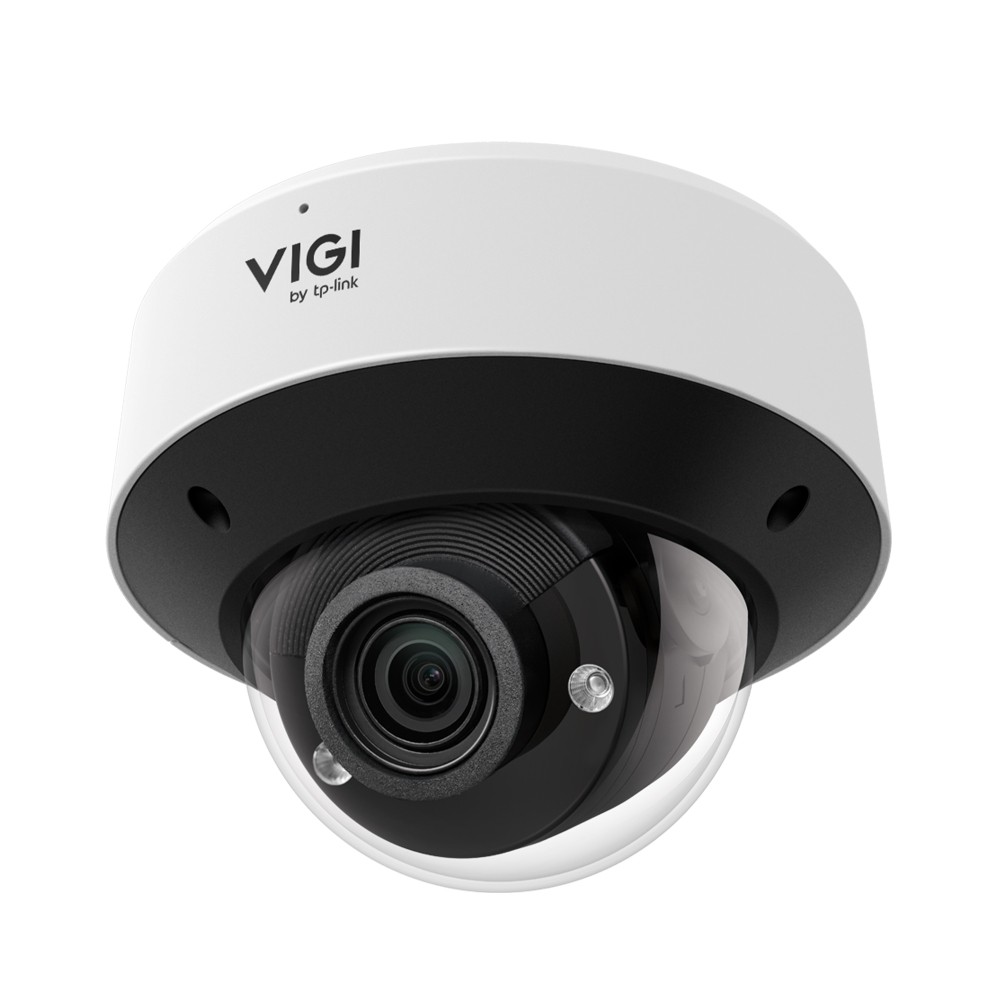

TP-Link VIGI InSight S245ZI 4MP IR Motorised Varifocal Dome Network Camera

https://arcip.com.au/web/image/product.template/11397/image_1920?unique=83b1493

The TP-Link VIGI InSight S245ZI is a 4MP (2688 x 1520) IR dome network camera with a motorised 2.7-13.5 mm F1.6 varifocal lens and 5X optical zoom, so the field of view can be narrowed from 102° to 29.6° horizontal after installation. Four IR LEDs are rated to 60 m in TP-Link's laboratory testing. It adds human and vehicle classification, smart event detection, one alarm in and out, one audio in and out, a microSD slot, 802.3af/at PoE and an IP67, IK10 metal housing. Supplied by ARC IP Networks with the full manufacturer's warranty.

$ 305.43 305.43 AUD $ 305.43 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
INSIGHT-S245ZI
Barcode
8885020623598

The TP-Link VIGI InSight S245ZI is a 4MP IR dome network camera with a motorised 2.7-13.5 mm varifocal lens, giving 5X optical zoom and a horizontal view you can set anywhere from 102° down to 29.6°. Four 850 nm IR LEDs are rated to 60 m under TP-Link's laboratory test conditions, and the metal dome adds human and vehicle classification, alarm and audio in/out terminals, a microSD slot, PoE and IP67 and IK10 protection.

InSight S245ZI overview

TP-Link sums up the VIGI InSight S245ZI as 'See Every Detail Up Close'. It is a 4MP IR dome network camera, and what sets it apart from the fixed-lens VIGI domes is the motorised varifocal lens: 2.7 to 13.5 mm, F1.6, with 5X optical zoom. TP-Link explains that adjusting the field of view helps you concentrate on areas of interest, minimise invalid detection zones and enhance target clarity. At the wide end the horizontal view is 102.0°; at full zoom it narrows to 29.6°, with vertical coverage of 53.8° to 16.8° and diagonal coverage of 122.8° to 34.1°.

Because the lens moves, TP-Link quotes DORI distances as a range across the zoom: detect 62 to 200 m, observe 27 to 84 m, recognise 13 to 40 m and identify 7 to 21 m. The 1/2.9" progressive scan CMOS sensor delivers up to 2688 x 1520, with main-stream resolutions down to 1920 x 1080 at up to 25 fps on 50 Hz or 30 fps on 60 Hz (20 fps when the image is rotated 90° or 270°). Main-stream bit rate runs from 256 Kbps to 6 Mbps in H.265+, H.265, H.264+ or H.264. TP-Link says H.265+ saves 57.5% and 15% more storage than H.264 and H.265 respectively, a figure it bases on laboratory testing with a 3MP VIGI camera and notes will vary with recorded activity, resolution and other variables.

Night coverage comes from four 850 nm IR LEDs. TP-Link rates them to 60 m and states that this is calculated from laboratory testing and will vary with client limitations and environmental factors. Minimum illumination is 0.005 lux, or 0 lux with IR, using an IR-cut filter with unified, scheduled or automatic day/night switching. Image processing includes 120 dB True WDR, BLC, 3D DNR, HLC and Smart IR, which TP-Link says adjusts infrared output to prevent overexposure and glare at different distances. There are up to four privacy masks and one ROI region.

Motion detection is enhanced with human and vehicle classification, and the smart event set covers intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection. The S245ZI has terminals for one alarm in and one alarm out plus one audio in and one audio out; it has a built-in microphone covering a 5 m radius but TP-Link lists the built-in speaker as N/A, so two-way audio needs an external speaker on the audio out. Linkage options include memory card recording, push notifications, an Active Defence sound alarm, email, FTP upload, alarm output and sending to an alarm server. Power is 802.3af/at PoE (class 0, maximum 12 W) or 12 V DC (maximum 10.8 W), storage is a microSD slot for cards up to 512 GB (card not included), and the metal dome is rated IP67 and IK10, measures Φ129.9 x 102.5 mm and weighs 0.775 kg.

Key features

Motorised 5X varifocal lens

2.7-13.5 mm F1.6 motorised varifocal lens with 5X optical zoom.

Adjustable field of view

Horizontal view from 102.0° at the wide end to 29.6° at full zoom.

DORI range across the zoom

Detect 62-200 m, observe 27-84 m, recognise 13-40 m, identify 7-21 m.

4MP resolution

2688 x 1520 from a 1/2.9" progressive scan CMOS sensor.

IR night vision

Four 850 nm IR LEDs rated to 60 m in TP-Link laboratory testing.

Human and vehicle classification

Separates people and vehicles from other motion for more accurate alerts.

Alarm and audio terminals

One alarm in, one alarm out, one audio in and one audio out.

Smart event detection

Intrusion, line-crossing, region entry and exit, loitering, object left or removed, scene change.

IP67 and IK10 dome

Metal housing rated IP67 weatherproof and IK10 vandal proof, -30 to 60 °C.

PoE or 12 V DC

802.3af/at PoE up to 12 W, or 12 V DC up to 10.8 W.

InSight S245ZI specifications

At a glance

4MP 2688x1520
2.7-13.5 mm motorised
5X optical zoom
102° to 29.6° HFOV
IR up to 60 m
Alarm + audio I/O
802.3af/at PoE
IP67 / IK10
InSight S245ZI full specifications
Camera
Image Sensor1/2.9” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR Light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/Scheduled/Auto
Lens
TypeMotorized Varifocal Lens
Focal Length2.7-13.5 mm (5X Optical Zoom)
ApertureF1.6
FOV2.7-13.5 mm:; Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8°
Lens MountΦ14
DORI Distance2.7-13.5 mm:; Detect: 203-656 ft (62-200 m); Observe: 89-276 ft (27-84 m); Recognize: 43-131 ft (13-40 m); Identify: 23-69 ft (7-21 m)
Angle Adjustment (Manual)
RangePan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344°
Illuminator
Illuminator Type4× IR LED
IR LEDQuantity: 4; Range: 197 ft (60 m) 1; Wavelength: 850 nm
Illuminator Distance197 ft (60 m) 1
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Video
Max. Resolution2688x1520
Main StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 Note:; If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-StreamFrame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps; Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit RateMain Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
Image SettingsMirror; Brightness; Contrast; Saturation; Sharpness; Exposure; WDR; White Balance; Prevent Overexposure to Infrared Light; HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
Audio
Audio CommunicationTwo-Way Audio
Audio InputYes
Audio OutputYes
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Network
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIFYes
APIOpen Network Video Interface (Profile S/T/G)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web BrowserGoogle Chrome 57 and above; Firefox 52 and above; Safari 11 and above; Microsoft Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm And Event Management
Smart EventIntrusion Detection; Line-Crossing Detection; Region Entering Detection; Region Exiting Detection; Object Abandoned Detection; Object Removal Detection; Loitering Detection; People Detection; Vehicle Detection; Abnormal Sound Detection; Scene Change Detection
Basic EventMotion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts); Video Tampering Detection; Exception ( Illegal Login); Alarm Input Device
Alarm LinkageMemory Card Video Recording; Push Notifications; Active Defence-Sound Alarm; Email Alarm; Upload to FTP Server; Alarm Output Device; Send to Alarm Server
Interfaces
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm1 Alarm In, 1 Alarm Out
Reset ButtonYes
PowerDC Power Port
On-board StorageBuilt-In Memory Card Slot, Support microSD Card, up to 512 GB 3
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
Audio1 Audio In, 1 Audio Out
General
Operating Temperature-30°C to 60 °C
Storage Temperature-40°C to 60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
MaterialMetal
Net Weight0.775 Kg
Power Supply12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max.12 W
ProtectionIP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H)Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)
CertificationsCE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories

Source: TP-Link's published package contents.

Who the InSight S245ZI is for

Adjustable framing

  • Motorised zoom from 2.7 to 13.5 mm
  • Concentrate on areas of interest
  • Minimise invalid detection zones

Exposed dome positions

  • IK10 vandal-proof rating
  • IP67 weatherproof metal housing
  • -30 to 60 °C operating range

Wired alarm integration

  • One alarm input and one alarm output
  • Audio in and out for external devices
  • Email, FTP and alarm server linkage

InSight S245ZI compared

TP-Link uses the same 4MP sensor and 2.7-13.5 mm motorised lens in three InSight housings. Figures are from each model's TP-Link Australia product page.

SpecS245ZI (dome)S345ZI (bullet)S445ZI (turret)
HousingDomeOutdoor bulletTurret
Lens2.7-13.5 mm, 5X2.7-13.5 mm, 5X2.7-13.5 mm, 5X
Horizontal FOV29.6°-102.0°29.6°-102.0°29.6°-102.0°
Detect62-200 m66-207 m66-207 m
Identify7-21 m7-21 m7-21 m
IR range60 m60 m60 m
Manual tilt0° to 75°0° to 90°0° to 77°
ProtectionIP67, IK10IP67, IK10IP67, IK10
Net weight0.775 kgNot stated0.71 kg

Source: TP-Link Australia product pages for each model.

Buy the InSight S245ZI from ARC IP Networks

ARC IP Networks supplies TP-Link VIGI products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link VIGI product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the InSight S245ZI from the ARC IP Networks team.

Last reviewed October 2026.

A motorised varifocal lens of 2.7 to 13.5 mm with an F1.6 aperture and 5X optical zoom. TP-Link says adjusting the field of view helps you concentrate on areas of interest and minimise invalid detection zones.

Horizontal coverage runs from 102.0° at 2.7 mm to 29.6° at 13.5 mm. Vertical coverage is 53.8° to 16.8°, and diagonal is 122.8° to 34.1°.

Across the zoom range: detect 62-200 m, observe 27-84 m, recognise 13-40 m and identify 7-21 m.

TP-Link rates the four 850 nm IR LEDs to 60 m. It notes this is calculated from laboratory testing and that actual results vary with client limitations and environmental factors.

No. TP-Link lists the built-in speaker as N/A. It has a built-in microphone that records within a 5 m radius, plus one audio in and one audio out terminal, so two-way audio uses an external speaker.

Yes. It has one alarm input and one alarm output, and alarm linkage includes alarm output device, send to alarm server, email alarm, FTP upload and push notifications.

The metal housing is rated IP67 weatherproof and IK10 vandal proof, with an operating temperature of -30 to 60 °C.

By 802.3af/at PoE (class 0, maximum 12 W) or a 12 V DC supply through a 5.5 mm coaxial plug (maximum 10.8 W).

Yes. The built-in slot takes microSD cards up to 512 GB. TP-Link notes the SD card is not included in the package.

TP-Link lists the VIGI App, Web UI, VIGI VMS and VIGI Cloud VMS, and the camera supports ONVIF Profile S/T/G.

Need more than one InSight S245ZI for a VIGI varifocal dome deployment?

Ask ARC IP Networks for volume and project pricing on TP-Link VIGI products.
