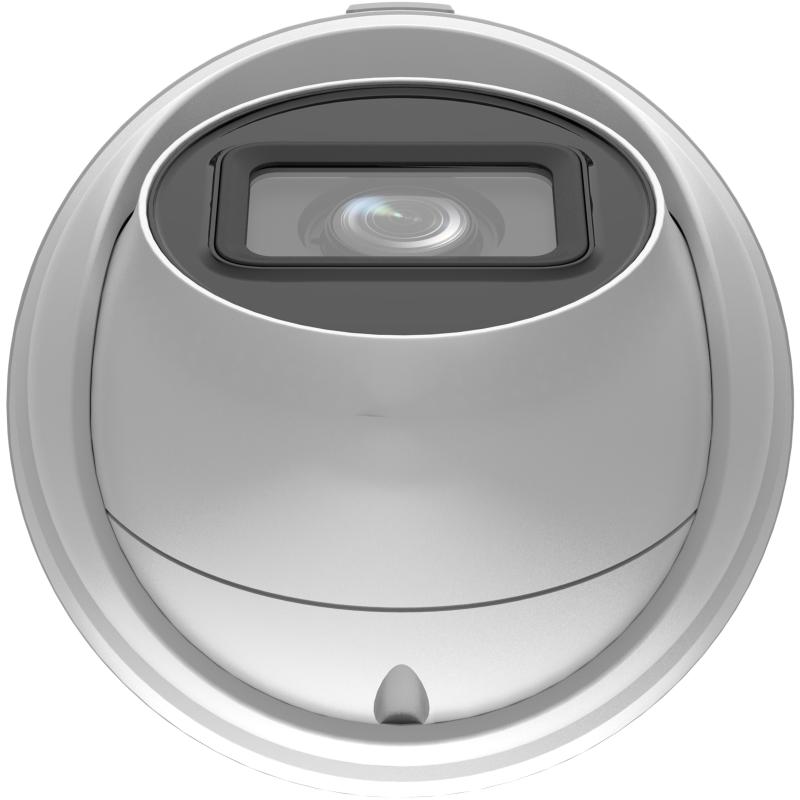

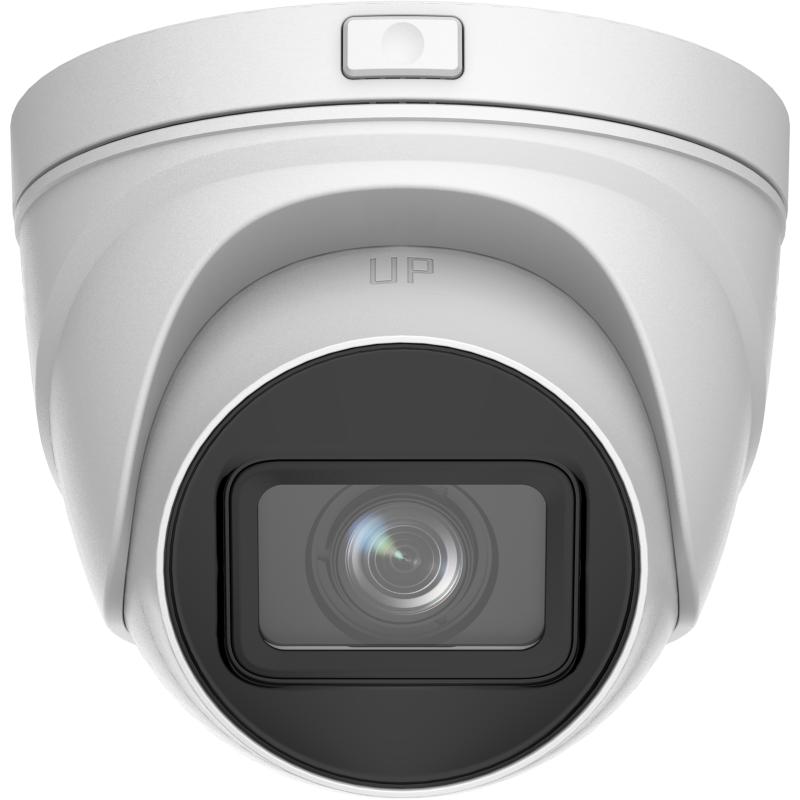

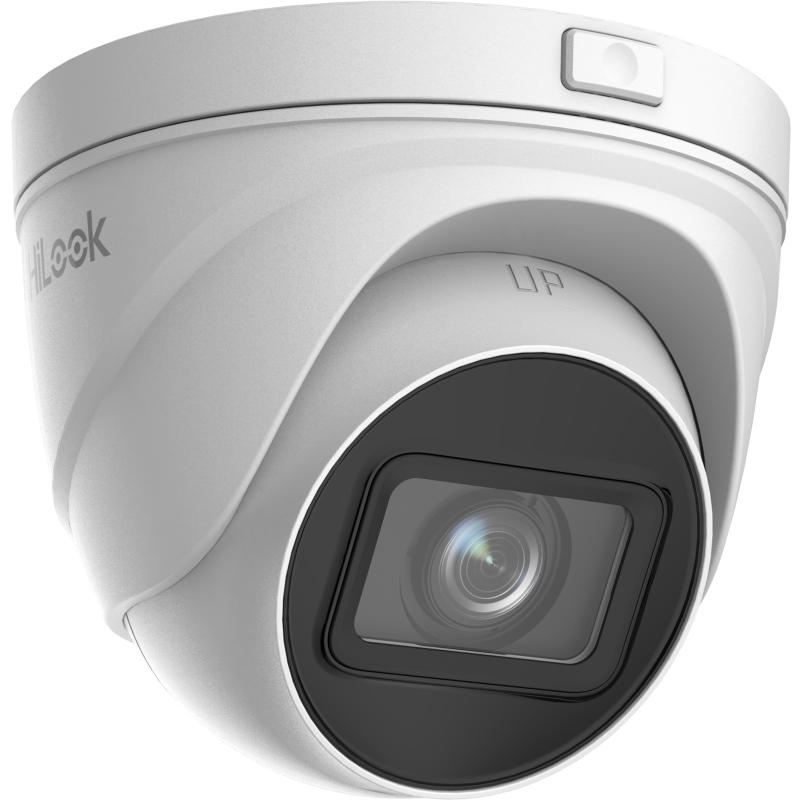

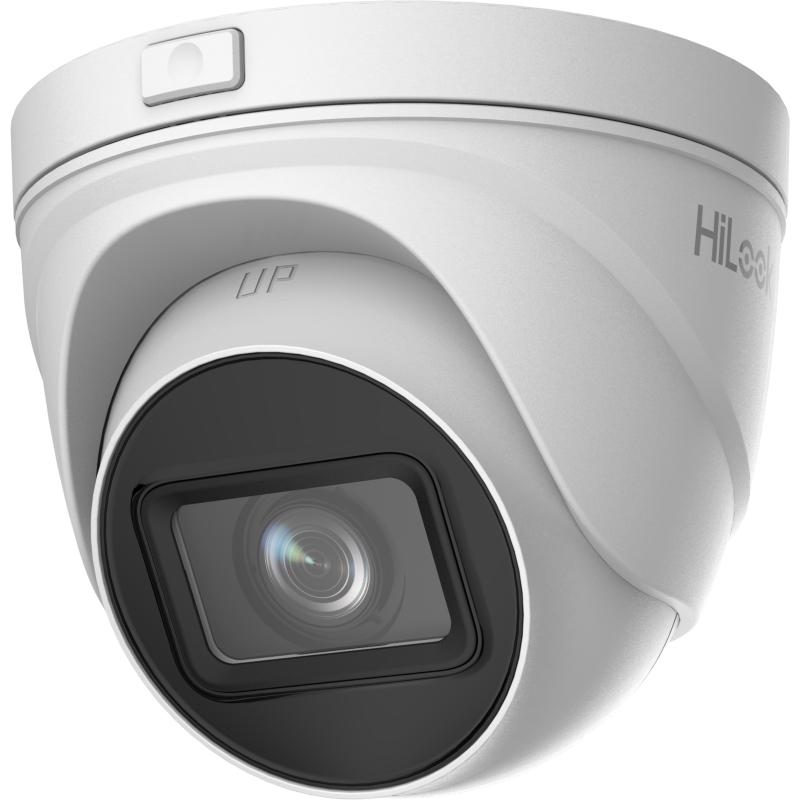

HiLook IPC-T651H-Z — 5 MP Motorised Varifocal Turret Network Camera
Single-lens turret camera with motorised 2.8–12 mm varifocal lens, 30 m IR, H.265+ compression and IP67 protection for demanding outdoor surveillance.
Key Features
  • High-resolution 5 MP (2560 × 1920) 1/2.7" progressive scan CMOS sensor delivers crisp, detailed footage day and night.
  • Motorised varifocal lens (2.8–12 mm, F1.6) allows remote zoom and focus adjustment without physical access to the camera, reducing commissioning time on high-mounted installations.
  • Up to 30 m IR illumination (850 nm wavelength) with automatic IR cut filter for true day/night switching — colour at 0.005 Lux, zero Lux in IR mode.
  • 120 dB true Wide Dynamic Range (WDR) preserves detail in both bright and shadowed areas within the same scene (e.g. entrance gates, shop fronts).
  • Efficient H.265+ compression reduces bitrate and storage requirements by up to 75 % versus H.264 without compromising image quality.
  • IP67-rated housing is waterproof and dustproof, suitable for exposed outdoor locations including rooflines, car parks, and industrial perimeters.
  • Wide angle-adjustment range: pan 0–360°, tilt 0–75°, rotate 0–360° — providing flexible ceiling or wall-mount positioning.
  • On-board microSD/SDHC/SDXC slot (up to 256 GB) for local edge recording as a backup or standalone solution.
  • Dual power options: 12 VDC (max. 9 W) or IEEE 802.3af PoE (Class 3, max. 10 W) — simplifying cable runs in new and retrofit installations.
  • 3D DNR (Digital Noise Reduction) and BLC (Back-Light Compensation) further enhance image clarity in challenging lighting conditions.
  • Supports ONVIF (Open Network Video Interface) and ISAPI for seamless integration with Hikvision, HiLook and third-party NVR/VMS platforms.
  • 3-year manufacturer warranty as standard, backed by HiLook’s global support network.
Technical Specifications
Camera
Image Sensor1/2.7" progressive scan CMOS
Maximum Resolution2560 × 1920 (5 MP)
Minimum IlluminationColour: 0.005 Lux @ F1.6 AGC ON; B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter (auto/schedule/day/night)
Angle AdjustmentPan: 0–360°, Tilt: 0–75°, Rotate: 0–360°
Lens
Lens TypeMotorised varifocal
Focal Length2.8–12 mm
ApertureF1.6 (fixed iris)
Lens MountØ14
Horizontal FOV96° (2.8 mm) to 29° (12 mm)
Vertical FOV69° (2.8 mm) to 22° (12 mm)
Diagonal FOV131° (2.8 mm) to 37° (12 mm)
Illuminator
Supplement Light TypeIR (infrared)
IR RangeUp to 30 m
IR Wavelength850 nm
Video
Main Stream (50 Hz)20 fps @ 2560 × 1920; 25 fps @ 2560 × 1440, 1920 × 1080, 1280 × 720
Main Stream (60 Hz)20 fps @ 2560 × 1920; 30 fps @ 2560 × 1440, 1920 × 1080, 1280 × 720
Sub-Stream (50 Hz)25 fps @ 1280 × 720, 640 × 480, 640 × 360
Sub-Stream (60 Hz)30 fps @ 1280 × 720, 640 × 480, 640 × 360
Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 ProfileBaseline / Main / High
H.265 ProfileMain
ROI1 fixed region (main stream)
Wide Dynamic Range120 dB
Image EnhancementBLC, 3D DNR, brightness/contrast/sharpness/AGC/white balance adjustable
Network & Interface
Ethernet1 × RJ45 10 M/100 M self-adaptive
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, SSL/TLS, Bonjour
Simultaneous Live ViewUp to 6 channels
APIONVIF, ISAPI
Users / HostsUp to 32 users; 3 permission levels (administrator, operator, user)
On-Board StoragemicroSD/SDHC/SDXC/TF card slot, up to 256 GB
EventsMotion detection, video tampering alarm, exception
LinkageFTP upload, email notification, surveillance centre notification, memory card recording, capture
General FunctionsAnti-flicker, heartbeat, mirror, privacy mask, watermark, IP address filter, password protection
General
Power Supply12 VDC ± 25%, 0.75 A, max. 9 W (coaxial); or PoE 802.3af Class 3 (36–57 V, max. 10 W)
Housing Diameter × HeightØ129.4 mm × 116.4 mm
Camera Weight (approx.)595 g
Operating Temperature–30°C to 60°C (humidity ≤ 95%, non-condensing)
Storage Temperature–30°C to 60°C (humidity ≤ 95%, non-condensing)
Ingress ProtectionIP67 (IEC 60529)
CertificationsCE-EMC, CE-LVD, CE-RoHS, FCC SDoC, RCM (AS/NZS CISPR 32), UL 62368-1, IP67
Warranty3 years
Frequently Asked Questions
What is the HiLook IPC-T651H-Z and what makes it suitable for outdoor use?

The HiLook IPC-T651H-Z is a 5 MP outdoor turret IP camera featuring a motorised varifocal 2.8–12 mm lens. It carries an IP67 ingress protection rating, meaning it is fully protected against dust ingress and powerful water jets, making it ideal for rooflines, building perimeters, car parks and industrial facilities exposed to Australian weather conditions. Its operating range of –30°C to 60°C also covers the extremes encountered across Australia.

How does the motorised varifocal lens benefit installation?

The motorised varifocal lens can be zoomed and focused remotely via the camera’s web interface or an NVR/VMS, without any physical adjustment at the camera. This is a significant practical advantage for cameras mounted at height — installers can set the exact field of view from a laptop or tablet on the ground, eliminating the need for repeated ladder access. The 2.8–12 mm range provides a wide horizontal field of view of 96° at 2.8 mm narrowing to 29° at 12 mm, covering scenes from close-range entry points to long-range corridor or carpark monitoring.

Does the IPC-T651H-Z support PoE, and what NVRs is it compatible with?

Yes. The camera supports IEEE 802.3af Power over Ethernet (Class 3, up to 10 W), allowing a single Cat5e/Cat6 cable to carry both power and data — reducing installation cost and complexity. It is compatible with all HiLook and Hikvision PoE NVRs, as well as any ONVIF-compliant third-party NVR or VMS. The camera is also configurable directly via its built-in web interface or Hik-Connect mobile app.

What storage options does the IPC-T651H-Z support?

The camera includes a built-in microSD/SDHC/SDXC/TF card slot supporting cards up to 256 GB, enabling local edge recording. This can serve as a standalone recorder (continuous or event-triggered), or as a backup buffer that ensures footage is retained even during network interruptions when the primary NVR is unreachable. For larger installations, the camera connects to HiLook NVRs or Hikvision IP-SAN/NAS storage solutions over the network.

How does the 120 dB WDR on the IPC-T651H-Z handle high-contrast scenes?

Wide Dynamic Range (WDR) is the camera’s ability to simultaneously expose bright areas (such as sunlit areas outside a window) and dark areas (such as a shadowed interior) in the same frame. At 120 dB, the IPC-T651H-Z captures a very wide tonal range, making it effective for lobby entrances, reception areas, gates and other scenes where a bright sky or light source sits in the same frame as a shaded subject. Without WDR, these scenes produce either a washed-out bright area or a silhouetted dark subject — the 120 dB WDR on this camera reproduces both zones clearly in a single image.

What warranty does the HiLook IPC-T651H-Z carry in Australia?

The HiLook IPC-T651H-Z carries a 3-year manufacturer warranty. ARC IP Networks distributes genuine HiLook products sourced through authorised Australian distribution channels. In the unlikely event of a warranty claim, the unit is handled through the local distribution network — eliminating the delays associated with direct overseas returns. Australian stock is held locally and typically dispatched within 1–3 business days of order.

Professional Overview

The HiLook IPC-T651H-Z occupies the value segment of the HiLook IP camera range while delivering specifications that rival mid-range offerings from other brands. Its 5 MP resolution at a competitive price point makes it a strong choice for price-sensitive projects — multi-site retail, strata complexes, small commercial premises — where image detail and remote manageability are required without premium spend. The motorised varifocal lens in particular elevates it above fixed-lens value cameras by enabling rapid, tool-free angle adjustment post-installation.

For integrators, the camera’s ONVIF compliance means it can be added to an existing mixed-brand system without dedicated manufacturer software. H.265+ compression keeps bandwidth and storage costs low across larger systems: a 16-camera deployment using H.265+ versus H.264 can save several terabytes of NAS storage per month. The 100 Mbps Ethernet port and up-to-6-simultaneous-stream support are well-suited to typical SME NVR deployments where multiple clients (NVR, mobile app, web browser) connect concurrently.

The IP67 + wide temperature range (–30°C to 60°C) combination ensures reliable year-round operation across Australian climates, from subtropical Queensland installations to frost-prone alpine facilities. RCM certification (AS/NZS CISPR 32:2015) confirms the camera meets Australian electromagnetic compatibility requirements, and CE LVD/RoHS compliance aligns with international safety and environmental standards.

The HiLook IPC-T651H-Z is supplied new in original manufacturer packaging complete with mounting hardware, cable connector and quick start guide. Australian stock from ARC IP Networks.

Brand HiLook
Resolution 5 MP
Ingress Protection IP67
Power PoE 802.3af / 12 VDC
IR Range 30 m
Lens Type Motorised Varifocal
Focal Length 2.8-12 mm
WDR 120 dB
Compression H.265+
